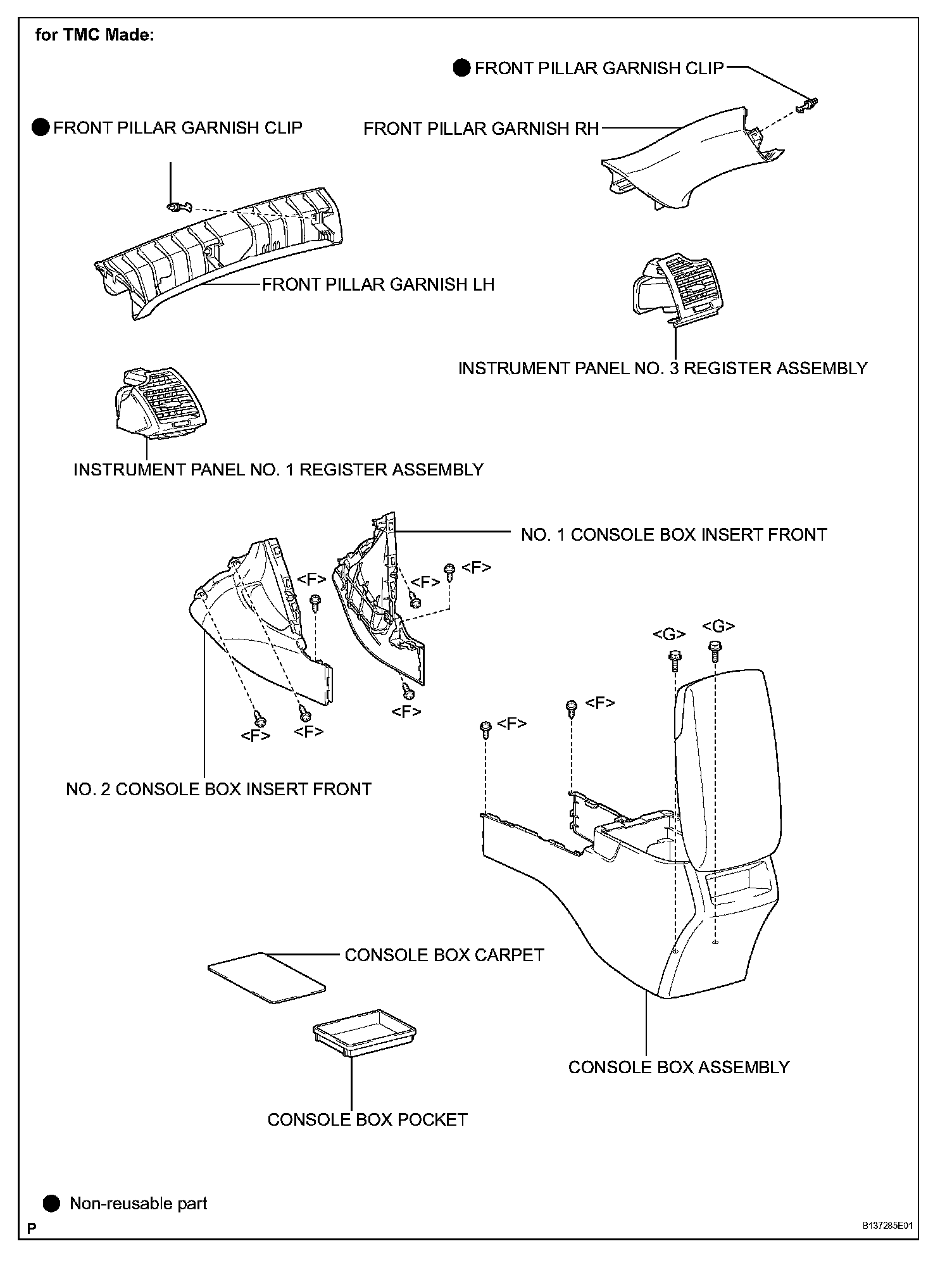

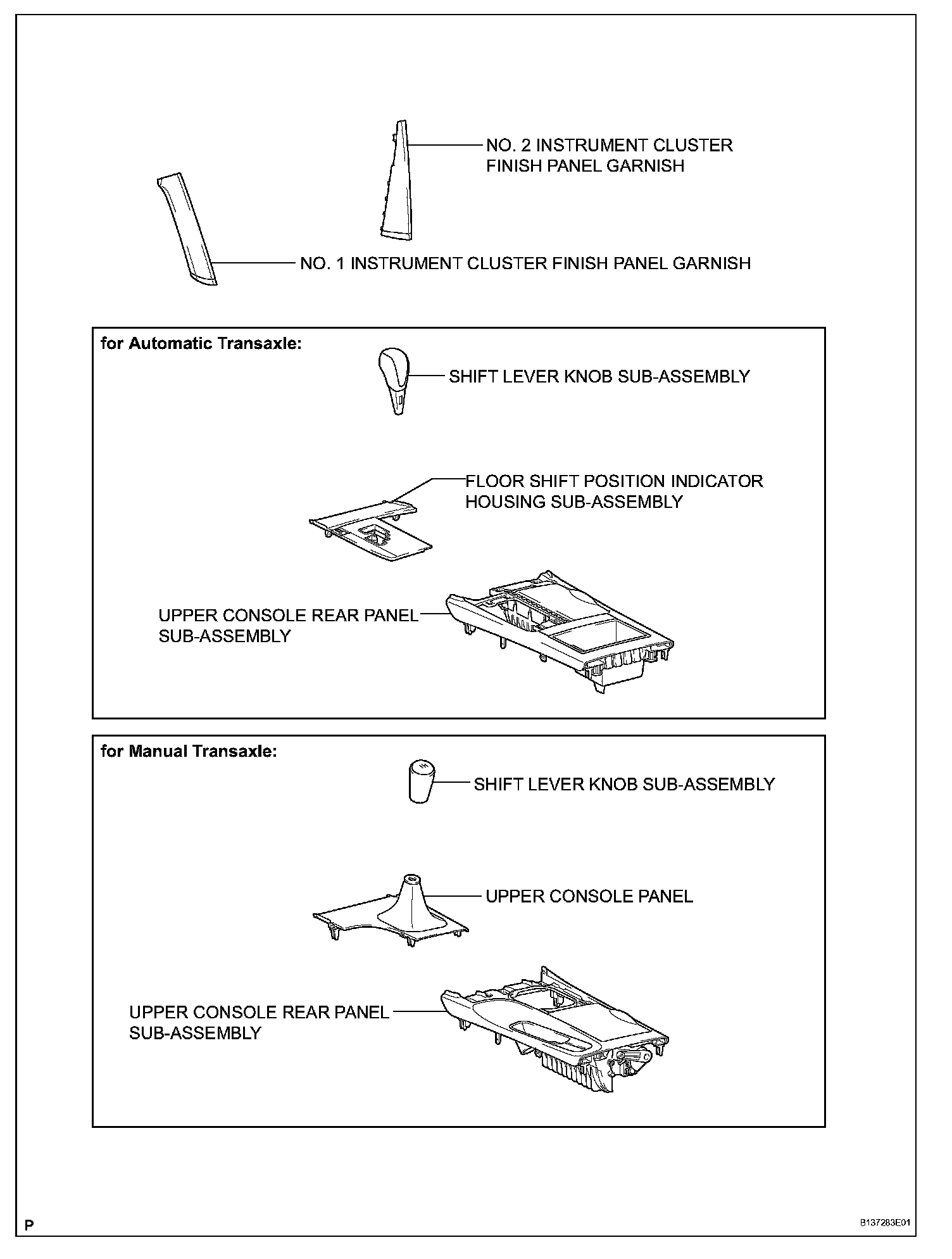

Cabin Air Filter / Purifier

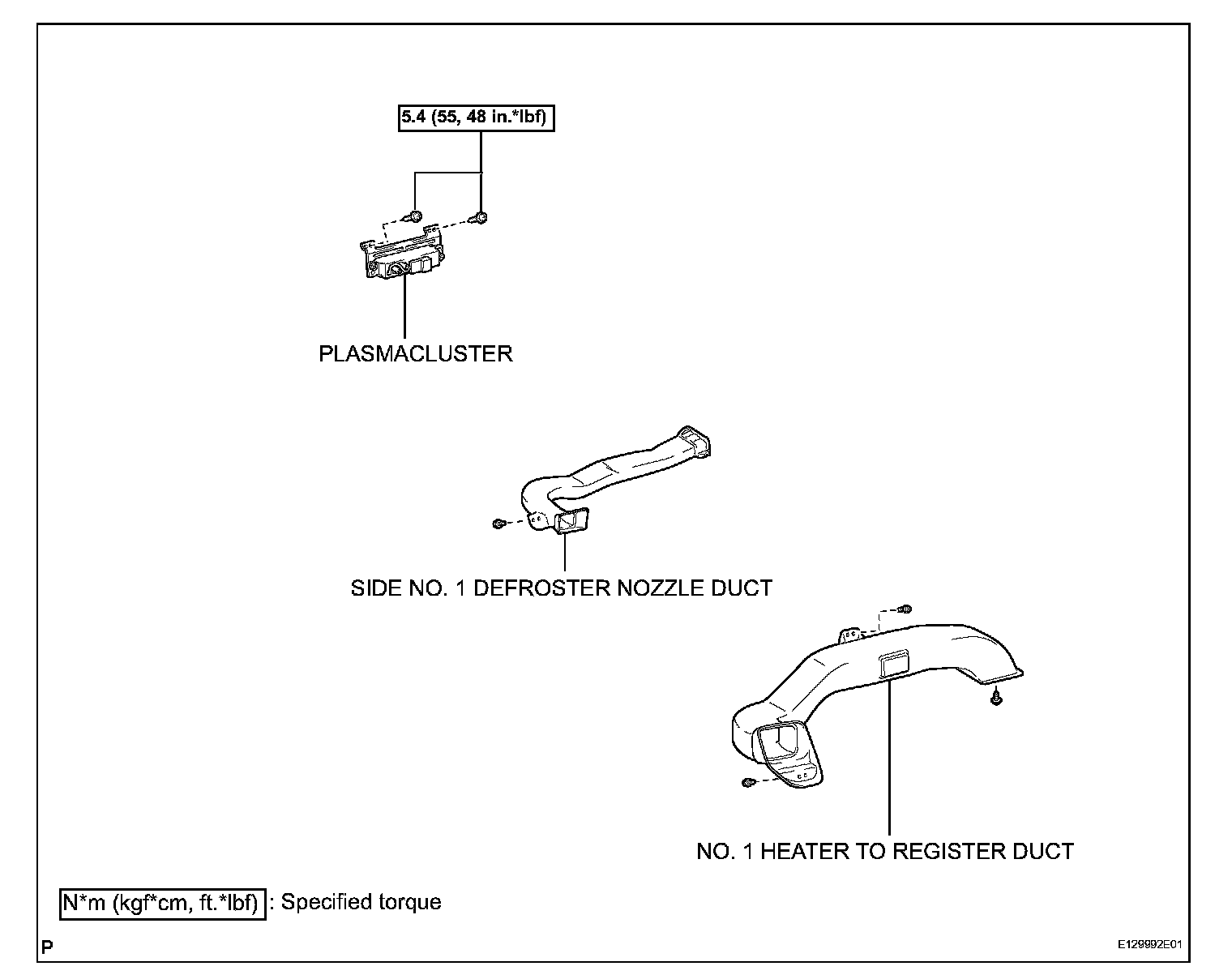

Plasmacluster:

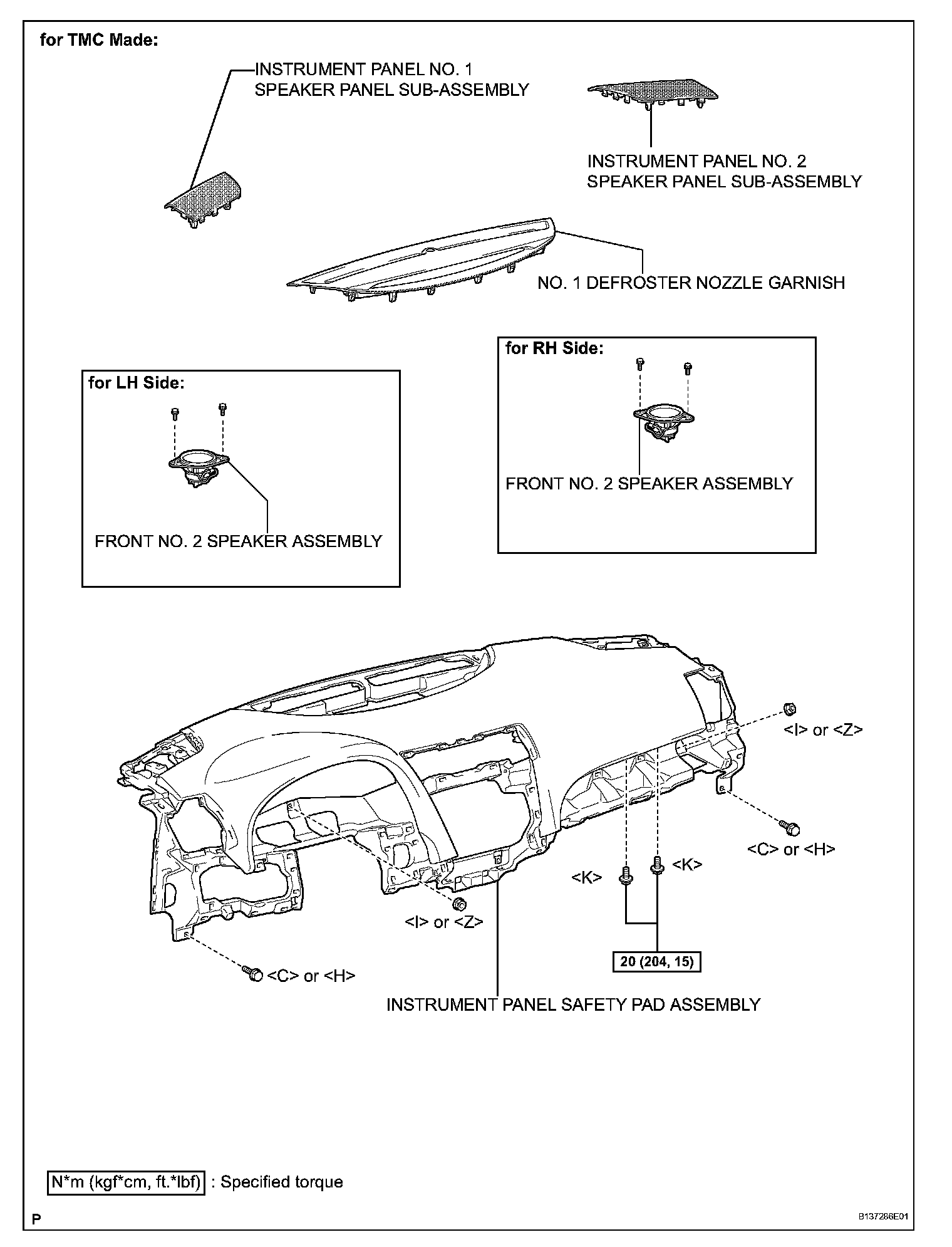

Plasmacluster:

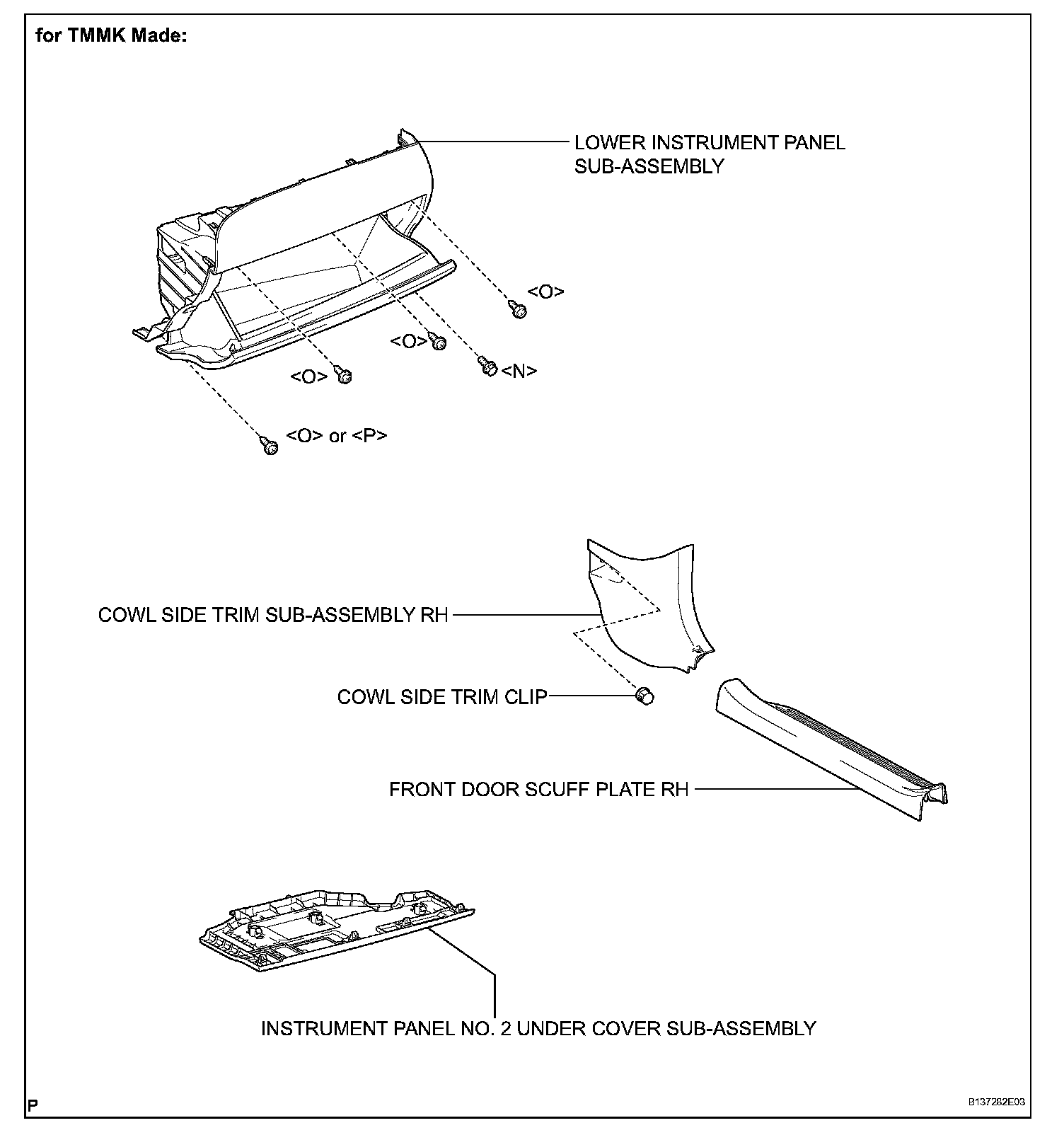

Plasmacluster:

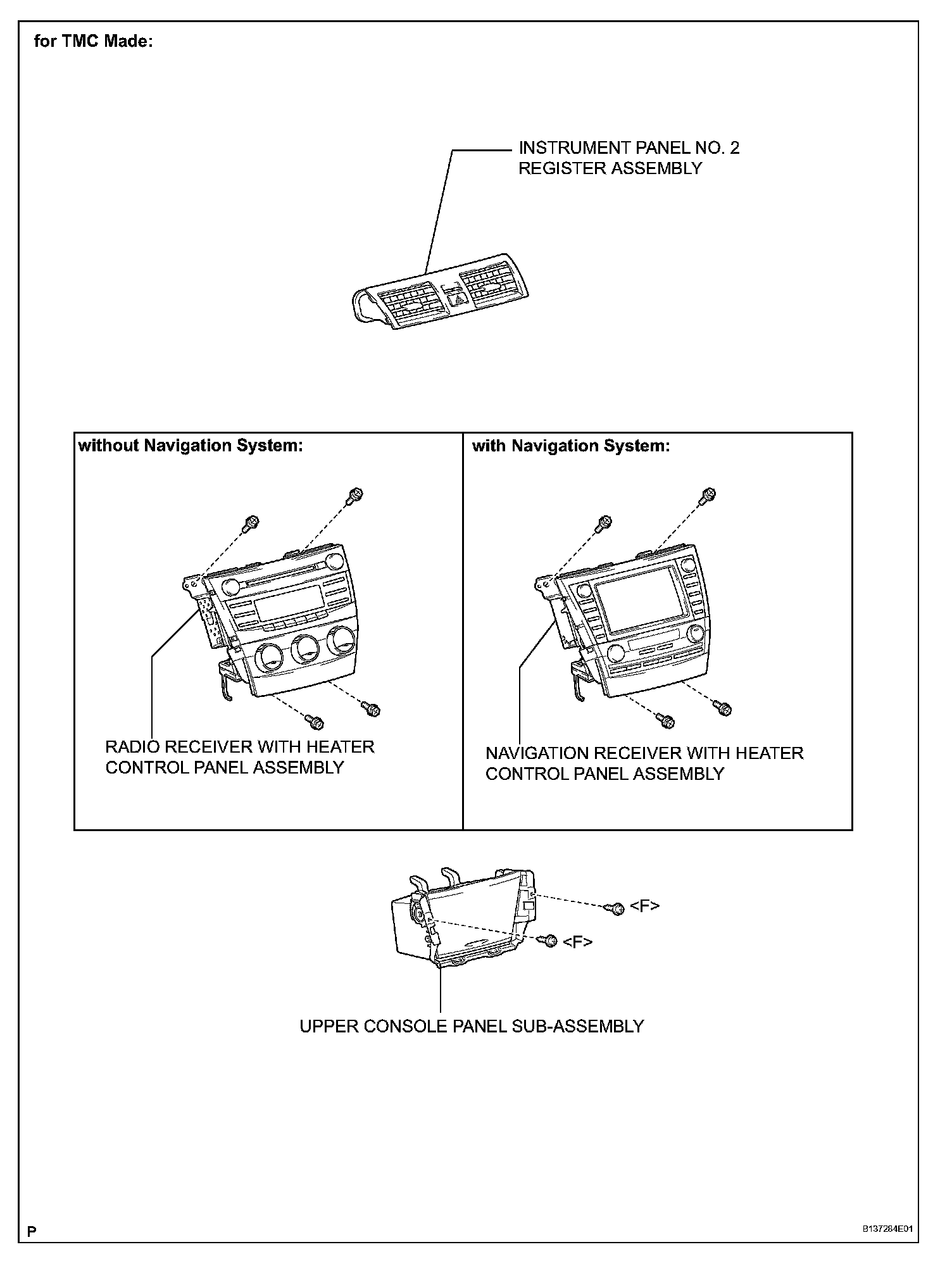

Plasmacluster:

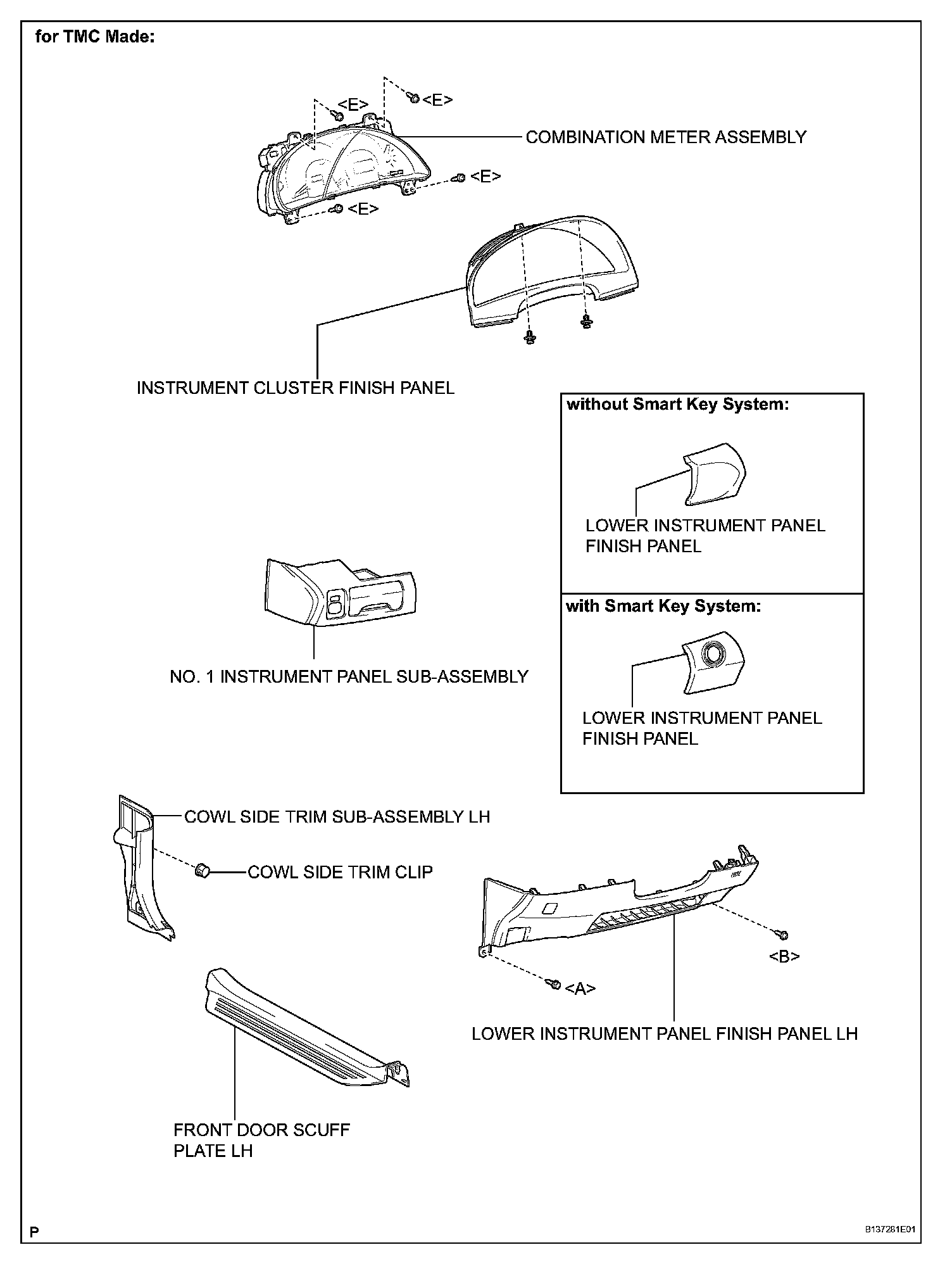

Plasmacluster:

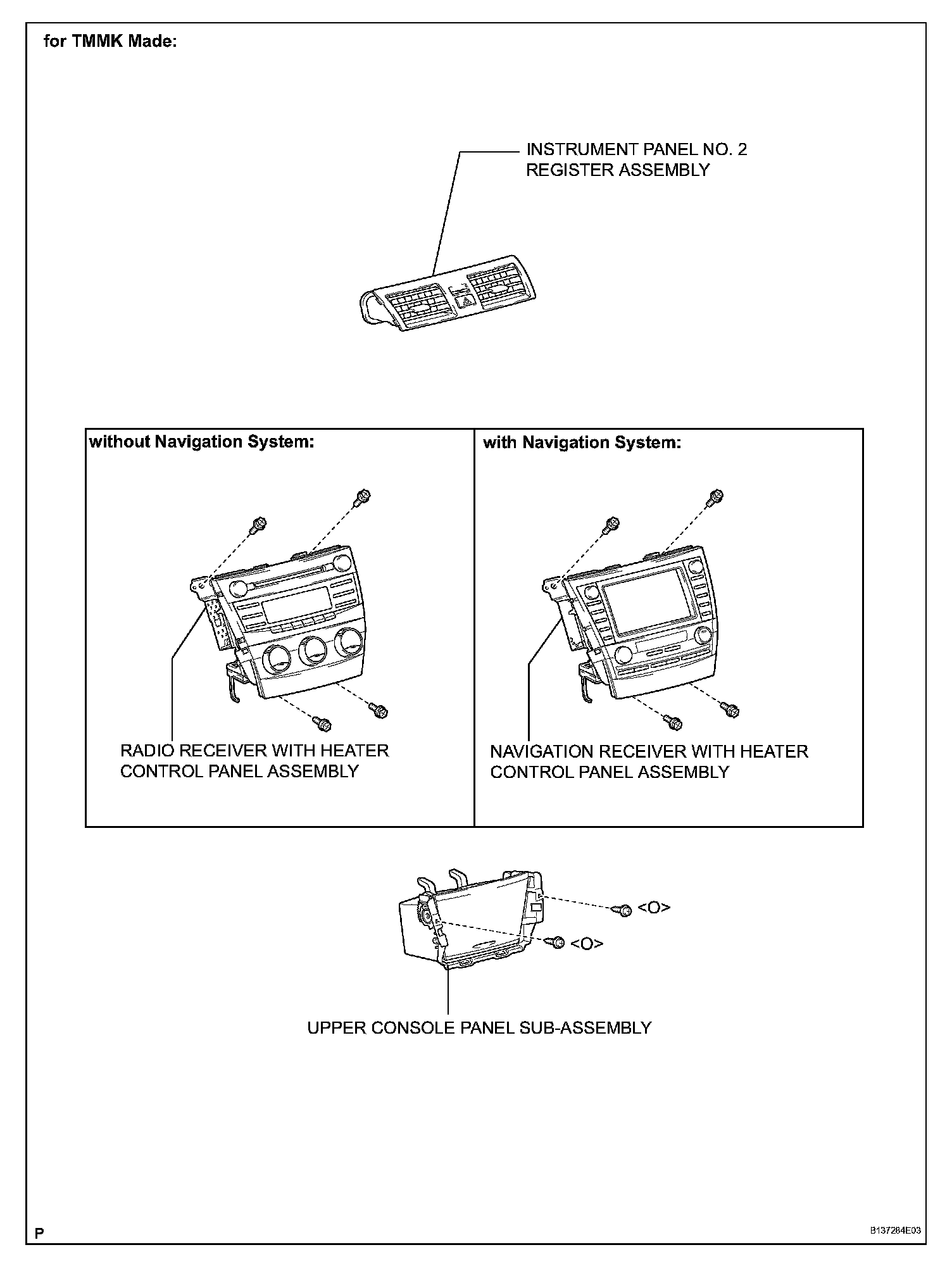

Plasmacluster:

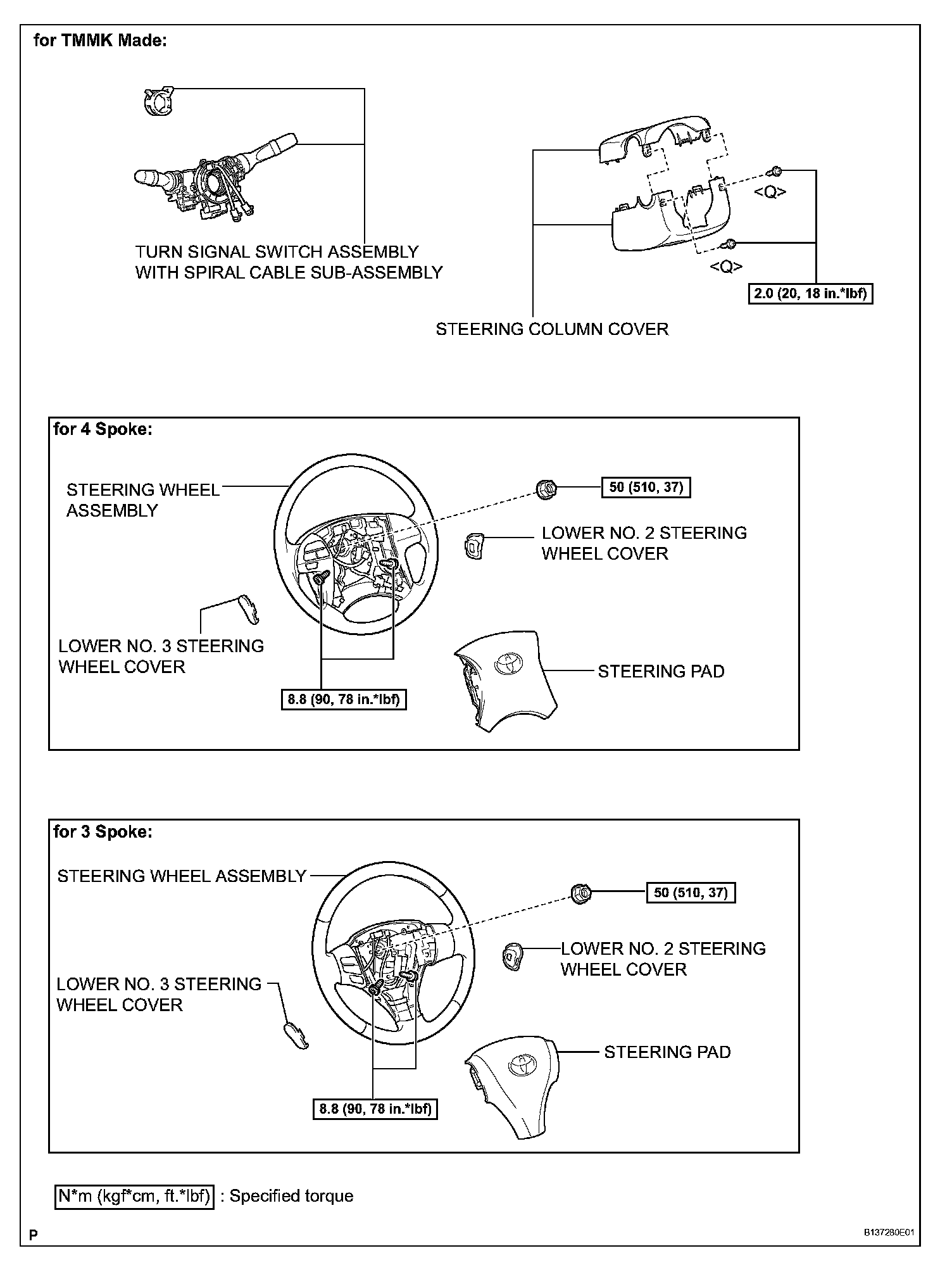

Plasmacluster:

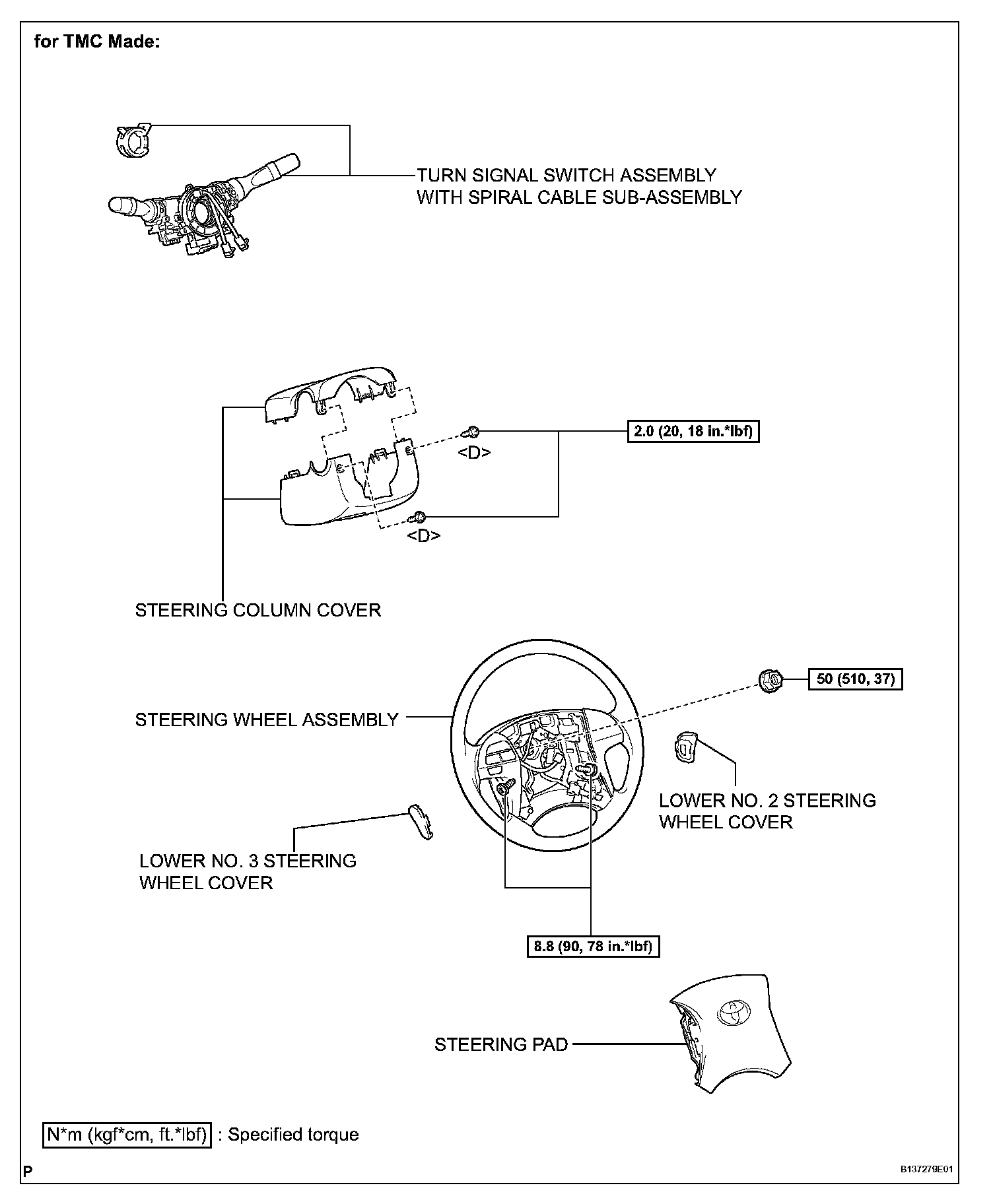

Plasmacluster:



Plasmacluster:



Plasmacluster:



Plasmacluster:



Plasmacluster:



Plasmacluster:



Plasmacluster:
