Electronic Brake Control Module
>>
Antilock Brake (ABS) System
Antilock Brake (ABS) System

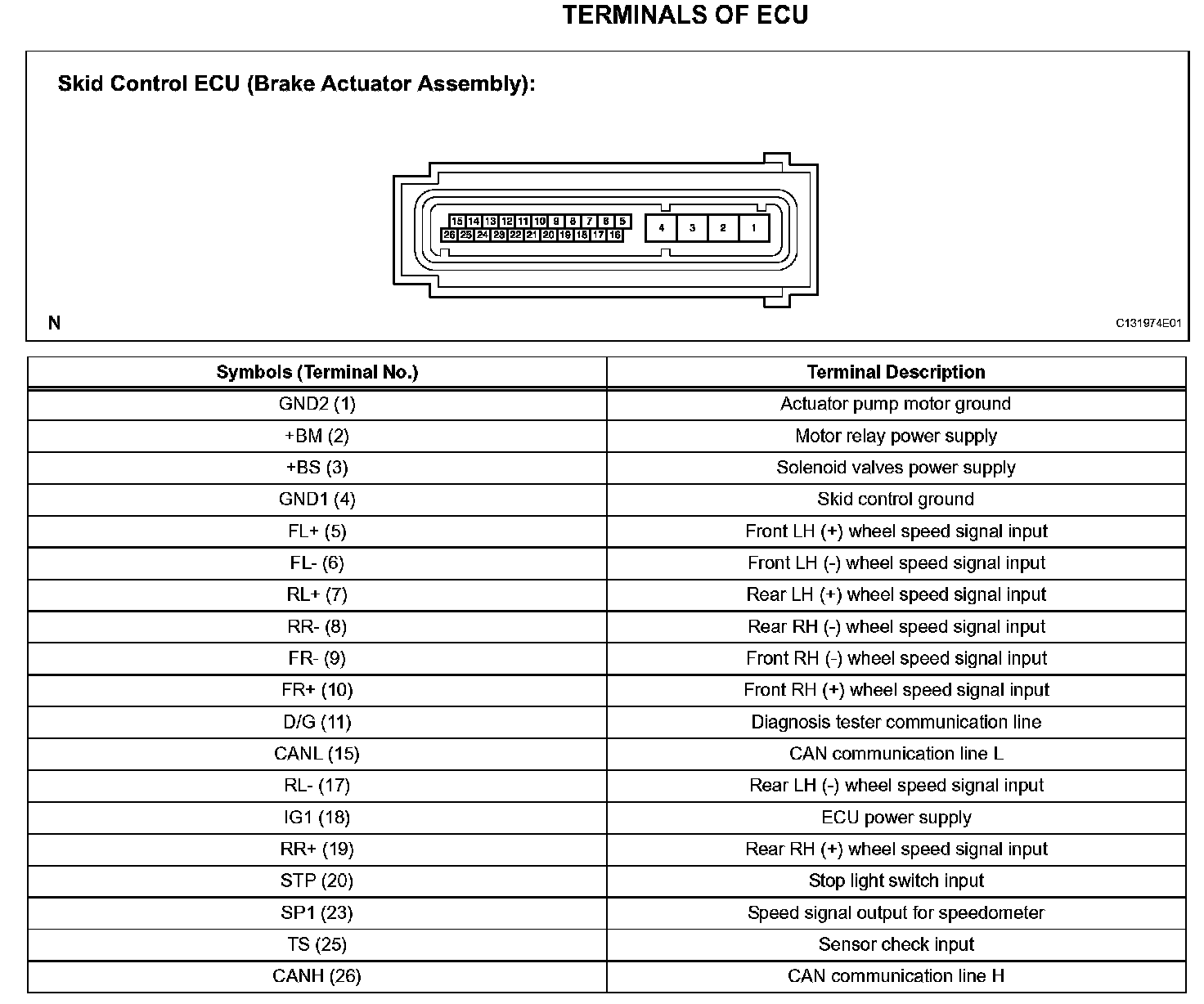

Terminals Of Control Module/Pinouts:

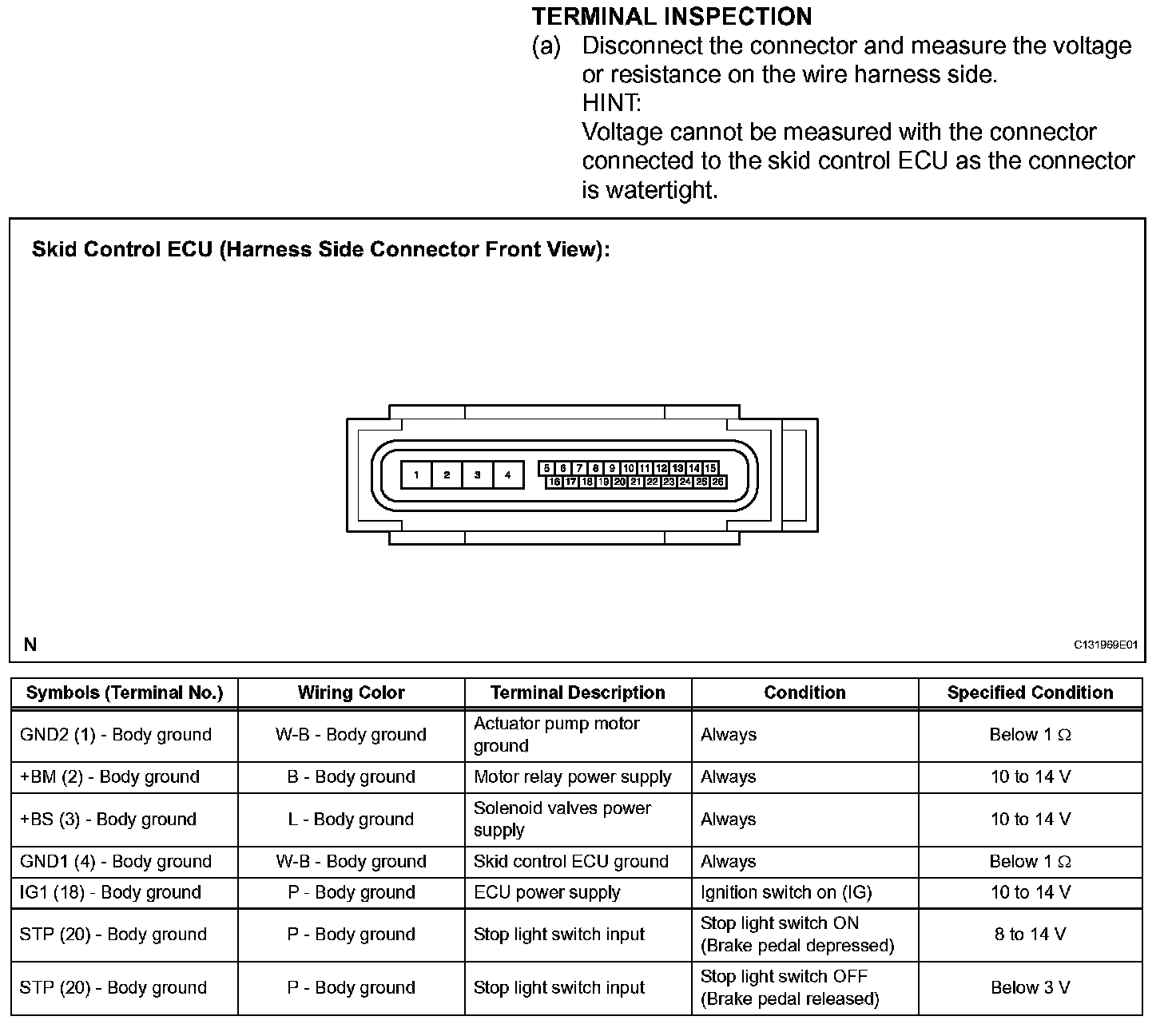

Terminals Of Control Module/Pinouts:
