Removal and Replacement

PARKING BRAKE LEVER

COMPONENTS (Part 1):




COMPONENTS (Part 2):




COMPONENTS (Part 3):




COMPONENTS (Part 4):




COMPONENTS (Part 5):





COMPONENTS (Part 6):




COMPONENTS (Part 7):




COMPONENTS (Part 8):




COMPONENTS (Part 9):





REMOVAL
1. PRECAUTION
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for Manual Seat)

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

3. REMOVE FRONT SEAT ASSEMBLY LH (for Manual Seat)

HINT: Refer to the procedures up to "REMOVE FRONT SEAT ASSEMBLY (for Manual Seat)".

4. REMOVE FRONT SEAT ASSEMBLY RH (for Manual Seat)

HINT: Use the same procedures for the RH side and the LH side.

5. REMOVE FRONT SEAT ASSEMBLY LH (for Power Seat)

HINT: Refer to the procedures up to "REMOVE FRONT SEAT ASSEMBLY (for Power Seat)".

6. REMOVE FRONT SEAT ASSEMBLY RH (for Power Seat)

HINT: Use the same procedures for the RH side and the LH side.

7. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
8. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH
9. REMOVE INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY
10. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made)
11. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made)
12. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY
13. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMC Made)
14. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMMK Made)
15. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
16. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
17. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
18. REMOVE UPPER CONSOLE PANEL
19. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY
20. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMC Made)
21. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMMK Made)
22. REMOVE CONSOLE BOX POCKET
23. REMOVE CONSOLE BOX CARPET
24. REMOVE CONSOLE BOX ASSEMBLY (for TMC Made)
25. REMOVE CONSOLE BOX ASSEMBLY (for TMMK Made)
26. REMOVE NO. 2 CONSOLE BOX INSERT FRONT (for TMC Made)
27. REMOVE NO. 2 CONSOLE BOX INSERT FRONT (for TMMK Made)
28. REMOVE NO. 1 CONSOLE BOX INSERT FRONT (for TMC Made)
29. REMOVE NO. 1 CONSOLE BOX INSERT FRONT (for TMMK Made)
30. REMOVE FLOOR CARPET BRACKET LH
31. REMOVE FLOOR CARPET BRACKET RH
32. REMOVE FRONT DOOR SCUFF PLATE LH
33. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
34. REMOVE REAR DOOR SCUFF PLATE LH
35. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
36. REMOVE LOWER CENTER PILLAR GARNISH LH
37. REMOVE FRONT DOOR SCUFF PLATE RH
38. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
39. REMOVE REAR DOOR SCUFF PLATE RH
40. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
41. REMOVE LOWER CENTER PILLAR GARNISH RH

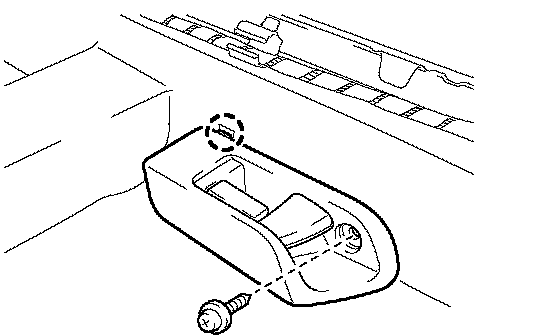

42. REMOVE LUGGAGE DOOR LOCK OPEN LEVER SUB-ASSEMBLY
(a) Remove the screw.
(b) Disengage the claw and remove the luggage door open lever sub-assembly.
43. REMOVE FRONT FLOOR CARPET ASSEMBLY

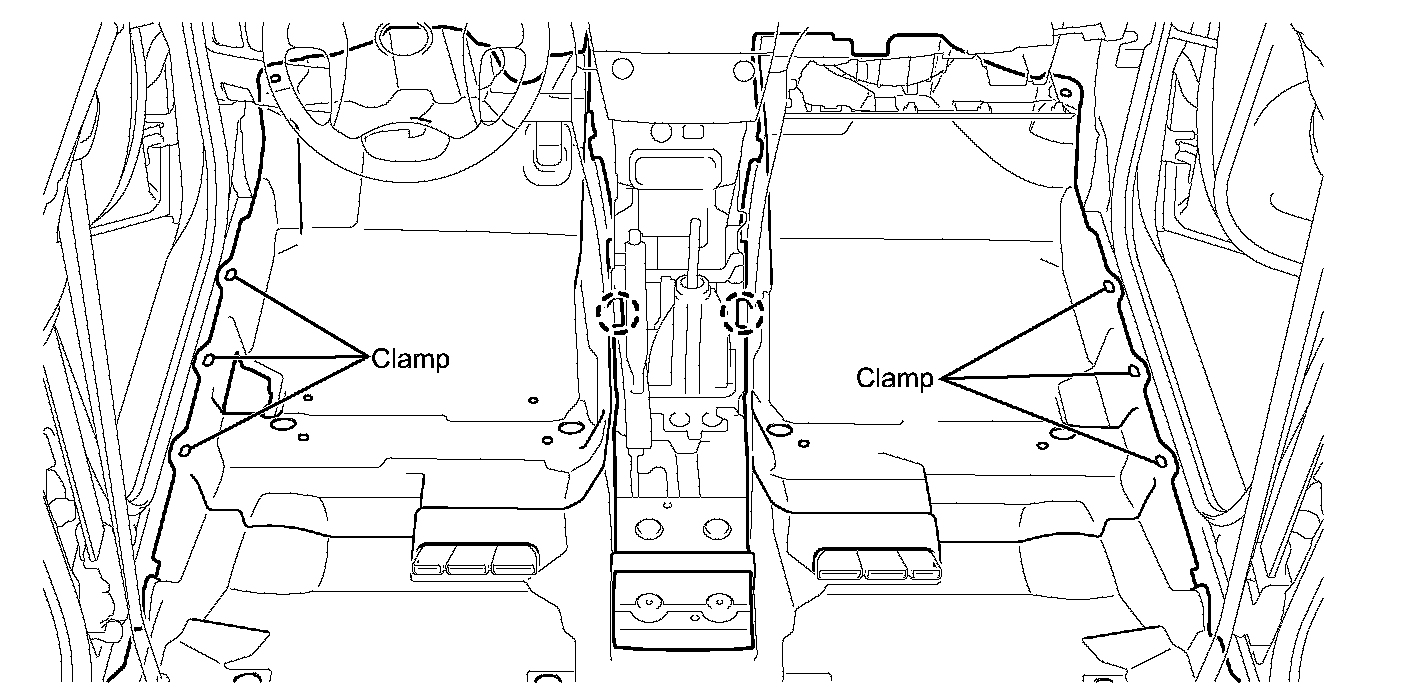

(a) Disengage the 6 clamps and the 2 claws.





(b) Turn back the front floor carpet assembly until the bolts of the cross member floor No. 4 reinforcement sub-assembly can be seen.

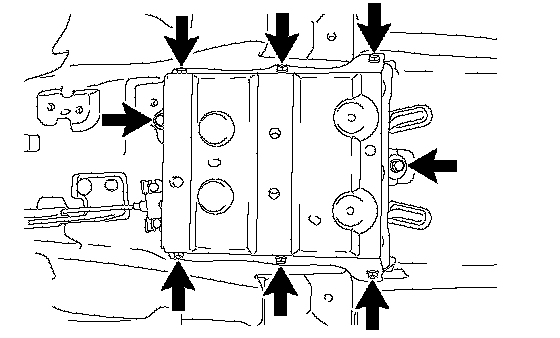

44. REMOVE CROSS MEMBER FLOOR NO. 4 REINFORCEMENT SUB-ASSEMBLY
(a) Remove the 8 bolts and the cross member floor No. 4 reinforcement sub-assembly.

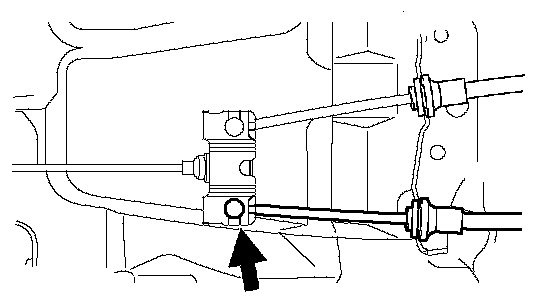

45. SEPARATE NO. 3 PARKING BRAKE CABLE ASSEMBLY

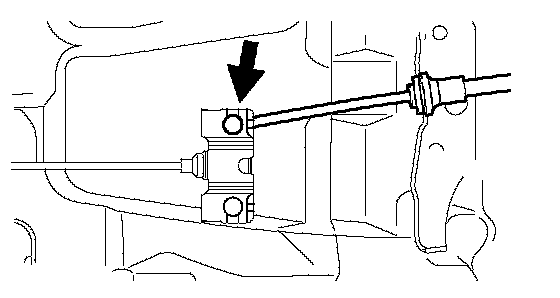

(a) Separate the No. 3 parking brake cable assembly from the parking brake equalizer.

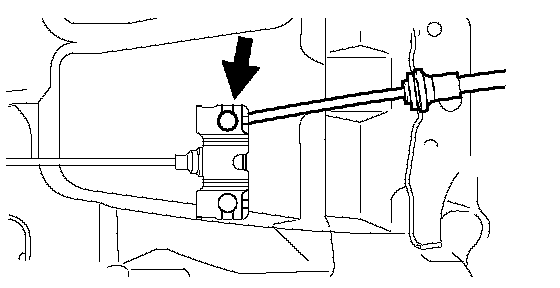

46. SEPARATE NO. 2 PARKING BRAKE CABLE ASSEMBLY

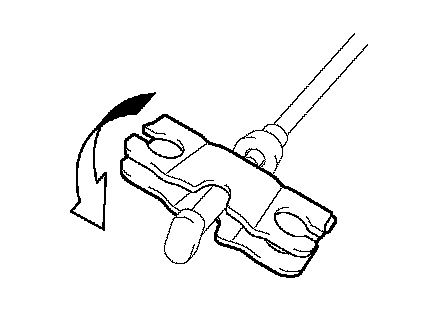

Separate the No. 2 parking brake cable assembly from the parking brake equalizer.





47. REMOVE PARKING BRAKE EQUALIZER

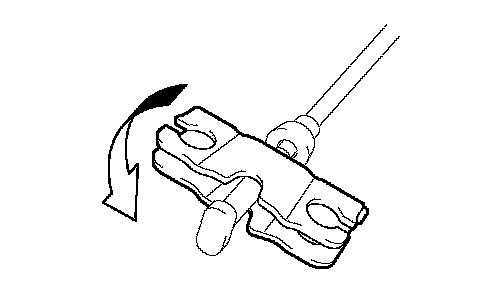

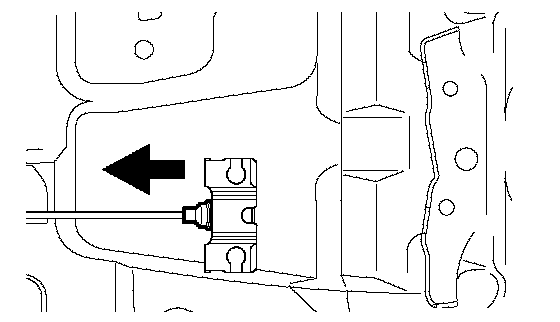

(a) Slide the rubber boot as shown in the illustration.





(b) Remove the parking brake equalizer from the No. 1 parking brake cable assembly.

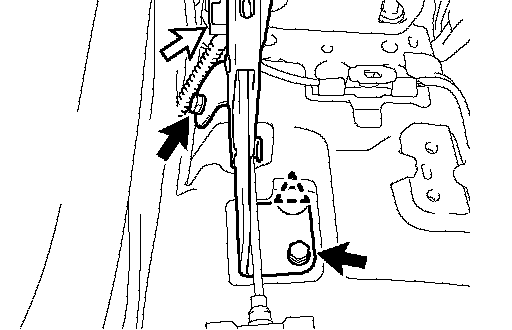

48. REMOVE PARKING BRAKE LEVER SUB-ASSEMBLY
(a) Disconnect the parking brake switch connector.
(b) Remove the 2 bolts, the clip, and the parking brake lever.

INSTALLATION

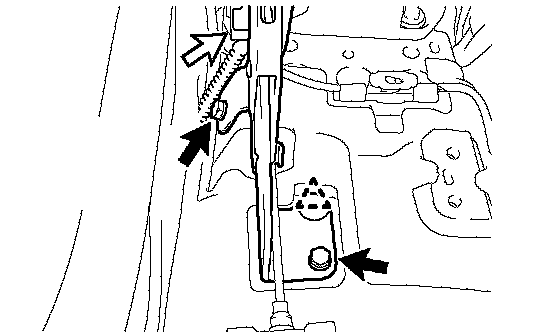

1. INSTALL PARKING BRAKE LEVER SUB-ASSEMBLY
(a) Install the parking brake lever sub-assembly with the 2 bolts and the clip.
Torque:
for TMC made 21 Nm (214 kgf-cm, 15 ft. lbs.)
for TMMK made 22 Nm (224 kgf-cm, 16 ft. lbs.)
(b) Connect the parking brake switch connector.





2. INSTALL PARKING BRAKE EQUALIZER
(a) Install the parking brake equalizer to the No. 1 parking brake cable assembly.

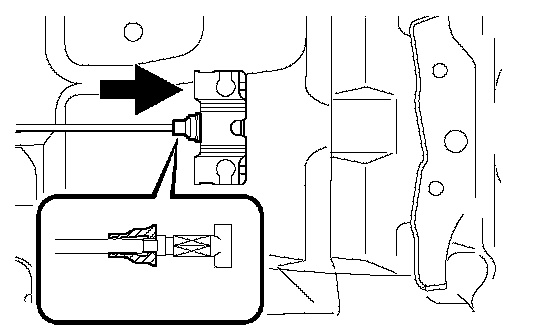

(b) Slide the rubber boot back as shown in the illustration.





3. INSTALL NO. 2 PARKING BRAKE CABLE ASSEMBLY
(a) Connect the No. 2 parking brake cable assembly to the parking brake equalizer.

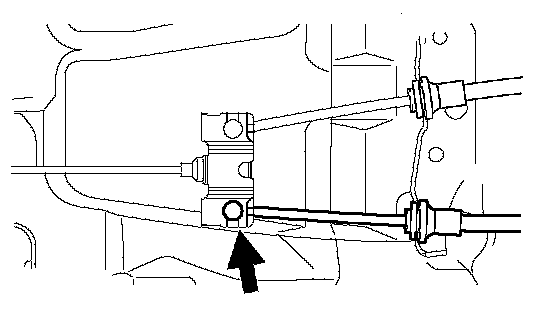

4. INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY
(a) Connect the No. 3 parking brake cable assembly to the parking brake equalizer.





5. INSTALL CROSS MEMBER FLOOR NO. 4 REINFORCEMENT SUB-ASSEMBLY

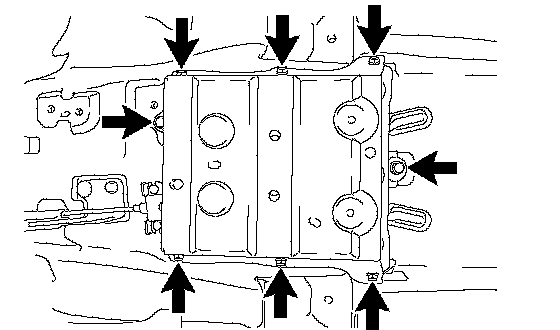

(a) Install the cross member floor No. 4 reinforcement sub-assembly with the 8 bolts.
6. INSTALL FRONT FLOOR CARPET ASSEMBLY

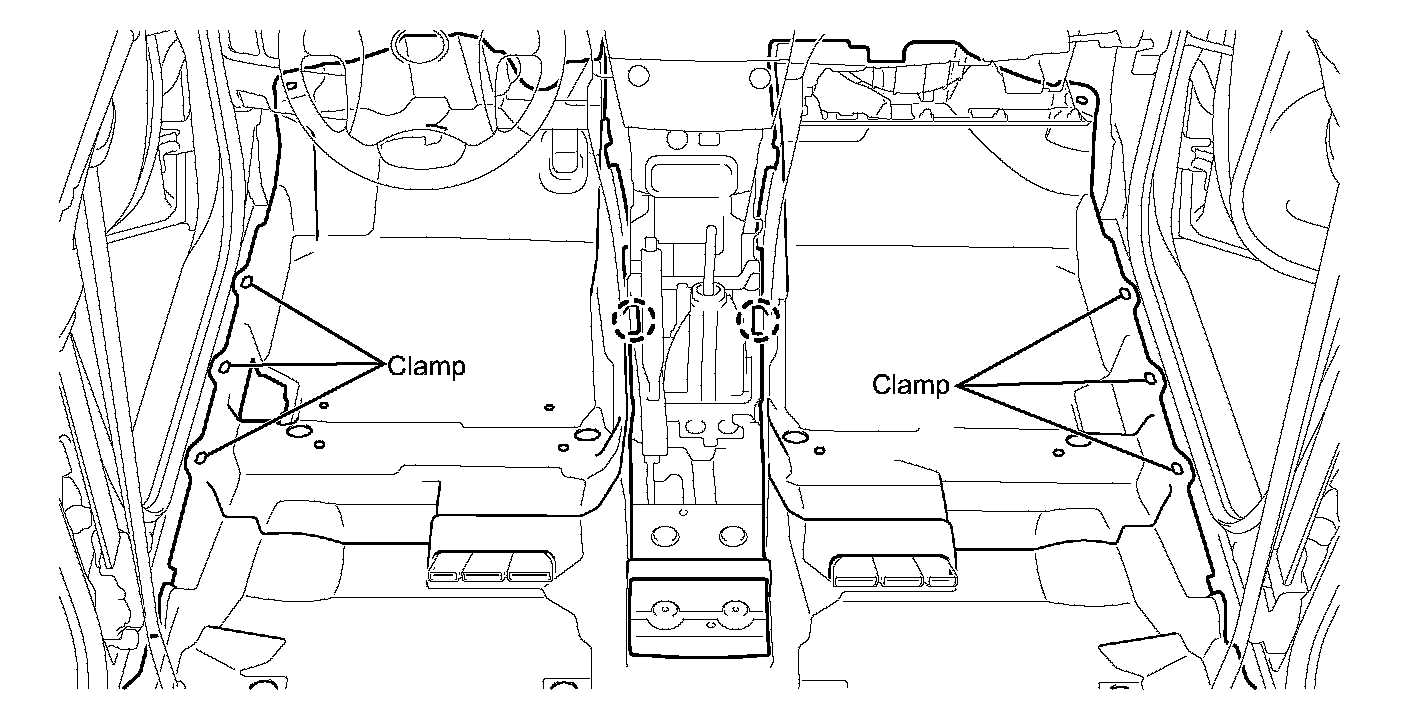

(a) Engage the 6 clamps and the 2 claws and install the front floor carpet assembly.








7. INSTALL LUGGAGE DOOR LOCK OPEN LEVER SUB-ASSEMBLY

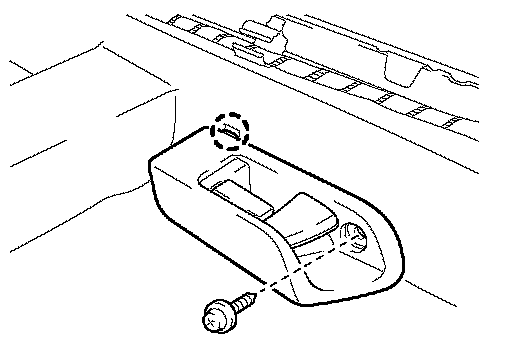

(a) Engage the claw and install the luggage door open lever sub-assembly with the screw.
8. INSTALL LOWER CENTER PILLAR GARNISH LH
9. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
10. INSTALL REAR DOOR SCUFF PLATE LH
11. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
12. INSTALL FRONT DOOR SCUFF PLATE LH
13. INSTALL LOWER CENTER PILLAR GARNISH RH
14. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
15. INSTALL REAR DOOR SCUFF PLATE RH
16. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
17. INSTALL FRONT DOOR SCUFF PLATE RH
18. INSTALL FLOOR CARPET BRACKET LH
19. INSTALL FLOOR CARPET BRACKET RH
20. INSTALL NO. 2 CONSOLE BOX INSERT FRONT (for TMC Made)
21. INSTALL NO. 2 CONSOLE BOX INSERT FRONT (for TMMK Made)
22. INSTALL NO. 1 CONSOLE BOX INSERT FRONT (for TMC Made)
23. INSTALL NO. 1 CONSOLE BOX INSERT FRONT (for TMMK Made)
24. INSTALL CONSOLE BOX ASSEMBLY (for TMC Made)
25. INSTALL CONSOLE BOX ASSEMBLY (for TMMK Made)
26. INSTALL CONSOLE BOX CARPET
27. INSTALL CONSOLE BOX POCKET
28. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMC Made)
29. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMMK Made)
30. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY
31. INSTALL UPPER CONSOLE PANEL
32. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
33. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
34. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
35. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMC Made)
36. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMMK Made)
37. INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY
38. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
39. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made)
40. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made)
41. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
42. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
43. INSTALL FRONT SEAT ASSEMBLY LH (for Manual Seat)

HINT: Refer to the procedures up to "INSTALL FRONT SEAT ASSEMBLY (for Manual Seat)".

44. INSTALL FRONT SEAT ASSEMBLY RH (for Manual Seat)

HINT: Use the same procedures for the RH side and the LH side.

45. INSTALL FRONT SEAT ASSEMBLY LH (for Power Seat)

HINT: Refer to the procedures up to "INSTALL FRONT SEAT ASSEMBLY (for Power Seat)".

46. INSTALL FRONT SEAT ASSEMBLY RH (for Power Seat)

HINT: Use the same procedures for the RH side and the LH side.

47. INSPECT PARKING BRAKE LEVER TRAVEL
48. ADJUST PARKING BRAKE LEVER TRAVEL
49. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for Manual Seat)
50. PERFORM ZERO POINT CALIBRATION AND SENSITIVITY CHECK
51. INSPECT SRS WARNING LIGHT
52. INSPECT SLIDE ADJUSTER LOCK (for Manual Seat)
53. INSPECT FRONT SEAT ASSEMBLY (for Power Seat)
