Diagnosis By Symptom

PROBLEM SYMPTOMS TABLE

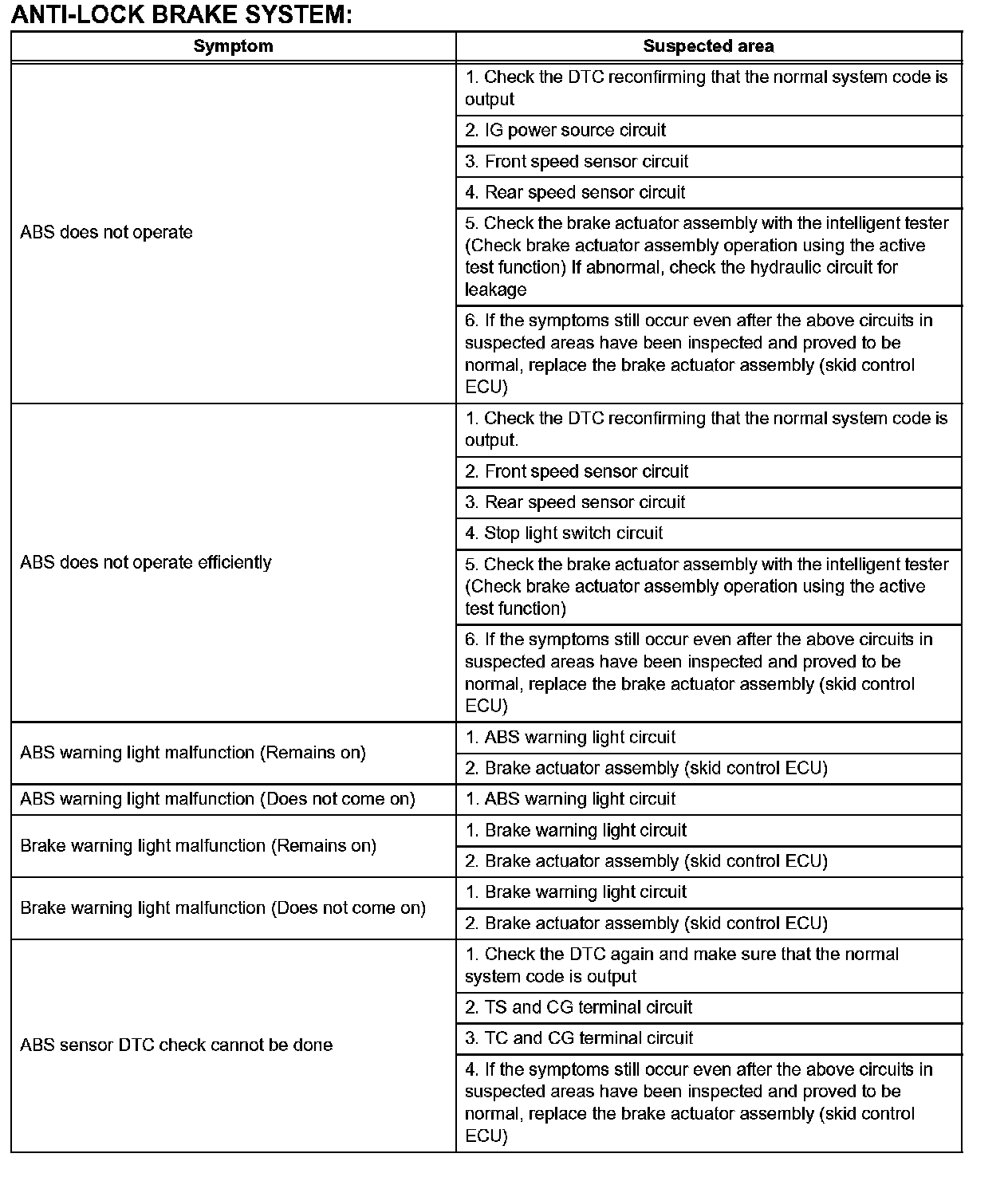

Problem Symptoms Table-Anti-Lock Brake System:

If a normal code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table and proceed to the relevant troubleshooting.

NOTE: When replacing the skid control ECU, sensor, etc., turn the ignition switch off.

HINT:
- Inspect the fuses and relays before investigating the suspected areas as shown in the table.
- Inspect each malfunction circuit in numerical order for the corresponding symptoms.
