Front Seat Cushion Heater

FRONT SEAT CUSHION HEATER

Front Seat Cushion Heater:

Front Seat Cushion Heater:

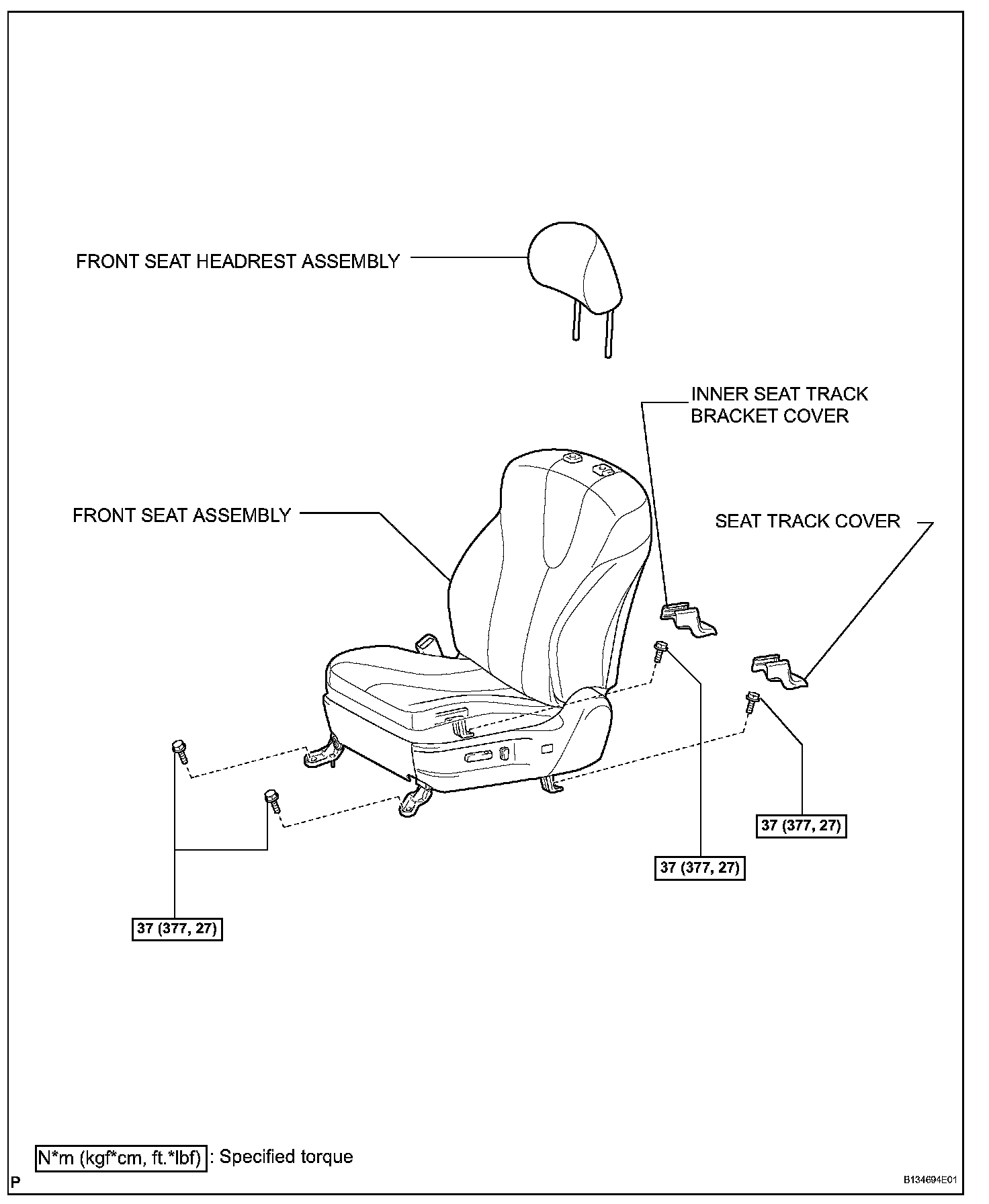

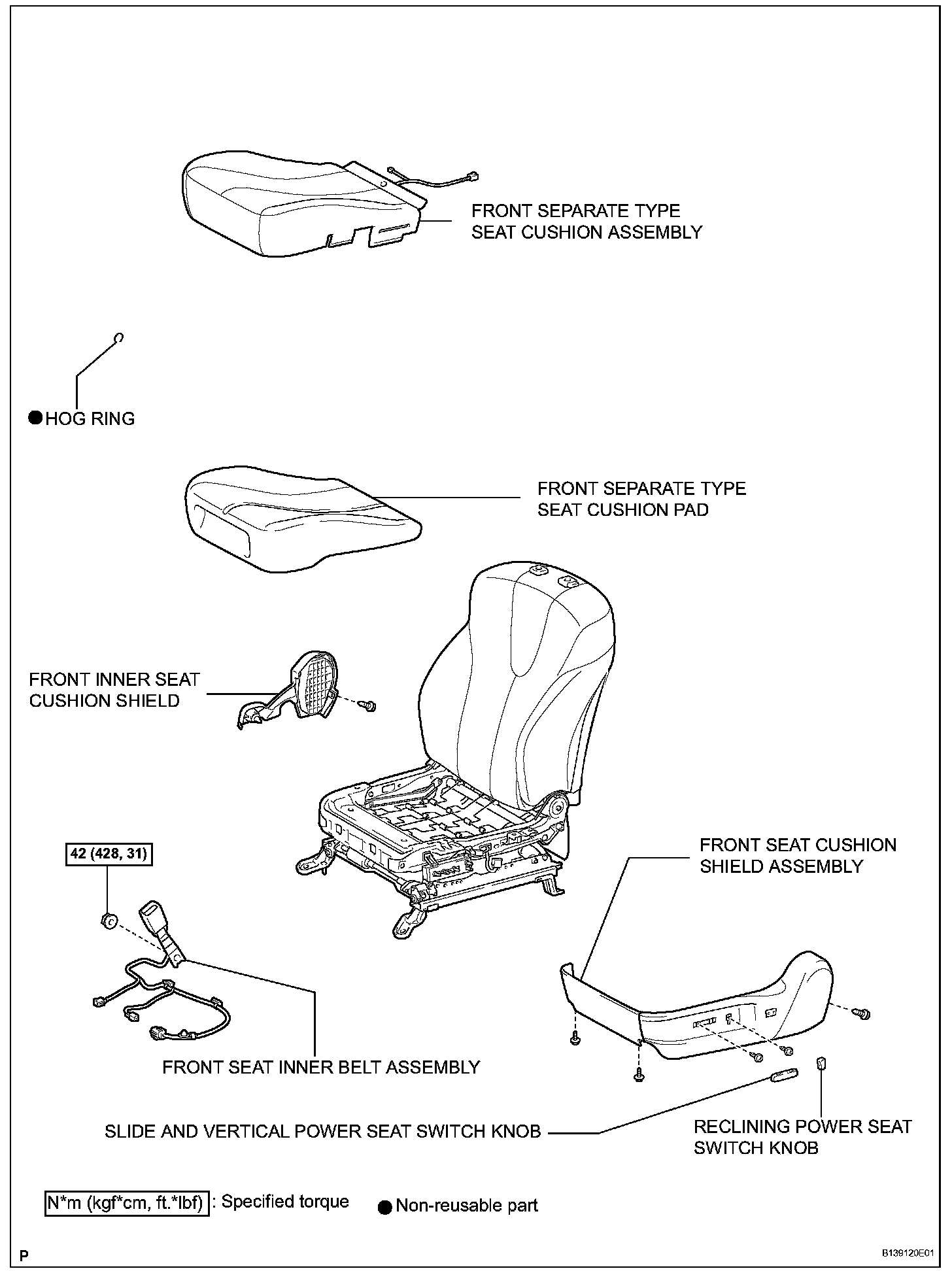

REMOVAL

1. REMOVE FRONT SEAT HEADREST ASSEMBLY
2. REMOVE SEAT TRACK COVER
3. REMOVE INNER SEAT TRACK BRACKET COVER
4. REMOVE FRONT SEAT ASSEMBLY
5. REMOVE RECLINING POWER SEAT SWITCH KNOB
6. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
7. REMOVE FRONT SEAT CUSHION SHIELD ASSEMBLY
8. REMOVE FRONT SEAT INNER BELT ASSEMBLY
9. REMOVE FRONT INNER SEAT CUSHION SHIELD
10. REMOVE FRONT SEPARATE TYPE SEAT CUSHION ASSEMBLY
11. REMOVE FRONT SEPARATE TYPE SEAT CUSHION COVER (for Except Sport Seat Type)

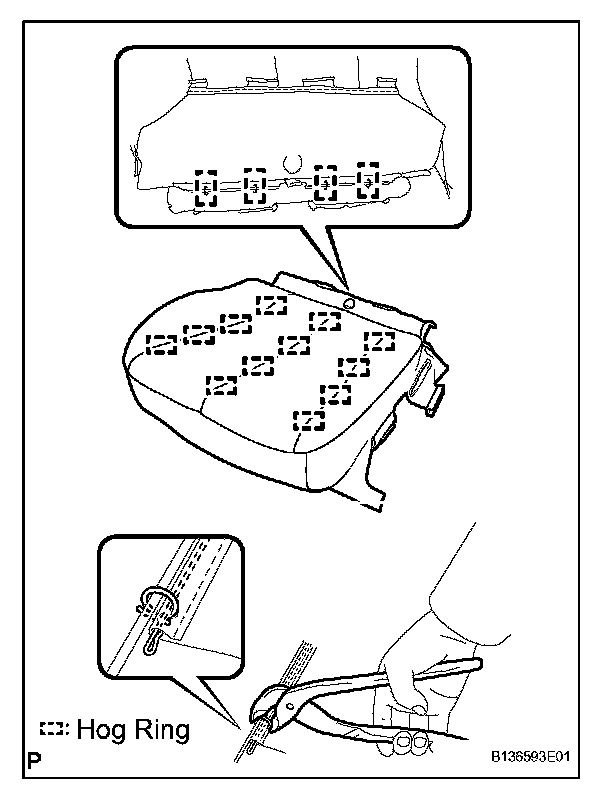

a. Remove the 16 hog rings and seat cushion cover from the seat cushion pad.

12. REMOVE FRONT SEPARATE TYPE SEAT CUSHION COVER (for Sport Seat Type)

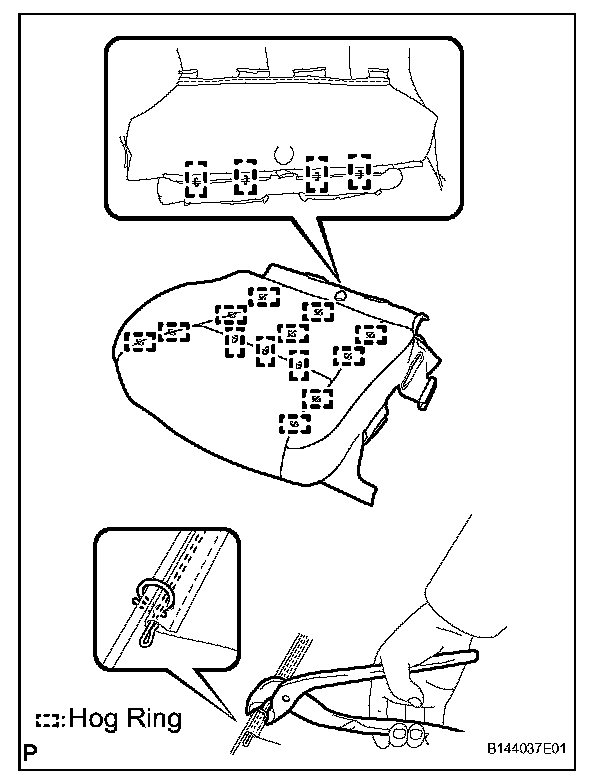

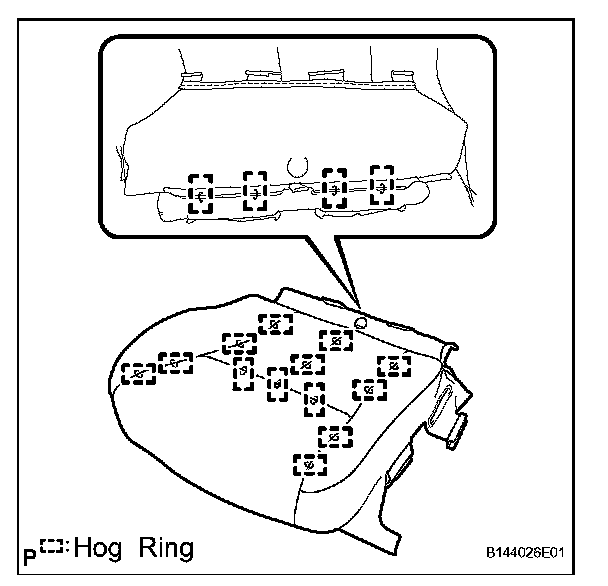

a. Remove the 17 hog rings and seat cushion cover from the seat cushion pad.

INSTALLATION

1. INSTALL FRONT SEPARATE TYPE SEAT CUSHION COVER (for Except Sport Seat Type)






a. Using hog ring pliers, install 16 new hog rings.

NOTICE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

2. INSTALL FRONT SEPARATE TYPE SEAT CUSHION COVER (for Sport Seat Type)






a. Using hog ring pliers, install 17 new hog rings.

NOTICE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

3. INSTALL FRONT SEPARATE TYPE SEAT CUSHION ASSEMBLY
4. INSTALL FRONT INNER SEAT CUSHION SHIELD
5. INSTALL FRONT SEAT INNER BELT ASSEMBLY
6. INSTALL FRONT SEAT CUSHION SHIELD ASSEMBLY
7. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
8. INSTALL RECLINING POWER SEAT SWITCH KNOB
9. INSTALL FRONT SEAT ASSEMBLY
10. INSTALL INNER SEAT TRACK BRACKET COVER
11. INSTALL SEAT TRACK COVER
12. INSTALL FRONT SEAT HEADREST ASSEMBLY
