Amplifier: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
2. REMOVE SEAT TRACK COVER RH (for Manual Seat)
HINT: Use the same procedures for the RH side and the LH side.
3. REMOVE INNER SEAT TRACK BRACKET COVER RH (for Manual Seat)
HINT: Use the same procedures for the RH side and the LH side.
4. REMOVE FRONT SEAT ASSEMBLY RH (for Manual Seat)
HINT: Use the same procedures for the RH side and the LH side.
5. REMOVE SEAT TRACK COVER RH (for Power Seat).
HINT: Use the same procedures for the RH side and the LH side.
6. REMOVE INNER SEAT TRACK BRACKET COVER RH (for Power Seat)
HINT: Use the same procedures for the RH side and the LH side.
7. REMOVE FRONT SEAT ASSEMBLY RH (for Power Seat)
HINT: Use the same procedures for the RH side and the LH side.
8. REMOVE AUDIO AMPLIFIER COVER

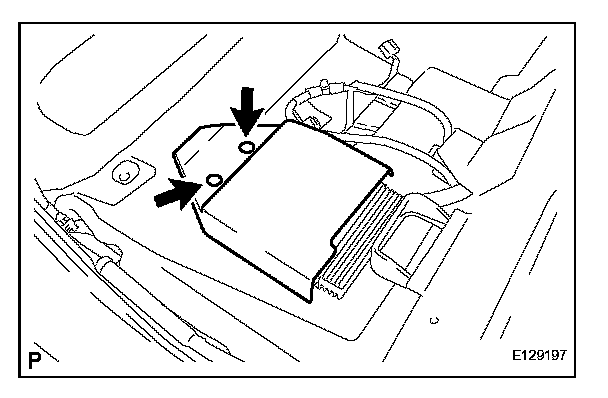

a. Remove the 2 clips and audio amplifier cover.
9. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY

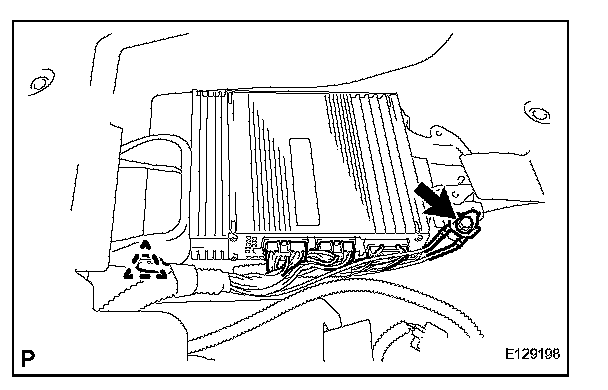

a. Disconnect each connector and remove the bolt.
b. Disengage the clip.

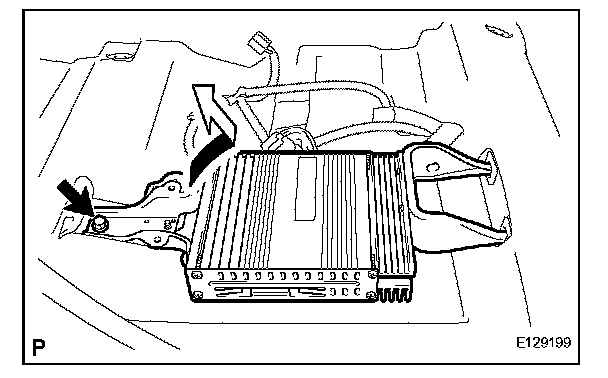

c. Remove the bolt and stereo component amplifier assembly as shown in the illustration.
INSTALLATION
1. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY

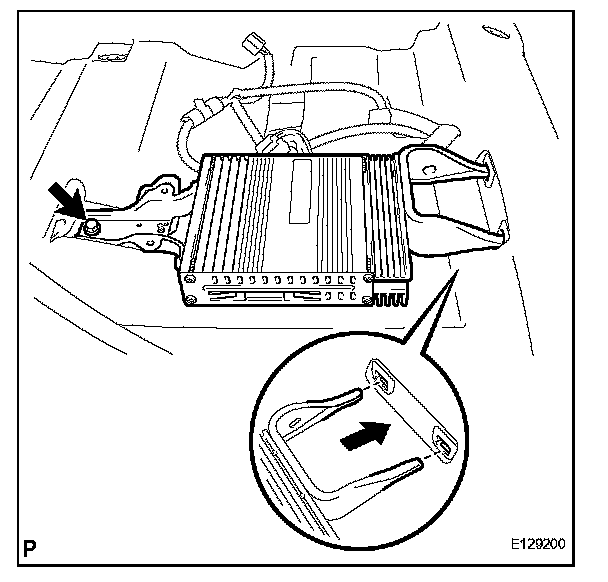

a. Install the stereo component amplifier assembly as shown in the illustration.

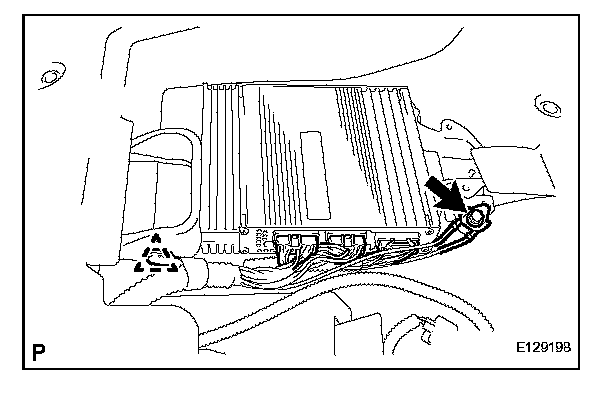

b. Install the bolt and connect each connector.
c. Engage the clip.
d. Install the bolt.
2. INSTALL AUDIO AMPLIFIER COVER

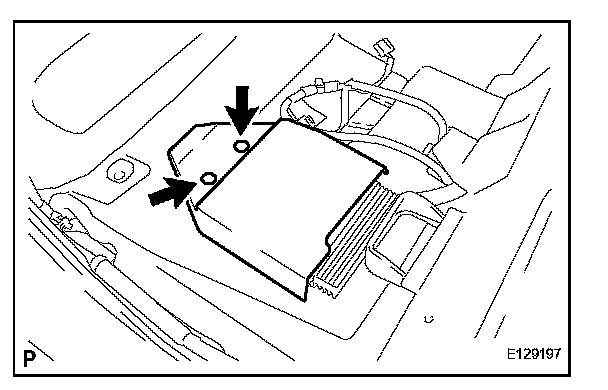

a. Install the audio amplifier cover with the 2 clips.
3. INSTALL FRONT SEAT ASSEMBLY RH (for Manual Seat)
HINT: Use the same procedures for the RH side and the LH side.
4. INSTALL INNER SEAT TRACK BRACKET COVER RH (for Manual Seat)
HINT: Use the same procedures for the RH side and the LH side.
5. INSTALL SEAT TRACK COVER RH (for Manual Seat)
HINT: Use the same procedures for the RH side and the LH side.
6. INSTALL FRONT SEAT ASSEMBLY RH (for Power Seat)
HINT: Use the same procedures for the RH side and the LH side.
7. INSTALL INNER SEAT TRACK BRACKET COVER RH (for Power Seat)
HINT: Use the same procedures for the RH side and the LH side.
8. INSTALL SEAT TRACK COVER RH (for Power Seat)
HINT: Use the same procedures for the RH side and the LH side.
9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for Manual Seat)
10. INSPECT SLIDE ADJUSTER LOCK (for Manual Seat)
11. INSPECT FRONT SEAT ASSEMBLY (for Power Seat)
12. PERFORM ZERO POINT CALIBRATION AND SENSITIVITY CHECK
13. INSPECT SRS WARNING LIGHT
