Removal and Installation

REMOVAL

1. REMOVE CABLE FROM NEGATIVE BATTERY TERMINAL

NOTE: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

2. REMOVE FRONT DOOR SCUFF PLATE LH
3. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL
5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL

6. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

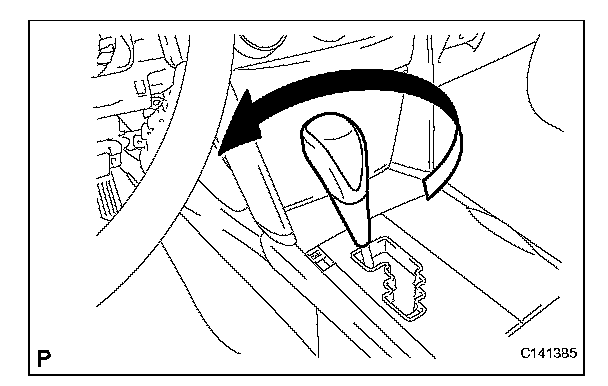

a. Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.

7. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
8. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
9. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY
10. REMOVE UPPER CONSOLE REAR PANEL SUBASSEMBLY
11. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
12. REMOVE CONSOLE BOX POCKET
13. REMOVE CONSOLE BOX CARPET
14. REMOVE CONSOLE BOX ASSEMBLY
15. REMOVE NO. 2 CONSOLE BOX INSERT FRONT
16. REMOVE FLOOR CARPET BRACKET LH

17. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

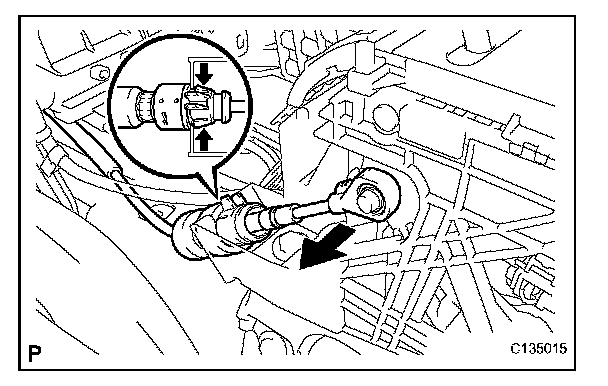

a. Disconnect the end of the transmission control cable assembly from the shift lock control unit.




b. Disconnect the transmission control cable assembly from the shift lock control unit.

18. REMOVE SHIFT LOCK CONTROL UNIT

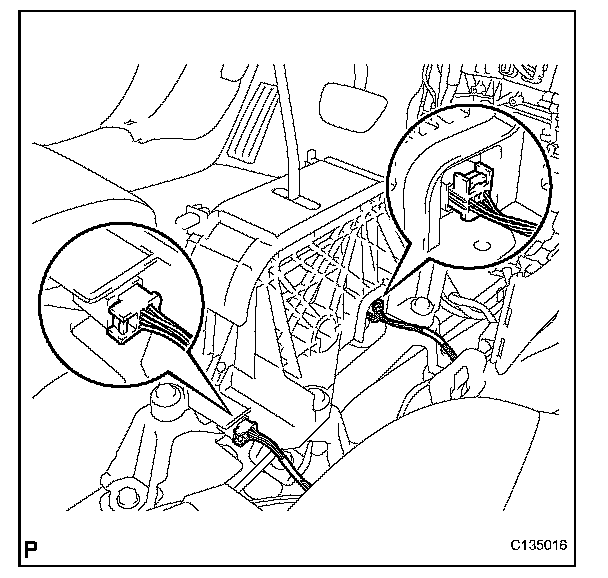

a. Disconnect the shift lock control ECU connector and transmission control switch wire connector.

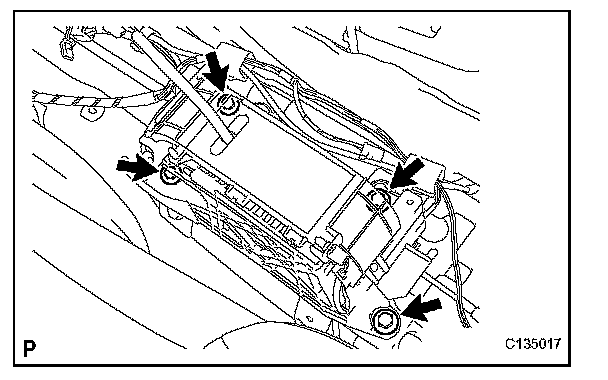

b. Remove the 4 bolts and shift lever.

INSTALLATION

1. INSTALL SHIFT LOCK CONTROL UNIT

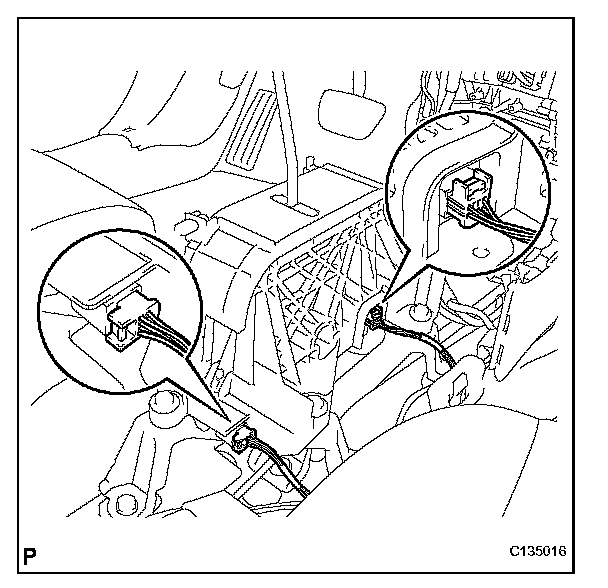

a. Connect the shift lock ECU connector and transmission control switch wire connector.
b. Install the shift lock control unit with the 4 bolts.

Torque: 12 N.m (122 kgf.cm, 9 ft.lbf)

2. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

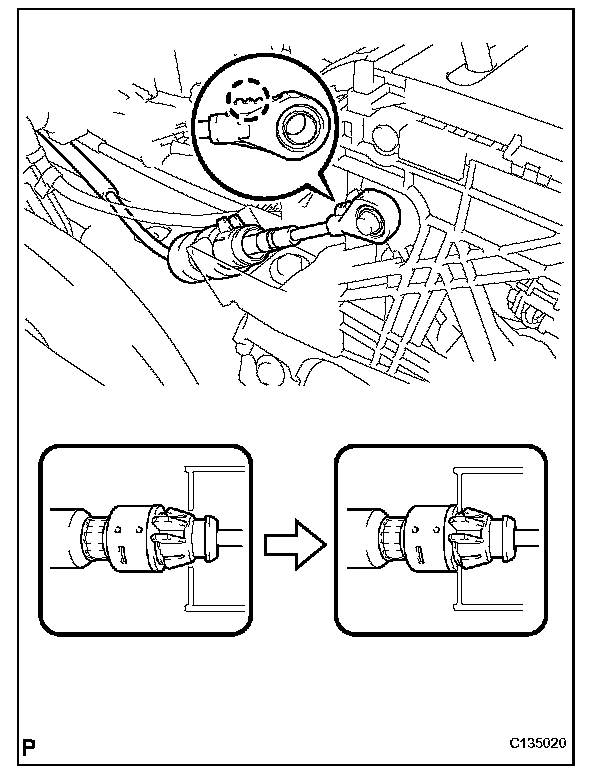

a. Install the transmission control cable assembly as shown in the illustration.

HINT:
- Install the floor shift cable with the uneven surface facing up.
- Securely engage the claws of the floor shift cable.

3. INSTALL FLOOR CARPET BRACKET LH
4. INSTALL NO. 2 CONSOLE BOX INSERT FRONT
5. INSTALL CONSOLE BOX ASSEMBLY
6. INSTALL CONSOLE BOX CARPET
7. INSTALL CONSOLE BOX POCKET
8. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
9. INSTALL UPPER CONSOLE REAR PANEL SUBASSEMBLY
10. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY
11. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
12. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

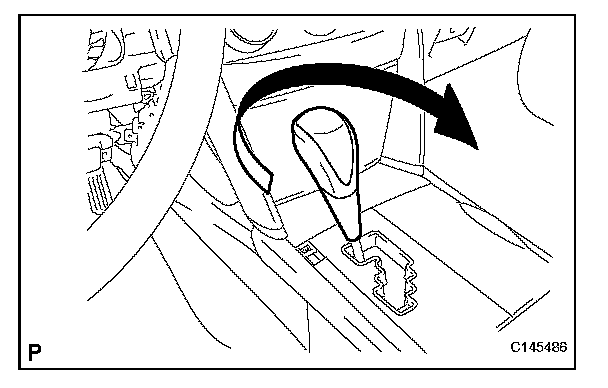

13. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY




a. Install the shift lever knob sub-assembly.

14. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL
15. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH
16. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
17. INSTALL FRONT DOOR SCUFF PLATE LH

18. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

19. INSPECT SHIFT LEVER POSITION
20. ADJUST SHIFT LEVER POSITION
21. ADJUST TRANSMISSION CONTROL CABLE ASSEMBLY
22. INSPECT SHIFT LEVER OPERATION

23. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after reconnecting the cable to the negative (-) battery terminal.
