P311 Hybrid Transaxle
>>
Components
Components

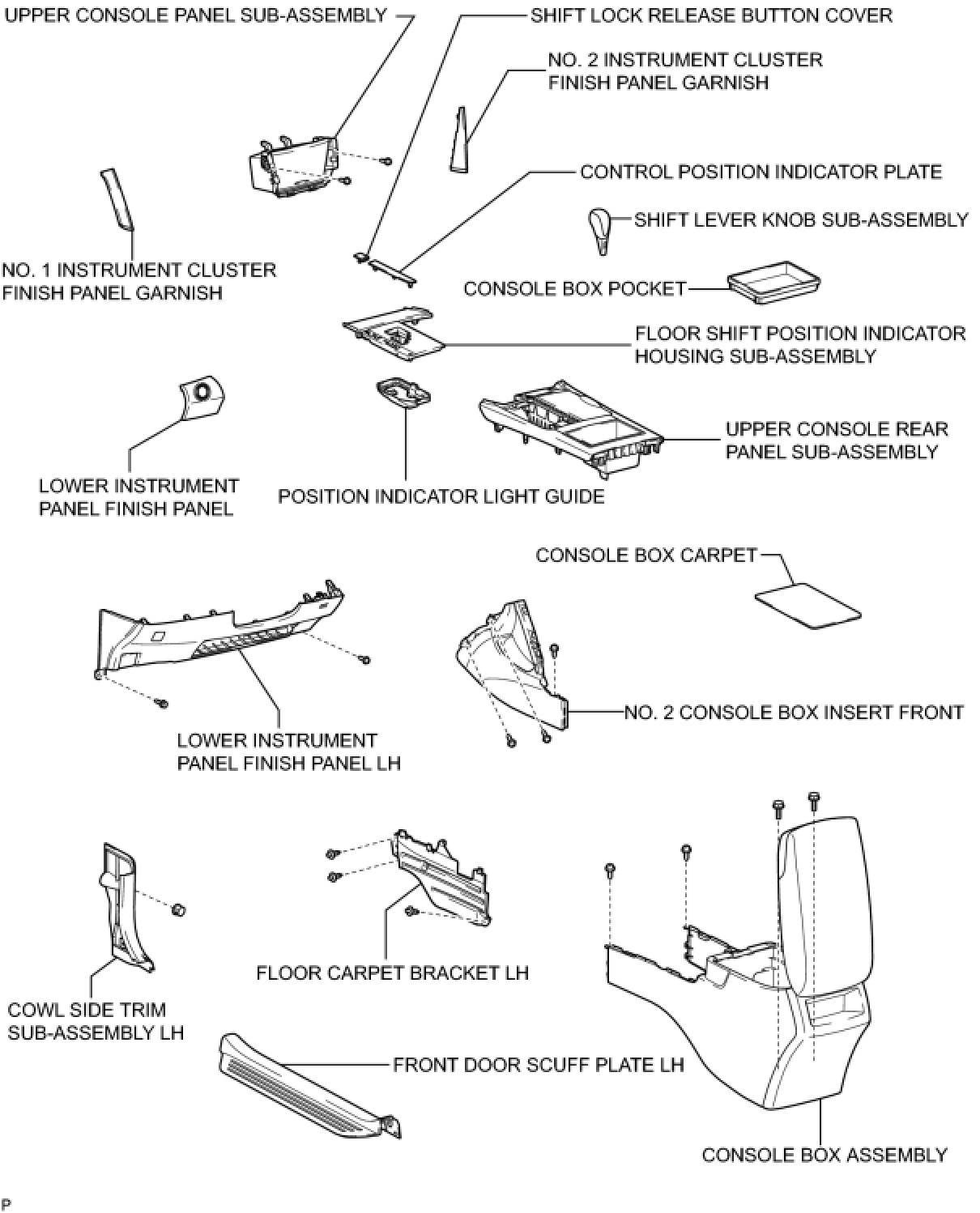

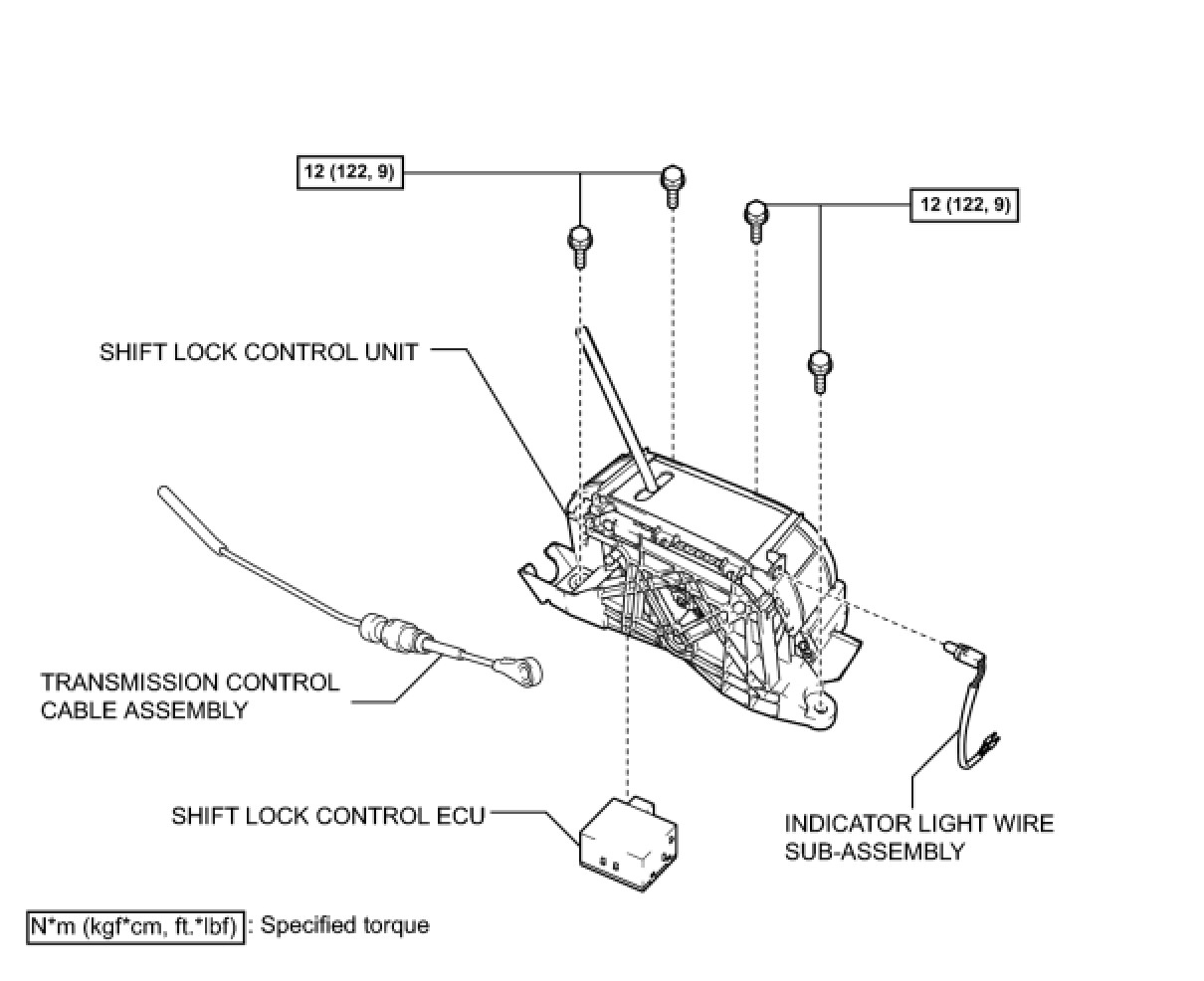

P311 HYBRID TRANSMISSION / TRANSAXLE: SHIFT LEVER: COMPONENTS
COMPONENTS
ILLUSTRATION
