Disassembly and Reassembly
DISASSEMBLY1. REMOVE POSITION INDICATOR LIGHT GUIDE
a. Remove the position indicator light guide.
2. REMOVE CONTROL POSITION INDICATOR PLATE

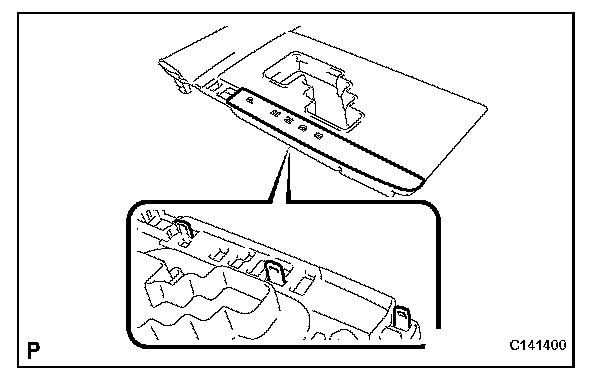

a. Remove the shift lock release button cover.
b. Remove control position indicator plate.
3. REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY

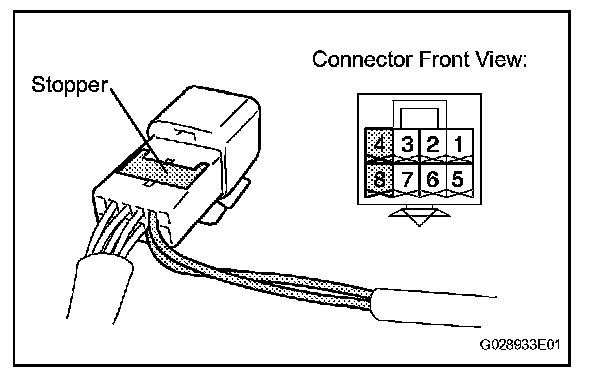

a. Using a screwdriver, release the stopper.
b. Using a screwdriver, disengage the locking lug of terminals (4) and (8), and pull the terminals out from the rear of the connector.
c. Release the indicator light wire from the clamp on the shift lock control unit.

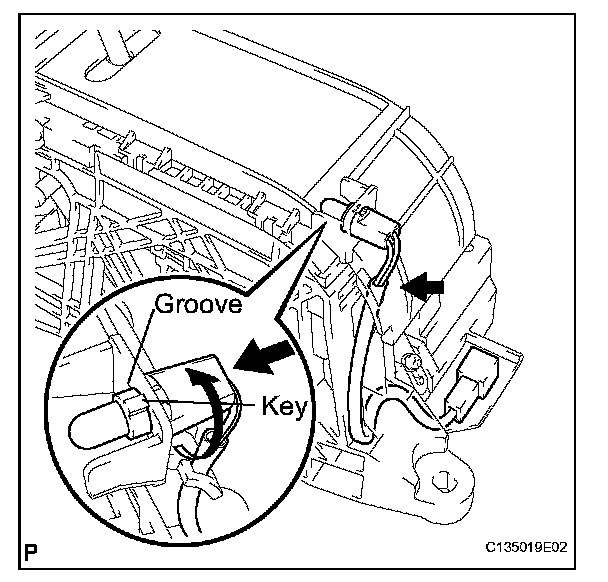

d. Turn the indicator light guide counterclockwise.
e. Align the indicator light guide key with the groove on the shift lock control unit to remove the indicator light wire.
4. REMOVE SHIFT LOCK CONTROL ECU

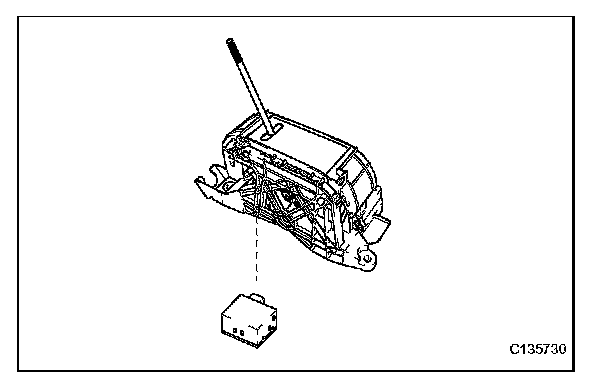

a. Remove the shift lock control ECU from the shift lock control unit.
REASSEMBLY
1. INSTALL SHIFT LOCK CONTROL ECU

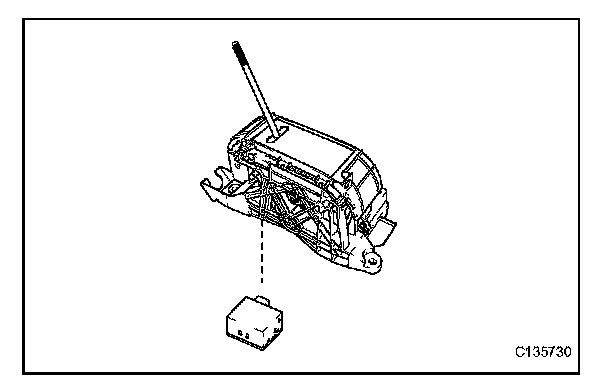

a. Install the shift lock control ECU to the shift lever.
2. INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY

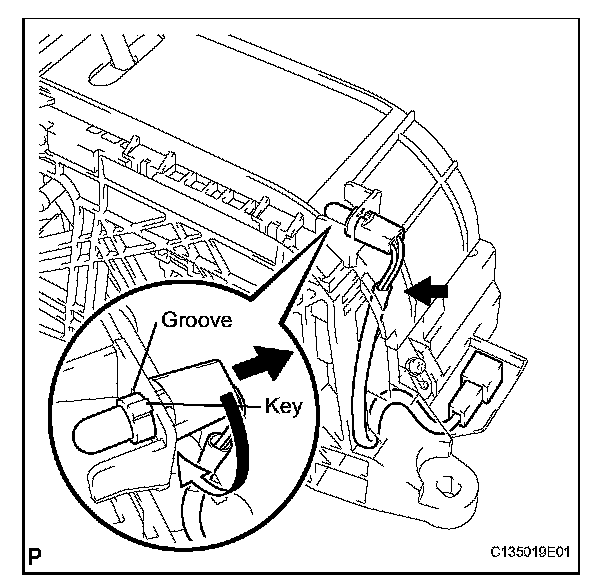

a. Insert the indicator light wire into the shift lock control unit while aligning the groove on the unit with the indicator light guide key.
b. Install the indicator light guide by turning it clockwise until it securely locks.
c Install the indicator light wire to the clamp on the shift lock control unit.

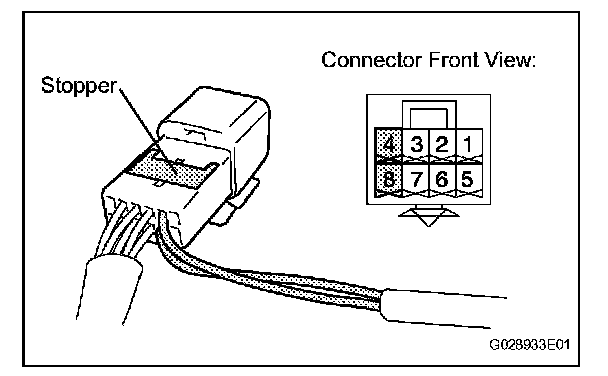

d. Connect terminals (4) and (8) of the indicator light wire.
e. Push the stopper.
3. INSTALL CONTROL POSITION INDICATOR PLATE

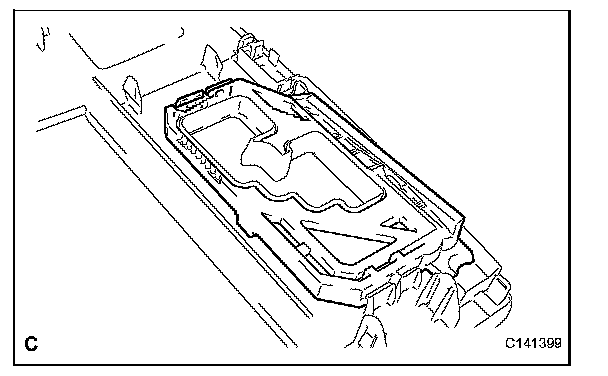

a. Install the control position indicator plate.
b. Install the shift lock release button cover.
4. INSTALL POSITION INDICATOR LIGHT GUIDE
a. Install the position indicator light guide.
