P311 HYBRID TRANSMISSION / TRANSAXLE: TRANSAXLE CONTROL CABLE ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE AIR CONDITIONING UNIT (for TMC Made)

HINT: Removal.

2. REMOVE AIR CONDITIONING UNIT (for TMMK Made)

HINT: Removal.

3. REMOVE ENGINE UNDER COVER RH
4. REMOVE ENGINE UNDER COVER LH
5. REMOVE AIR CLEANER INLET ASSEMBLY Removal
6. REMOVE AIR CLEANER CAP SUB-ASSEMBLY Removal
7. REMOVE AIR CLEANER CASE SUB-ASSEMBLY Removal
8. SEPARATE TRANSMISSION CONTROL CABLE ASSEMBLY





(a) Remove the nut from the control shaft lever.
(b) Disconnect the transmission control cable assembly from the control shaft lever.
(c) Remove the clip and disconnect the transmission control cable assembly from the No. 1 control cable bracket.
(d) Disconnect the transmission control cable assembly from the No. 2 transmission control cable bracket and No. 3 transmission control cable bracket.

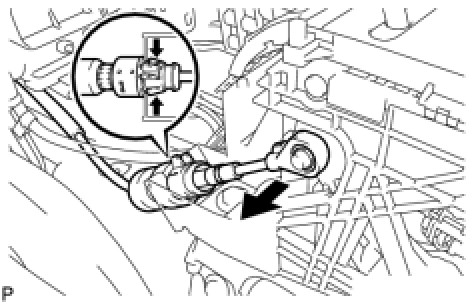

(e) Disconnect the transmission control cable assembly from the transmission floor shift assembly while pushing the 2 claws of the floor shift cable.
9. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY





(a) Turn back the carpet.
(b) Remove the 2 bolts and disconnect the shift cable grommet retainer.
(c) Remove the shift cable grommet retainer.
(d) Pull out the transmission control cable assembly from the body.
