Exhaust Manifold
EXHAUST MANIFOLD CONVERTERTemporarily tighten the exhaust manifold converter with the 5 nuts.

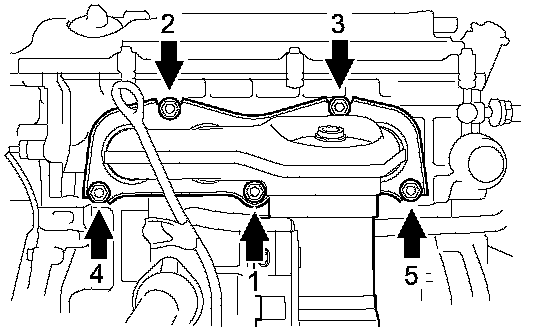

Tighten the 5 nuts in the sequence shown in the illustration.
Torque 37 Nm (378 kgf-cm, 27 ft. lbs.)
Temporarily tighten the exhaust manifold converter with the 5 nuts.
Tighten the 5 nuts in the sequence shown in the illustration.
Torque 37 Nm (378 kgf-cm, 27 ft. lbs.)
