Camshaft Bearing Cap

CAMSHAFT

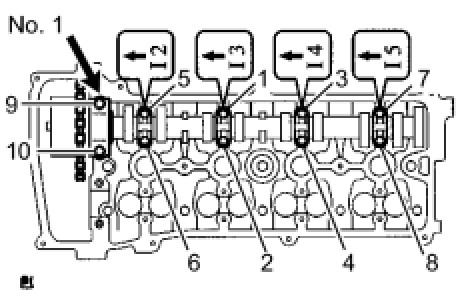

Using several steps, uniformly tighten the 10 bearing cap bolts in the sequence shown in the illustration.
No. 1 bearing cap - Torque 30 Nm (301 kgf-cm, 22 ft-lbf)
Other bearing cap - Torque 9.0 Nm (92 kgf-cm, 80 in-lbf)

NO. 2 CAMSHAFT

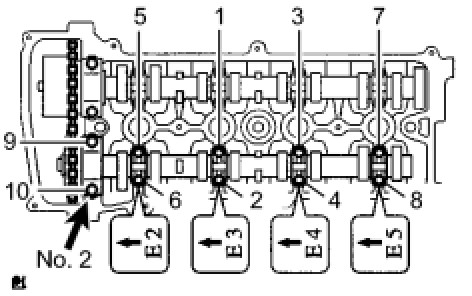

Using several steps, uniformly tighten the 10 bearing cap bolts in the sequence shown in the illustration.
No. 2 bearing cap - Torque 30 Nm (301 kgf-cm, 22 ft-lbf)
Other bearing cap - Torque 9.0 Nm (92 kgf-cm, 80 in-lbf)

CAMSHAFTS

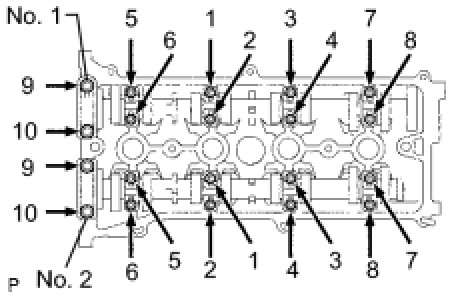

Using several steps, uniformly tighten the 20 bearing cap bolts in the sequence shown in the illustration.
No. 1 and No. 2 bearing cap - Torque 30 Nm (301 kgf-cm, 22 ft-lbf)
All other bearing cap - Torque 9.0 Nm (92 kgf-cm, 80 in-lbf)
