Toyota
>>
2007
>>
Camry L4-2.4L (2AZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Clockspring Assembly / Spiral Cable
>>
Service and Repair
>>
Components
Components

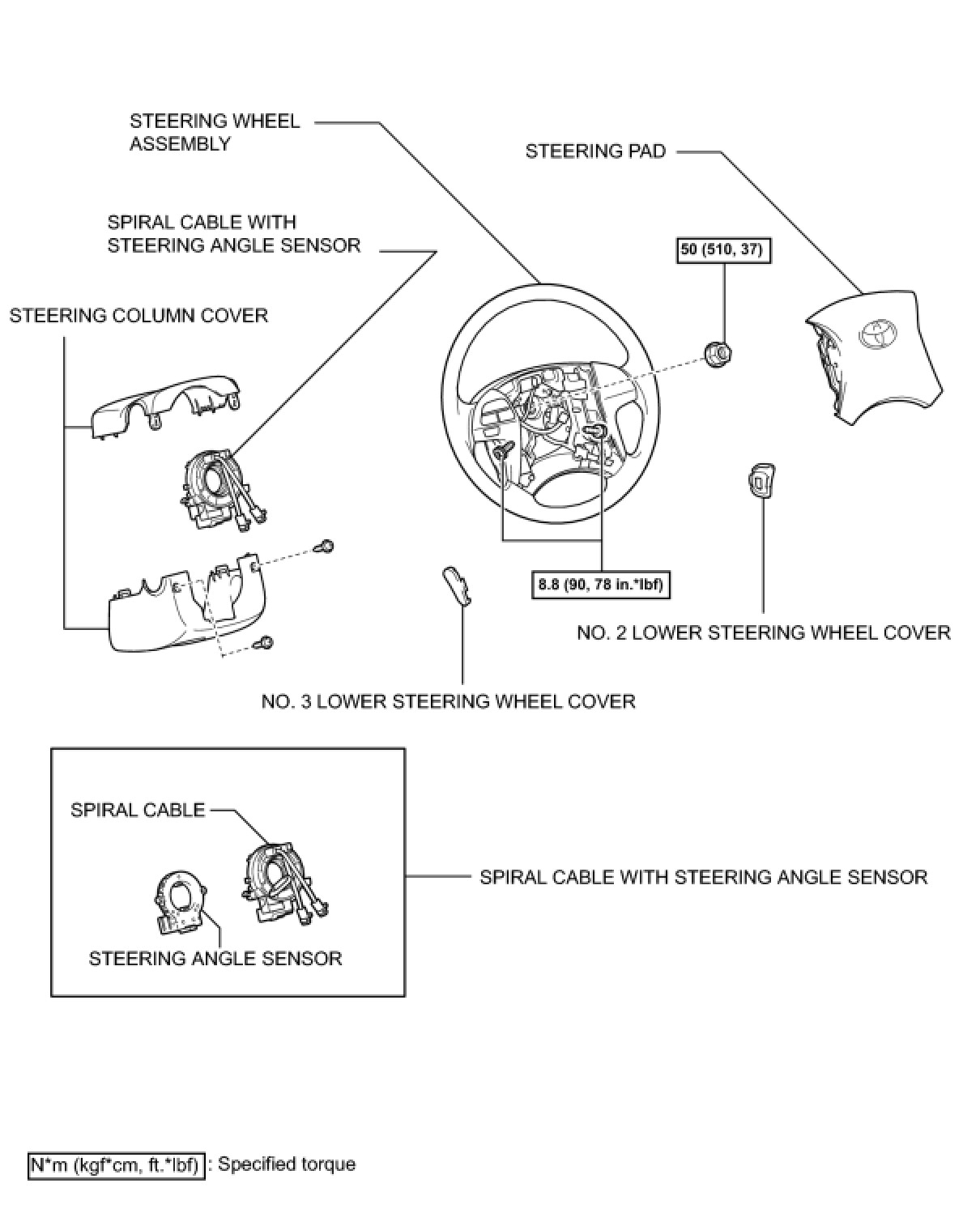

SUPPLEMENTAL RESTRAINT SYSTEM: SPIRAL CABLE: COMPONENTS
COMPONENTS
ILLUSTRATION
