Camry L4-2.4L (2AZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Tank
>>
Service and Repair
>>
Components
Components

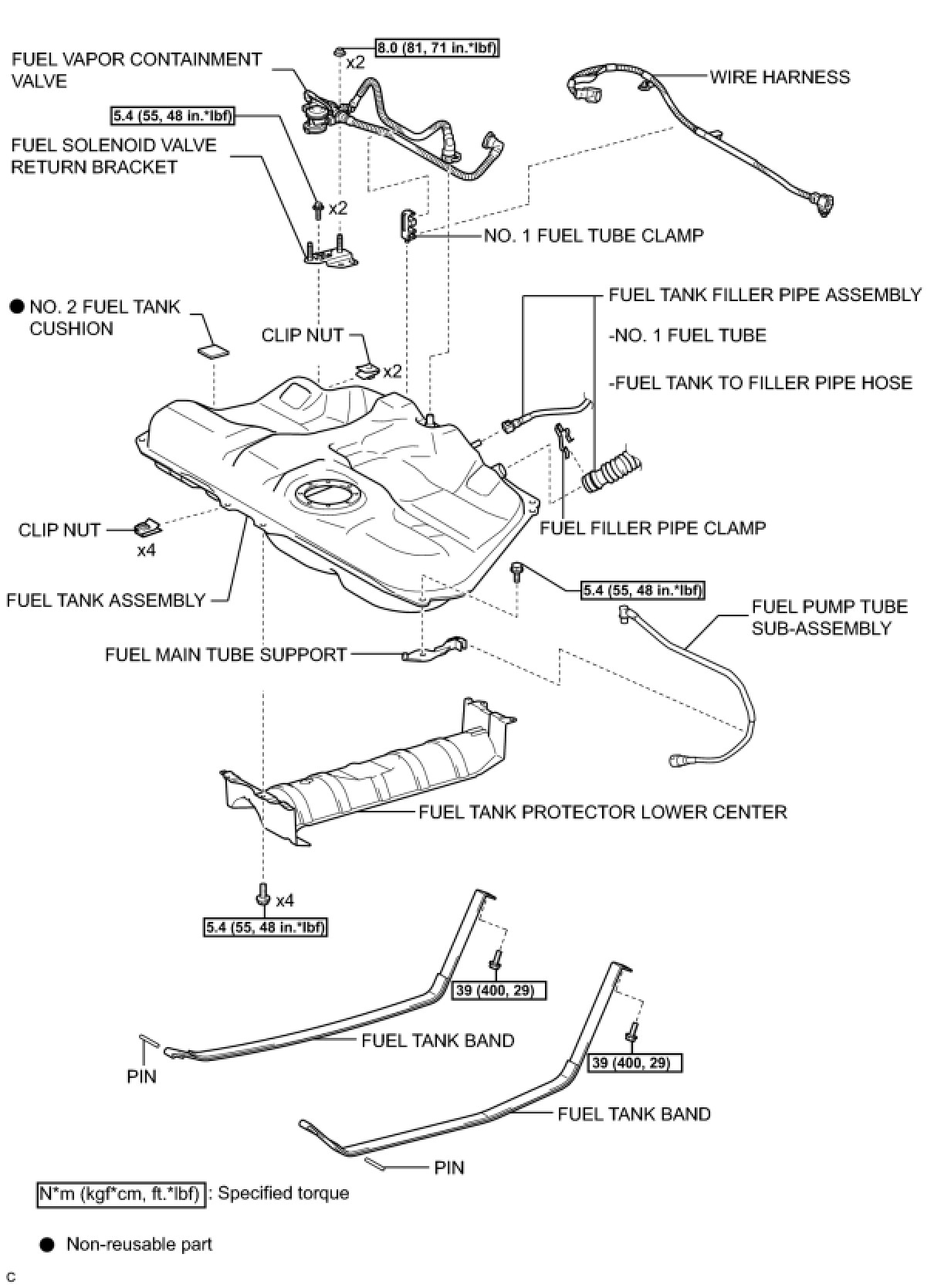

2AZ-FXE FUEL:
FUEL TANK
: COMPONENTS
COMPONENTS

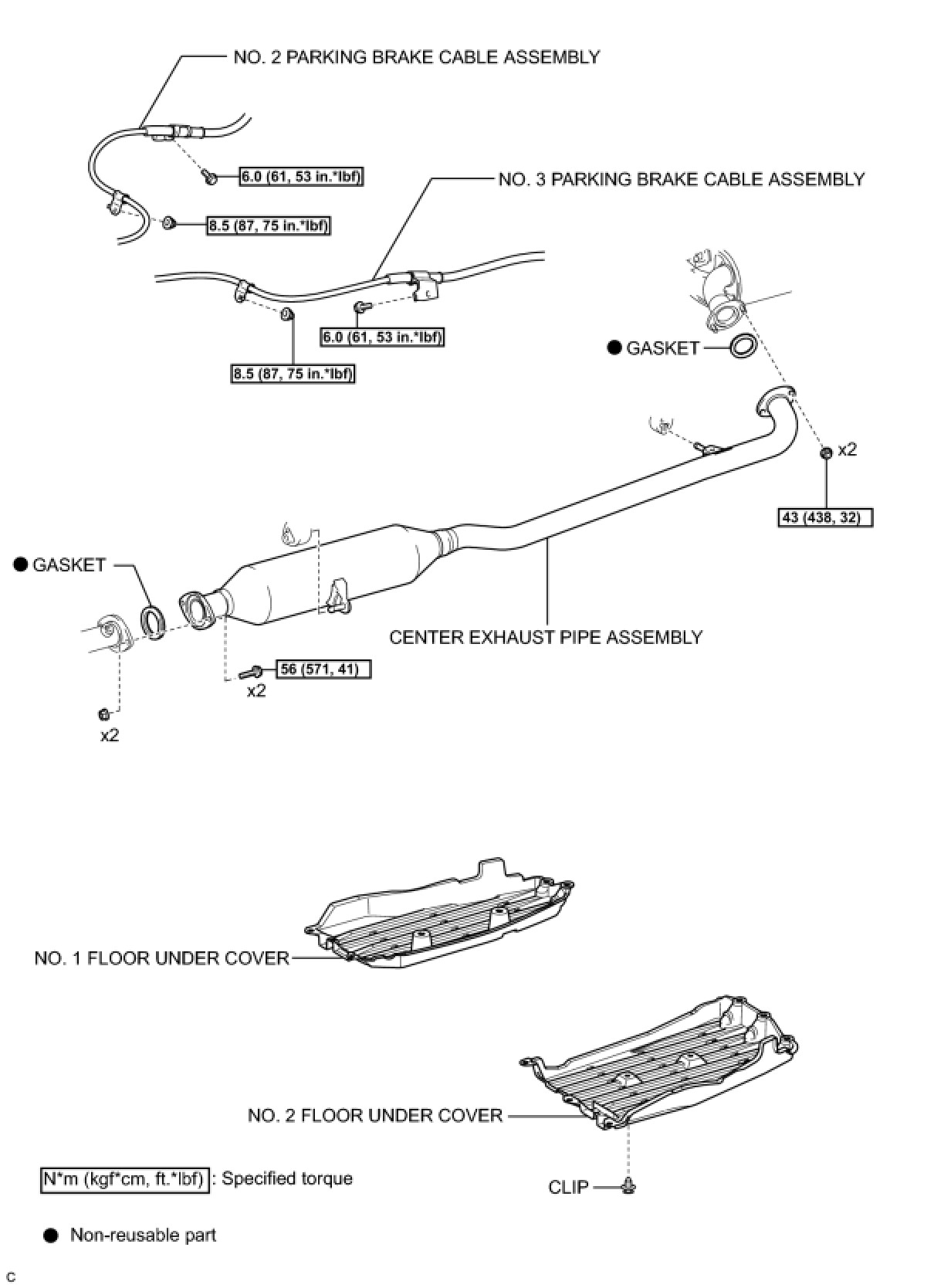

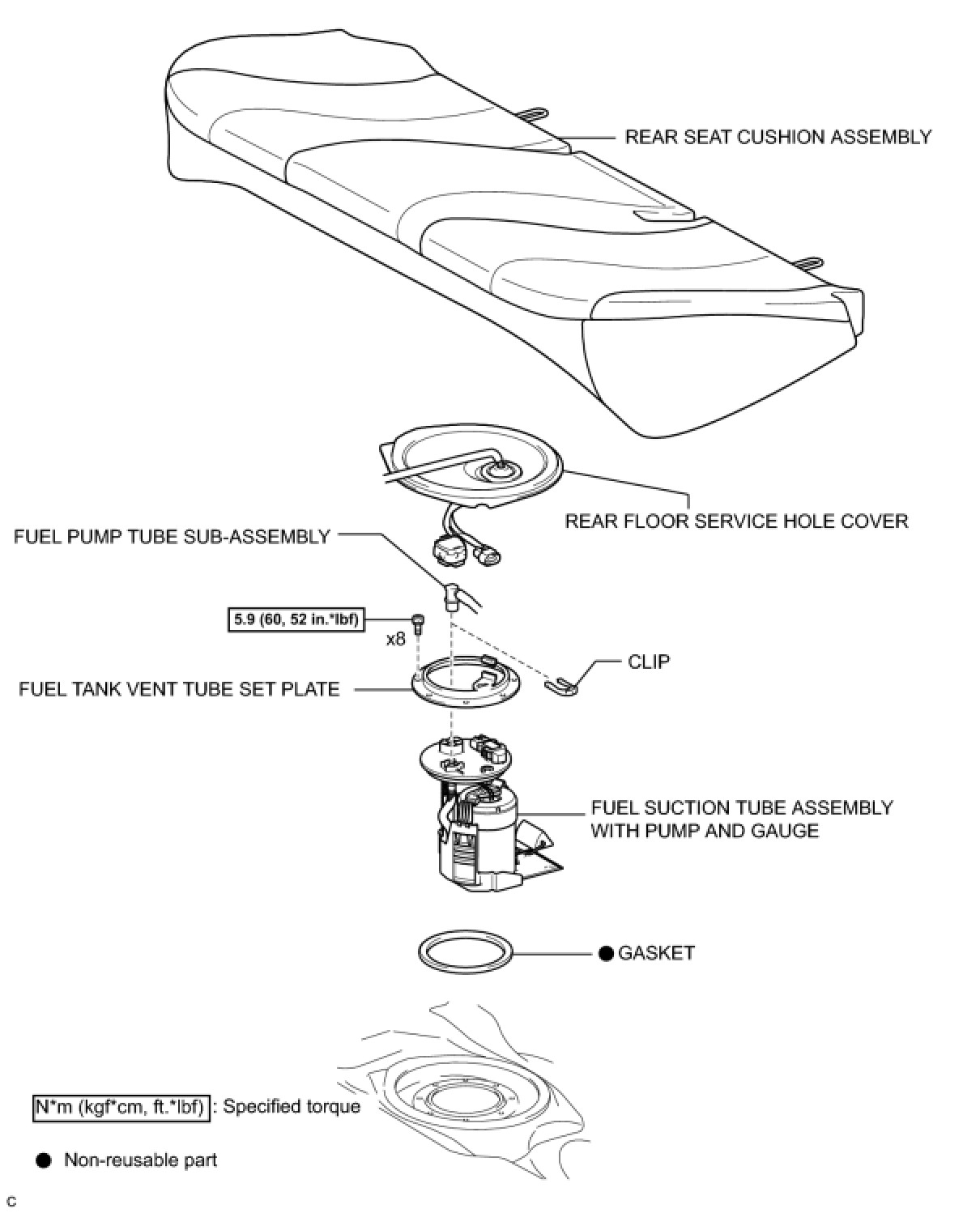

ILLUSTRATION
