Camry L4-2.4L (2AZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Evaporative Emissions System
>>
Evaporative Emission Control Canister
>>
Service and Repair
>>
Components
Components

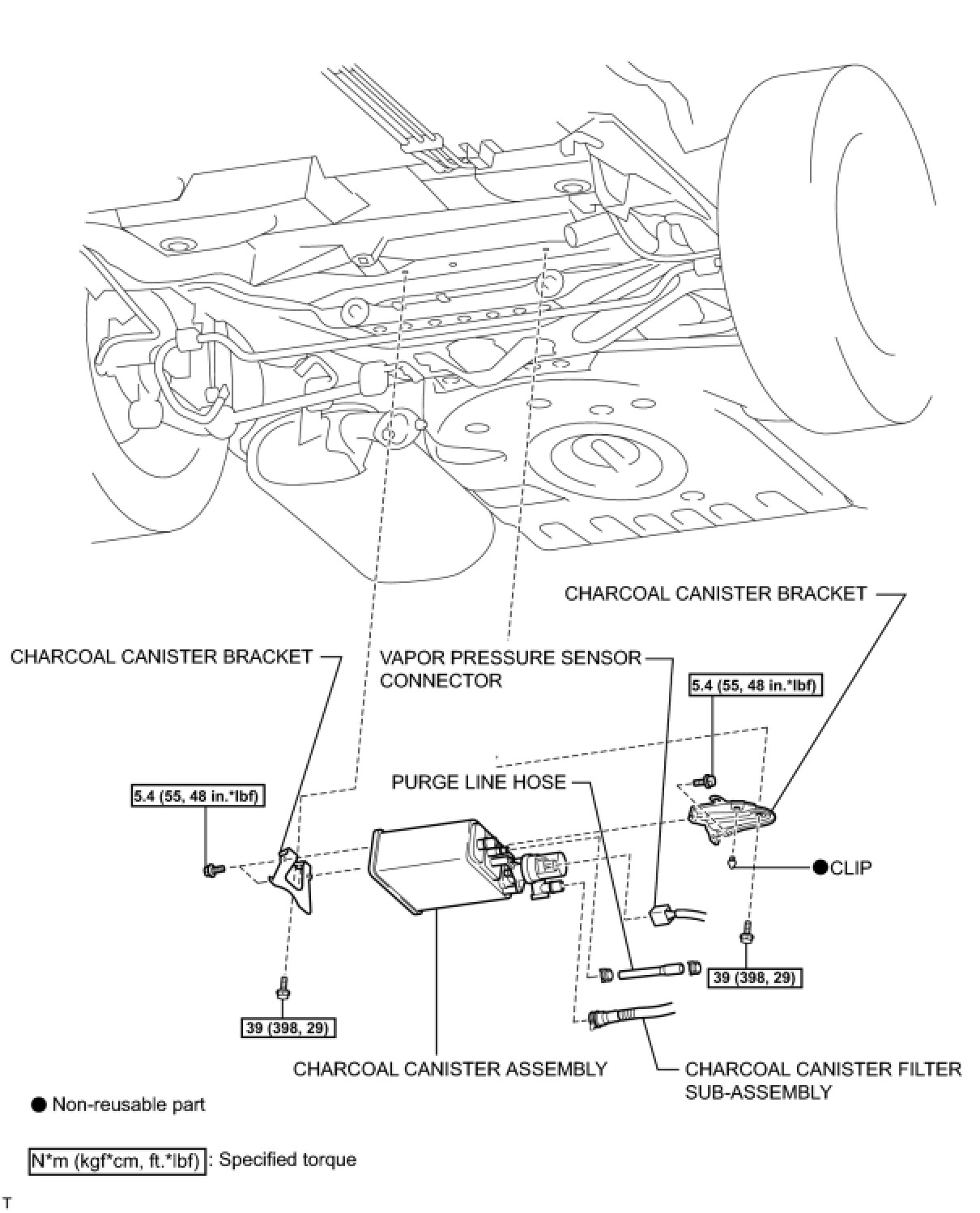

2AZ-FXE EMISSION CONTROL: CANISTER: COMPONENTS
COMPONENTS
ILLUSTRATION
