Evaporative Emissions System: Description and Operation

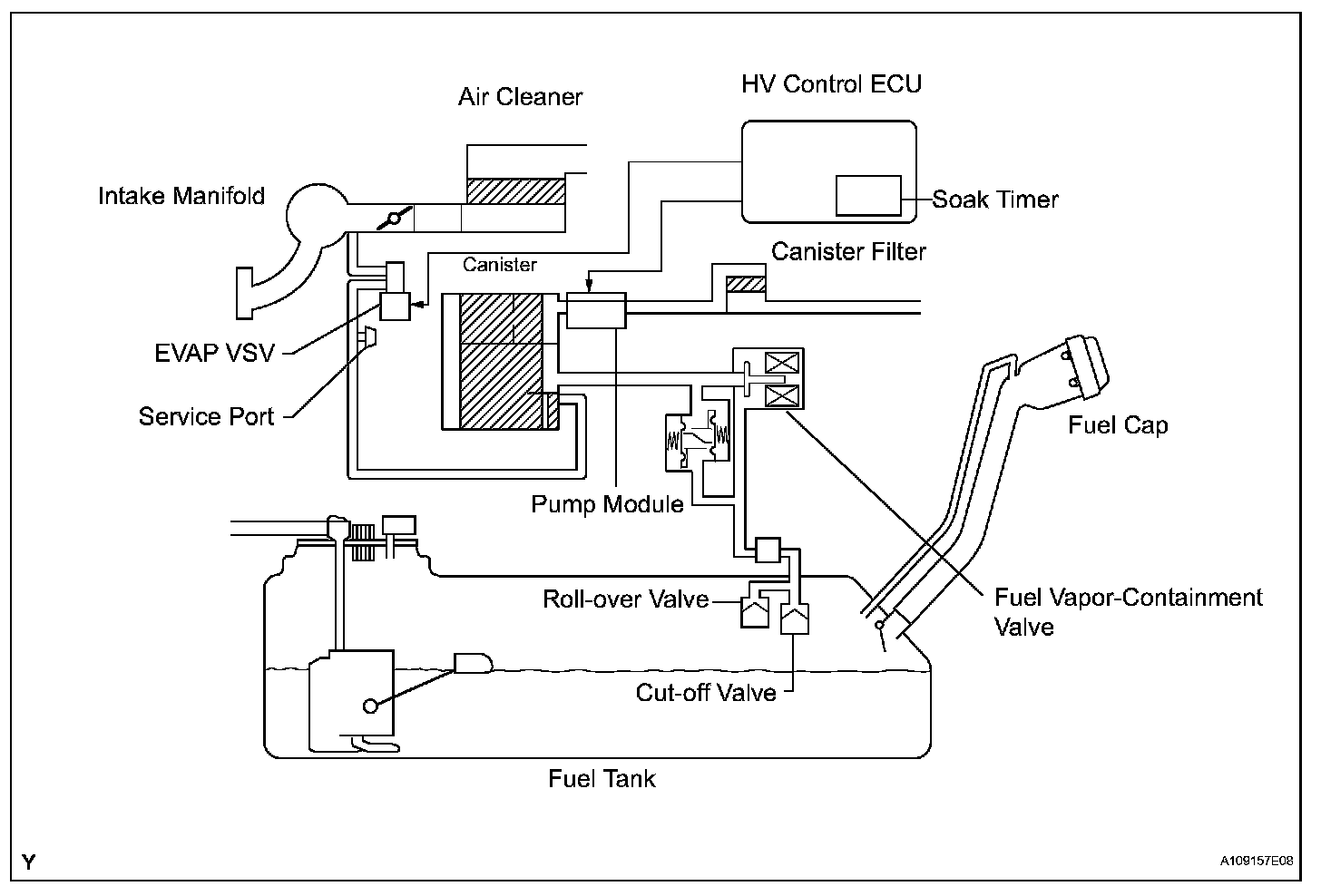

System Diagram:

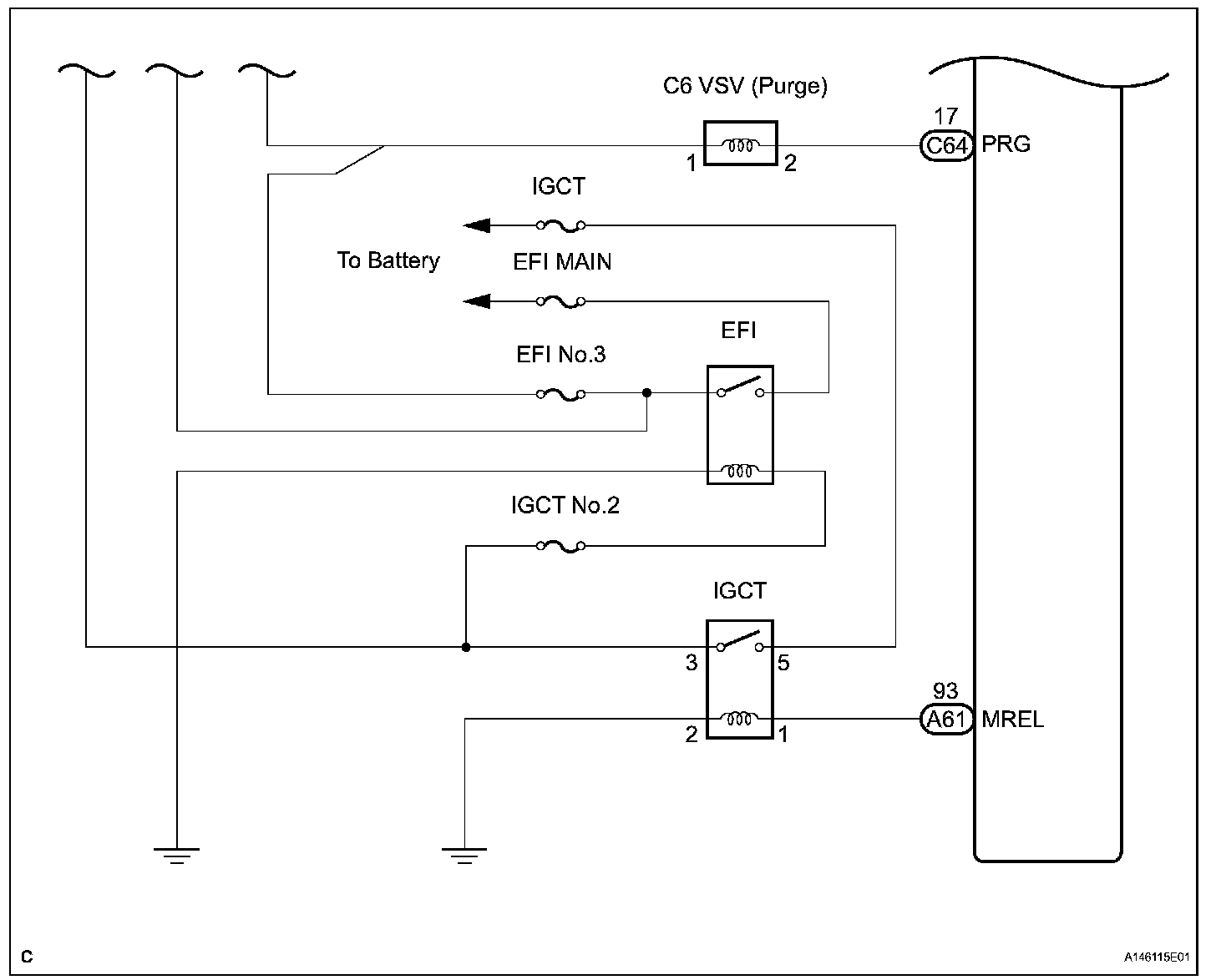

System Diagram:

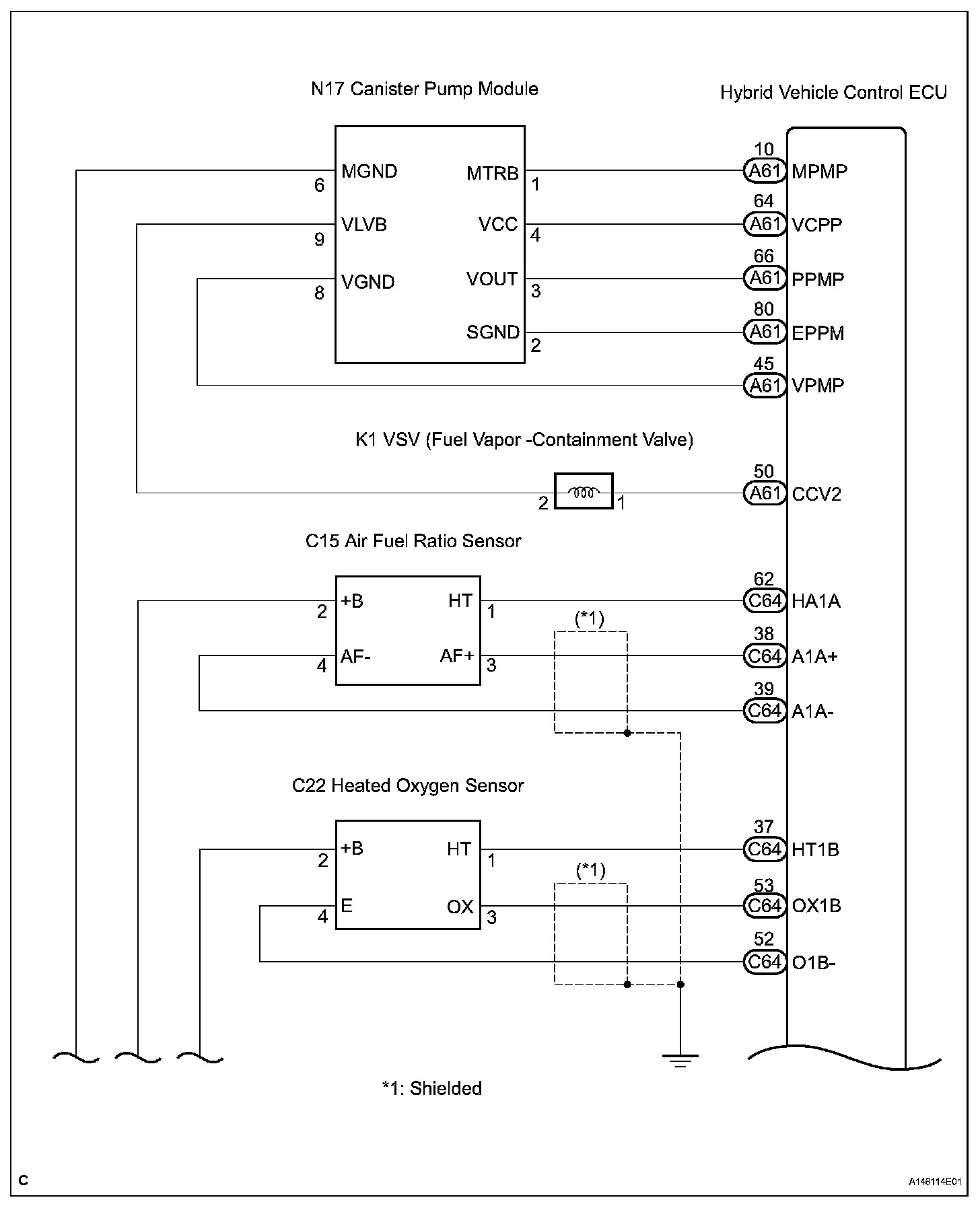

System Diagram:
