Vacuum Switching Valve

REMOVAL

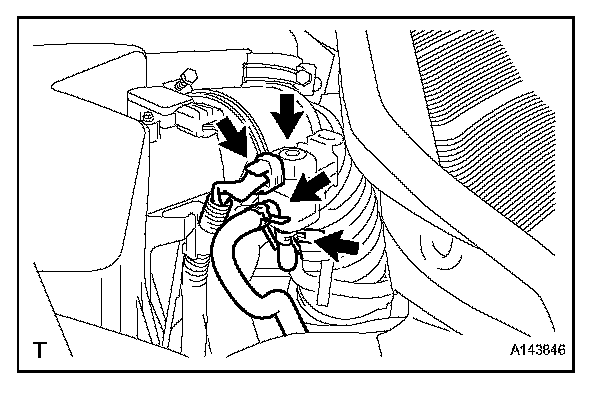

1. REMOVE VACUUM SWITCHING VALVE




a. Disconnect the vacuum switching valve connector.
b. Disconnect the wire harness clamp.
c. Disconnect the 2 purge line hoses from the purge VSV.
d. Remove the vacuum switching valve.

INSTALLATION

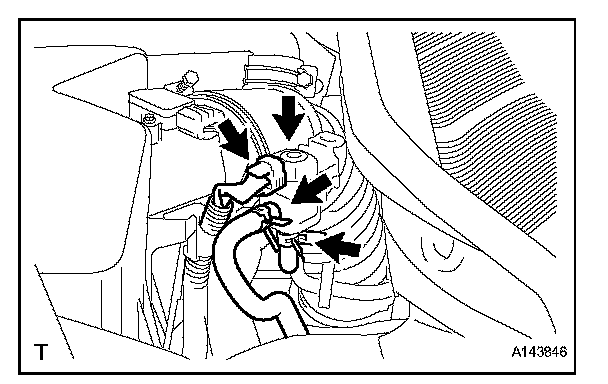

1. INSTALL VACUUM SWITCHING VALVE




a. Install the vacuum switching valve onto the air cleaner hose.
b. Connect the 2 purge line hoses to the vacuum switching valve.
c. Connect the vacuum switching valve connector.
