Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2007
>>
Camry L4-2.4L (2AZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Evaporative Emissions System
>>
Canister Purge Control Valve
>>
Diagrams
>>

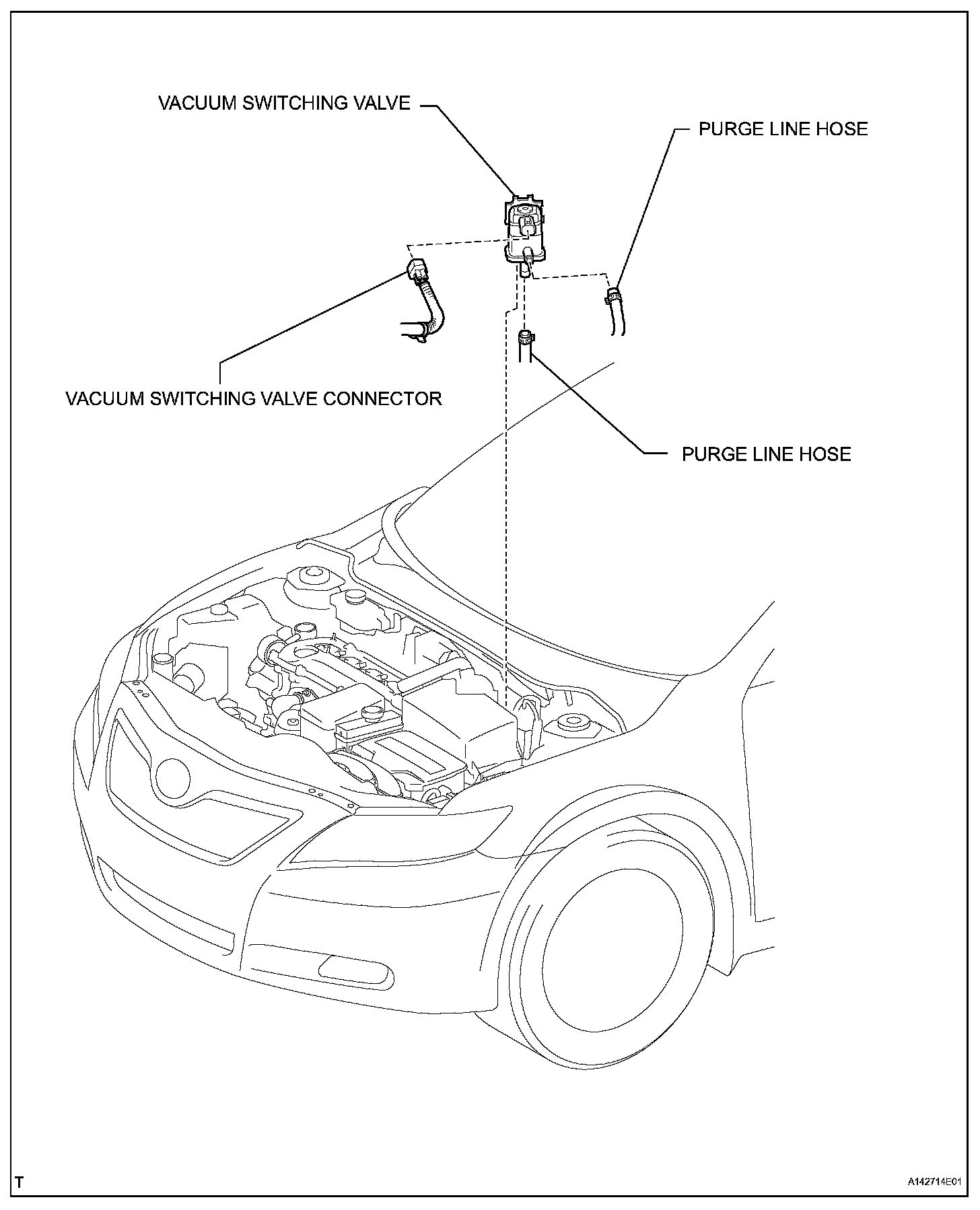

Exploded Views
Exploded Views
Vacuum Switching Valve:
