Home >> Toyota >> 2007 >> Camry L4-2.4L (2AZ-FXE) Hybrid >> Repair and Diagnosis >> Locations >> Ground Locations >> Wire and Wire, Ground Points In Engine Compartment

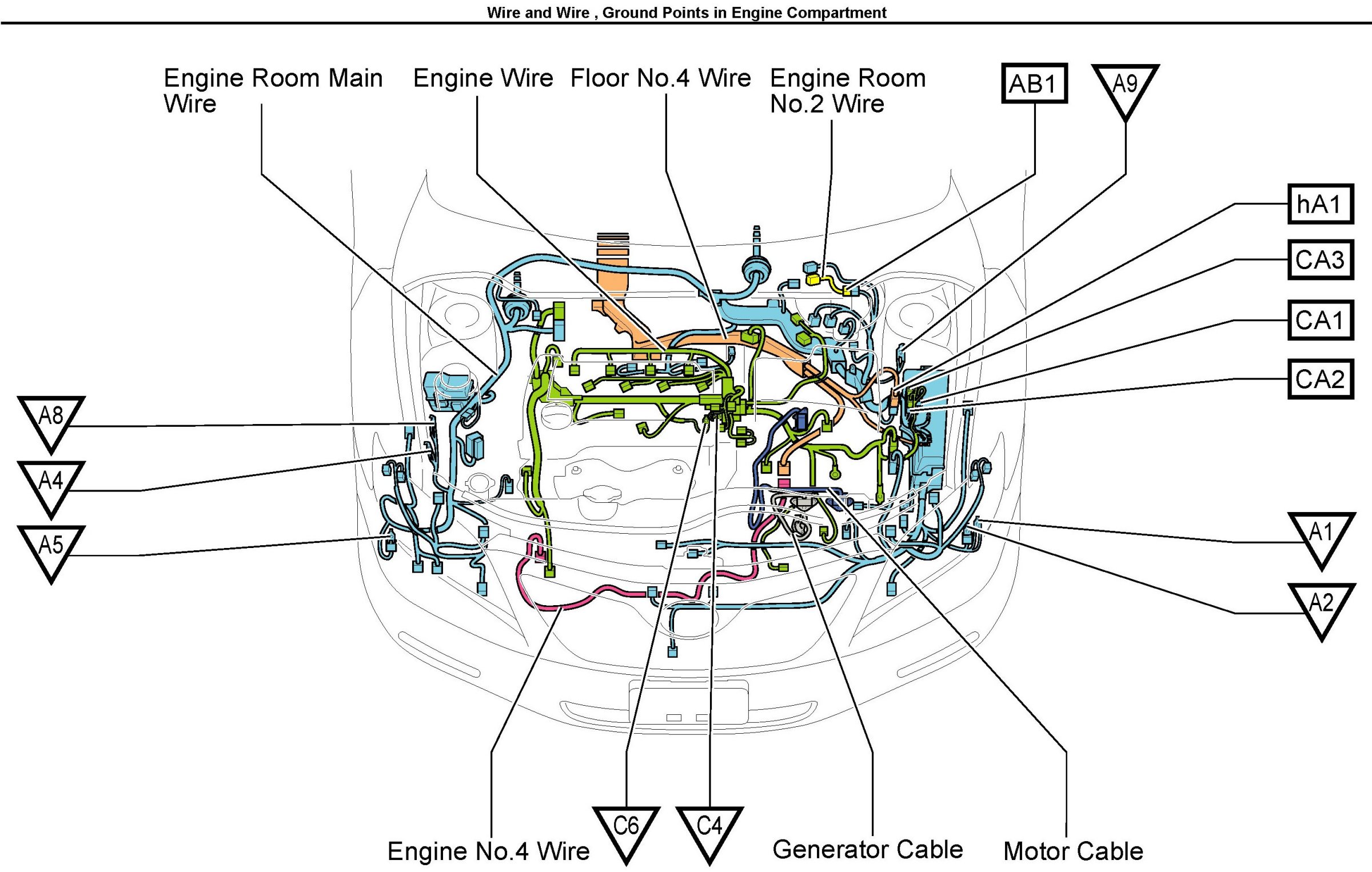

Wire and Wire, Ground Points In Engine Compartment

A1-C6, AB1-hA1:



AB1-hA1:
