Components

P311 HYBRID VEHICLE CONTROL: HYBRID VEHICLE CONTROL ECU: COMPONENTS

COMPONENTS

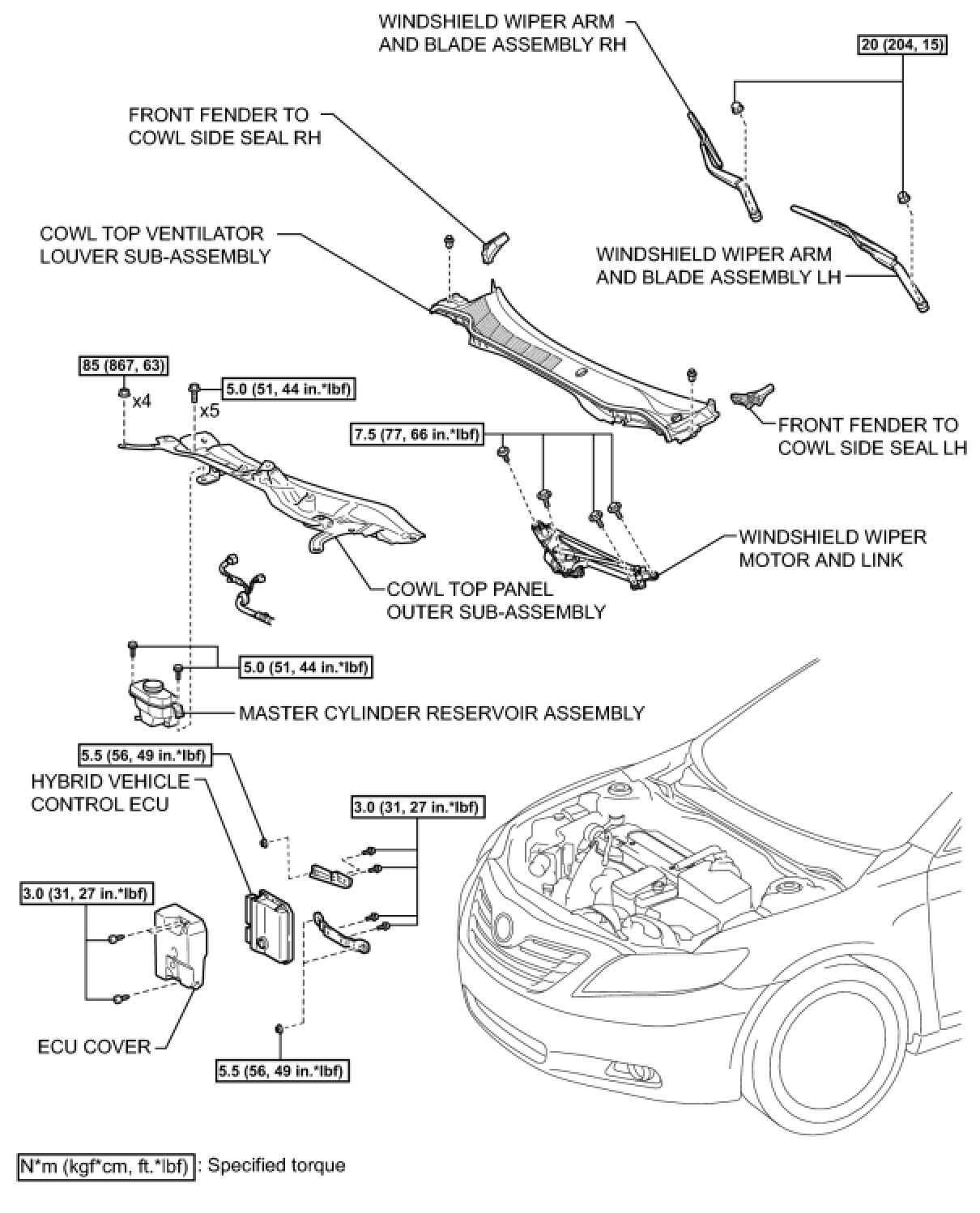

ILLUSTRATION
