Hybrid Drive Systems: Application and ID

CAMRY Hybrid Identification
In appearance, the 2007 CAMRY hybrid is nearly identical to the conventional non-hybrid Toyota CAMRY. The CAMRY hybrid is a 4-door sedan. Exterior, interior, and engine compartment illustrations are provided to assist in identification.

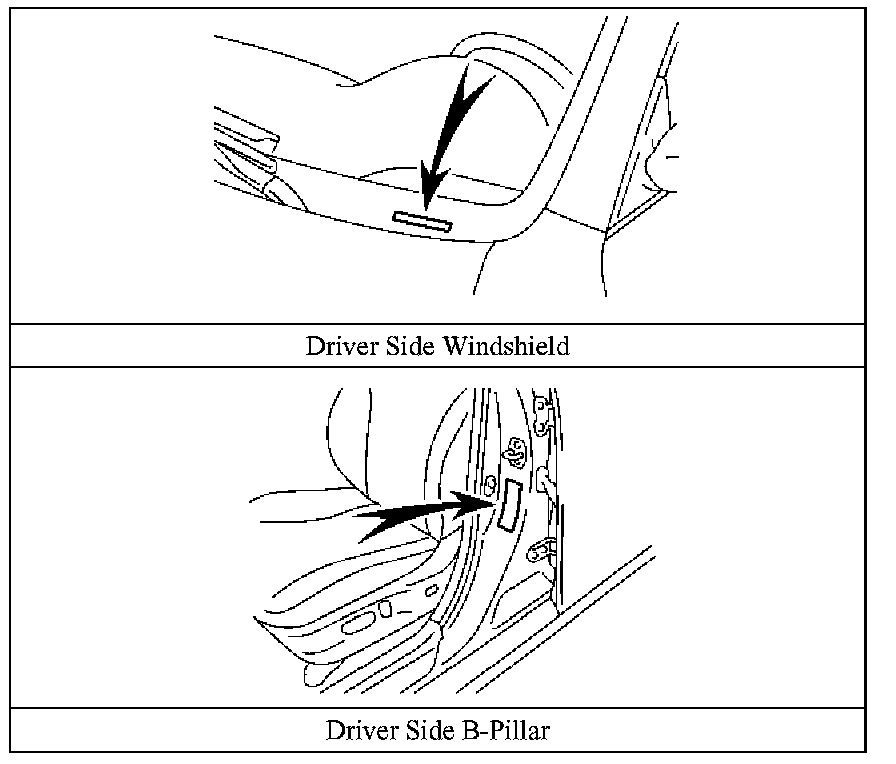

The alphanumeric 17 character Vehicle Identification Number (VIN) is provided in the front windshield cowl and driver door pillar.

Example VIN:
JTNBB46S840020208
4T1BB46S7U0031258


A CAMRY hybrid is identified by the first 6 alphanumeric characters
JTNBB4
4T1BB4

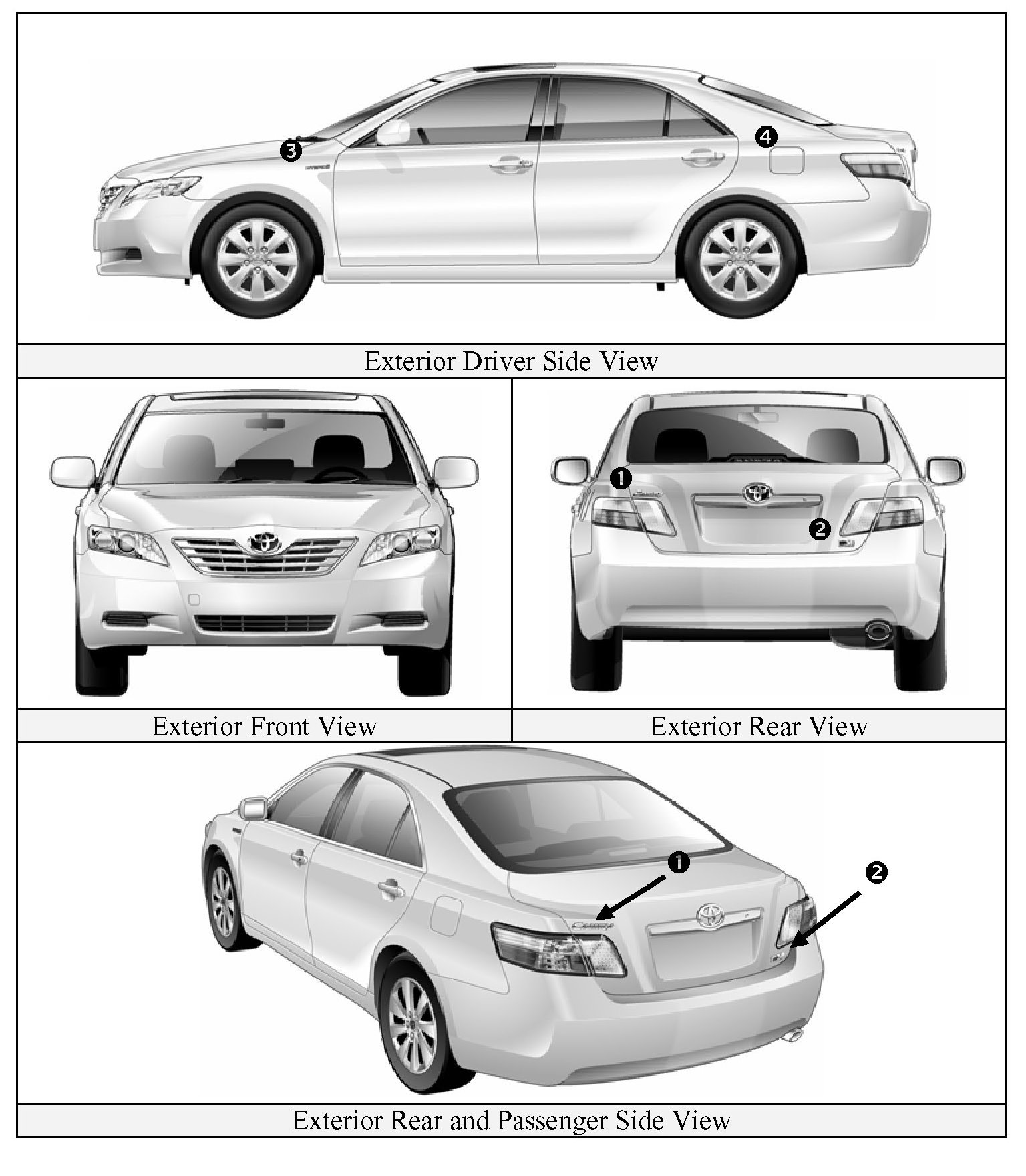

Exterior



"1" CAMRY logo on the trunk lid.
"2" HYBRID SYNERGY DRIVE logo on the trunk lid.
"3" HYBRID logo on each front fender.
"4" Gasoline fuel filler door located on the driver side rear quarter panel.

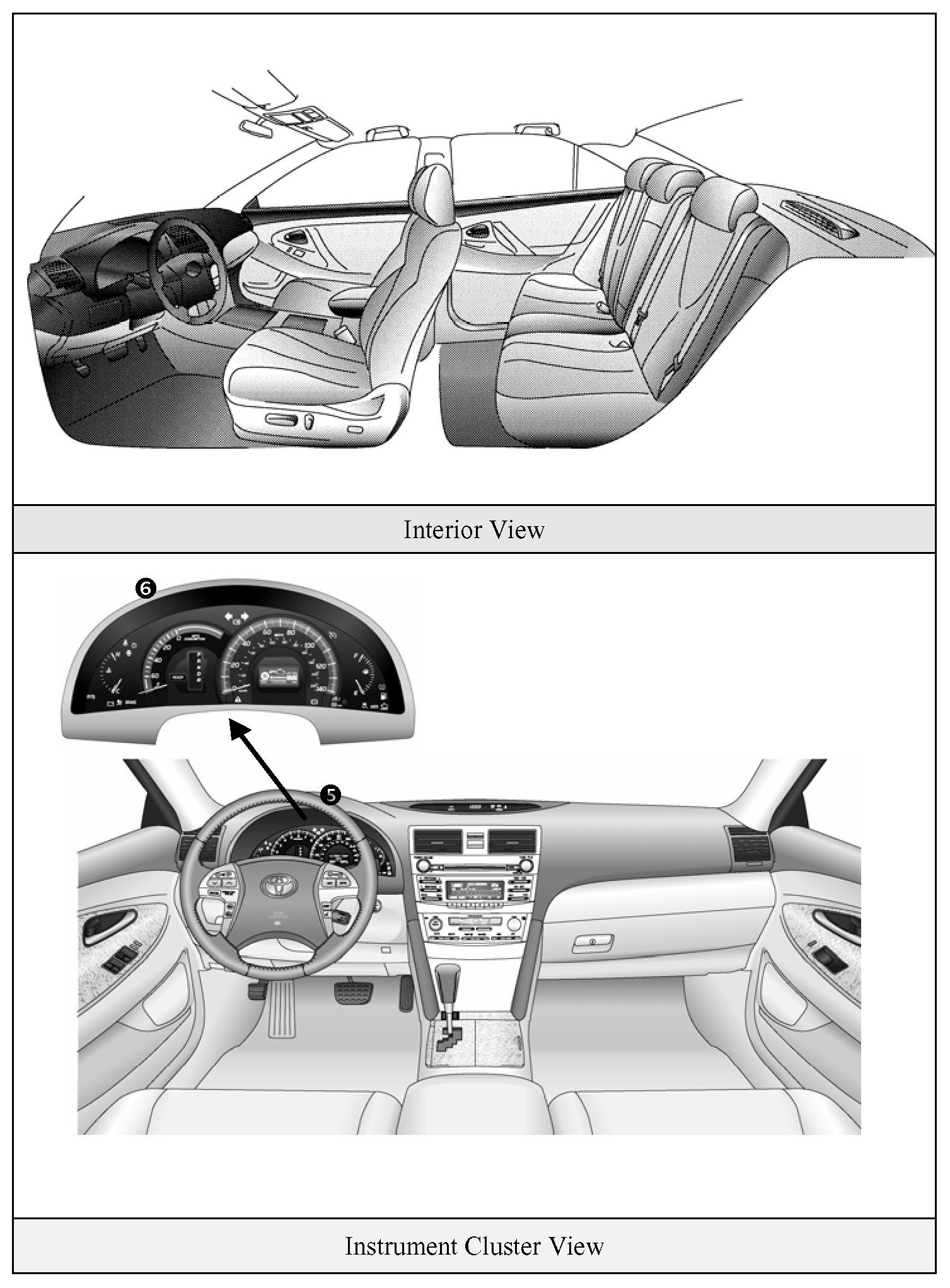

Interior



"5" The instrument cluster (speedometer, fuel gauge, and warning lights)located in the dash behind the steering wheel, is different than the one on the conventional, non-hybrid CAMRY.
"6" In place of a tachometer, a fuel meter showing miles per gallon (mpg)consumption is used. A multi-information display showing energy flow is provided in the center of the speedometer.

NOTE:
If the vehicle is shut off, the instrument cluster gauges will be "blacked out," not illuminated.

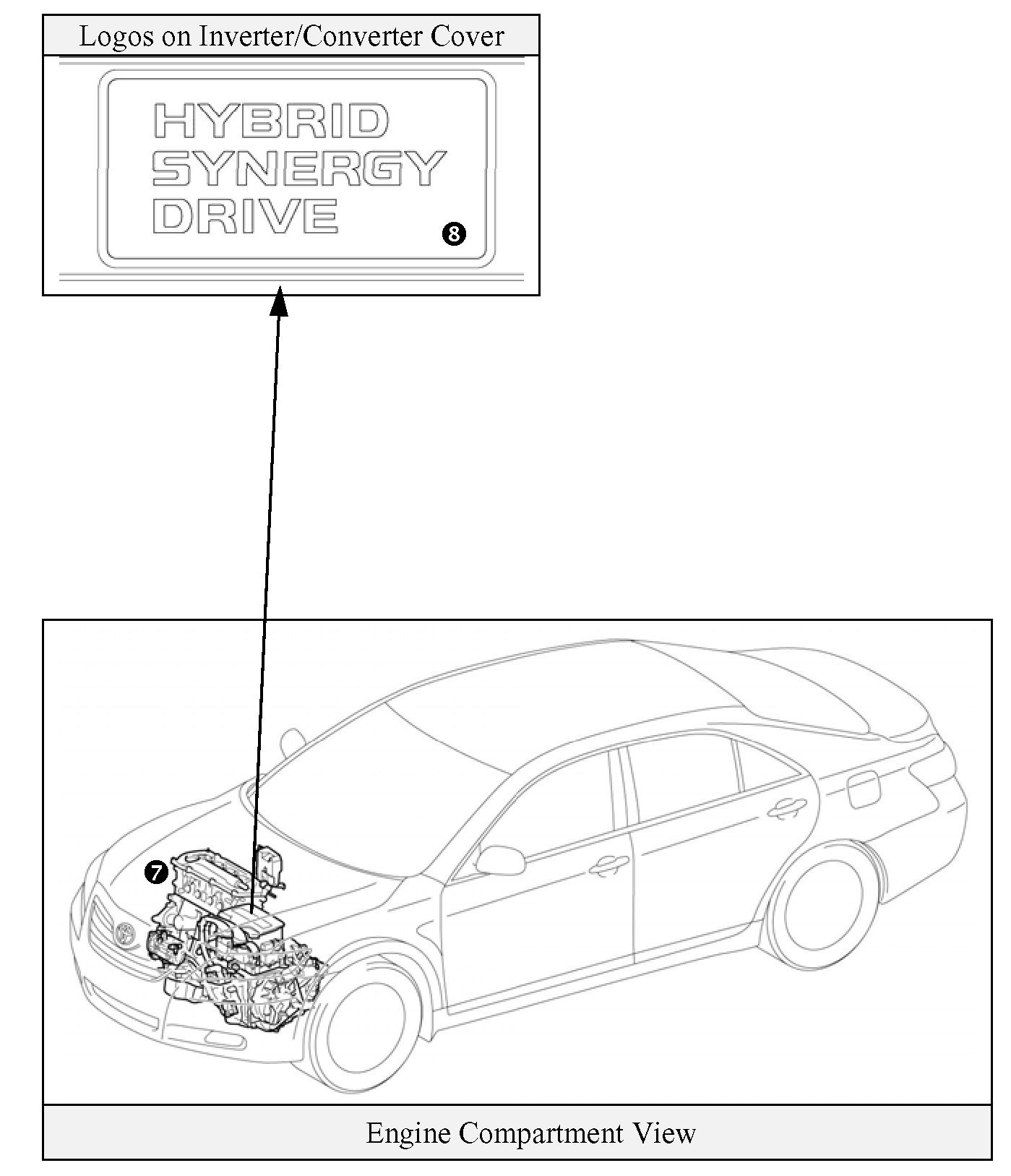

Engine Compartment



"7" 2.4 liter aluminum alloy gasoline engine.
"8" High voltage inverter/converter assembly with logo on the plastic cover.
