Blower Unit

Blower Unit:

BLOWER UNIT

REMOVAL

1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM
2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
3. DISCONNECT NEGATIVE BATTERY TERMINAL

NOTE: Wait for 90 seconds after disconnecting the terminal to prevent the airbag from deploying.

4. SEPARATE BRAKE MASTER CYLINDER RESERVOIR SUB-ASSEMBLY

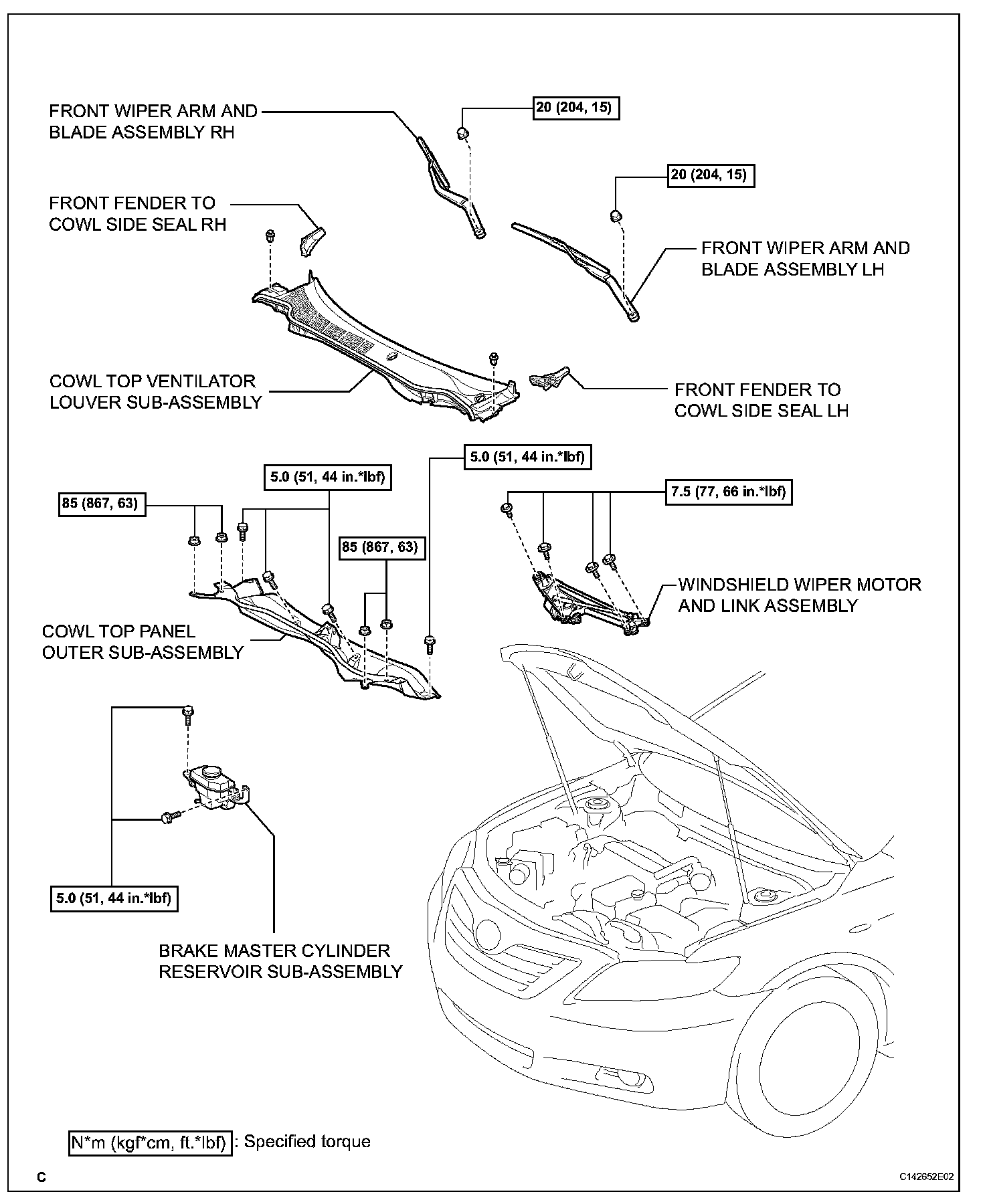

5. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH
6. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH
7. REMOVE FRONT FENDER TO COWL SIDE SEAL LH
8. REMOVE FRONT FENDER TO COWL SIDE SEAL RH
9. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
10. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
11. REMOVE COWL TOP OUTER FRONT PANEL SUB-ASSEMBLY
12. DISCONNECT SUCTION PIPE SUB-ASSEMBLY
13. DISCONNECT AIR CONDITIONER TUBE AND ACCESSORY
14. DISCONNECT HEATER OUTLET WATER HOSE
15. DISCONNECT HEATER INLET WATER HOSE

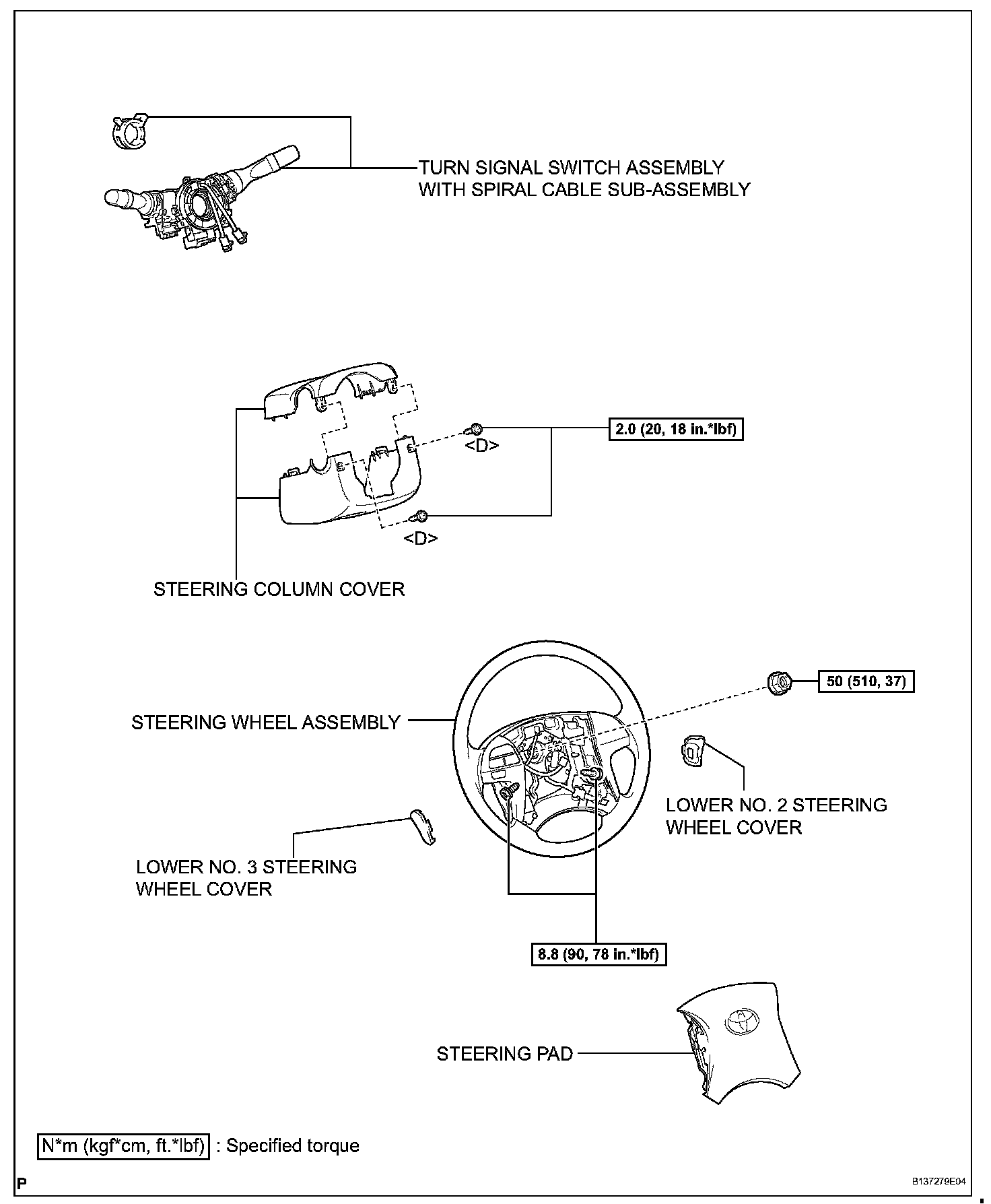

16. REMOVE LOWER NO. 3 STEERING WHEEL COVER
17. REMOVE LOWER NO. 2 STEERING WHEEL COVER
18. REMOVE STEERING PAD
19. REMOVE STEERING WHEEL ASSEMBLY

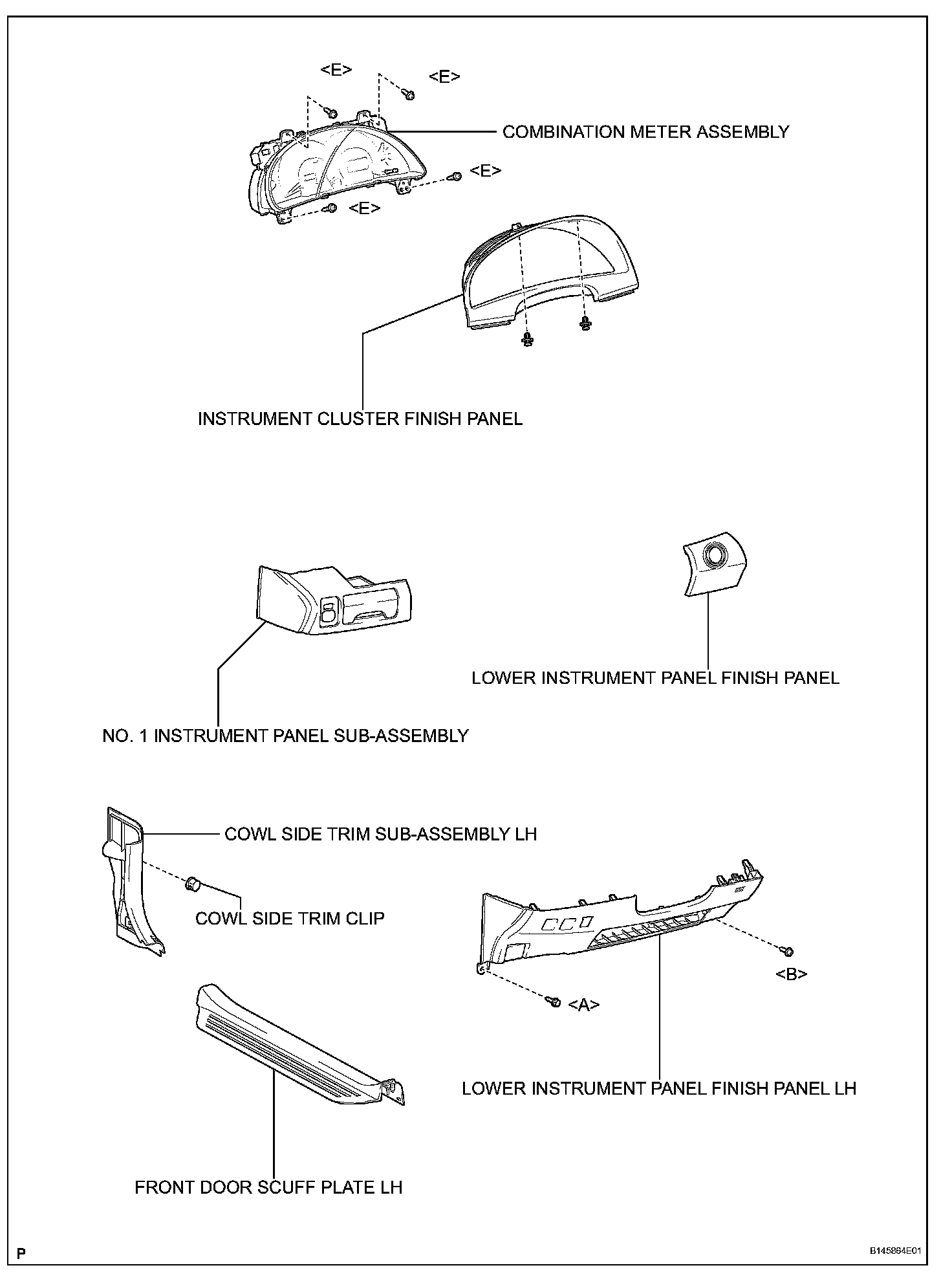

20. REMOVE FRONT DOOR SCUFF PLATE LH
21. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
22. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH
23. REMOVE STEERING COLUMN COVER
24. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
25. REMOVE NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY
26. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL
27. REMOVE INSTRUMENT CLUSTER FINISH PANEL
28. REMOVE COMBINATION METER ASSEMBLY
29. REMOVE FRONT DOOR SCUFF PLATE RH
30. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH
31. REMOVE INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY
32. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

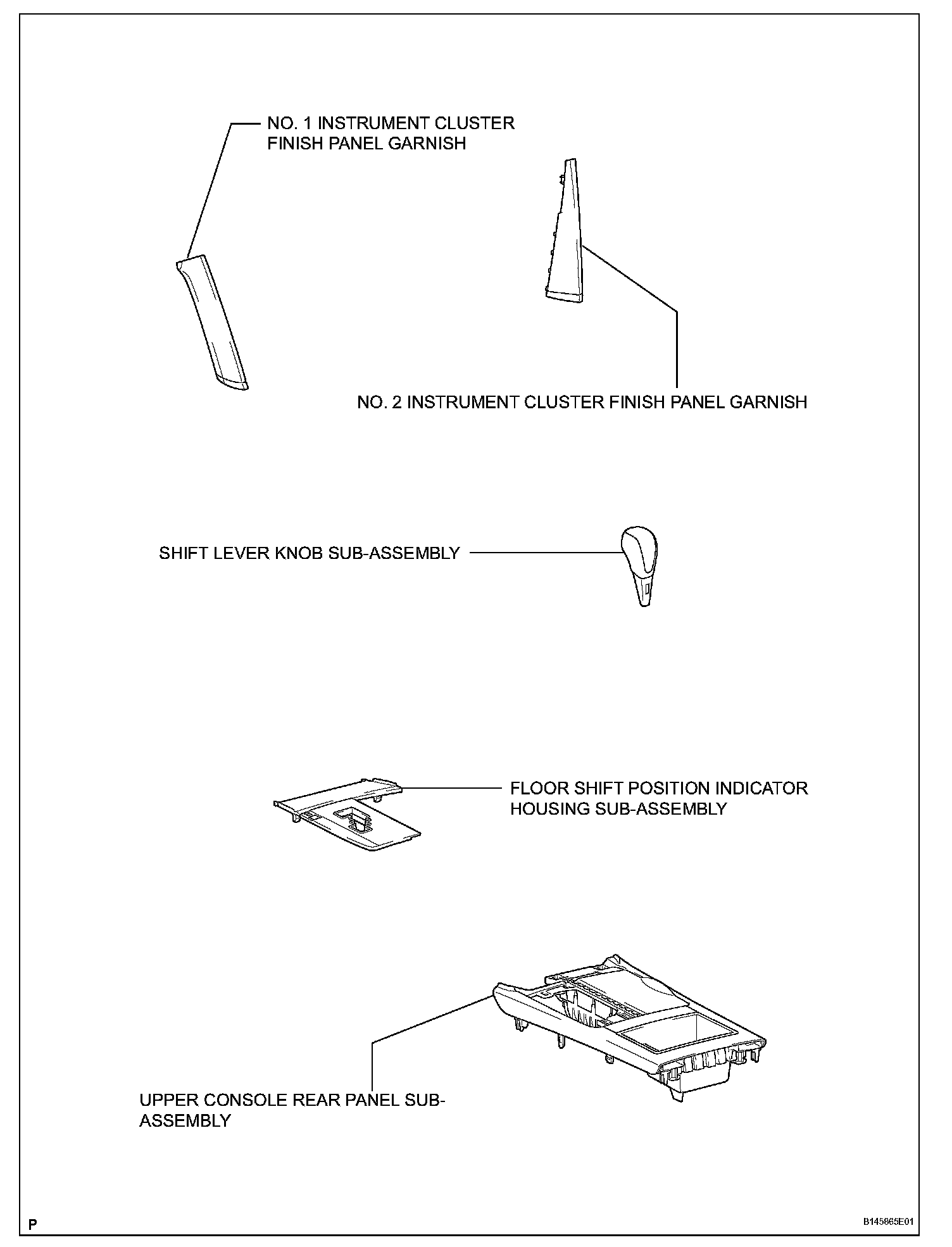

33. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
34. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
35. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
36. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY
37. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY

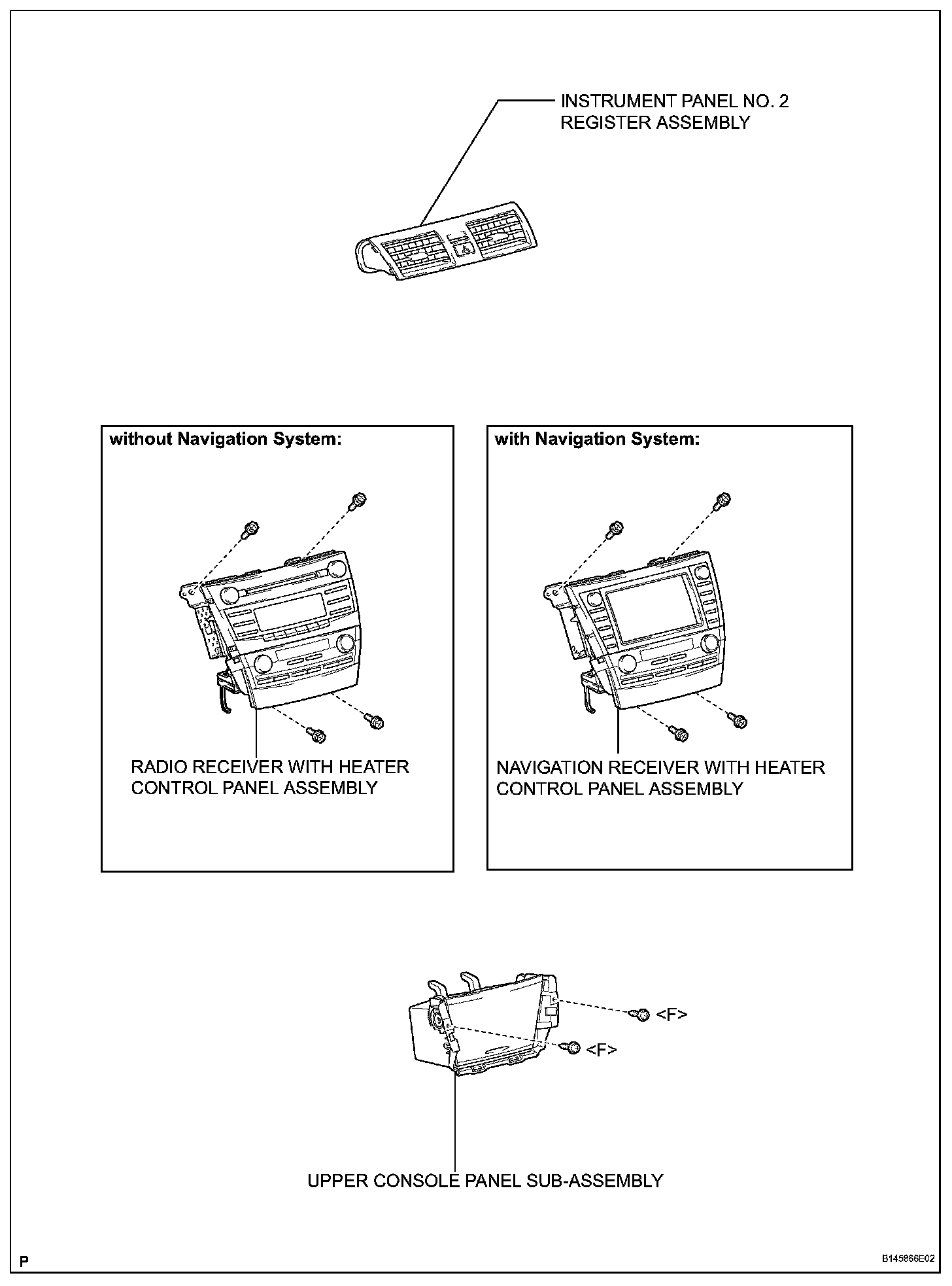

38. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
39. REMOVE INSTRUMENT PANEL NO. 2 REGISTER ASSEMBLY
40. REMOVE RADIO RECEIVER WITH HEATER CONTROL PANEL ASSEMBLY (w/o Navigation System)
41. REMOVE NAVIGATION RECEIVER WITH HEATER CONTROL PANEL ASSEMBLY
42. REMOVE CONSOLE BOX POCKET
43. REMOVE CONSOLE BOX CARPET
44. REMOVE CONSOLE BOX ASSEMBLY

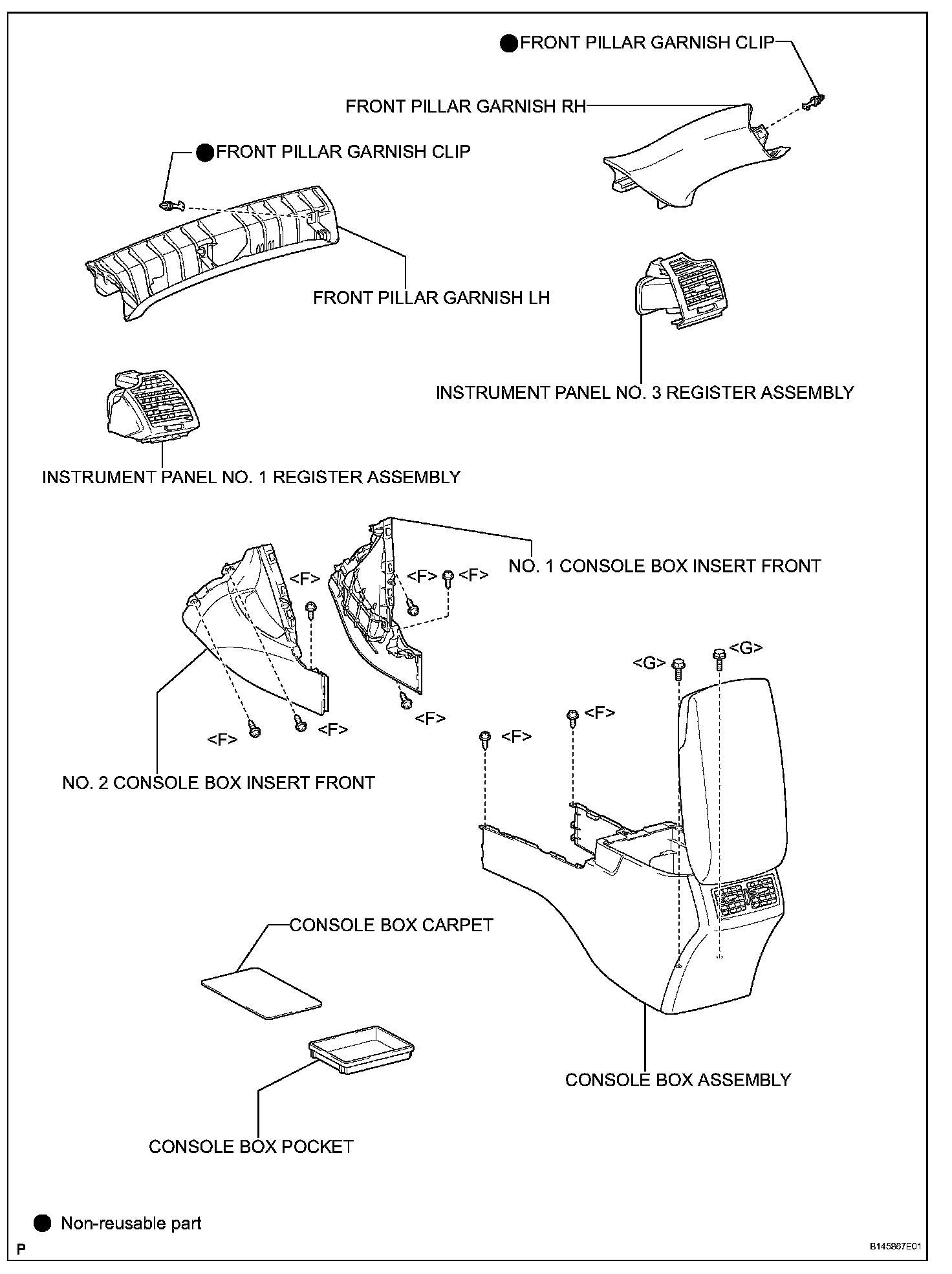

45. REMOVE NO. 2 CONSOLE BOX INSERT FRONT
46. REMOVE NO. 1 CONSOLE BOX INSERT FRONT
47. REMOVE FRONT PILLAR GARNISH LH
48. REMOVE INSTRUMENT PANEL NO. 1 REGISTER ASSEMBLY

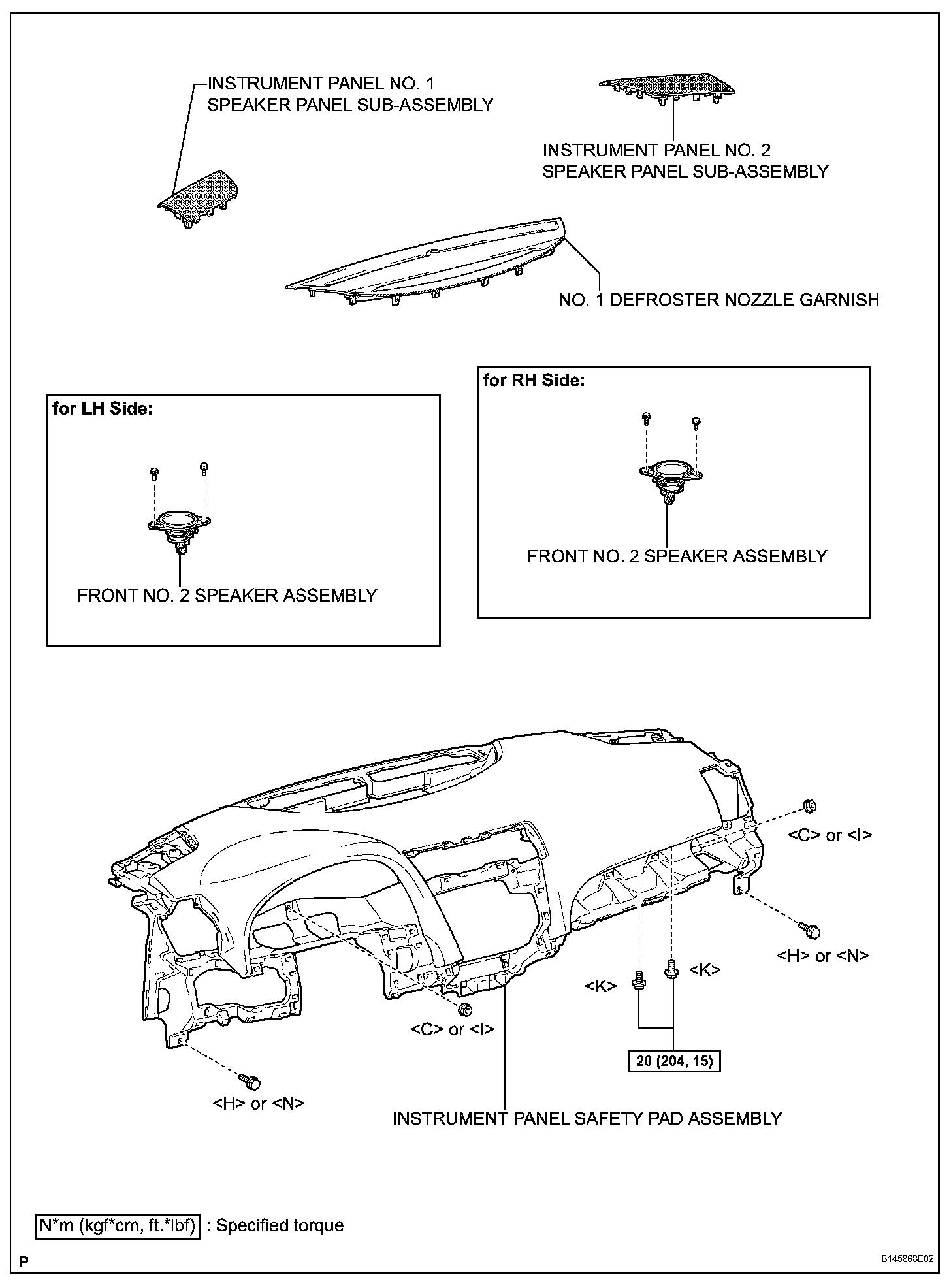

49. REMOVE INSTRUMENT PANEL NO. 1 SPEAKER PANEL SUB-ASSEMBLY
50. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)
51. REMOVE FRONT PILLAR GARNISH RH
52. REMOVE INSTRUMENT PANEL NO. 3 REGISTER ASSEMBLY
53. REMOVE INSTRUMENT PANEL NO. 2 SPEAKER PANEL SUB-ASSEMBLY
54. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)
55. REMOVE NO. 1 DEFROSTER NOZZLE GARNISH
56. DISCONNECT INSTRUMENT PANEL WIRE ASSEMBLY
57. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

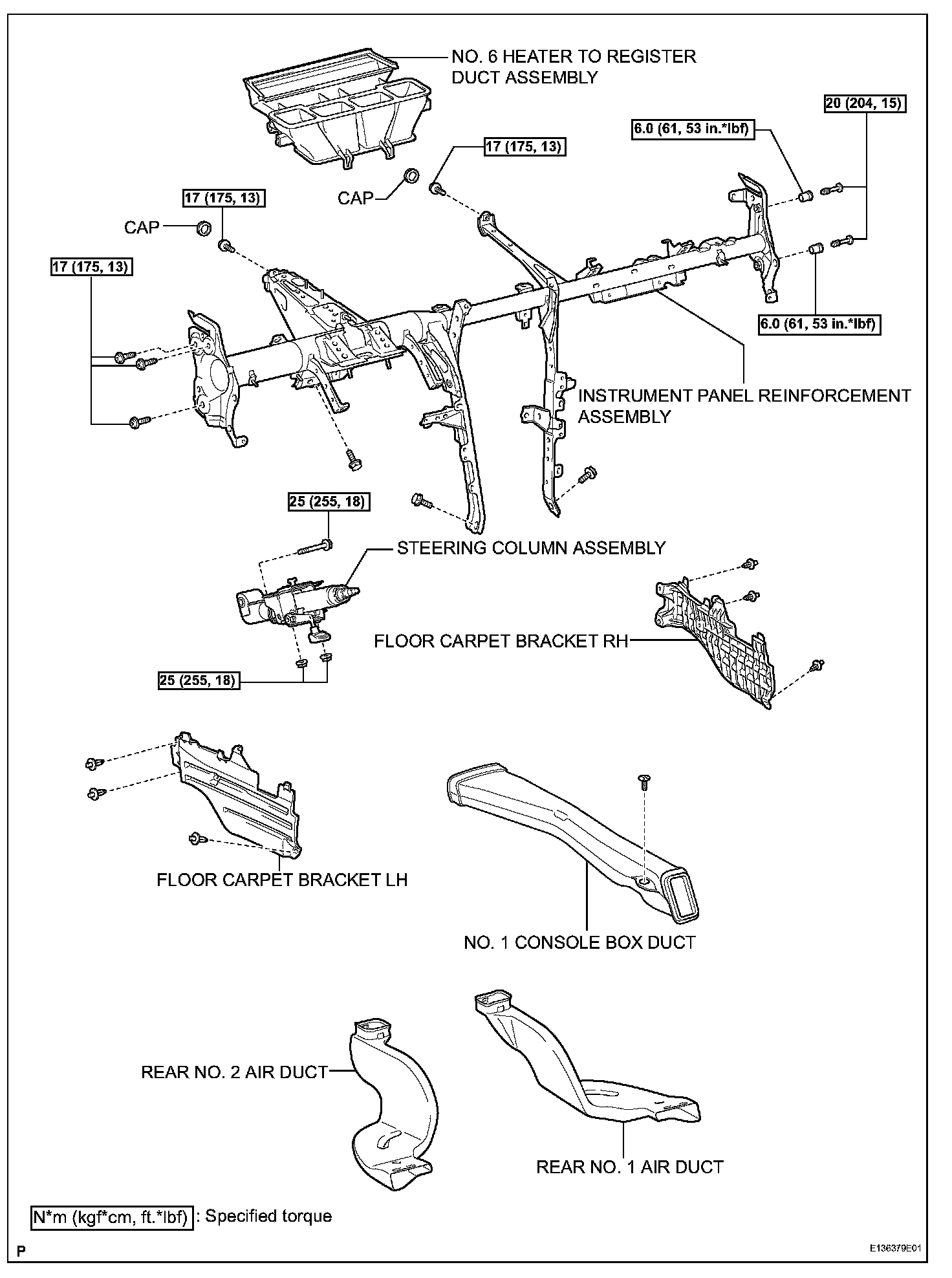

58. REMOVE NO. 1 CONSOLE BOX DUCT
59. REMOVE FLOOR CARPET BRACKET LH
60. REMOVE FLOOR CARPET BRACKET RH
61. REMOVE REAR NO. 2 AIR DUCT
62. REMOVE REAR NO. 1 AIR DUCT

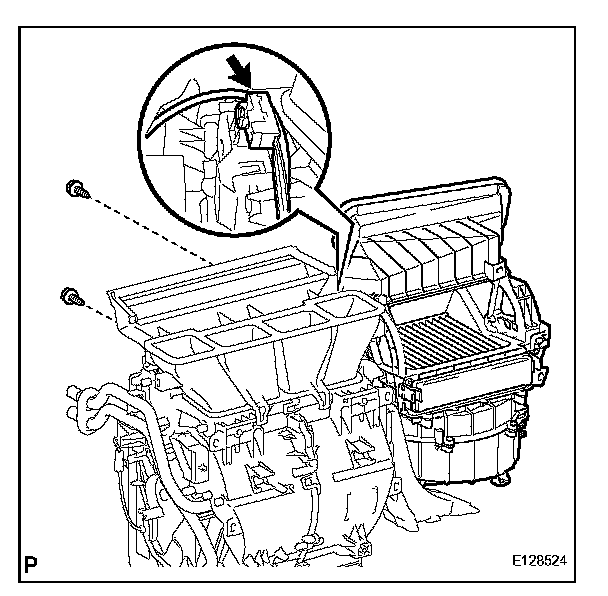

63. REMOVE NO. 1 AIR DUCT SUB-ASSEMBLY
64. SEPARATE STEERING INTERMEDIATE SHAFT ASSEMBLY
65. REMOVE STEERING COLUMN ASSEMBLY
66. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY
67. REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY

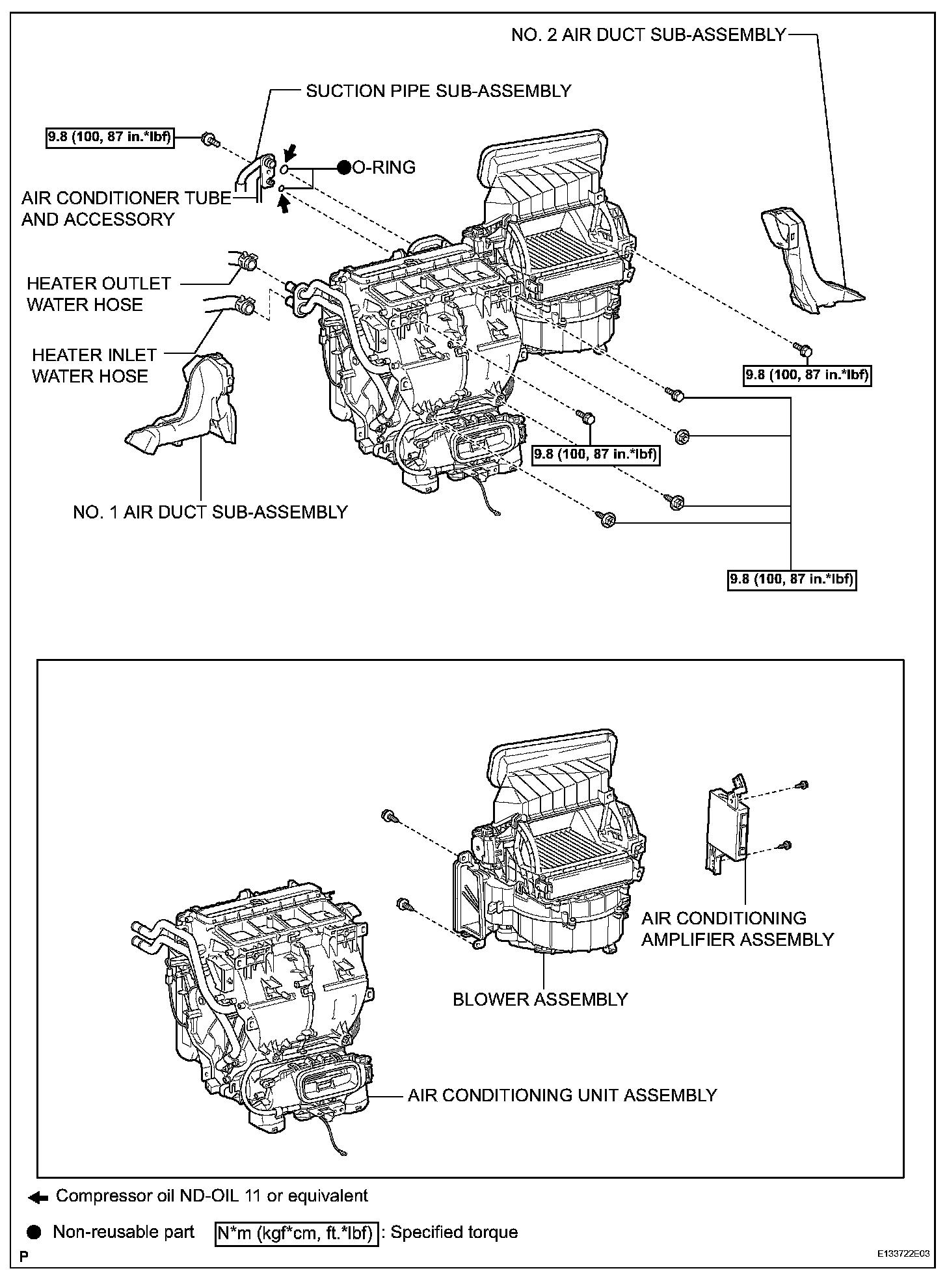

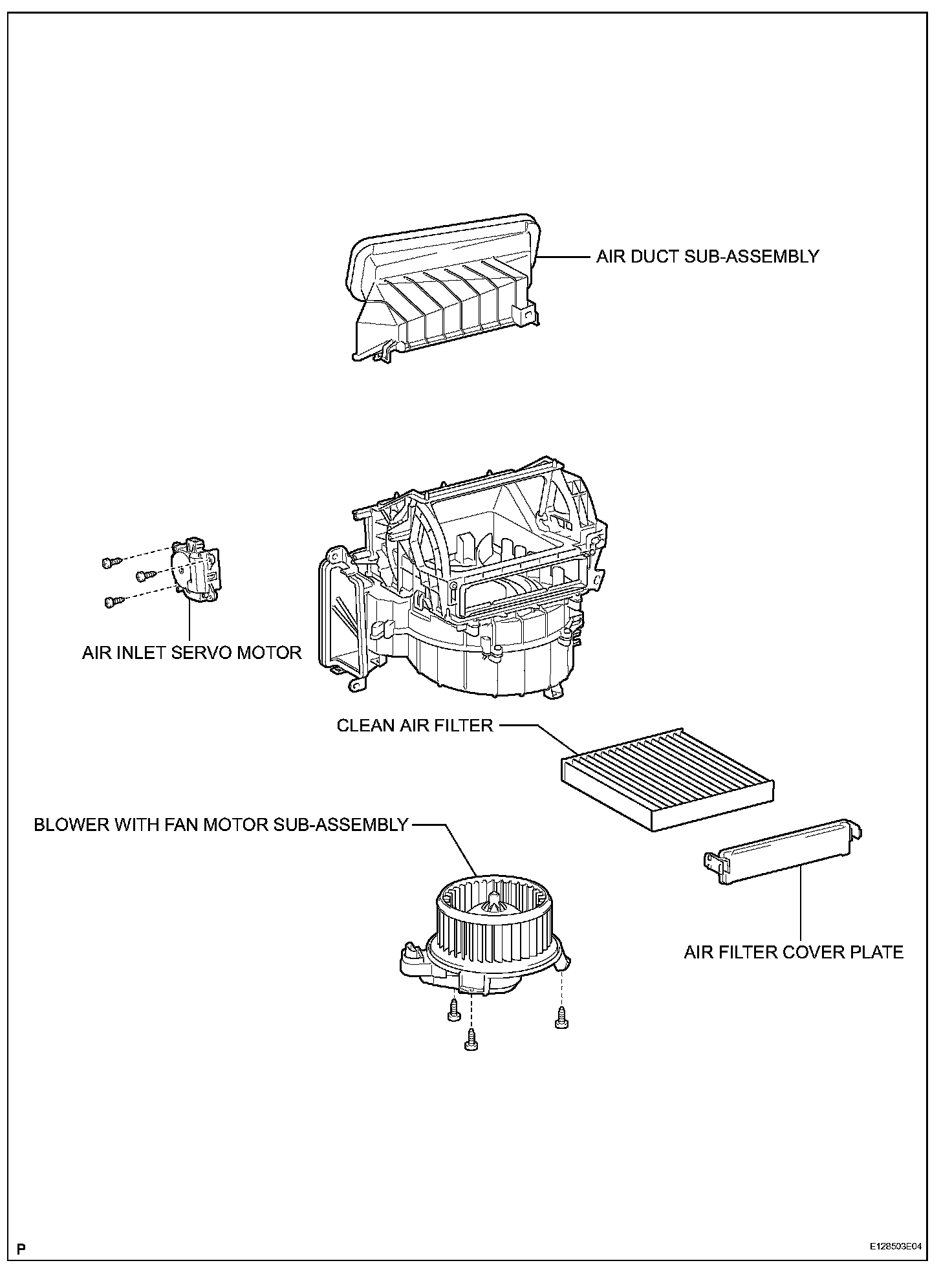

68. REMOVE BLOWER ASSEMBLY

a. Disconnect the connector.
b. Remove the 2 screws and blower assembly.

INSTALLATION

1. INSTALL BLOWER ASSEMBLY

a. Install the blower assembly with the 2 screws.
b. Connect the connector.

2. INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY
3. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY
4. INSTALL STEERING COLUMN ASSEMBLY
5. CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY

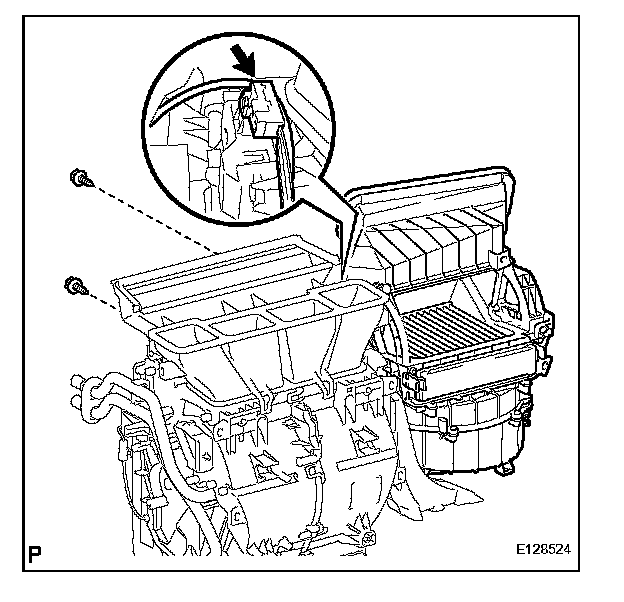

6. INSTALL NO. 1 AIR DUCT
7. INSTALL REAR NO. 1 AIR DUCT
8. INSTALL REAR NO. 2 AIR DUCT
9. INSTALL FLOOR CARPET BRACKET RH
10. INSTALL FLOOR CARPET BRACKET LH
11. INSTALL NO. 1 CONSOLE BOX DUCT
12. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY
13. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY
14. INSTALL NO. 1 DEFROSTER NOZZLE GARNISH
15. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)
16. INSTALL INSTRUMENT PANEL NO. 1 SPEAKER PANEL SUB-ASSEMBLY
17. INSTALL INSTRUMENT PANEL NO. 1 REGISTER ASSEMBLY
18. INSTALL FRONT PILLAR GARNISH LH
19. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)
20. INSTALL INSTRUMENT PANEL NO. 2 SPEAKER PANEL SUB-ASSEMBLY
21. INSTALL INSTRUMENT PANEL NO. 3 REGISTER ASSEMBLY
22. INSTALL FRONT PILLAR GARNISH RH
23. INSTALL NO. 1 CONSOLE BOX INSERT FRONT
24. INSTALL NO. 2 CONSOLE BOX INSERT FRONT
25. INSTALL CONSOLE BOX ASSEMBLY
26. INSTALL CONSOLE BOX CARPET
27. INSTALL CONSOLE BOX POCKET
28. INSTALL RADIO RECEIVER WITH HEATER CONTROL PANEL ASSEMBLY (w/o Navigation System)
29. INSTALL NAVIGATION RECEIVER WITH HEATER CONTROL PANEL ASSEMBLY (w/ Navigation System)
30. INSTALL INSTRUMENT PANEL NO. 2 REGISTER ASSEMBLY
31. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
32. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY
33. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY
34. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
35. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
36. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
37. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY
38. INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY
39. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
40. INSTALL FRONT DOOR SCUFF PLATE RH
41. INSTALL COMBINATION METER ASSEMBLY
42. INSTALL INSTRUMENT CLUSTER FINISH PANEL
43. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL
44. INSTALL NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY
45. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
46. ADJUST SPIRAL CABLE SUB-ASSEMBLY
47. INSTALL STEERING COLUMN COVER
48. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH
49. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
50. INSTALL FRONT DOOR SCUFF PLATE LH
51. INSTALL STEERING WHEEL ASSEMBLY
52. INSTALL STEERING PAD
53. INSTALL LOWER NO. 3 STEERING WHEEL COVER
54. INSTALL LOWER NO. 2 STEERING WHEEL COVER
55. INSTALL HEATER INLET WATER HOSE
56. INSTALL HEATER OUTLET WATER HOSE
57. INSTALL AIR CONDITIONER TUBE AND ACCESSORY
58. INSTALL SUCTION HOSE SUB-ASSEMBLY
59. INSTALL COWL TOP PANEL OUTER SUB-ASSEMBLY
60. INSTALL WINDSHIELD WIPER MOTOR AND LINK
61. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
62. INSTALL FRONT FENDER TO COWL SIDE SEAL LH
63. INSTALL FRONT FENDER TO COWL SIDE SEAL RH
64. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH
65. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH
66. INSTALL BRAKE MASTER CYLINDER RESERVOIR SUB-ASSEMBLY
67. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
68. INSPECT STEERING PAD
69. INSPECT SRS WARNING LIGHT
70. PERFORM INITIALIZATION

NOTE: Some systems need initialization after reconnecting the negative battery terminal.

71. ADD ENGINE COOLANT
72. INSPECT FOR COOLANT LEAK
73. CHARGE WITH REFRIGERANT
74. WARM UP COMPRESSOR
75. INSPECT FOR REFRIGERANT LEAK
