Home >> Toyota >> 2007 >> Camry L4-2.4L (2AZ-FXE) Hybrid >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Service and Repair >> Blower Unit (for TMMK Made) >> Components

Components








AIR CONDITIONING: BLOWER UNIT (for TMMK Made): COMPONENTS

COMPONENTS

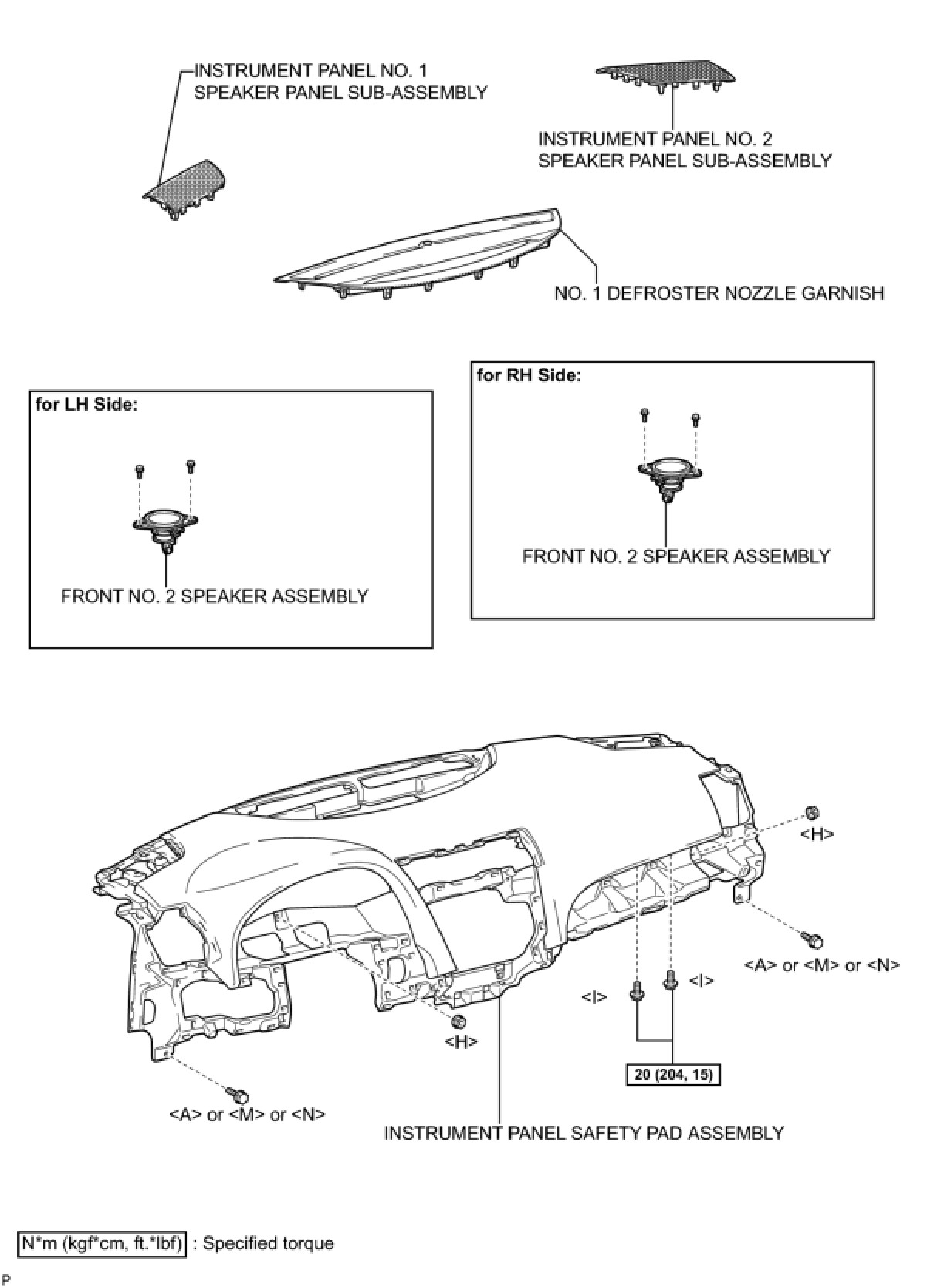

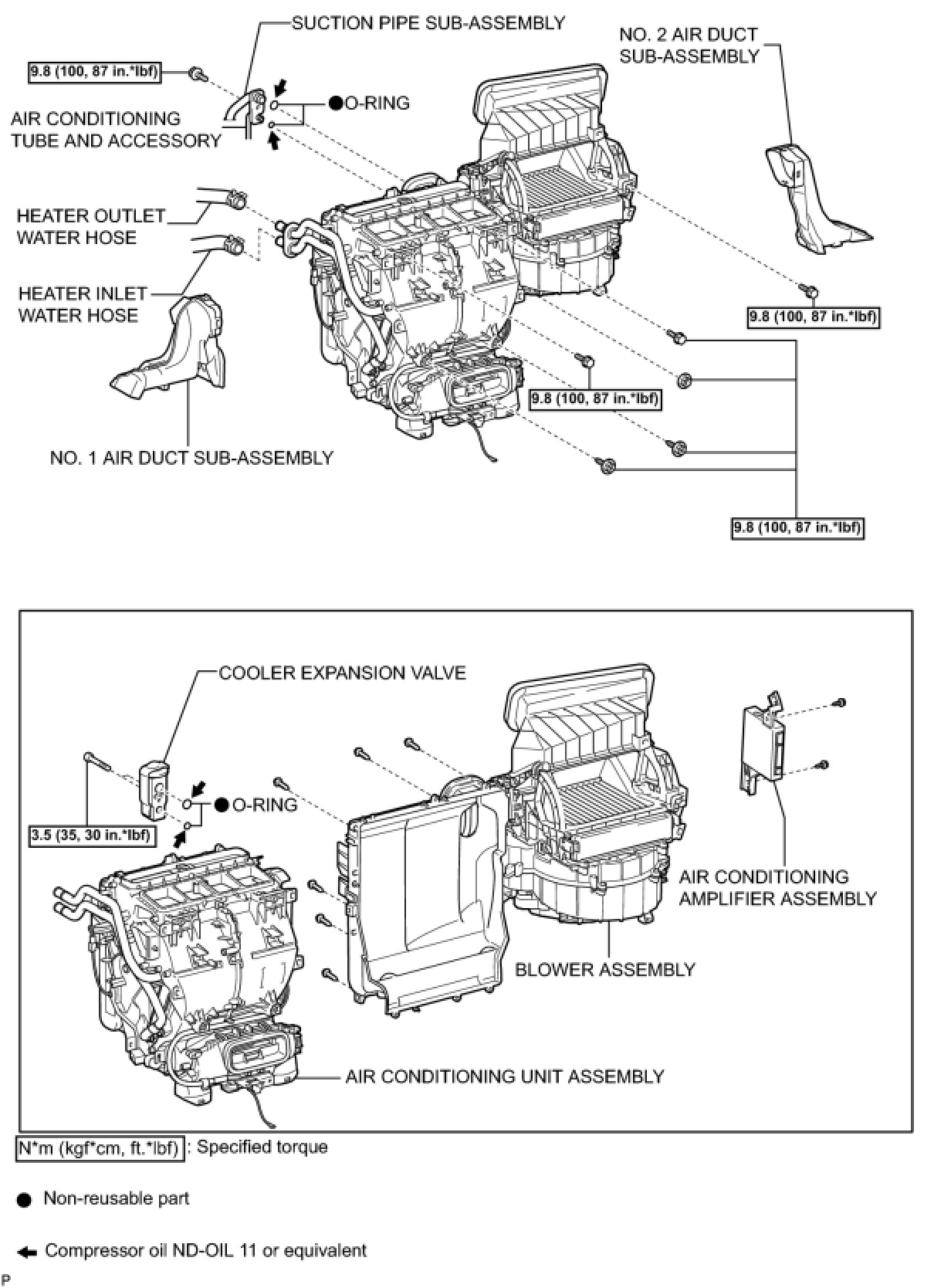

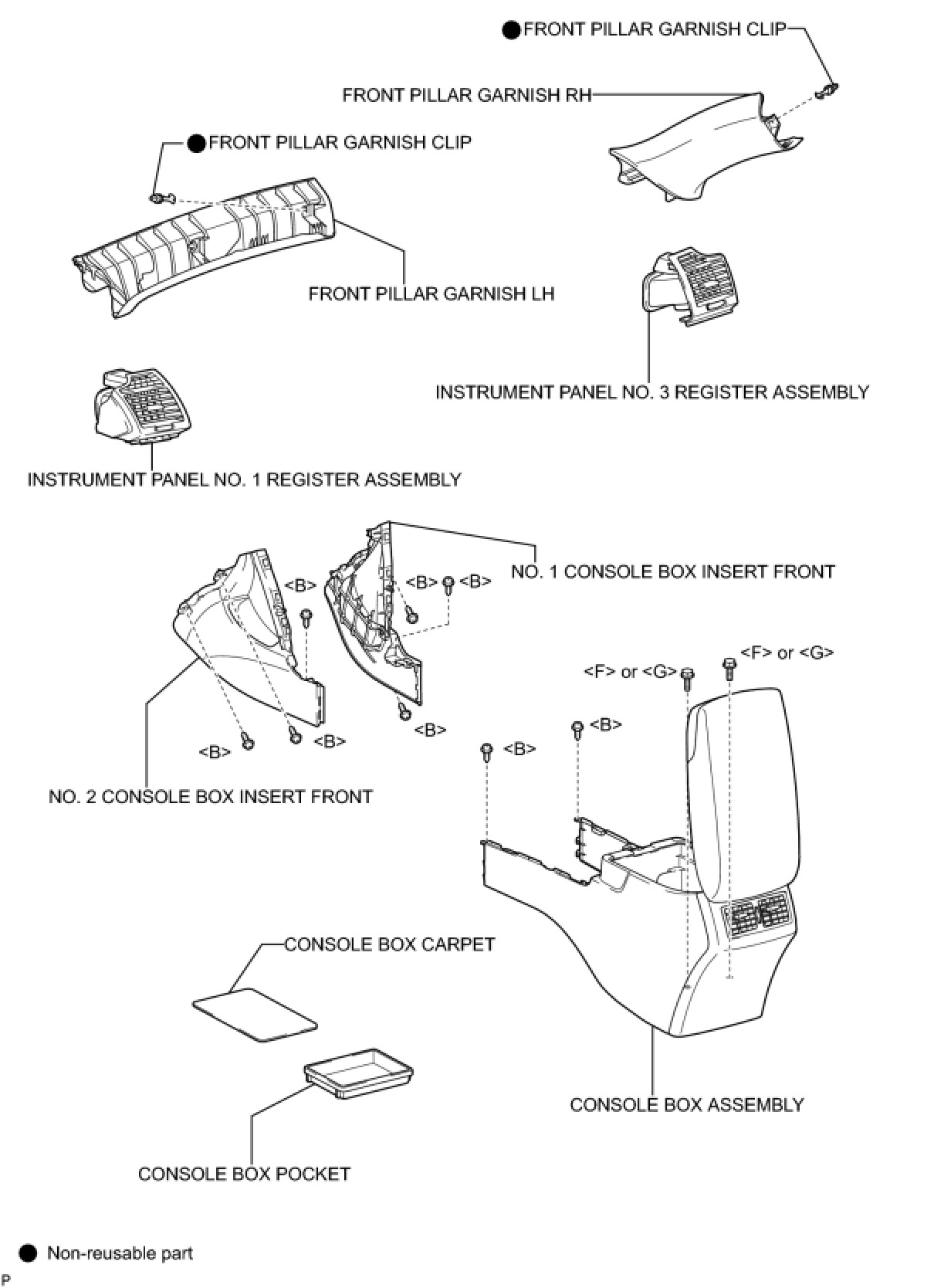

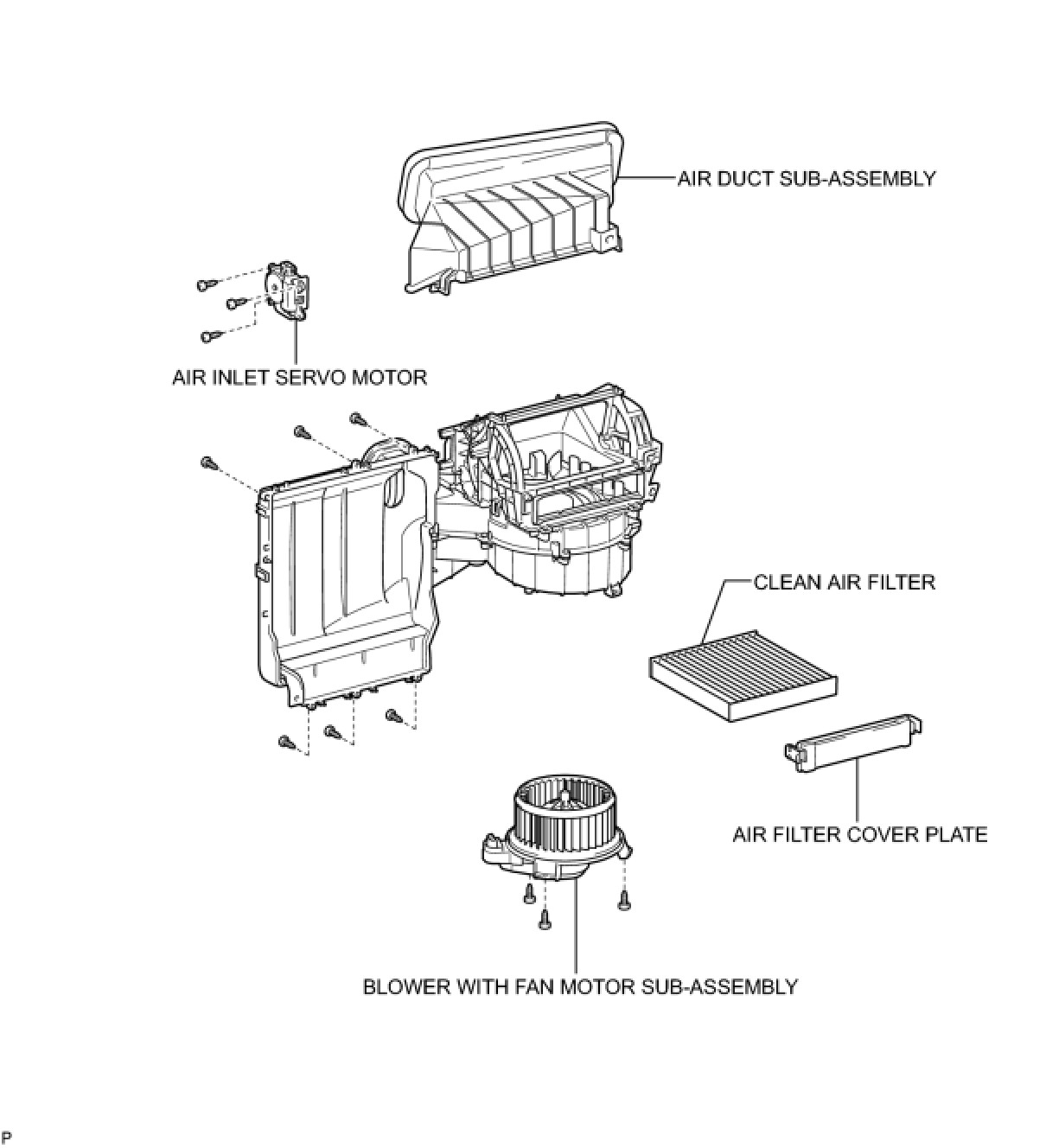

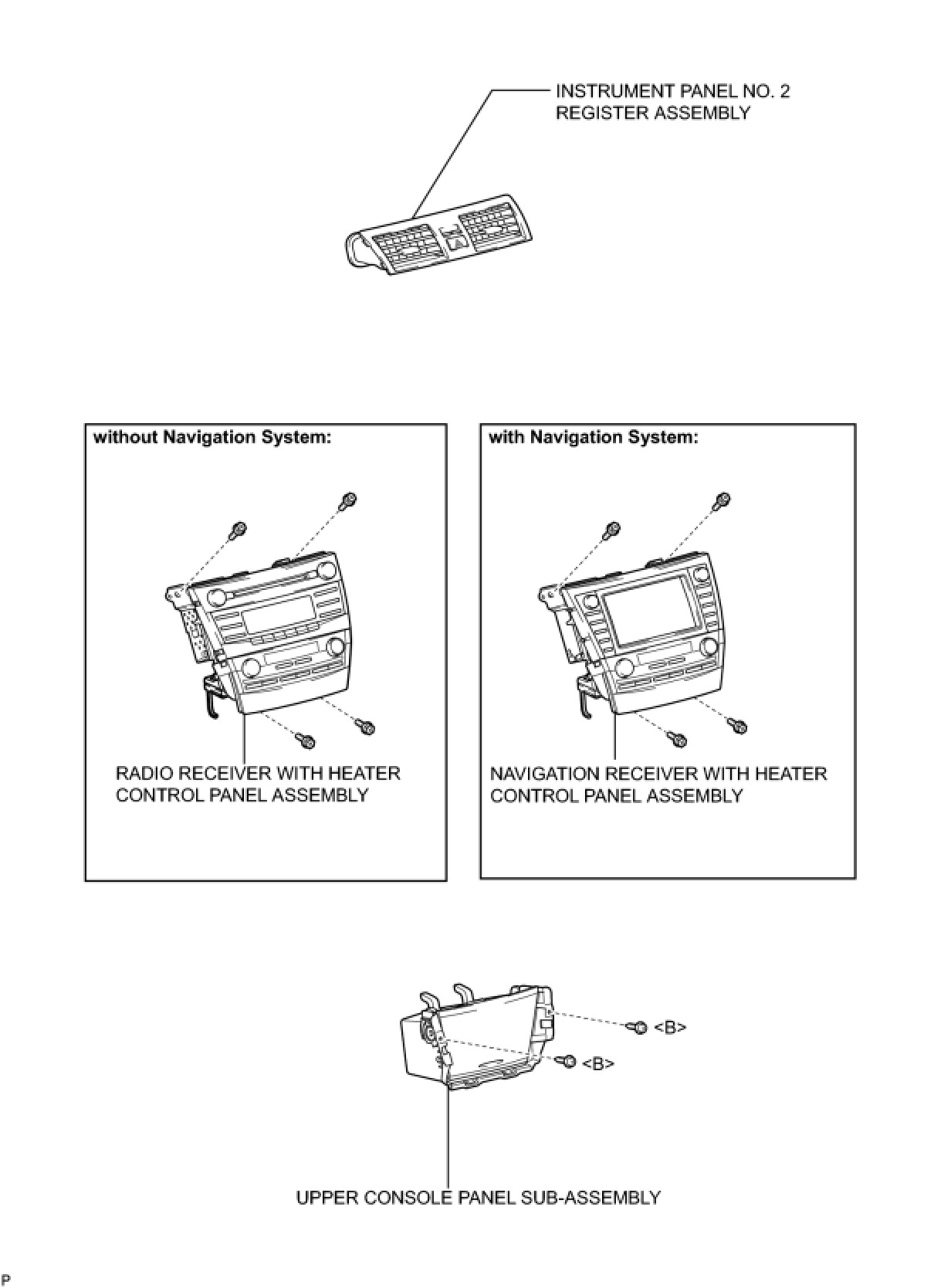

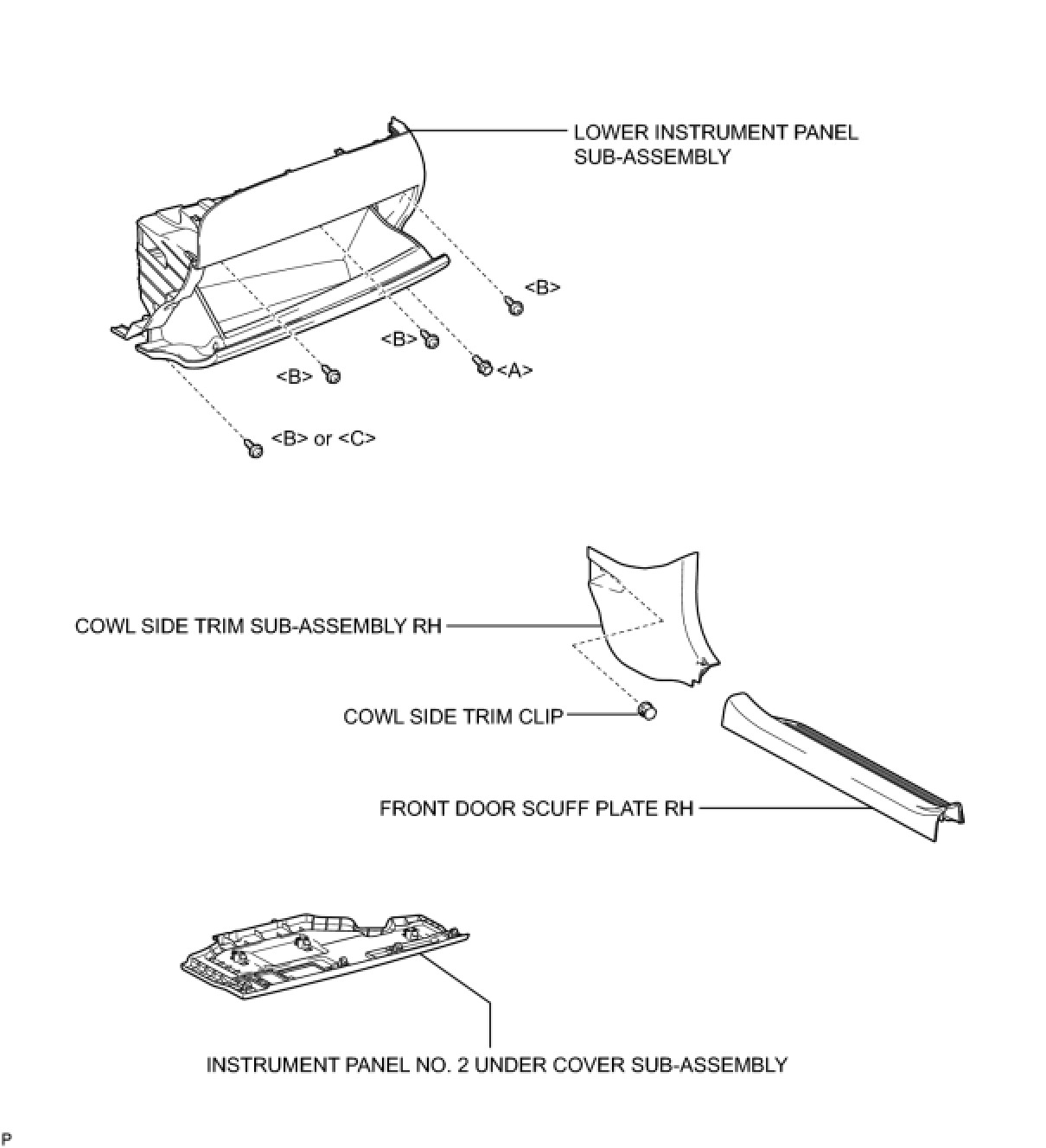

ILLUSTRATION
