Components








AIR CONDITIONING: BLOWER UNIT (for TMC Made): COMPONENTS

COMPONENTS

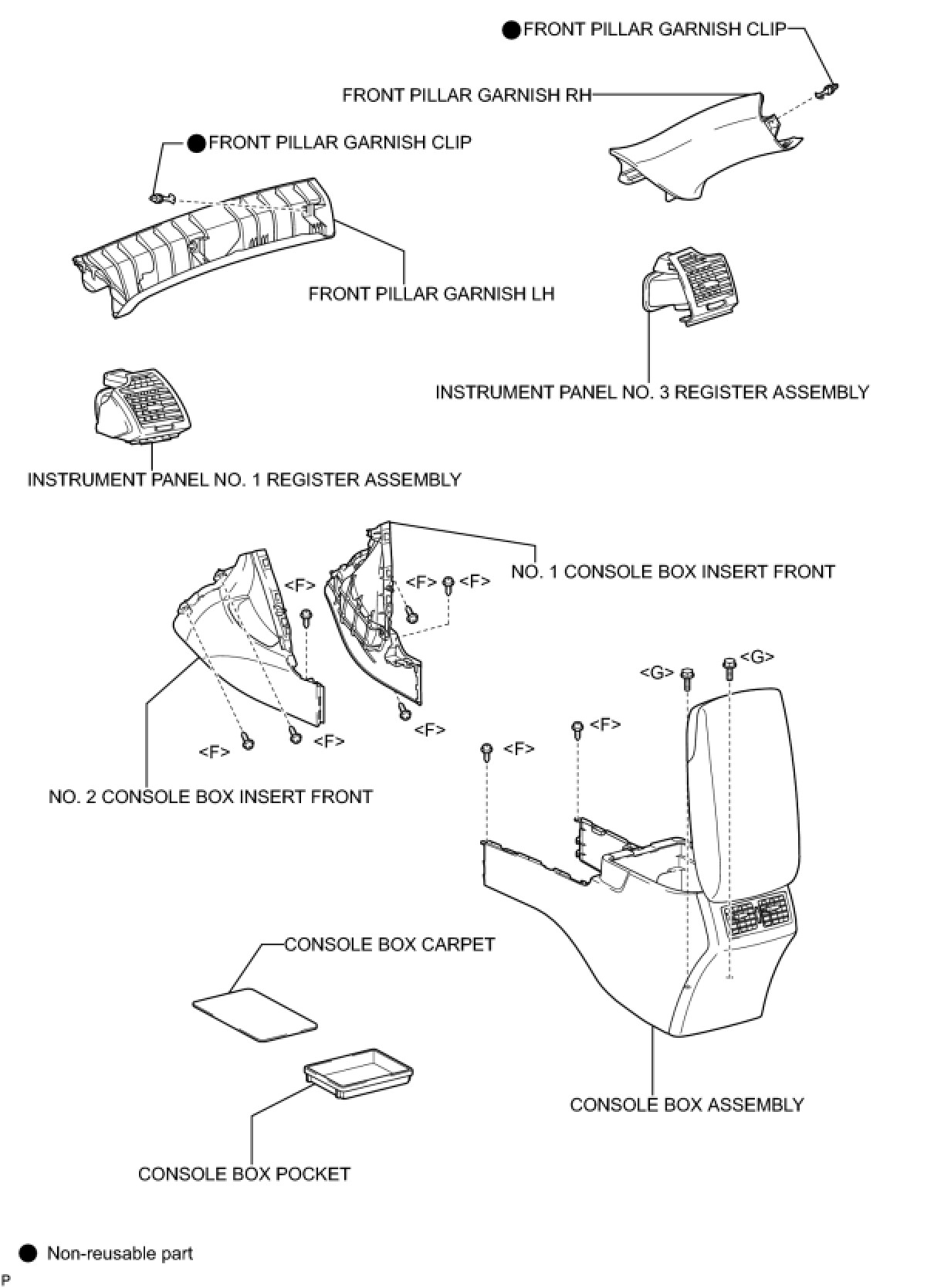

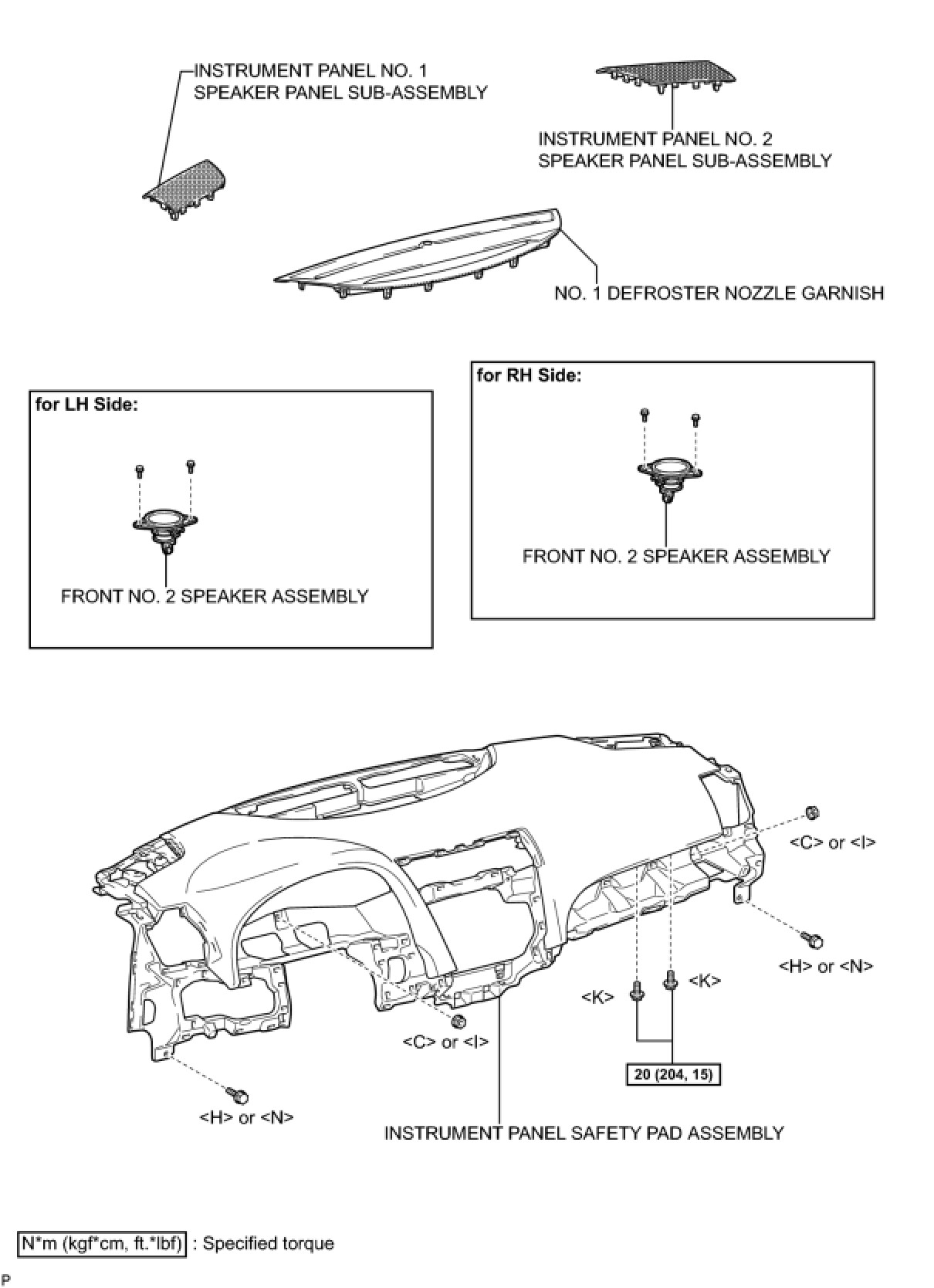

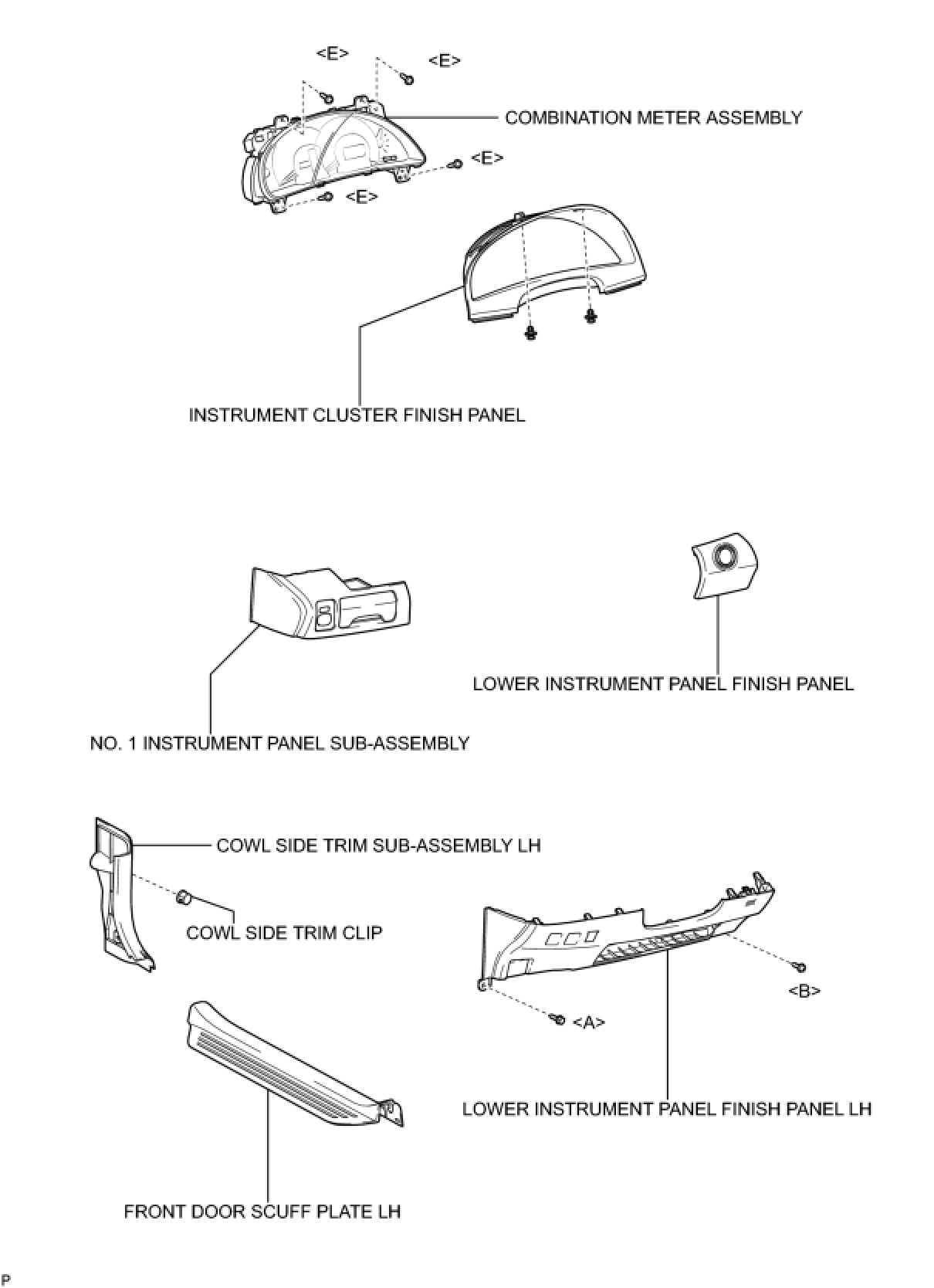

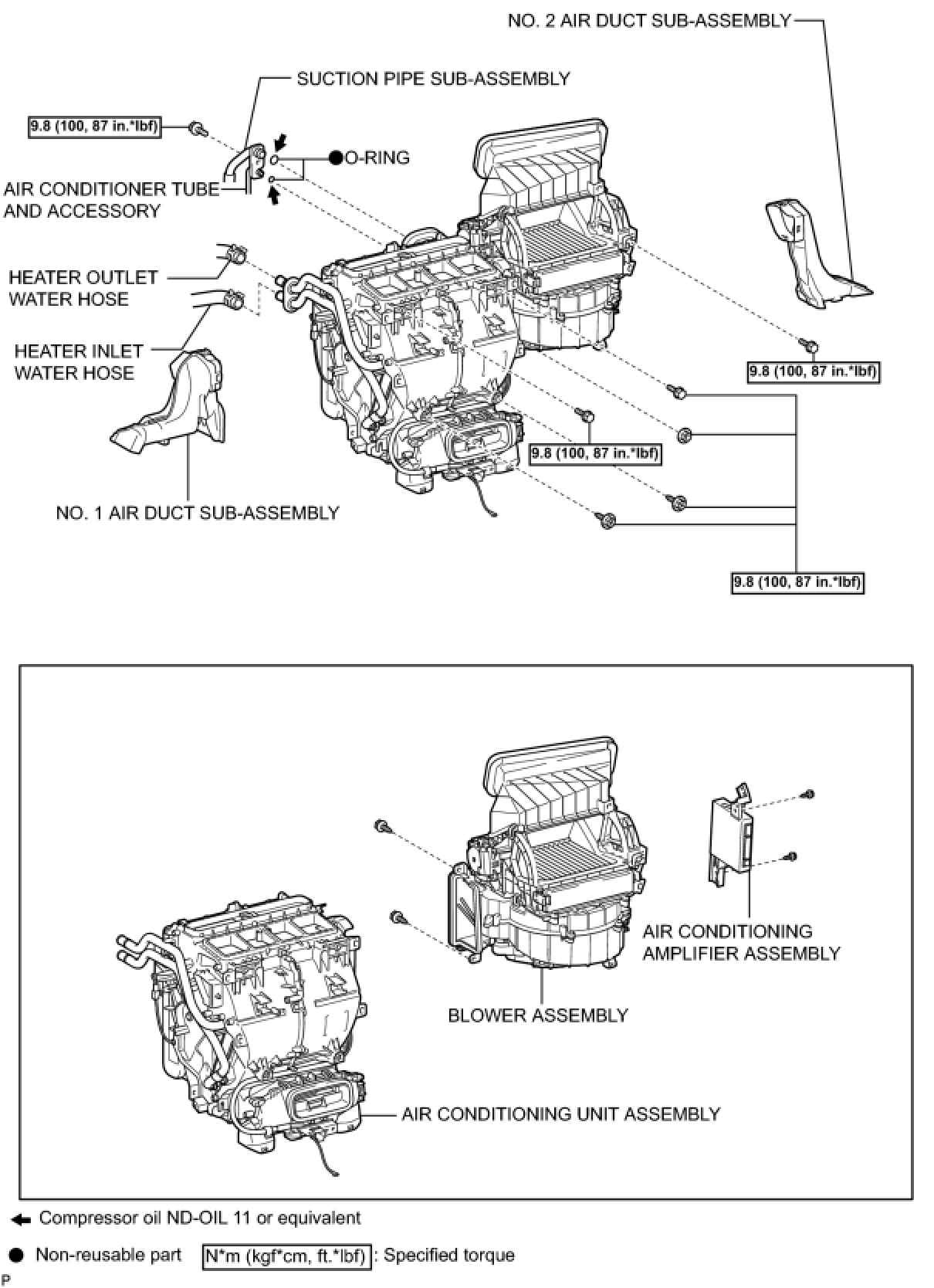

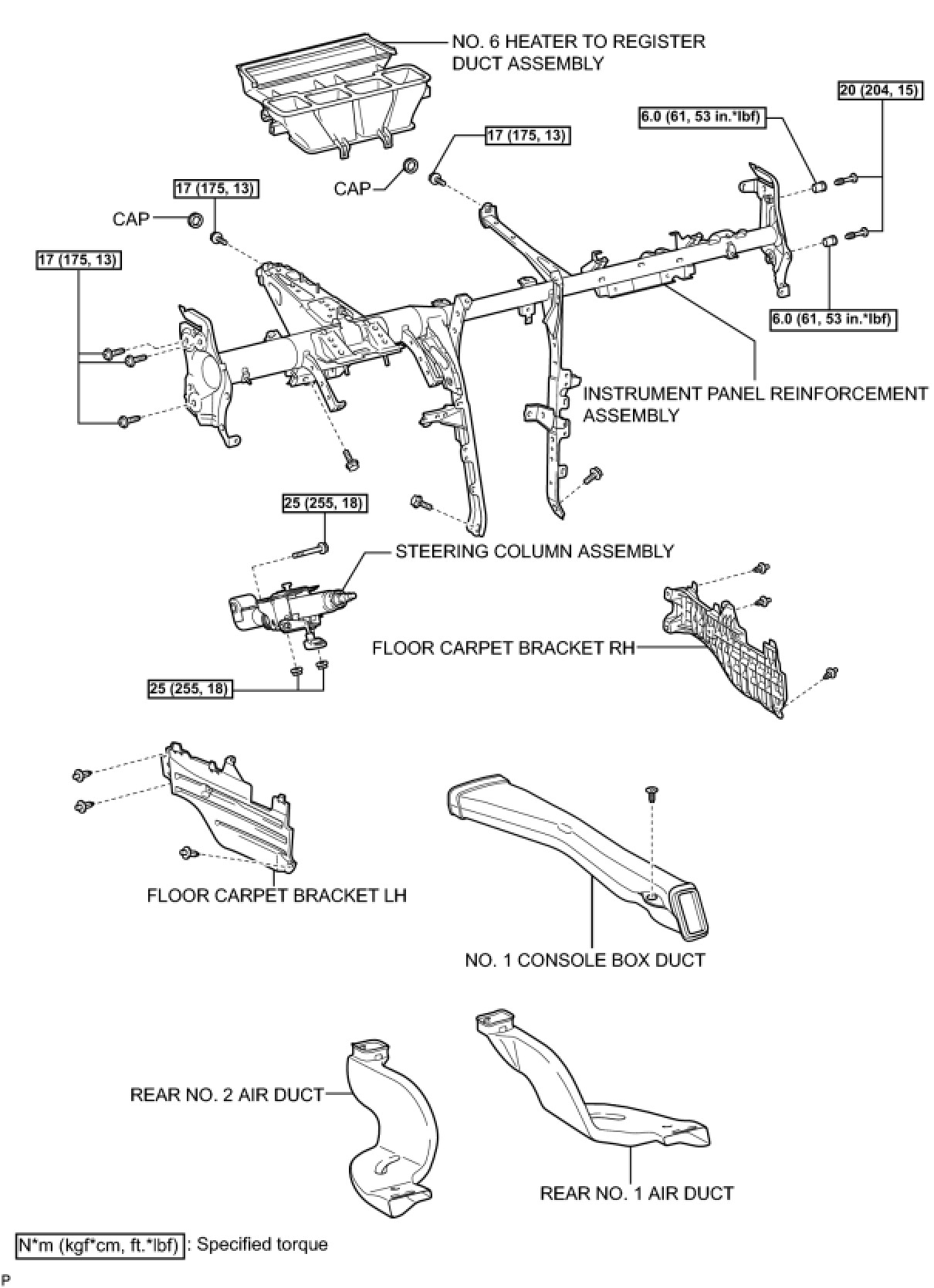

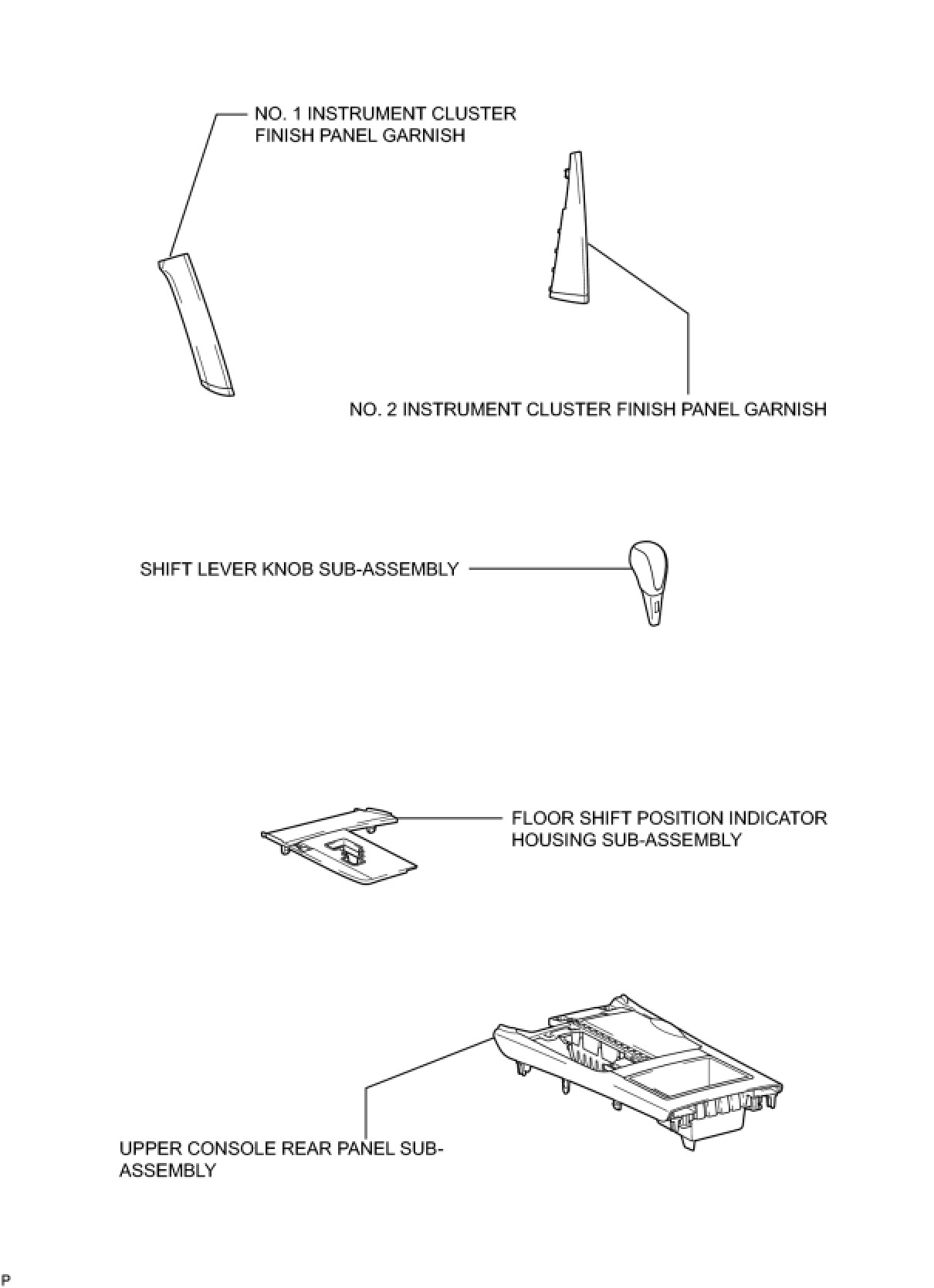

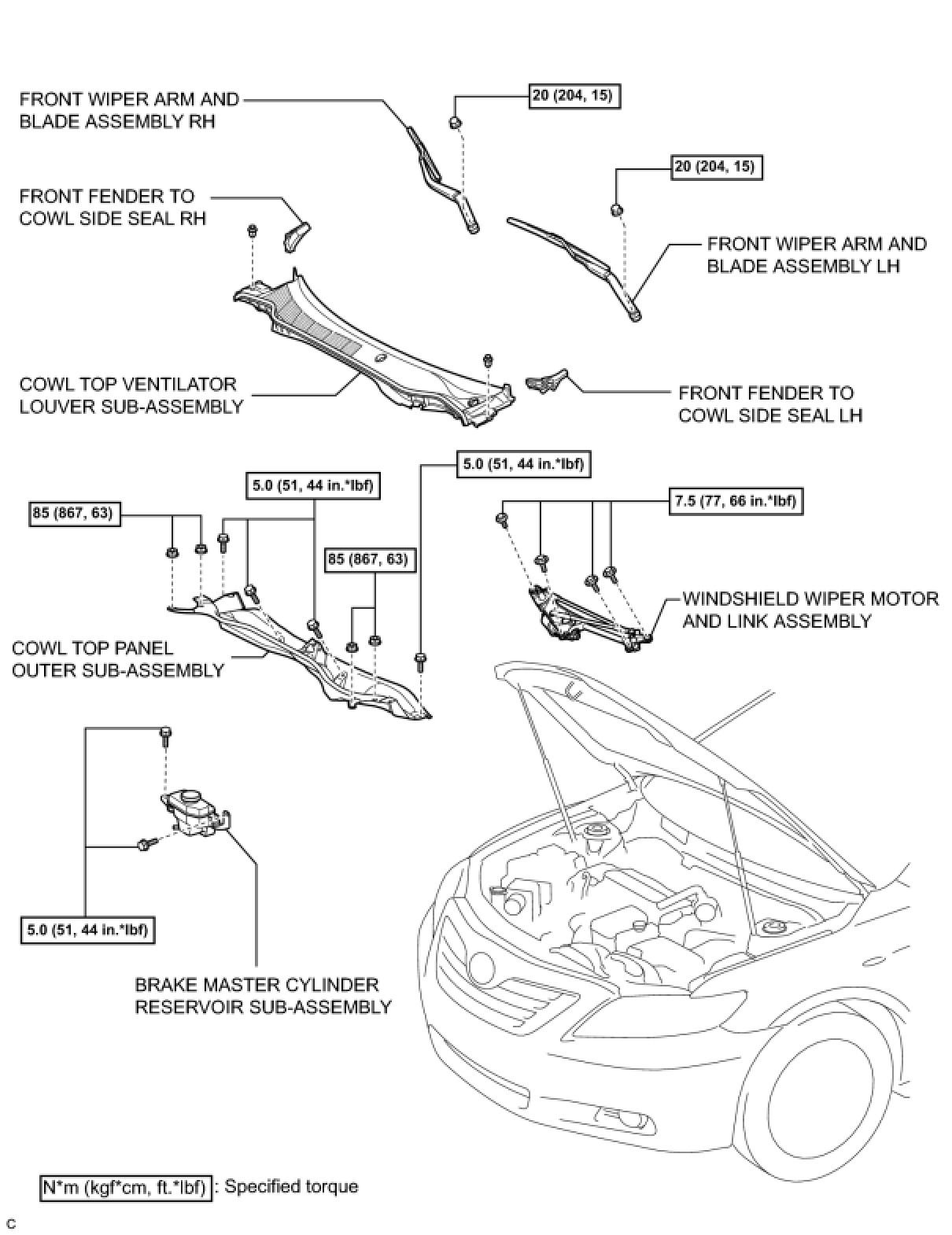

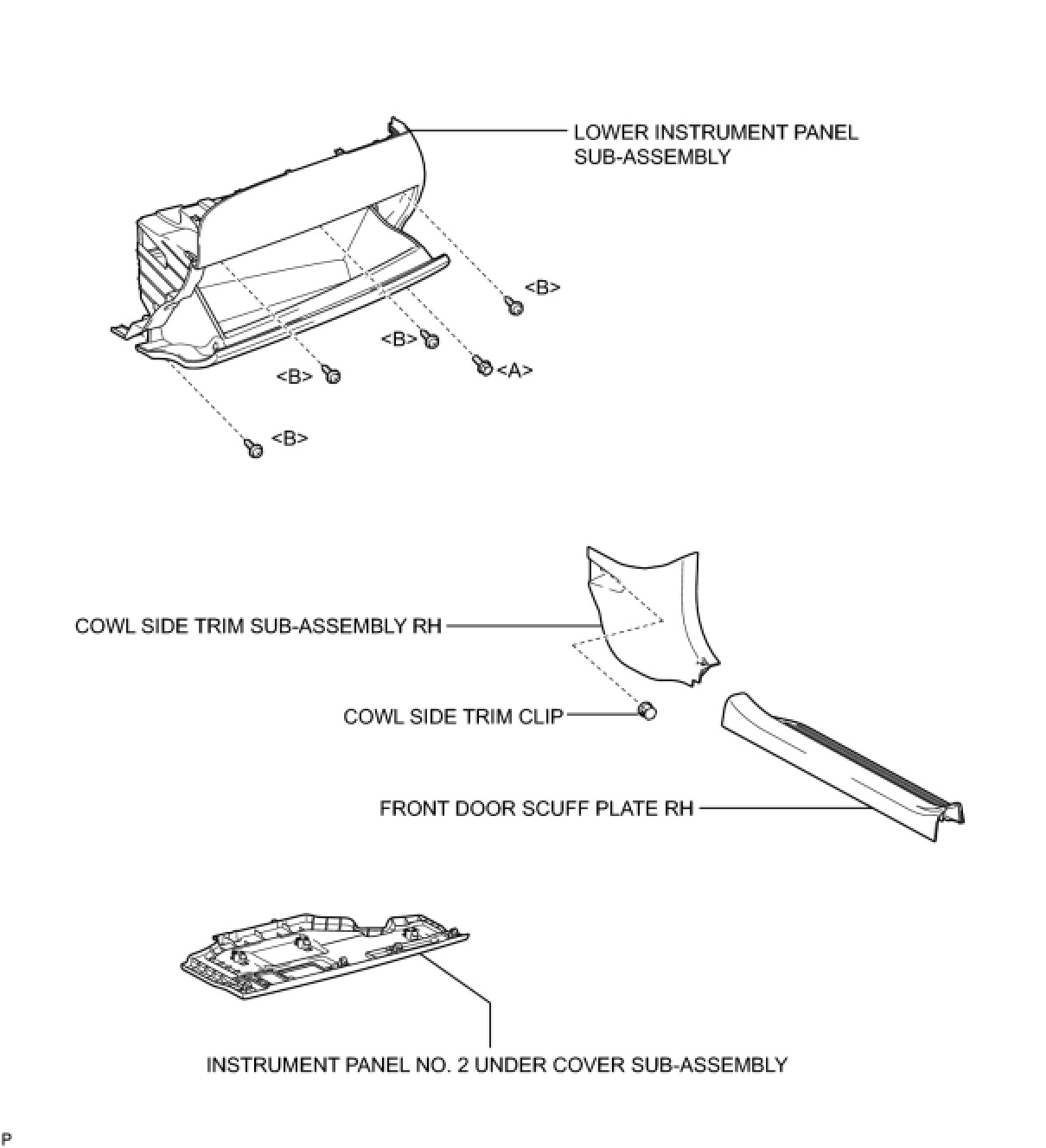

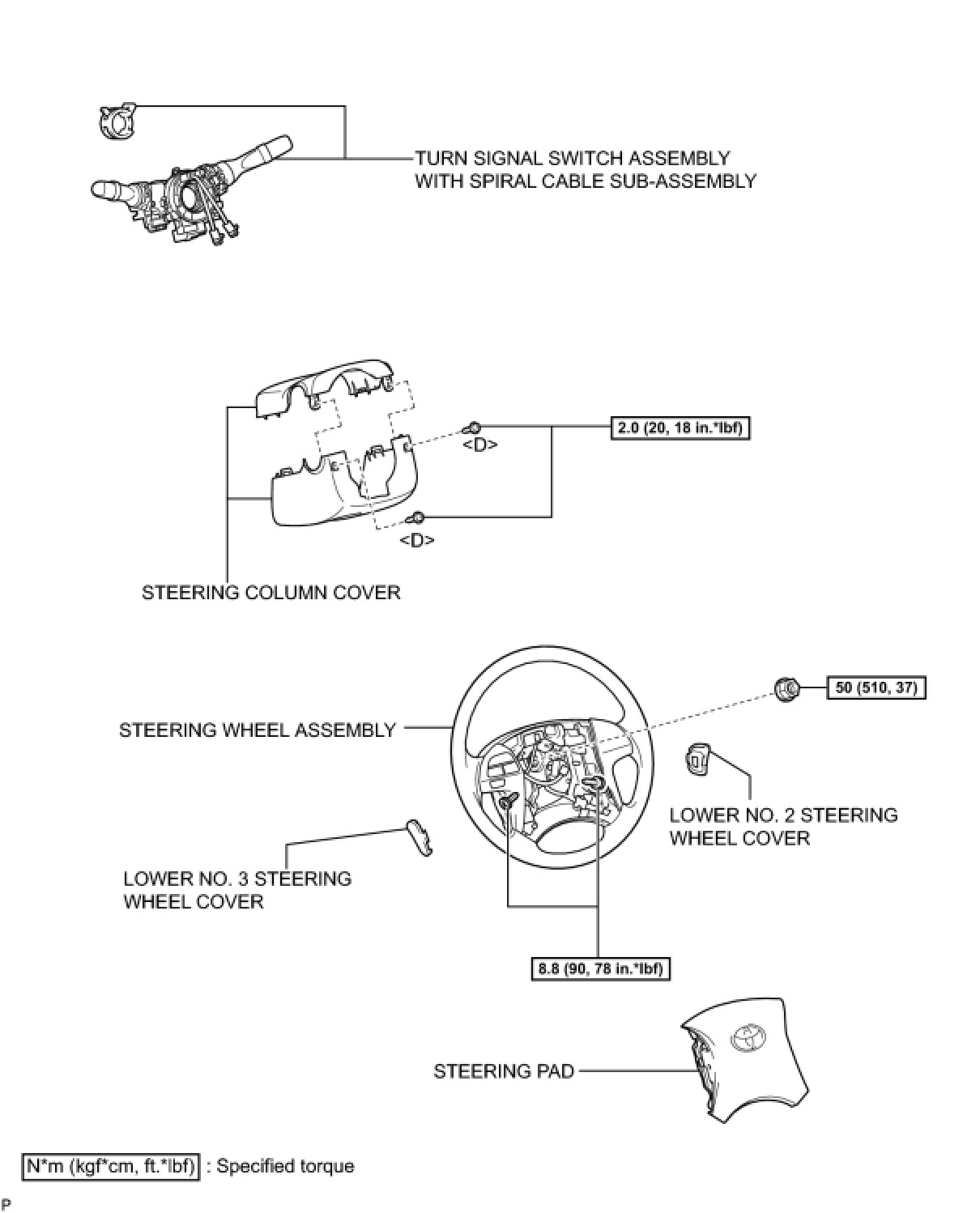

ILLUSTRATION
