Home >> Toyota >> 2007 >> Camry L4-2.4L (2AZ-FXE) Hybrid >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Service and Repair >> Overhaul >> Components

Components

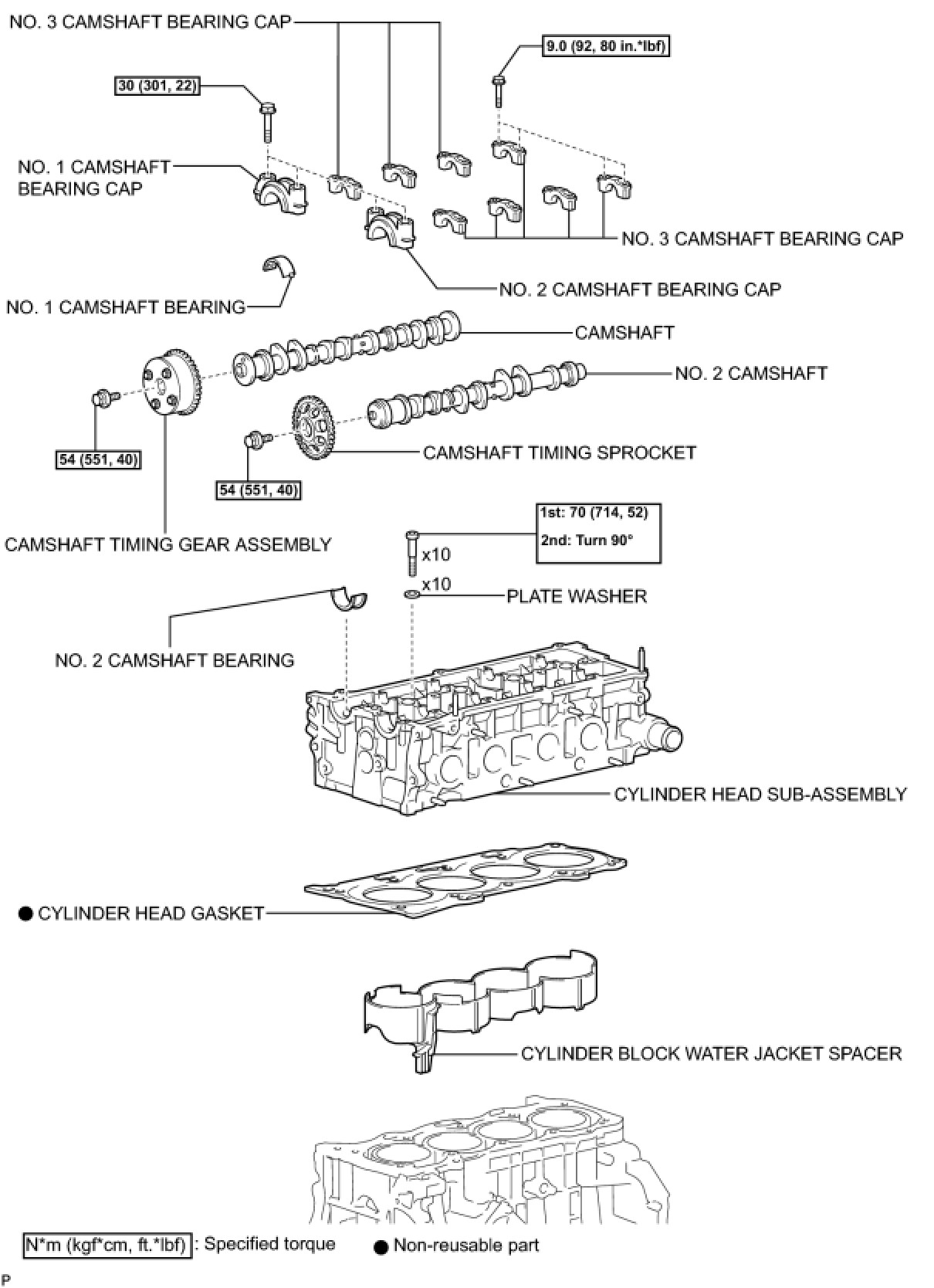

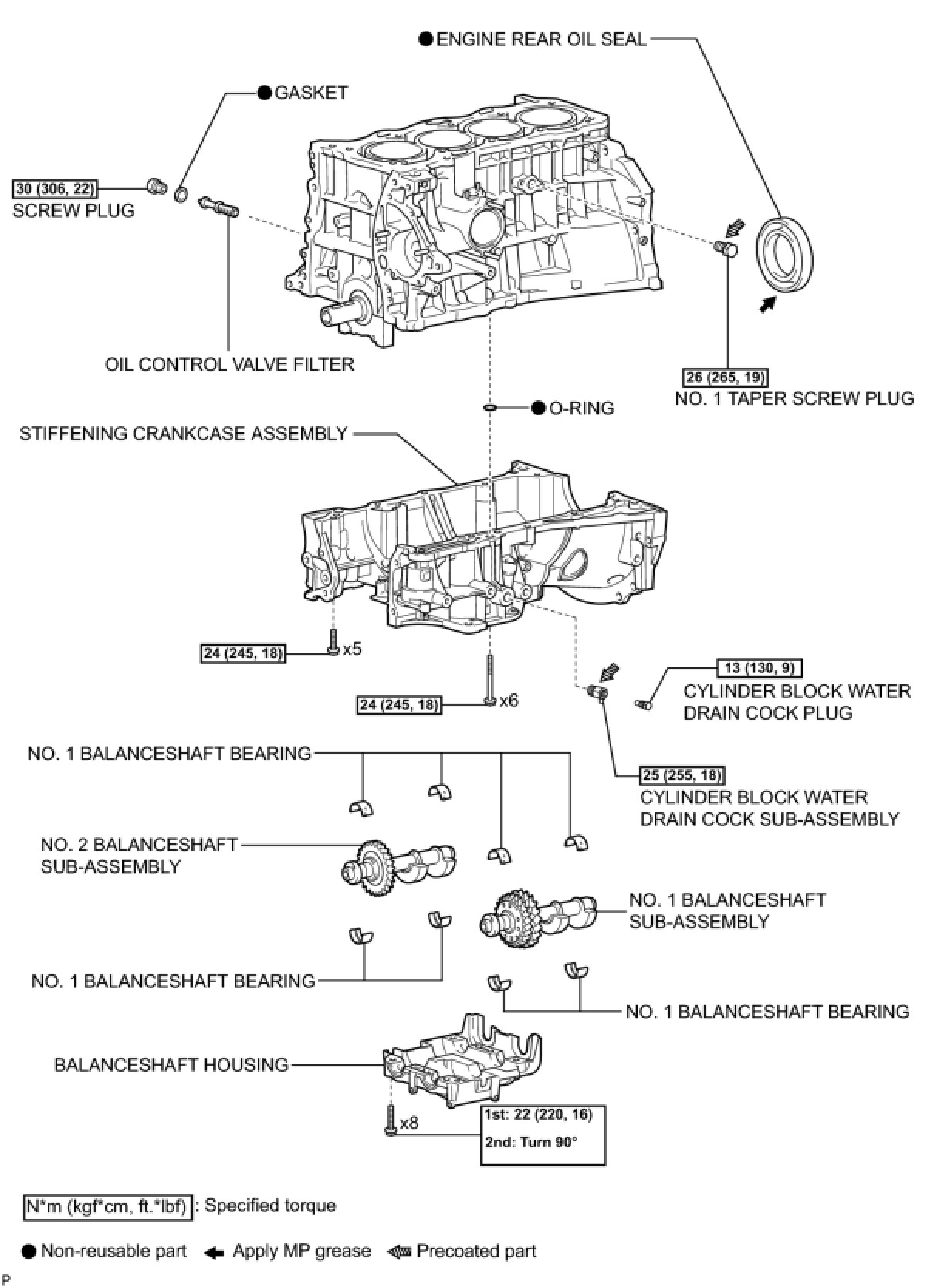

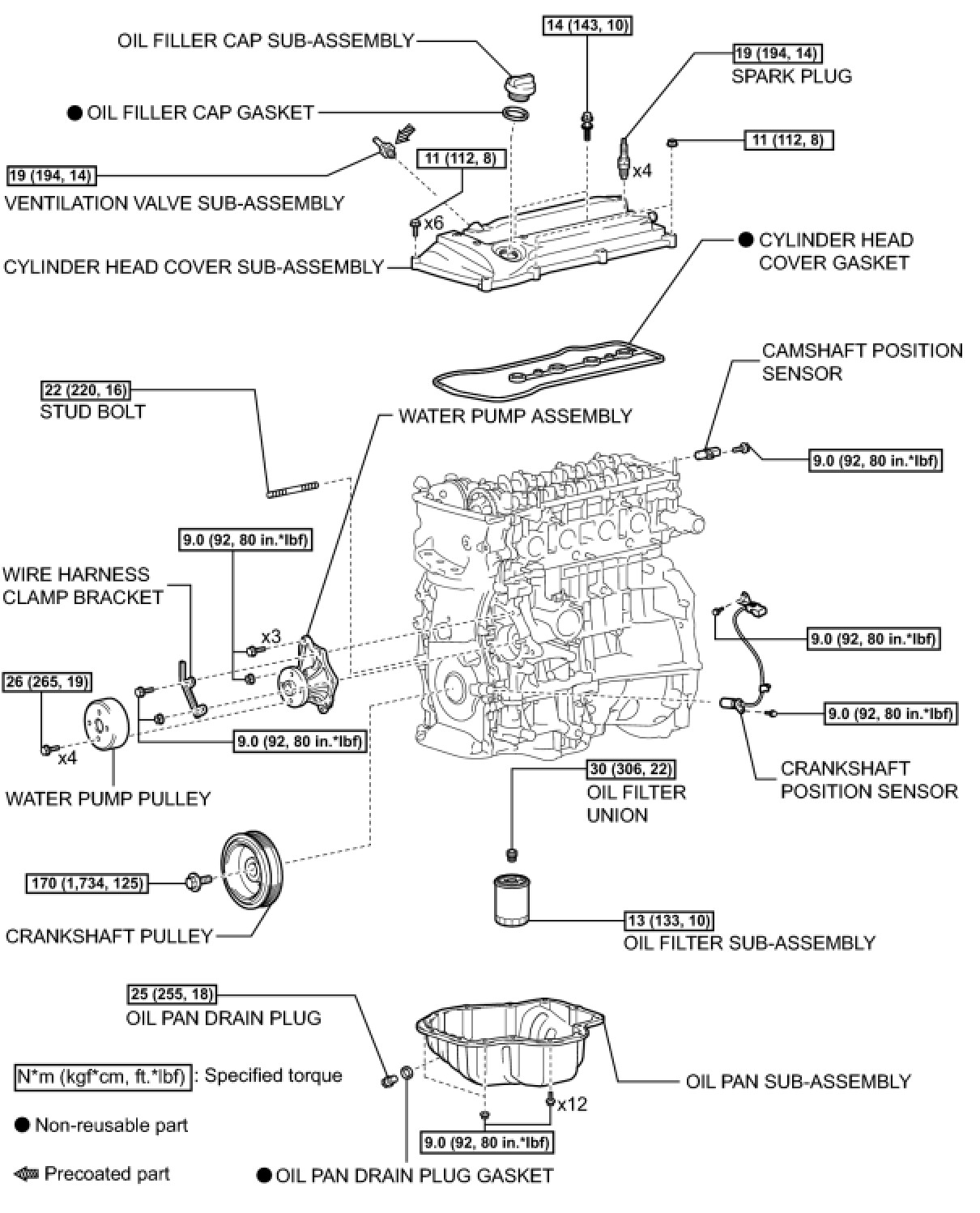

2AZ-FXE ENGINE MECHANICAL: ENGINE UNIT: COMPONENTS

COMPONENTS

ILLUSTRATION
