Camry L4-2.4L (2AZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Continuously Variable Transmission/Transaxle, CVT
>>
Shift Cable, CVT
Shift Cable, CVT

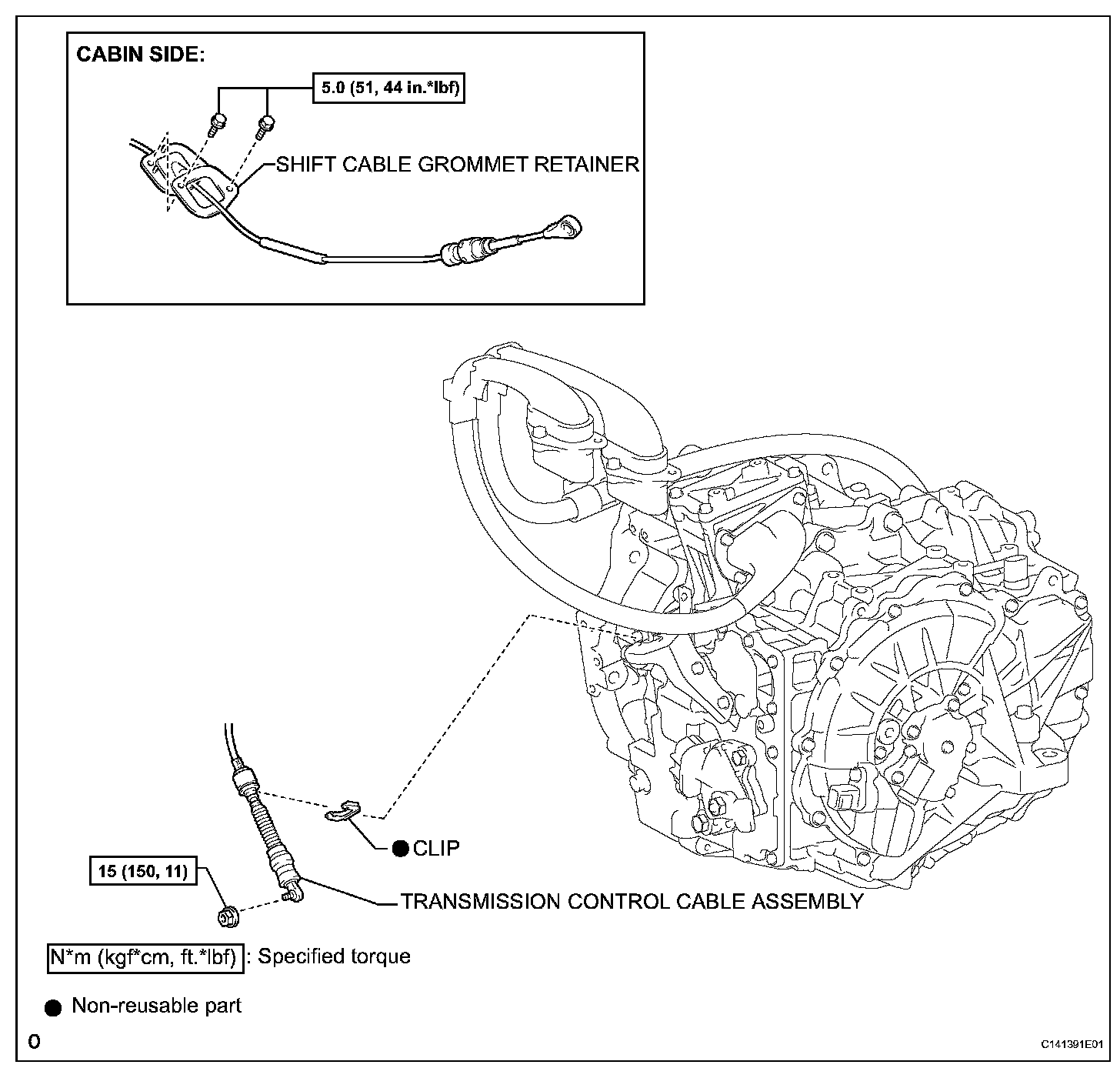

Transaxle Control Cable Assembly:
Transaxle Control Cable Assembly:
Transaxle Control Cable Assembly:
