Camry L4-2.4L (2AZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Battery Cooling Fan, Hybrid Drive
Battery Cooling Fan, Hybrid Drive

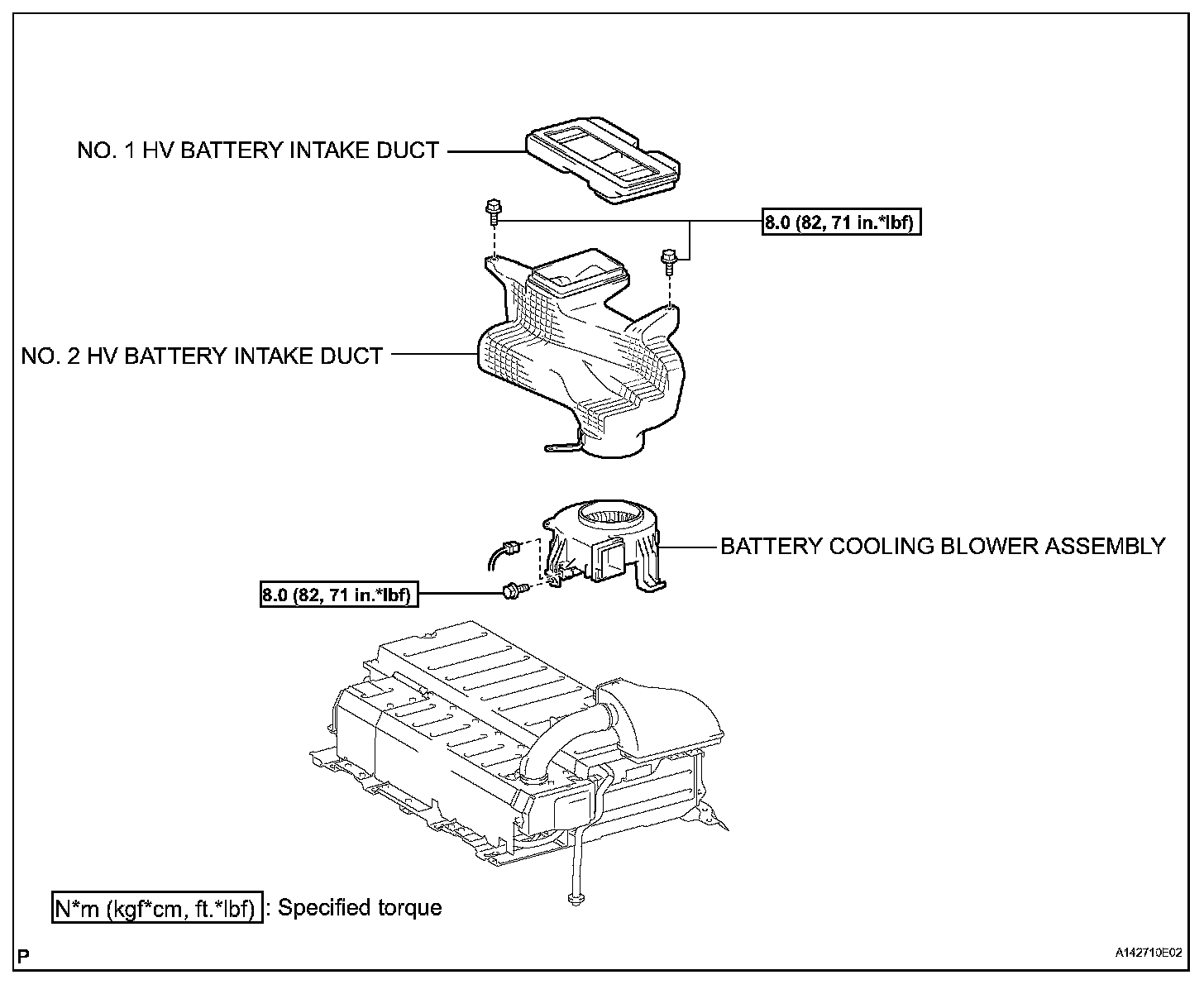

Battery Blower:
Battery Blower:
Battery Blower:
