Antilock Brakes / Traction Control Systems

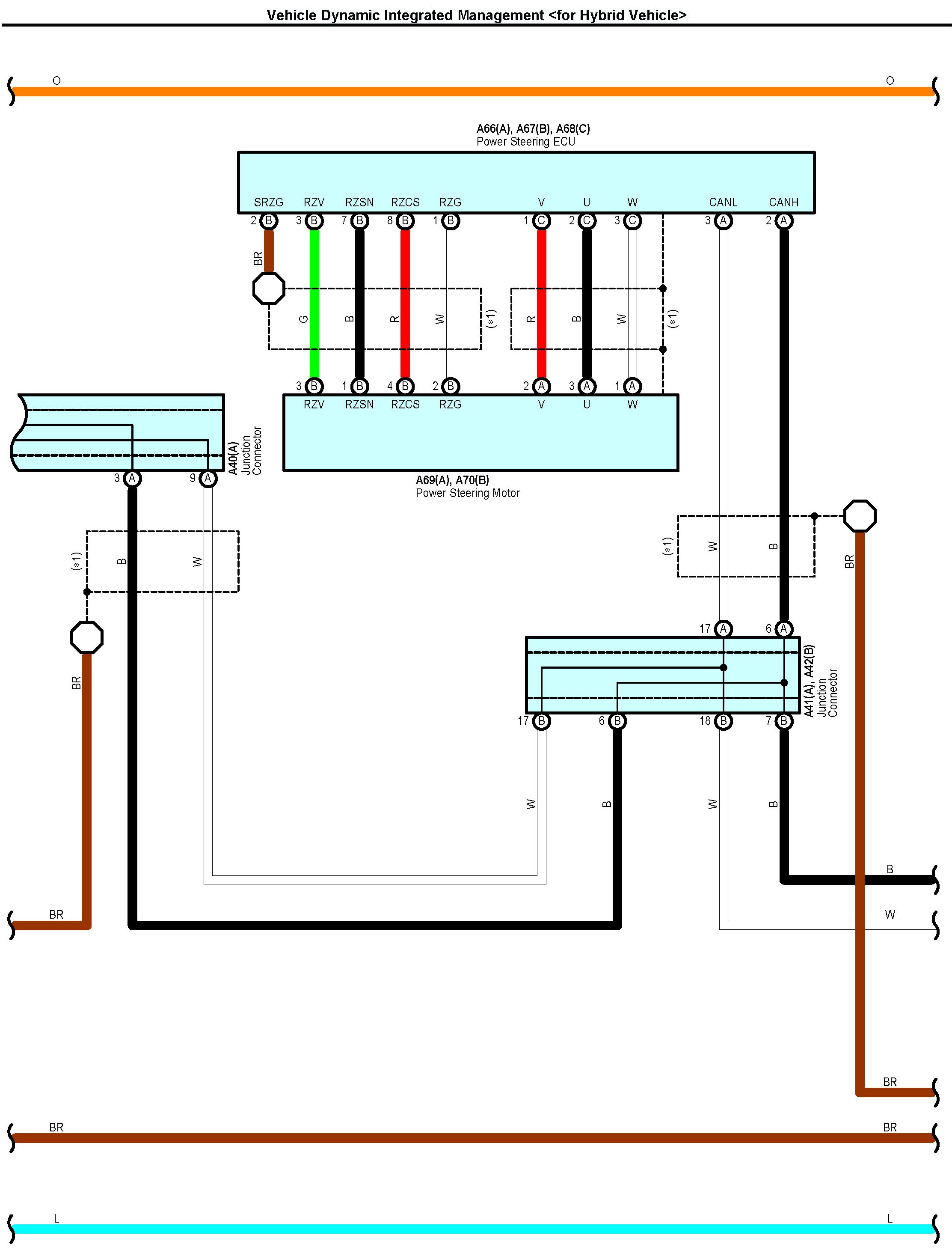

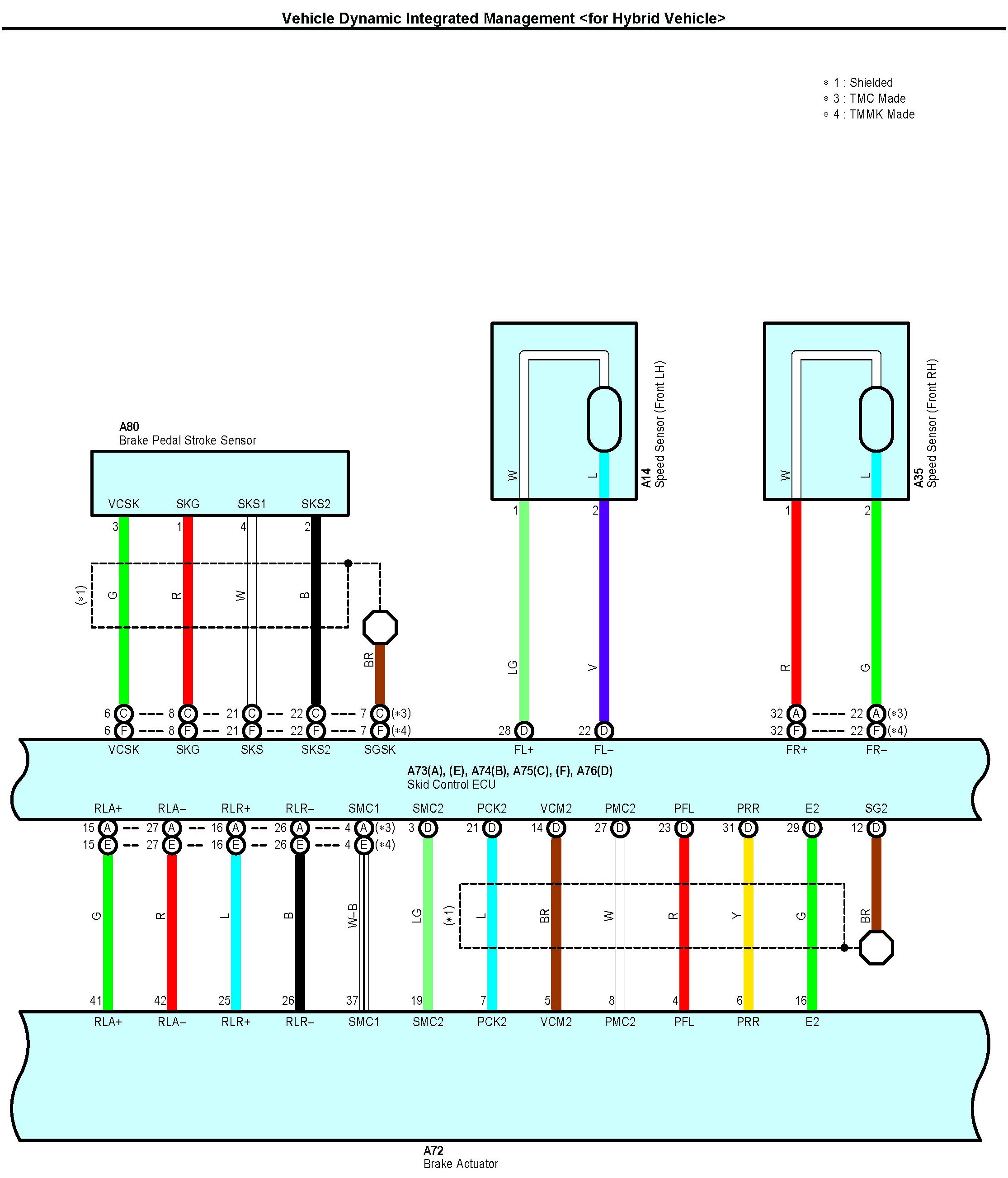

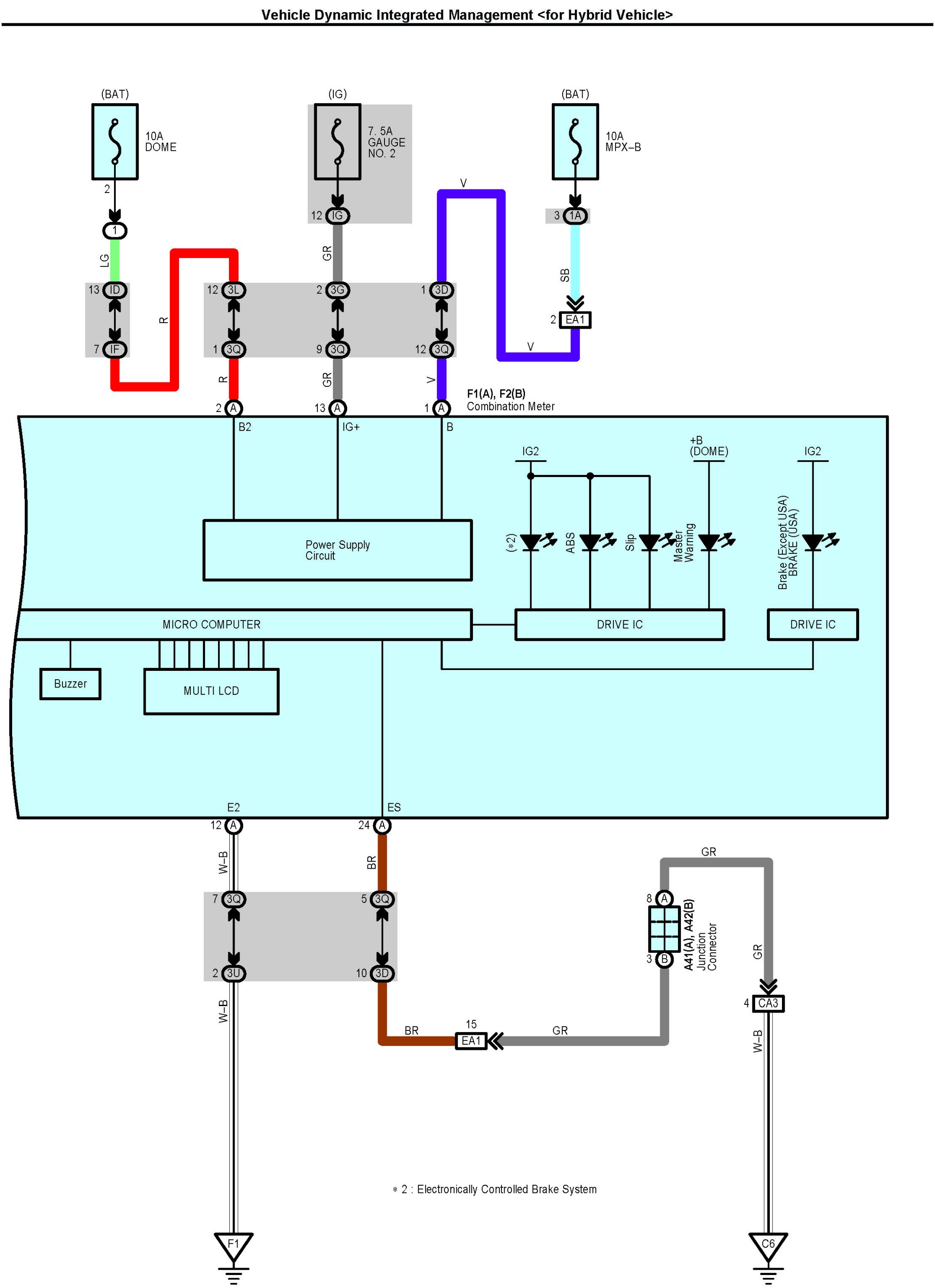

Vehicle Dynamic Integrated Management [for Hybrid Vehicle] Part 1:

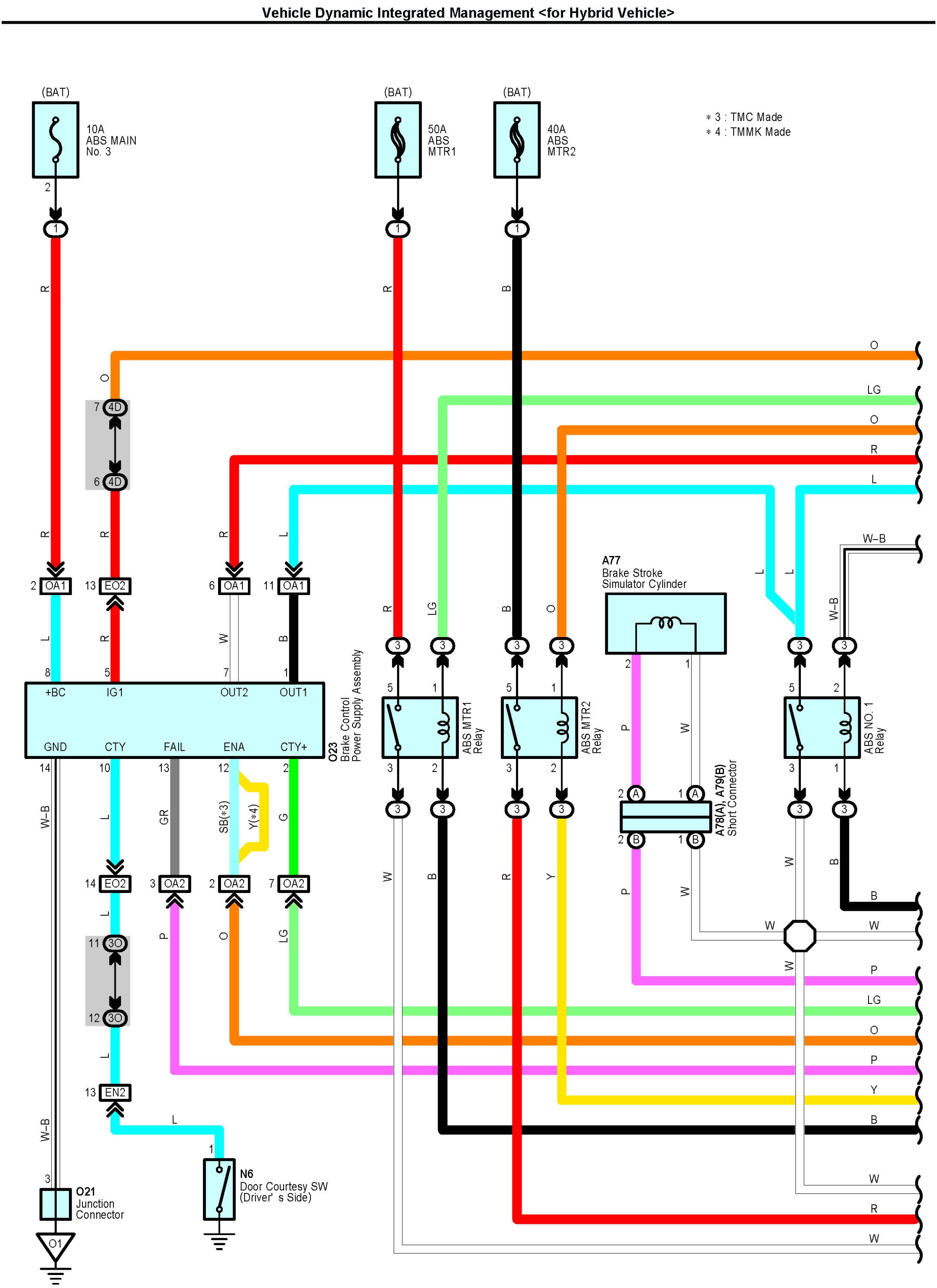

Vehicle Dynamic Integrated Management [for Hybrid Vehicle] Part 2:

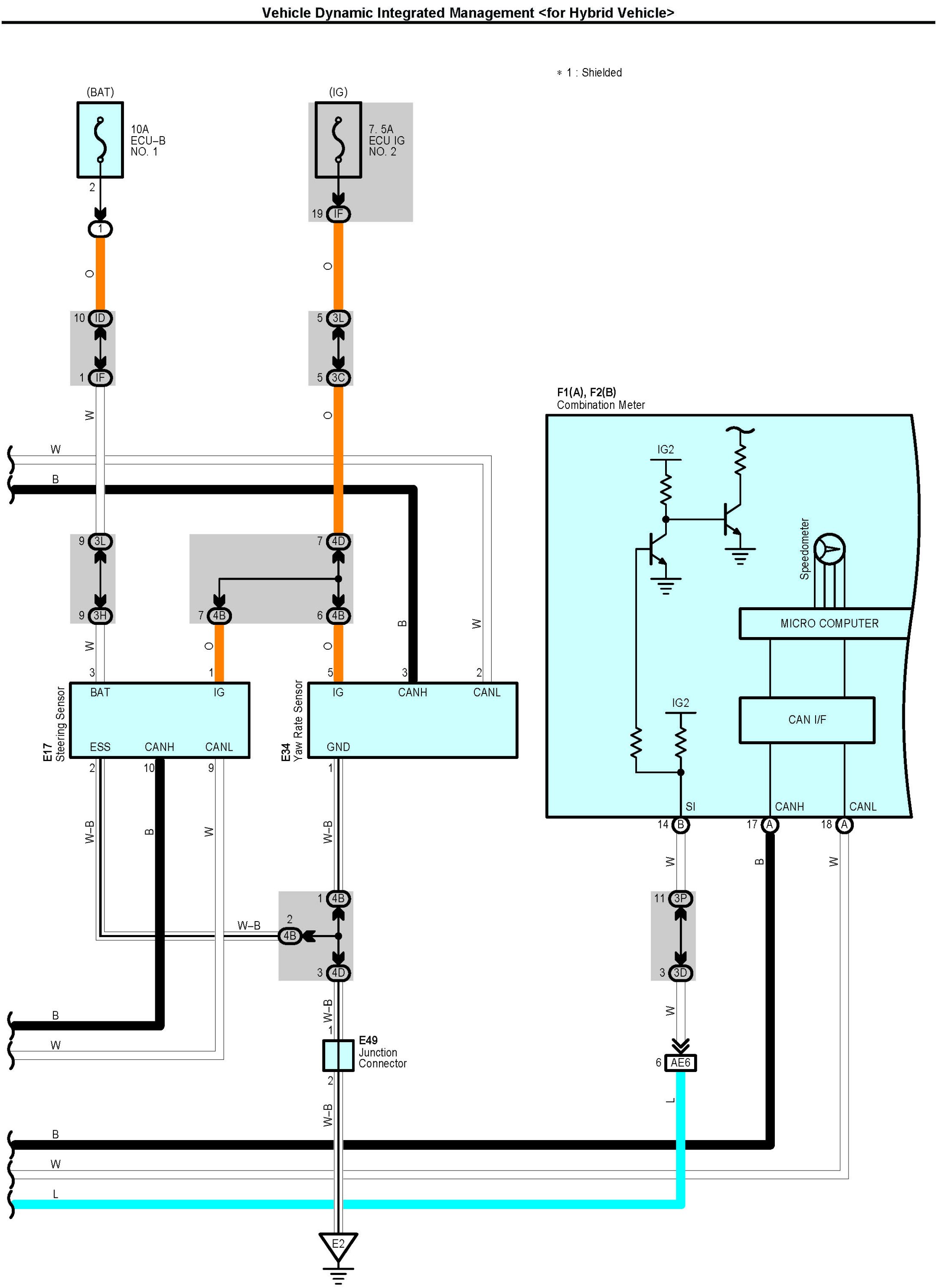

Vehicle Dynamic Integrated Management [for Hybrid Vehicle] Part 3:

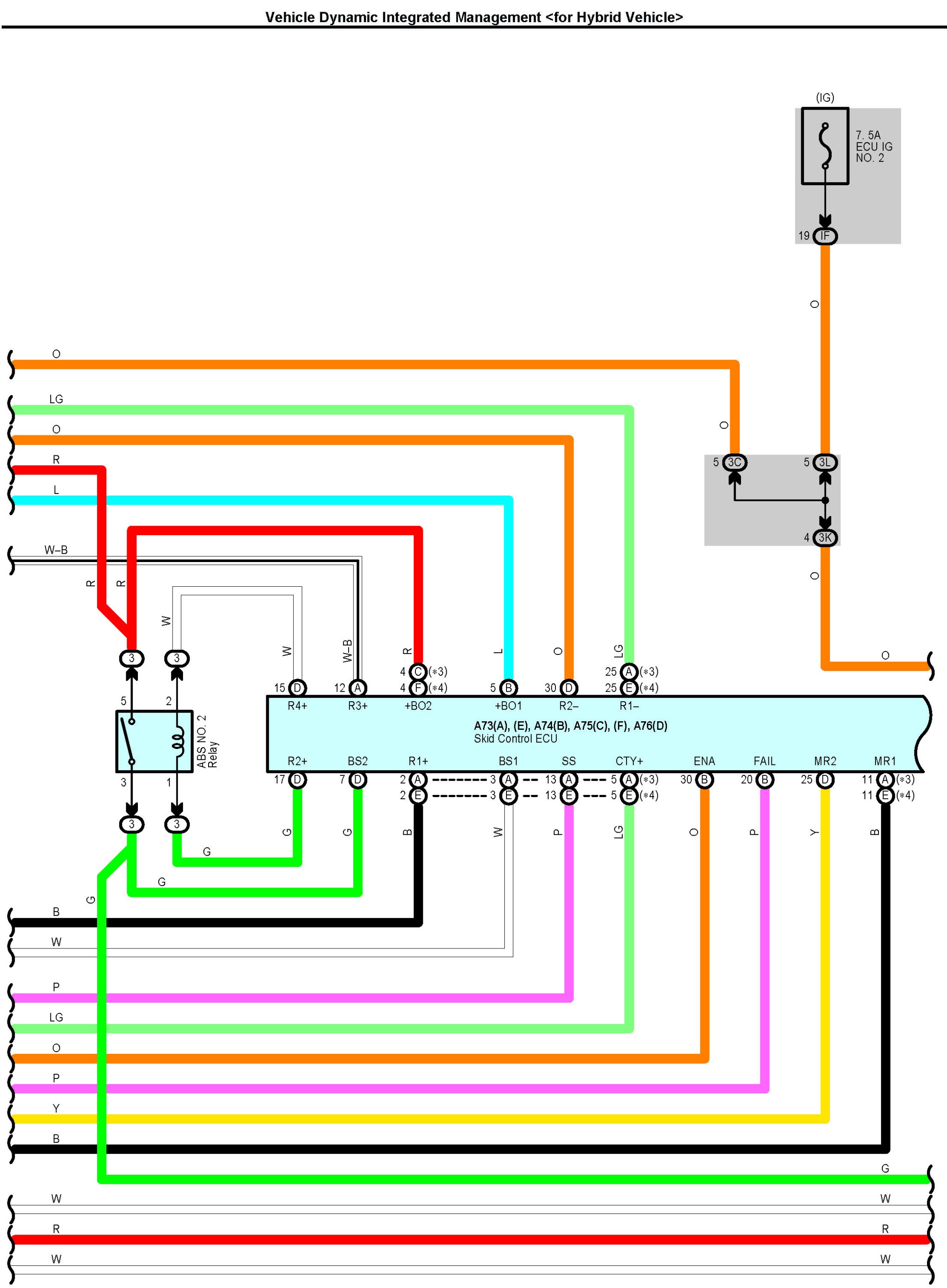

Vehicle Dynamic Integrated Management [for Hybrid Vehicle] Part 4:

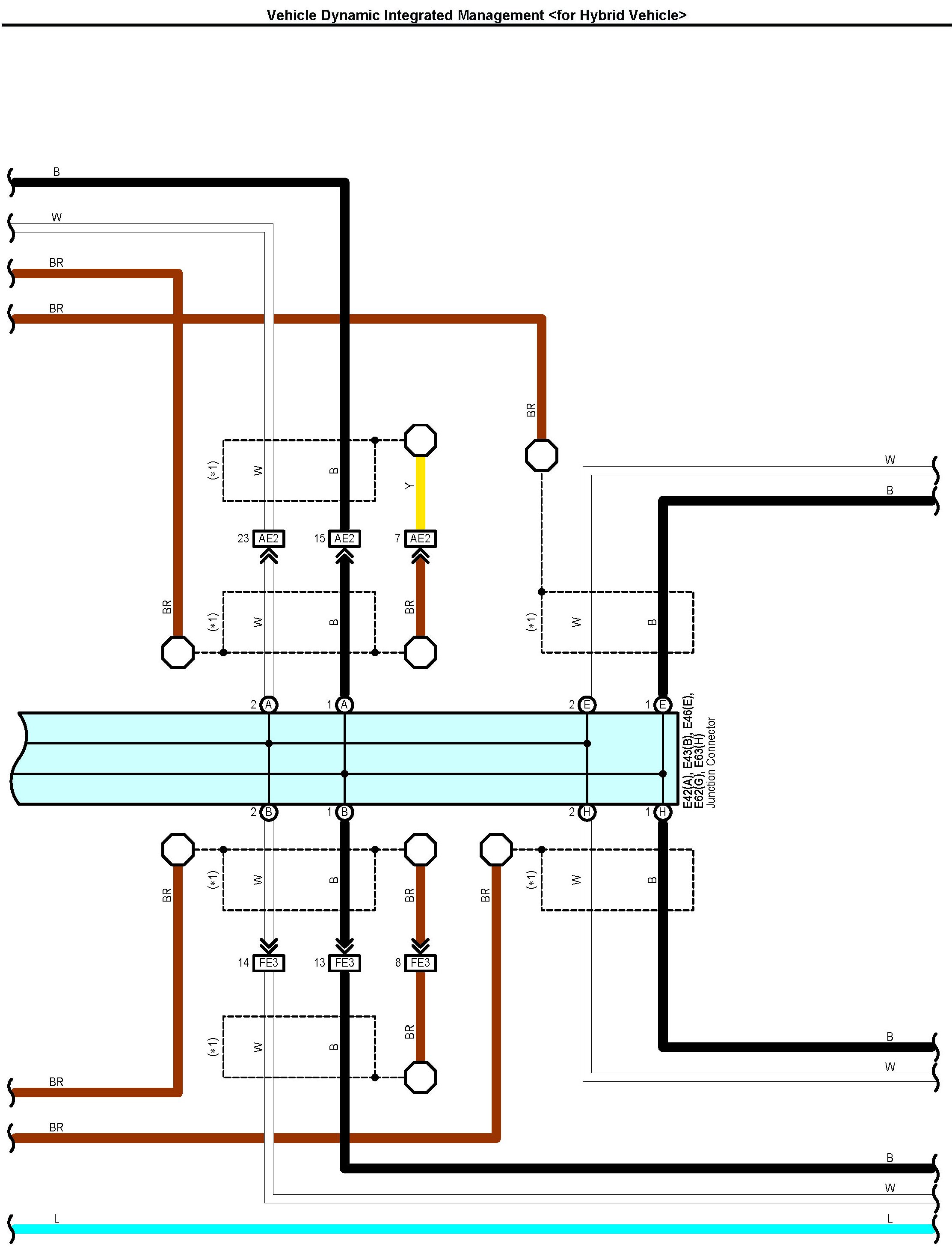

Vehicle Dynamic Integrated Management [for Hybrid Vehicle] Part 5:

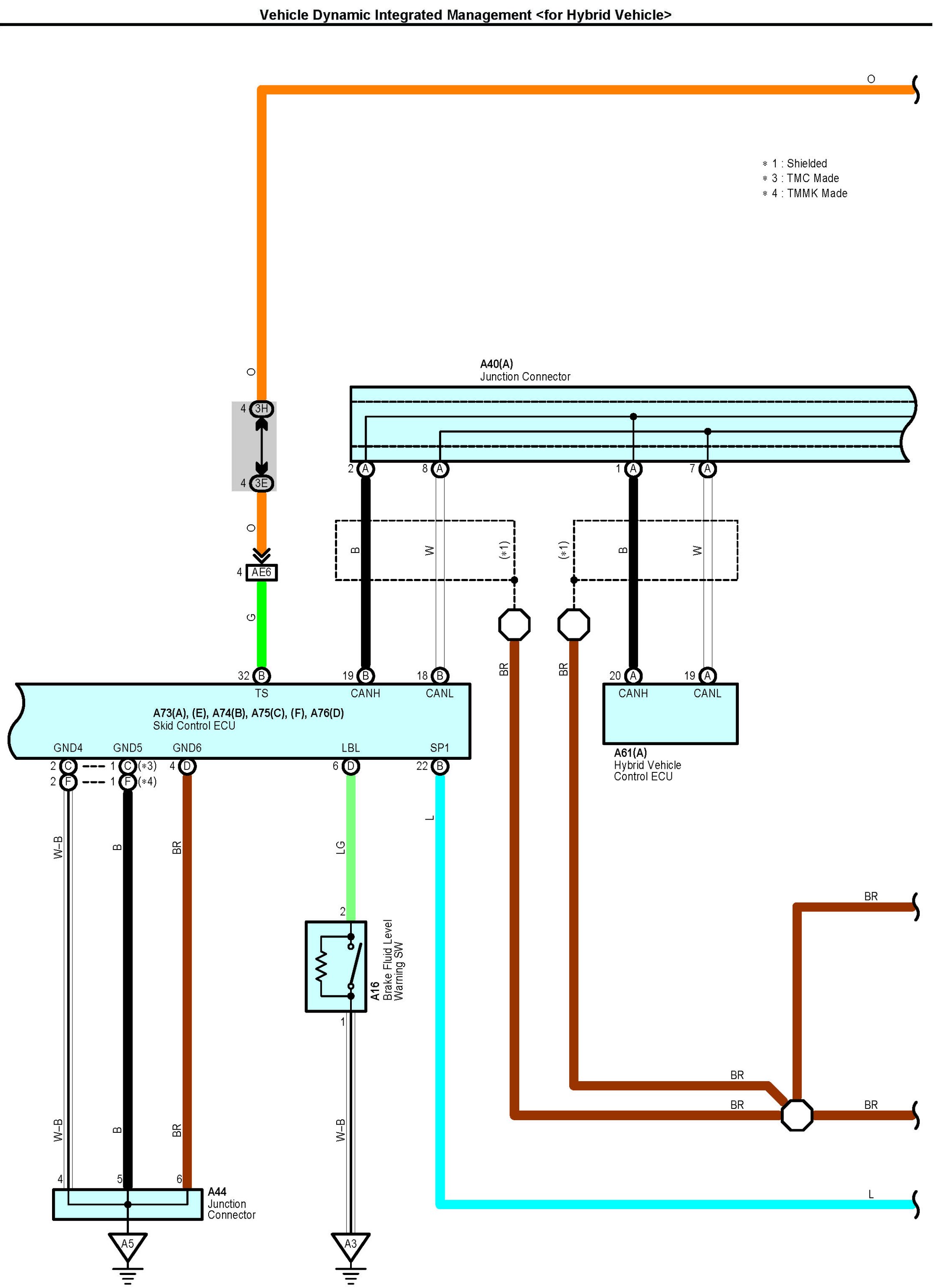

Vehicle Dynamic Integrated Management [for Hybrid Vehicle] Part 6:

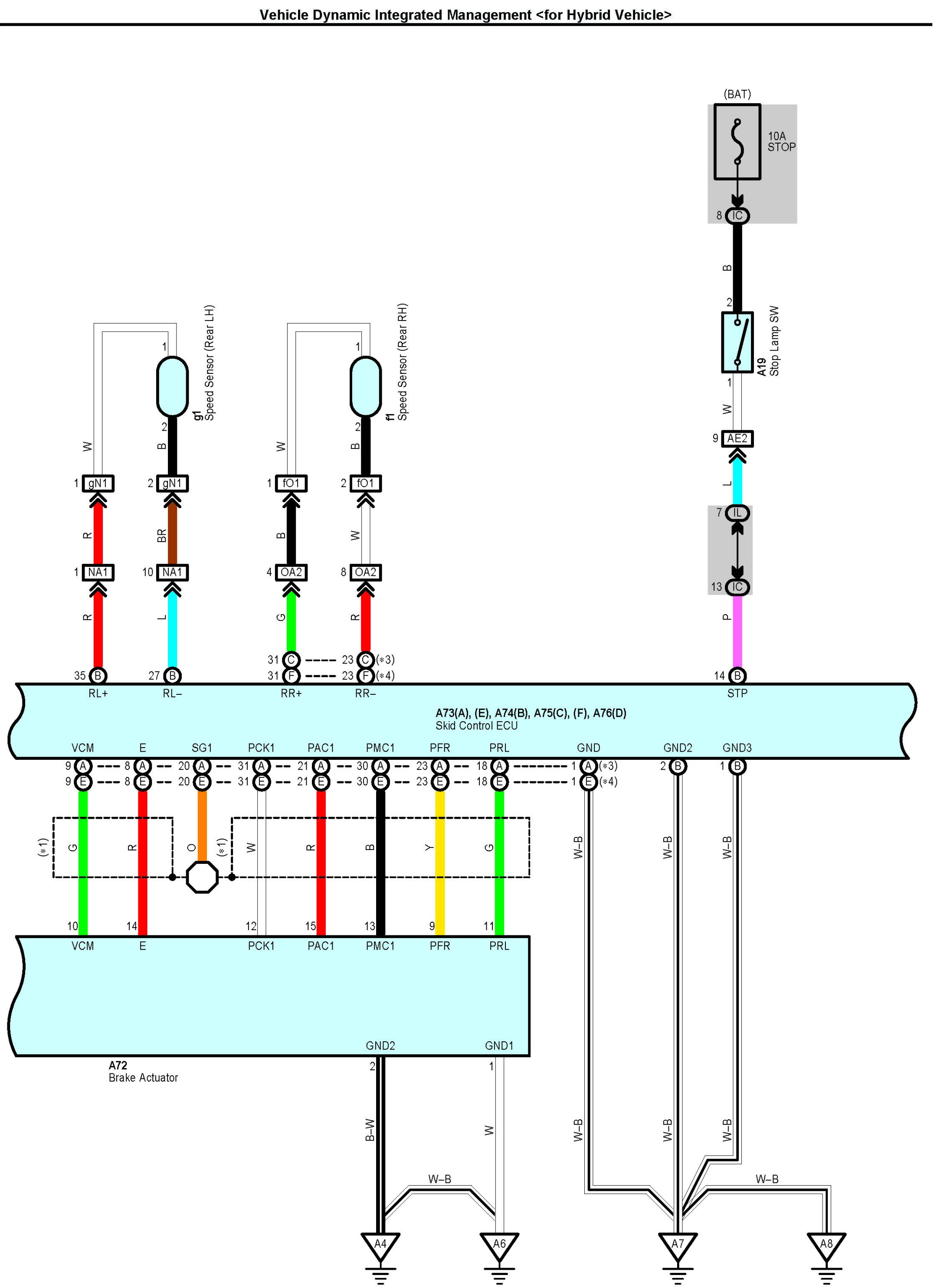

Vehicle Dynamic Integrated Management [for Hybrid Vehicle] Part 7:

Vehicle Dynamic Integrated Management [for Hybrid Vehicle] Part 8:

Vehicle Dynamic Integrated Management [for Hybrid Vehicle] Part 9:

Vehicle Dynamic Integrated Management [for Hybrid Vehicle] Part 10:

Vehicle Dynamic Integrated Management [for Hybrid Vehicle] Part 11:

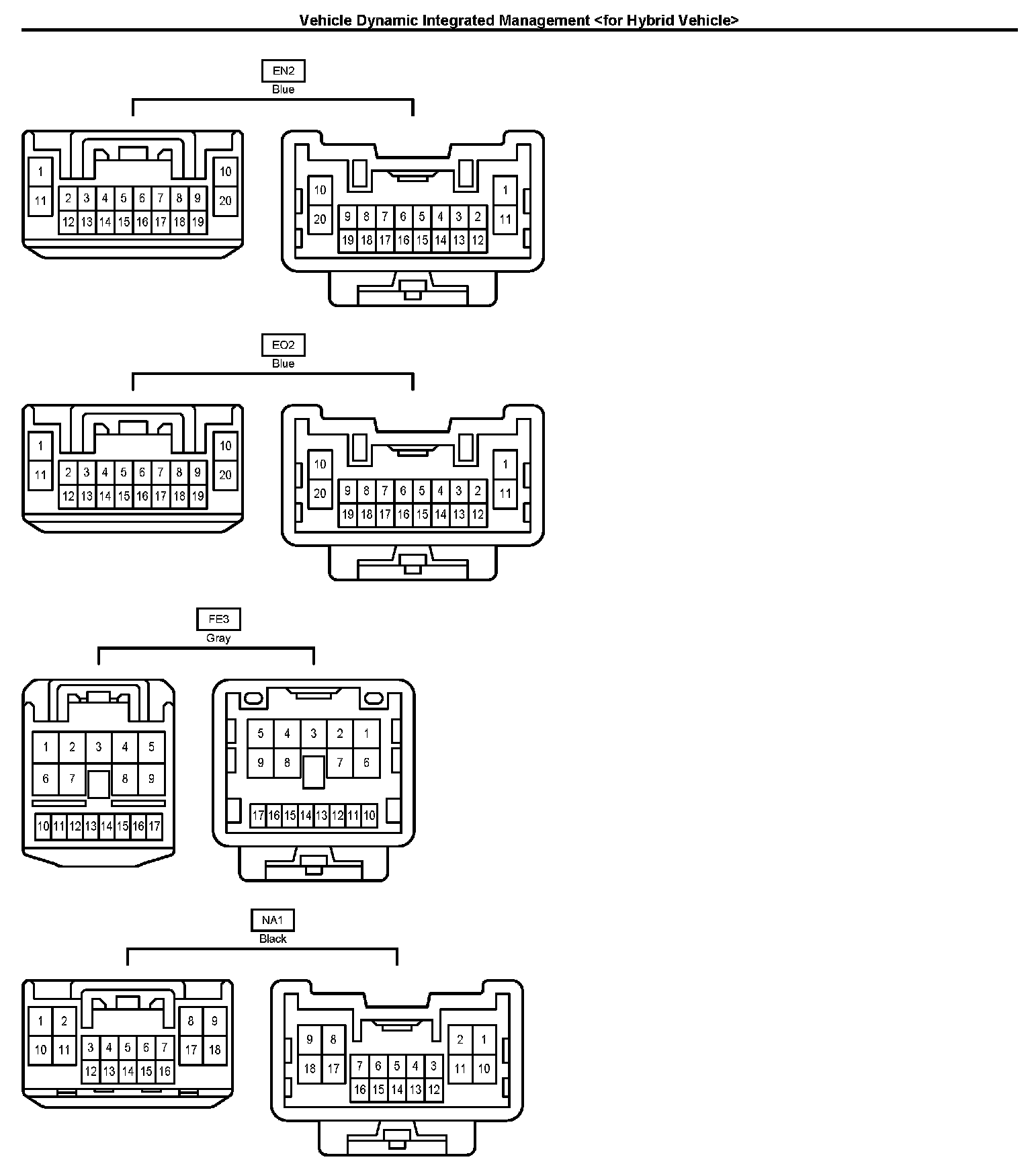

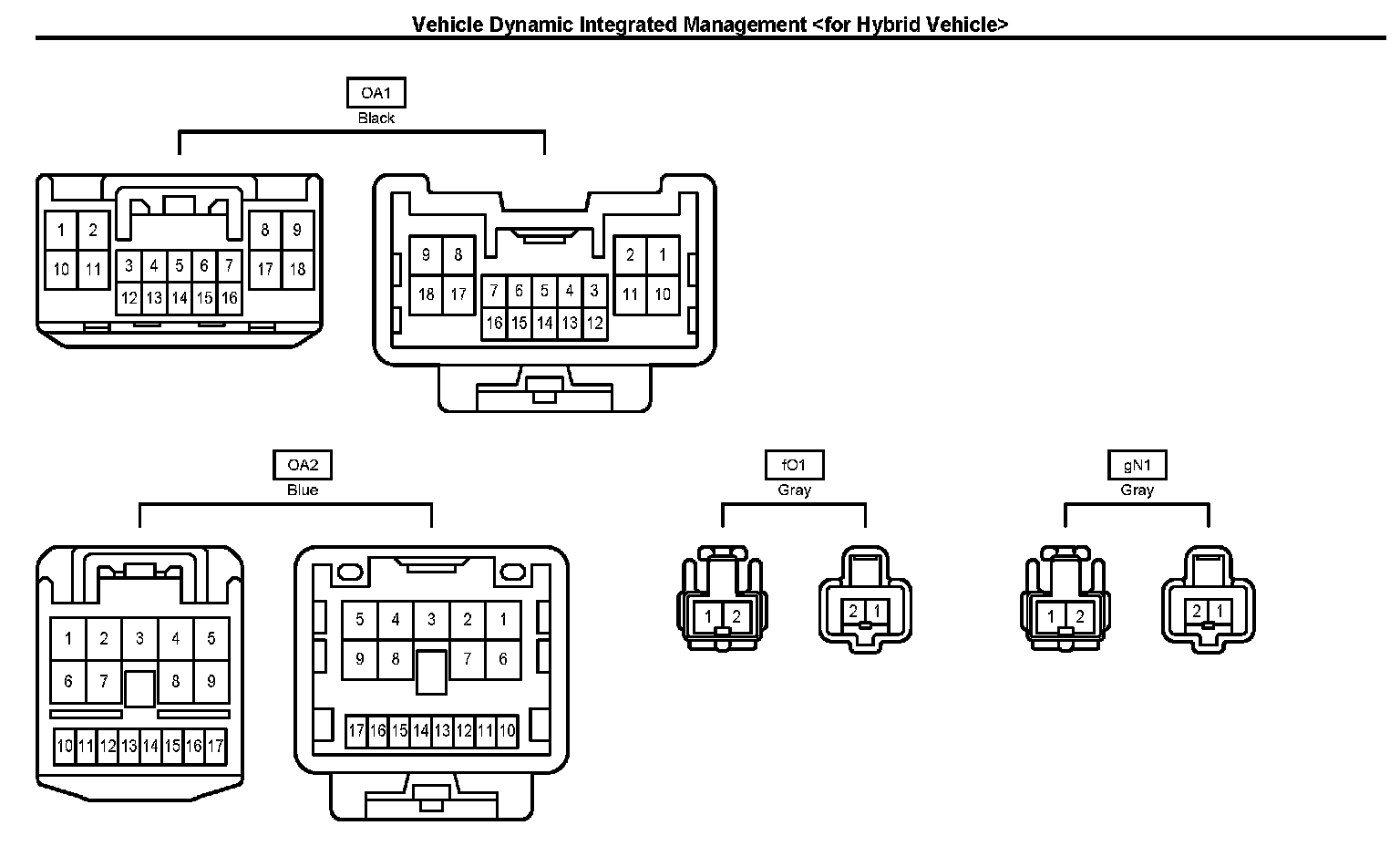

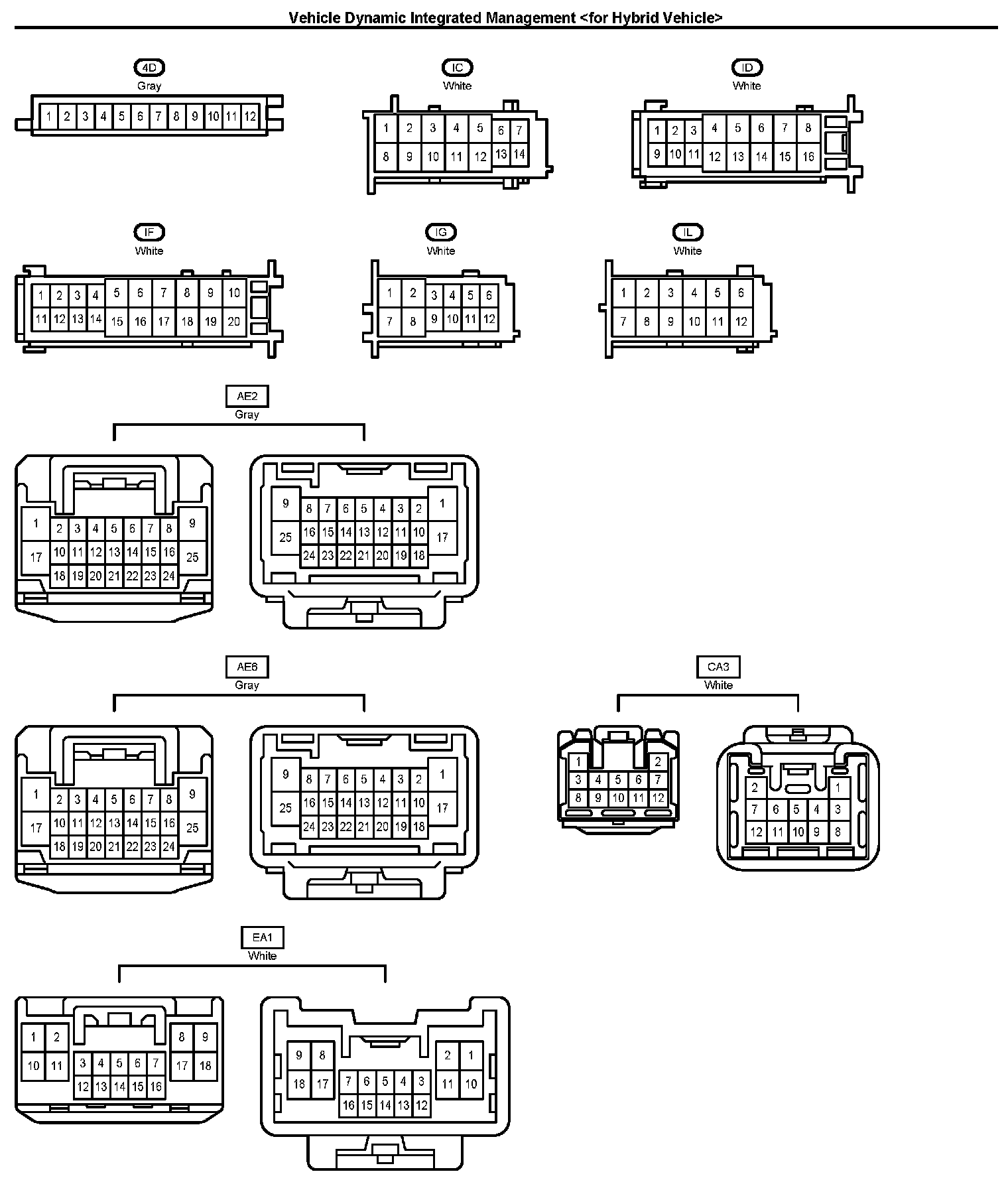

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Connectors Part 6:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
