Home
>>
Toyota
>>
2007
>>
Camry L4-2.4L (2AZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>

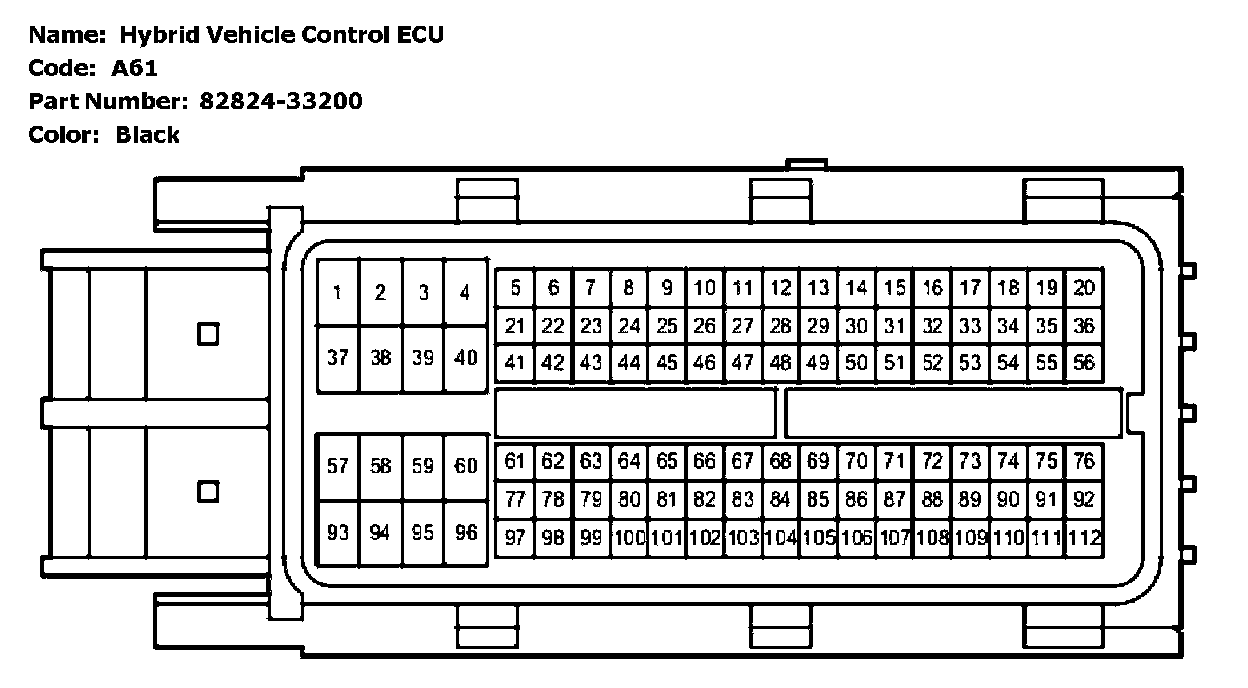

A61 (Hybrid Vehicle Control ECU)
A61 (Hybrid Vehicle Control ECU)
