Brake Warning Indicator: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT DOOR SCUFF PLATE LH
3. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH
5. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL

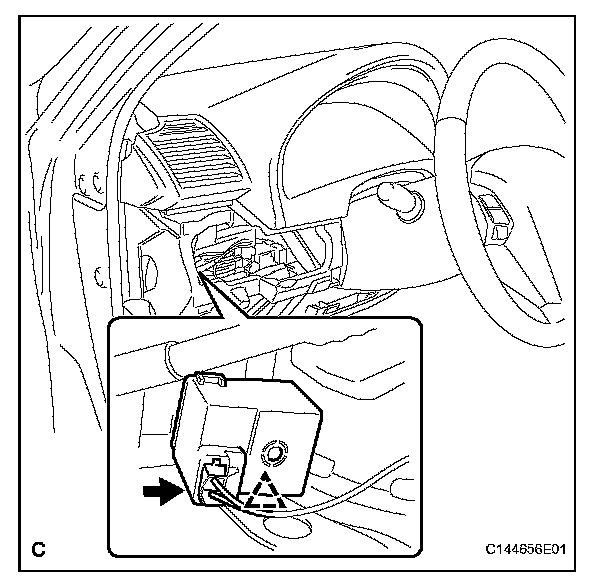

7. REMOVE SKID CONTROL BUZZER
a. Disconnect the skid control buzzer connector.
b. Disengage the claw and remove the skid control buzzer.
INSTALLATION

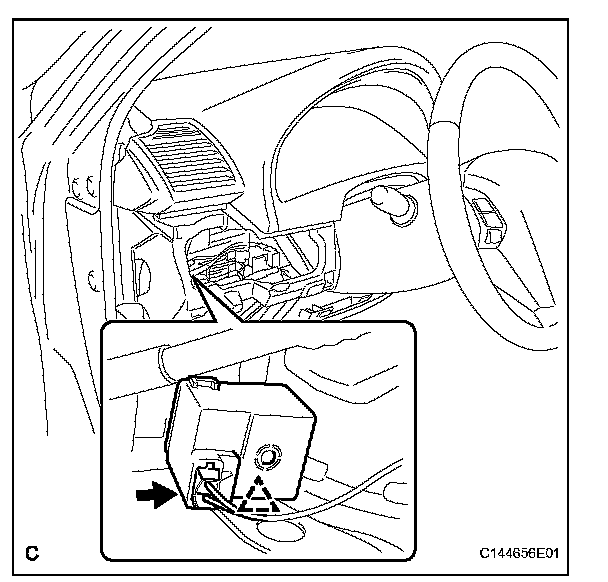

1. INSTALL SKID CONTROL BUZZER
a. Engage the claw and install the skid control buzzer.
b. Connect the skid control buzzer connector.
2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL
3. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
4. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH
5. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
6. INSTALL FRONT DOOR SCUFF PLATE LH
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. PERFORM INITIALIZATION
NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal.
