Home
>>
Toyota
>>
2007
>>
Camry L4-2.4L (2AZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Brake Pedal Assy
>>
Service and Repair
>>
Removal and Replacement
>>
Components
Components

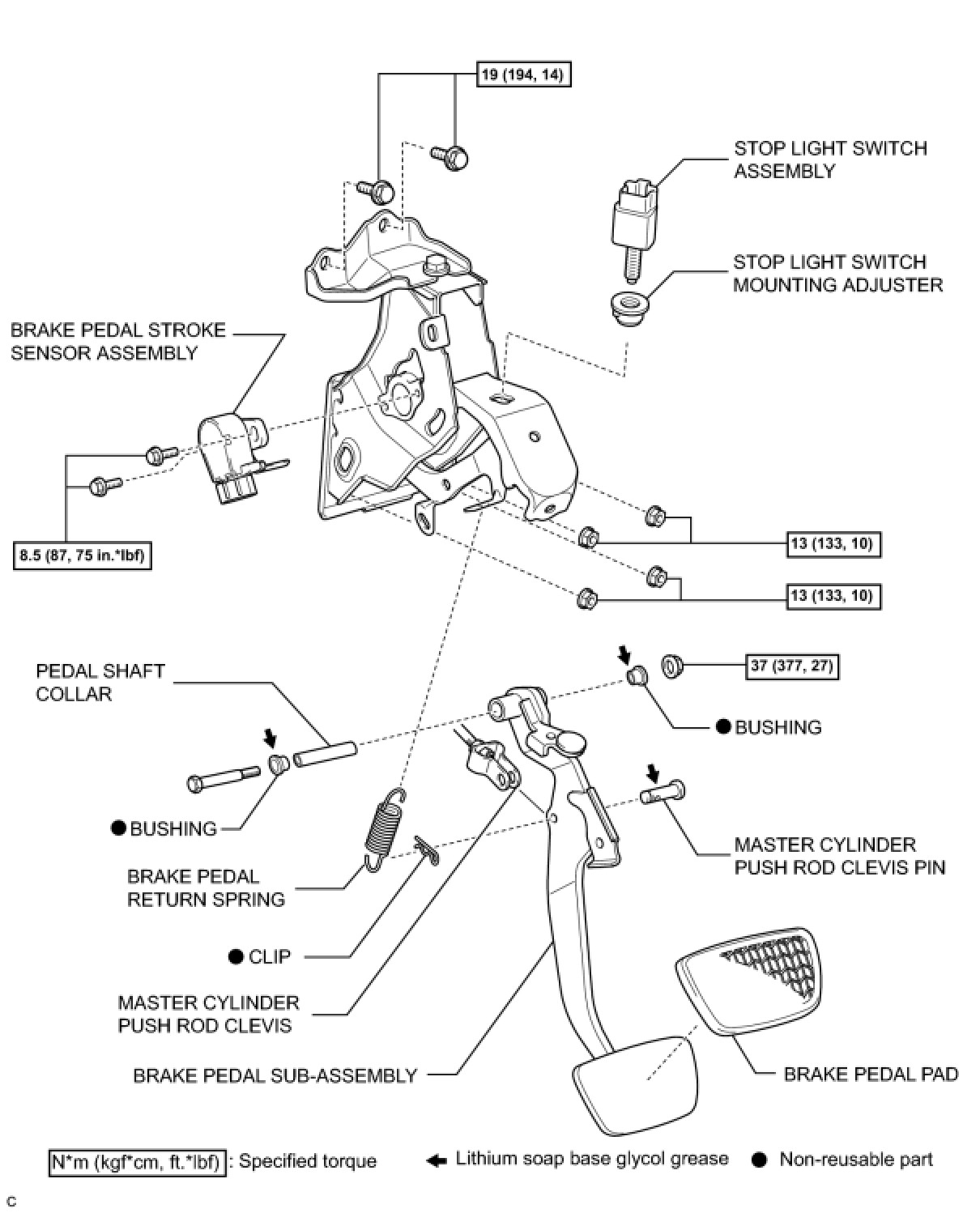

BRAKE: BRAKE PEDAL: COMPONENTS
COMPONENTS
ILLUSTRATION
