Component Inspection

INSPECTION

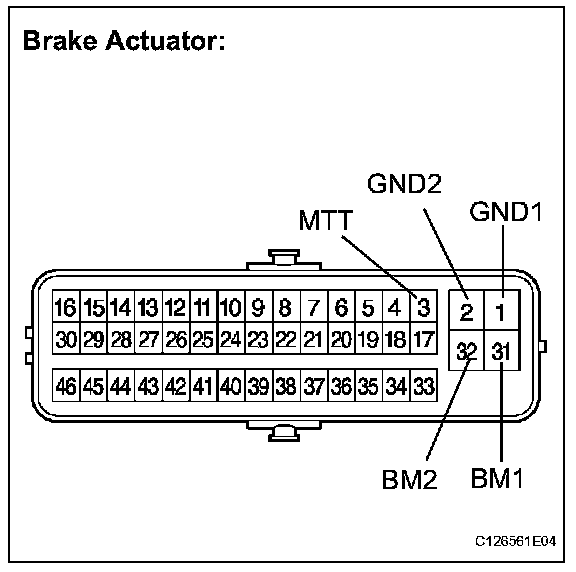

INSPECT BRAKE ACTUATOR ASSEMBLY

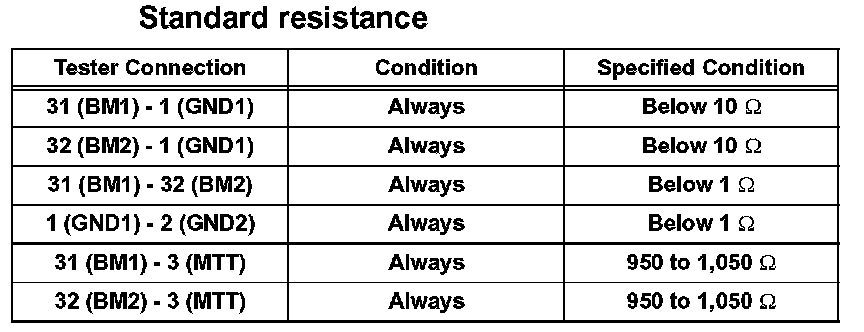

a. Measure the resistance according to the value(s) in the table.

If the value is not as specified, replace the brake actuator assembly.
