Disassembly and Reassembly

DISASSEMBLY

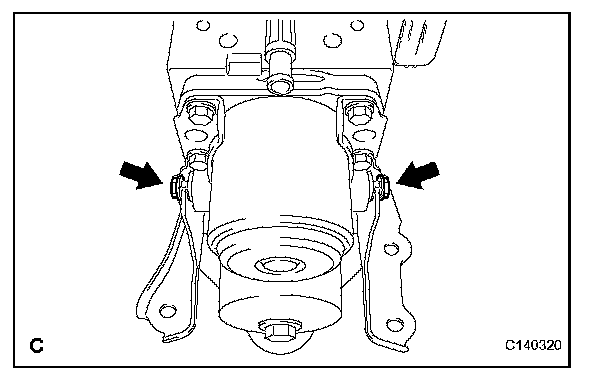

1. REMOVE NO. 1 BRAKE ACTUATOR BRACKET




a. Remove the 2 nuts and brake actuator assembly from the No. 1 brake actuator bracket.

REASSEMBLY

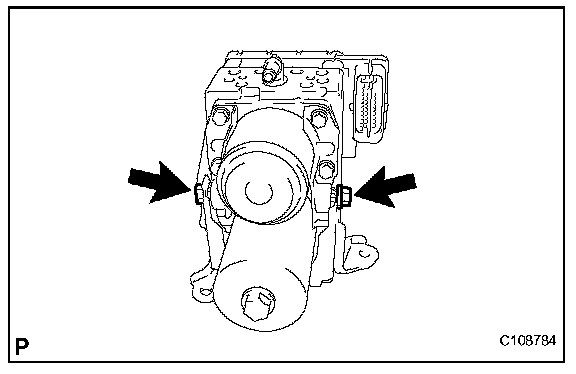

1. INSTALL NO. 1 BRAKE ACTUATOR BRACKET




a. Install the brake actuator assembly to the No. 1 brake actuator bracket with the 2 nuts.

Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

NOTE: Do not remove the hole plug before connecting the brake line because a new brake actuator assembly is filled with brake fluid.
