Home >> Toyota >> 2007 >> Camry L4-2.4L (2AZ-FXE) Hybrid >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Description and Operation >> System Diagram

System Diagram

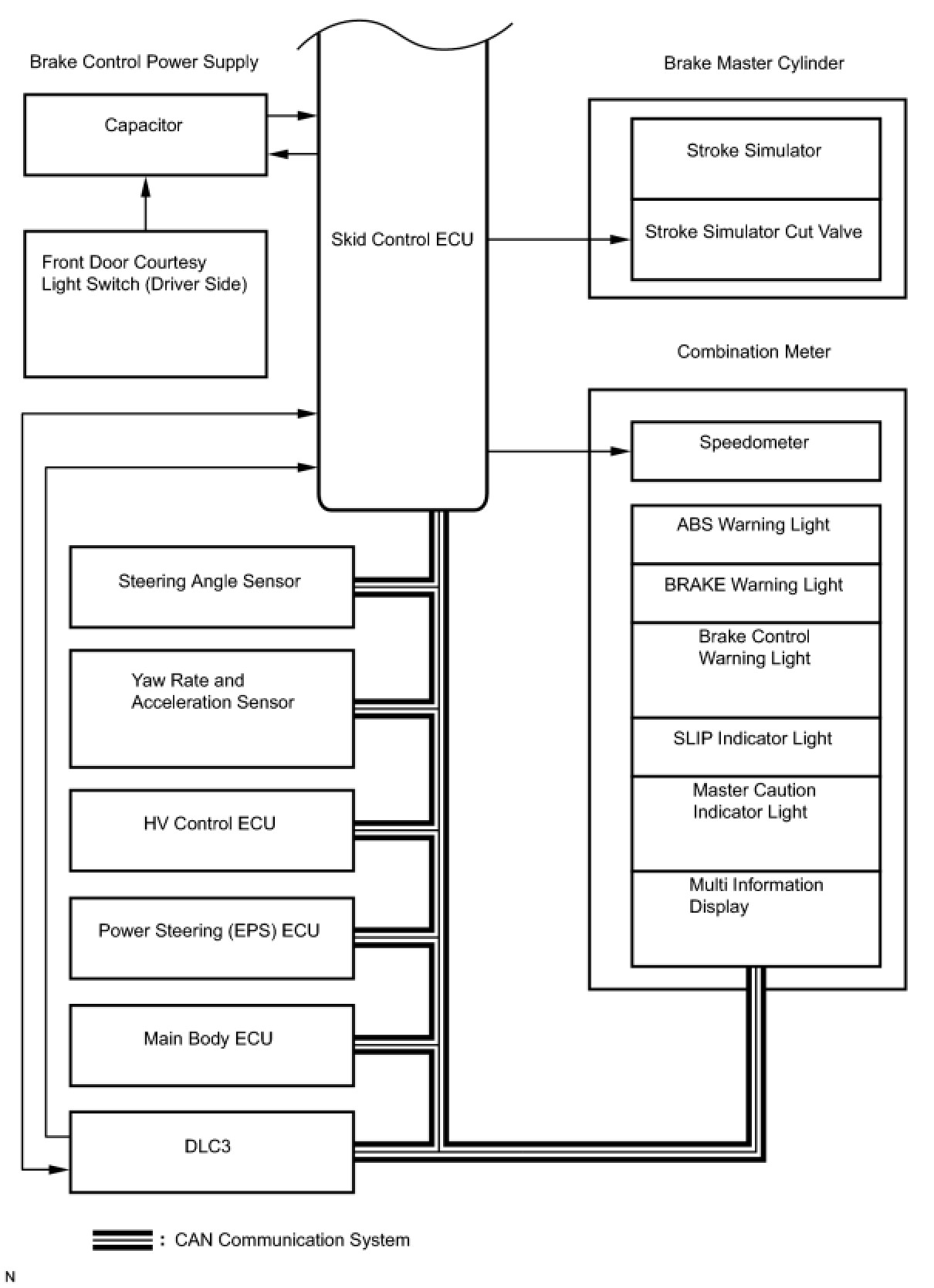

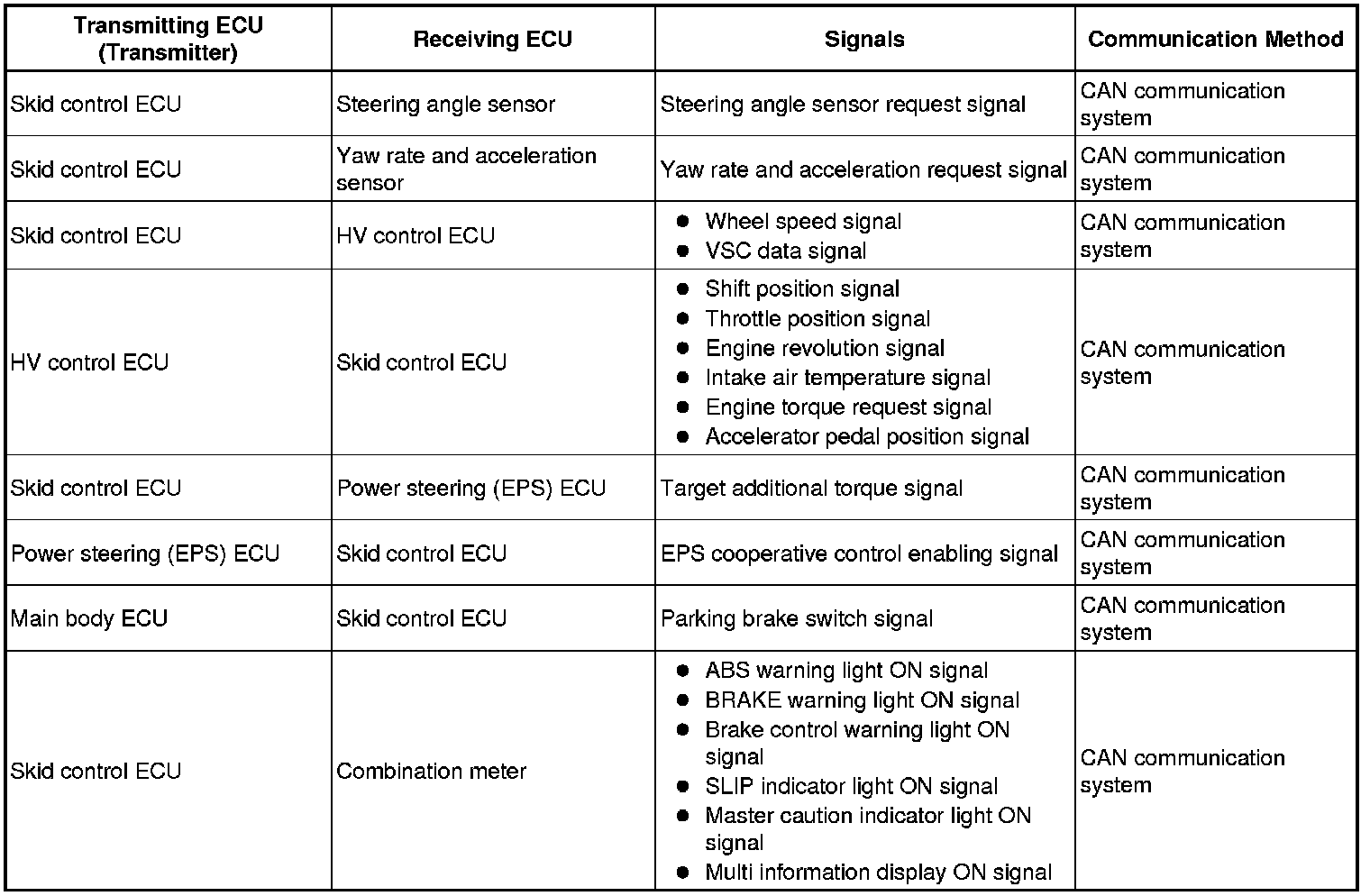

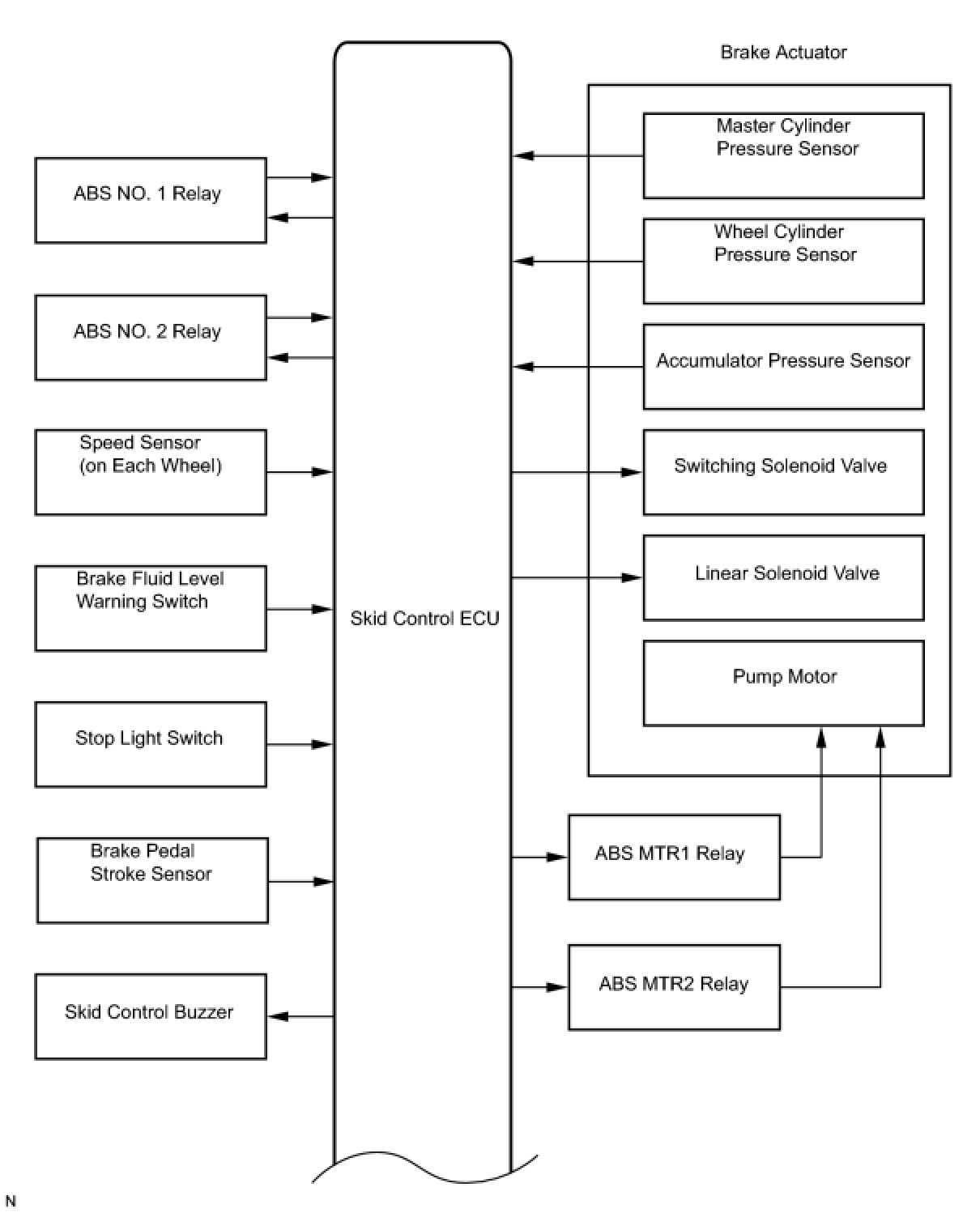

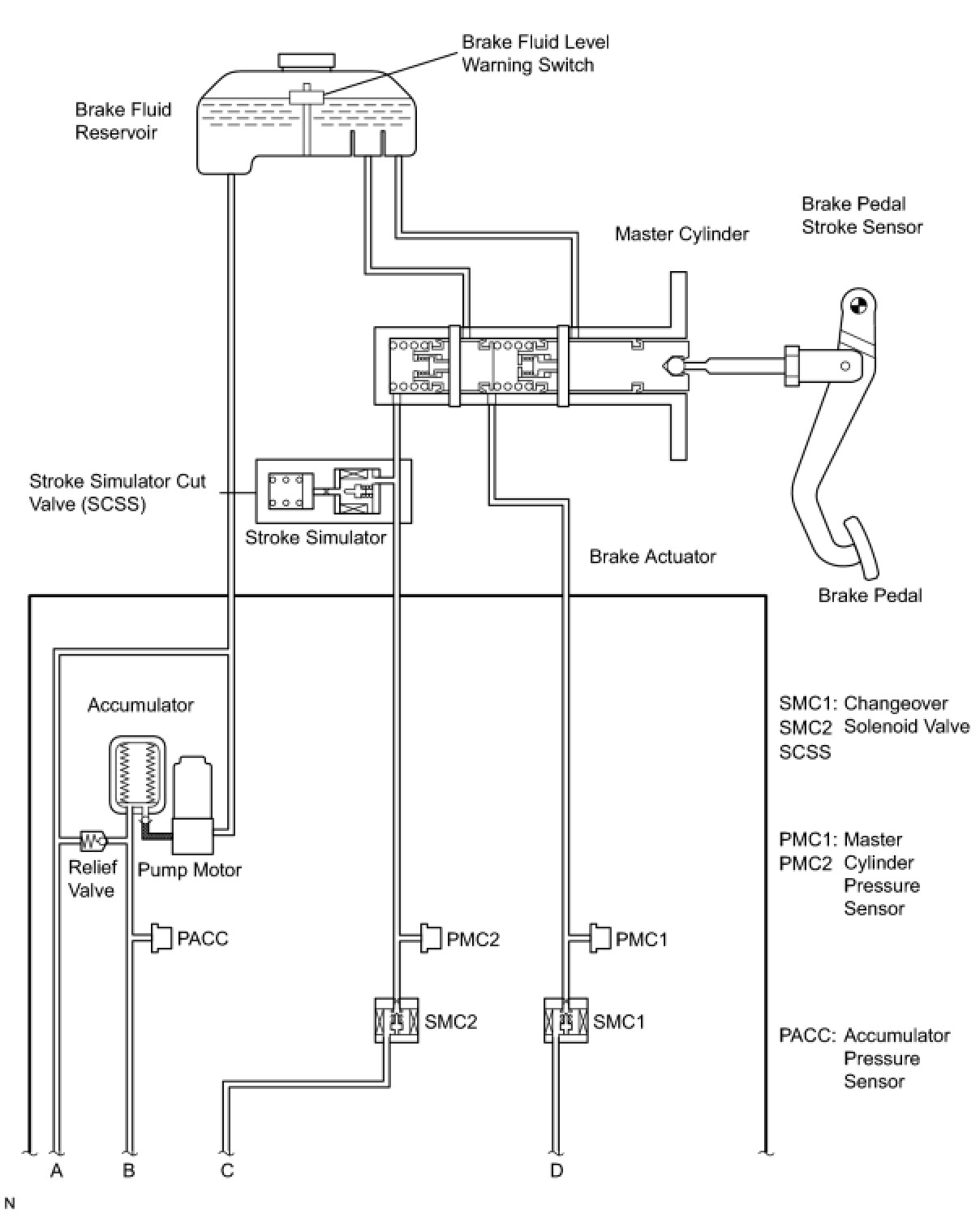

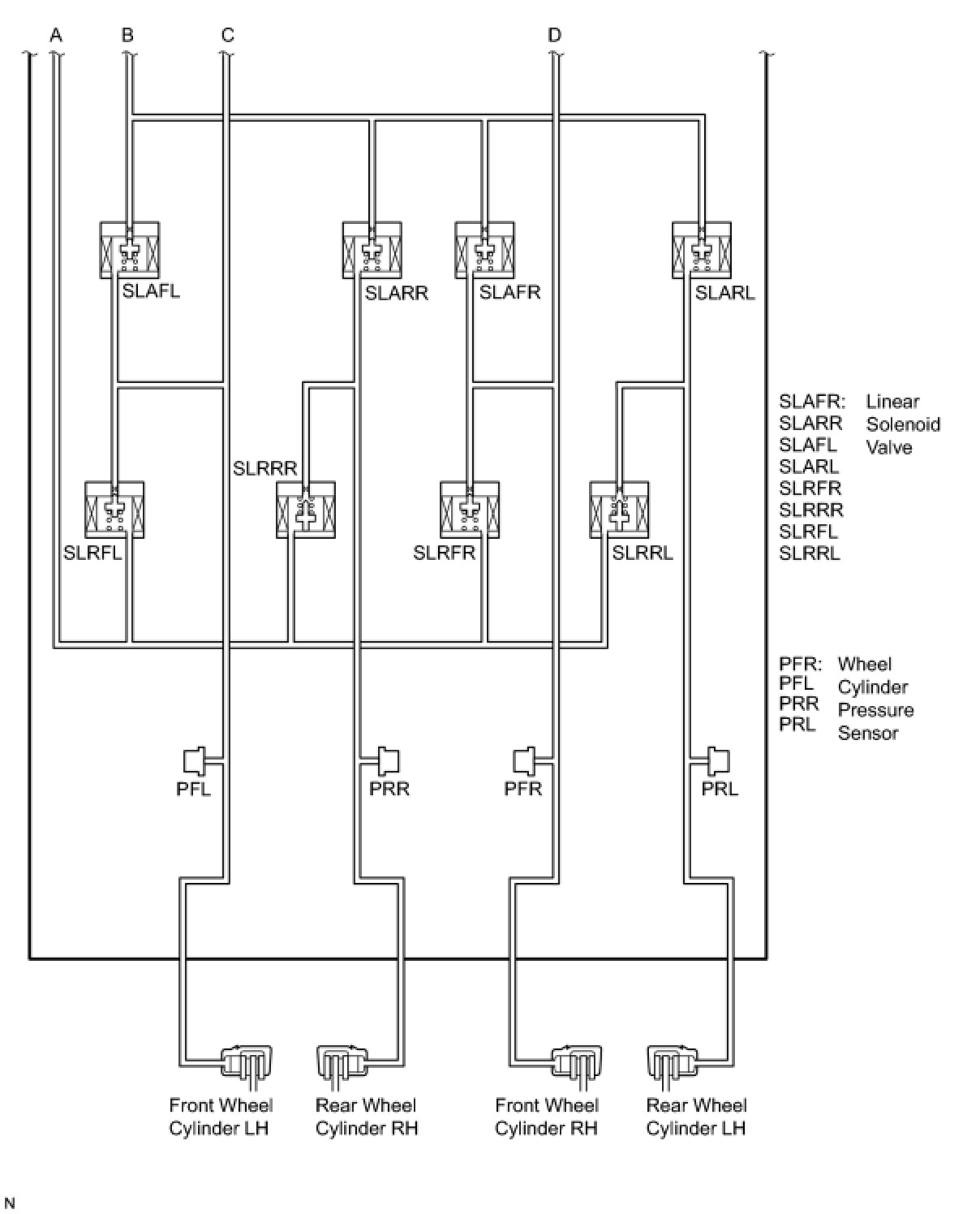

BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: SYSTEM DIAGRAM
