Home >> Toyota >> 2007 >> Camry L4-2.4L (2AZ-FXE) Hybrid >> Repair and Diagnosis >> Body and Frame >> Seats >> Service and Repair >> Removal and Replacement >> Front Seat Assembly (for Manual Seat) >> Components

Components

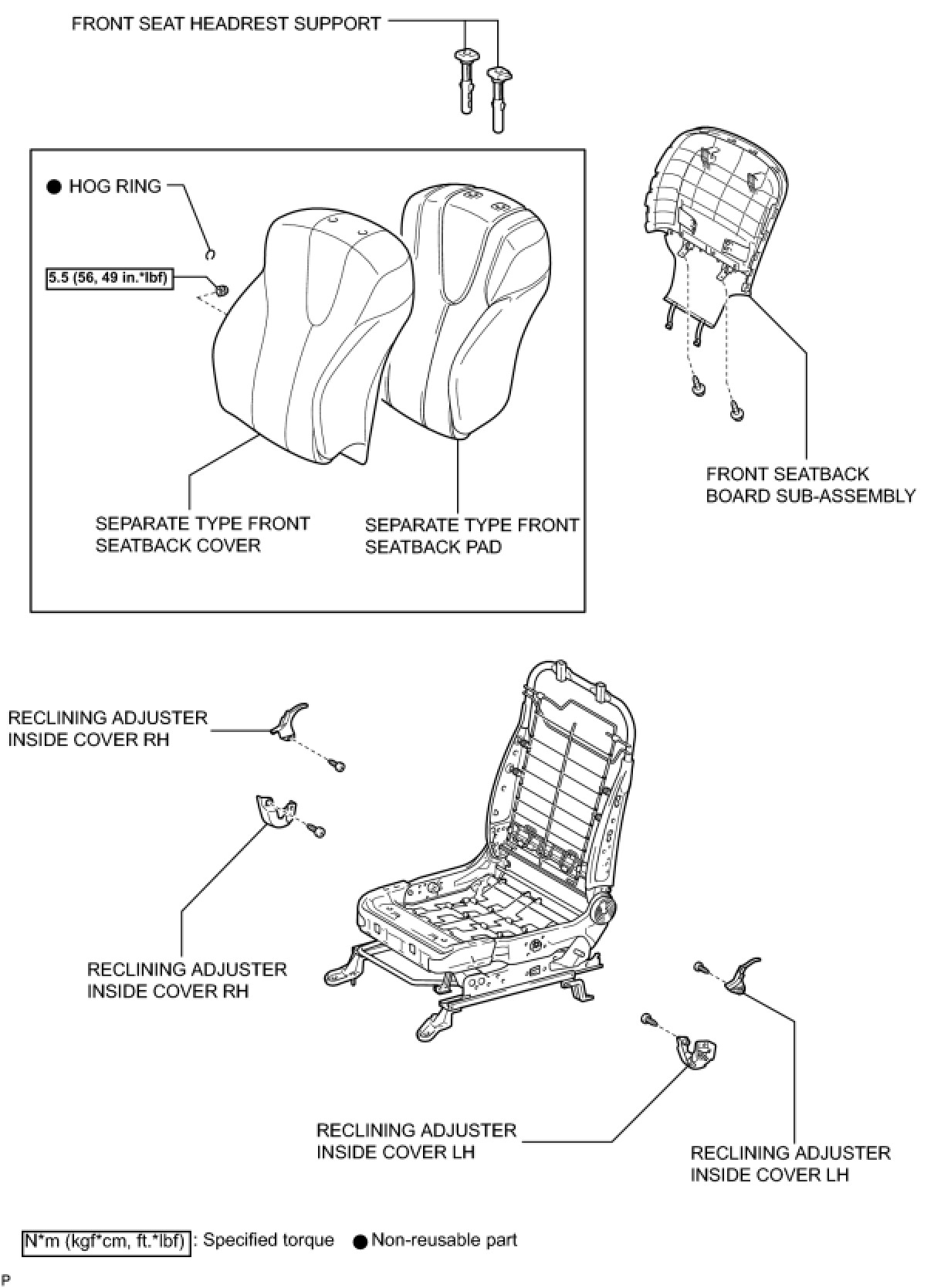

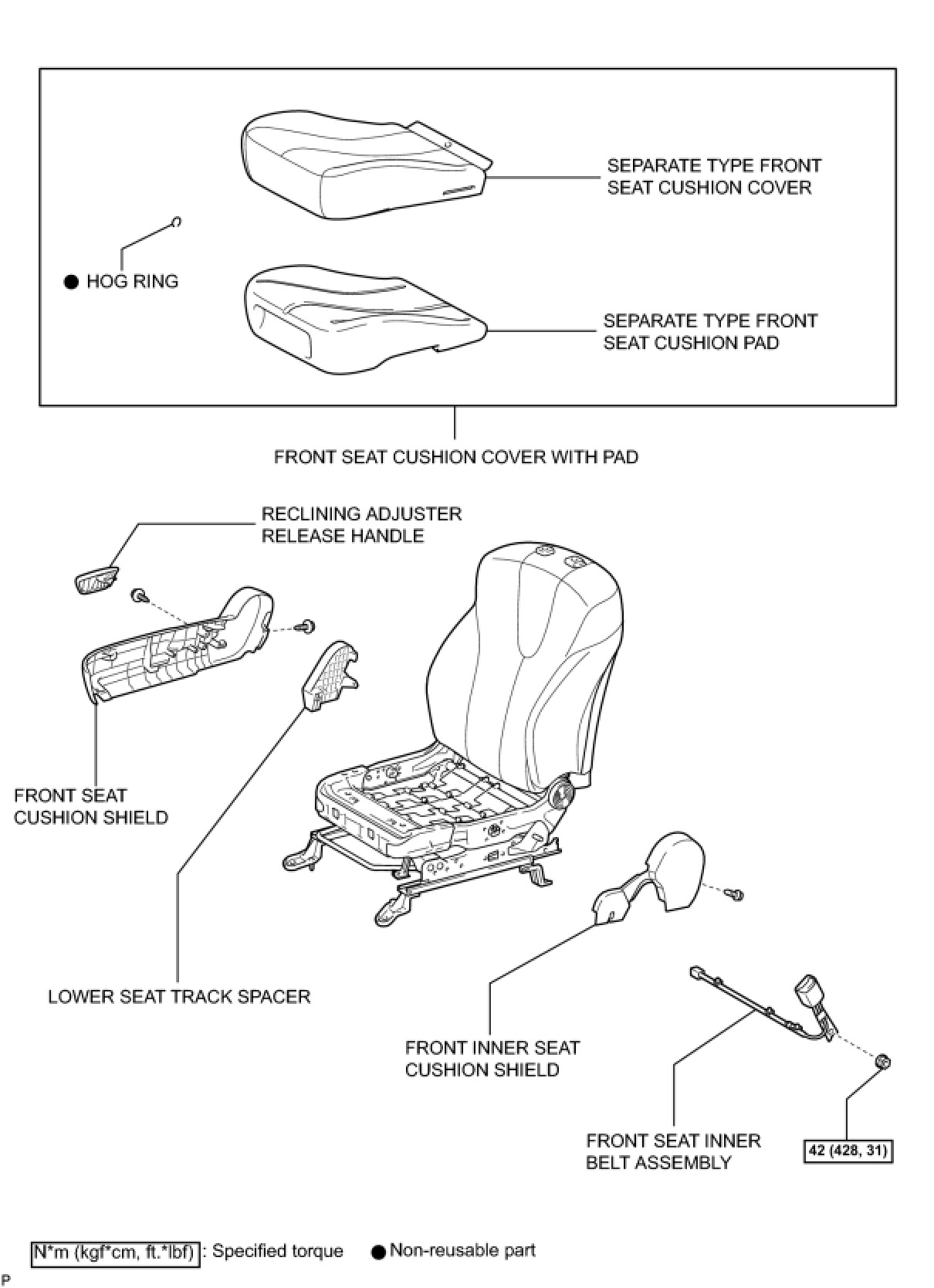

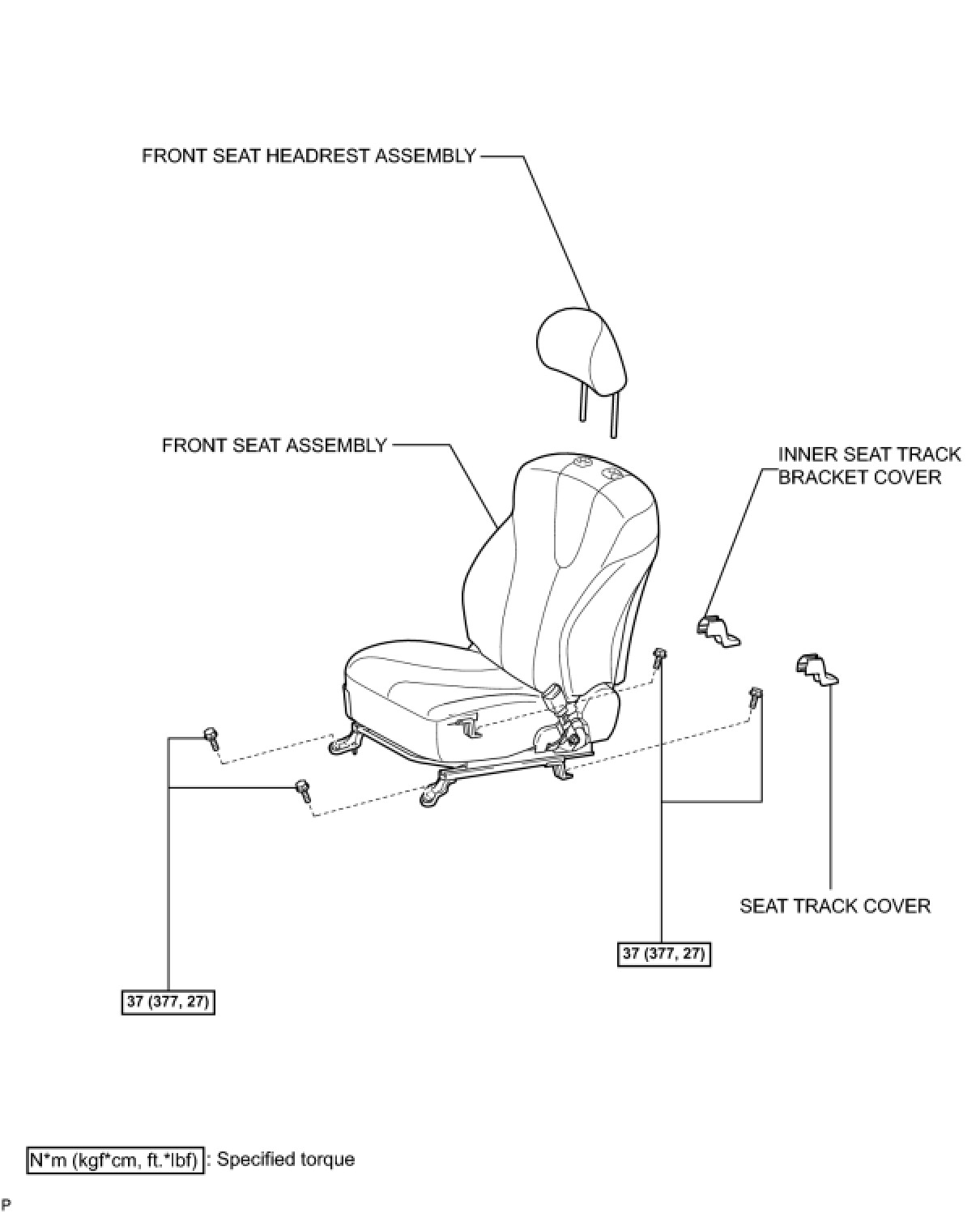

SEAT: FRONT SEAT ASSEMBLY (for Manual Seat): COMPONENTS

COMPONENTS

ILLUSTRATION
