Rear Seat Assembly

DISASSEMBLY

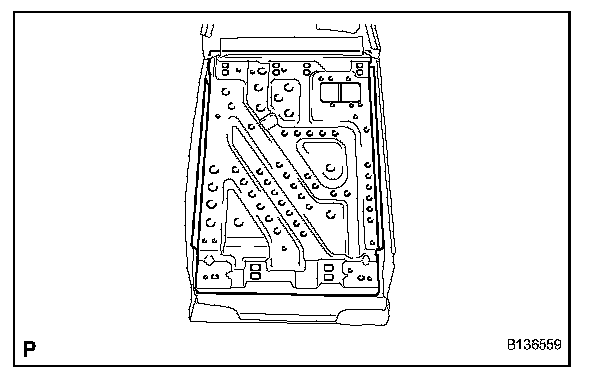

1. REMOVE REAR BENCH TYPE SEAT CUSHION COVER

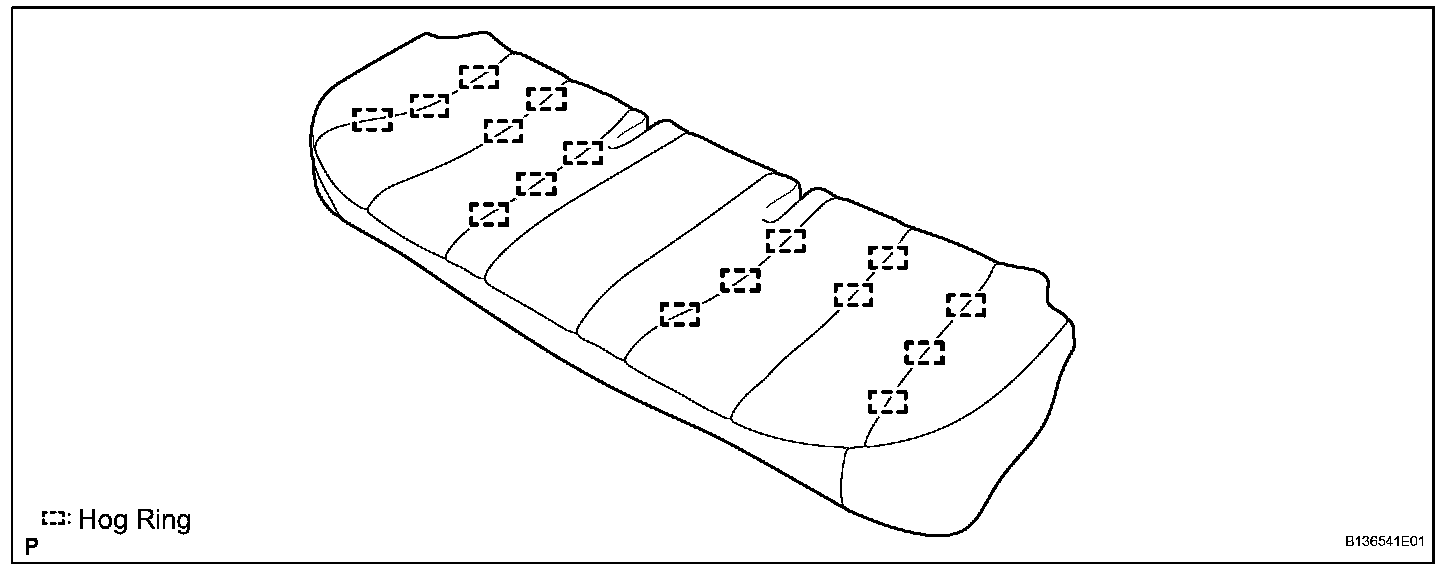

a. Remove the 36 hog rings.

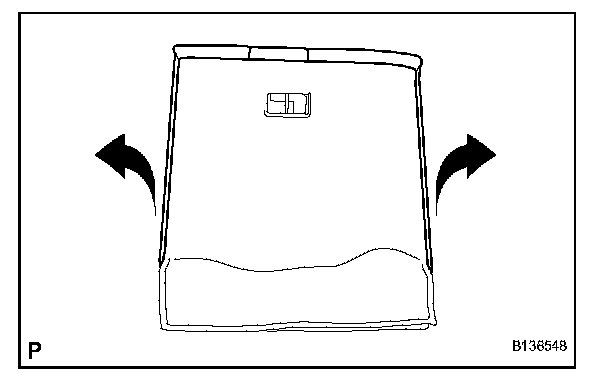

b. Remove the 16 hog rings and rear bench type seat cushion cover.

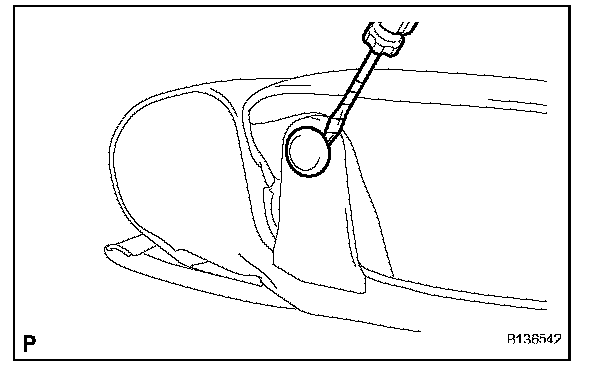

2. REMOVE NO. 1 SEAT ARMREST CAP






a. Using a screwdriver, remove the No. 1 seat armrest cap.

HINT: Tape the screwdriver tip before use.

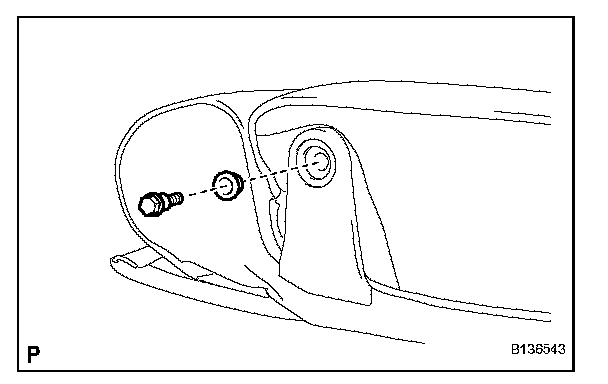

3. REMOVE REAR SEATBACK HINGE COVER

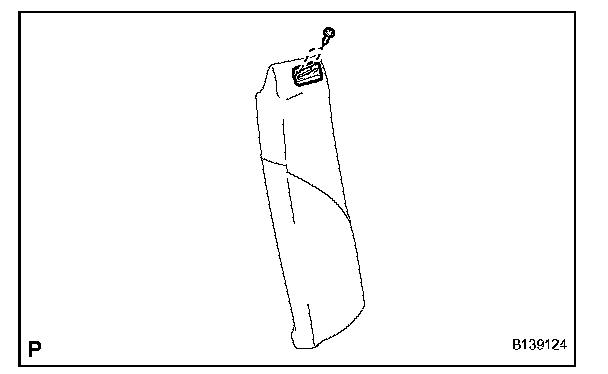

a. Remove the bolt and bush.






b. Remove the rear seatback hinge cover.

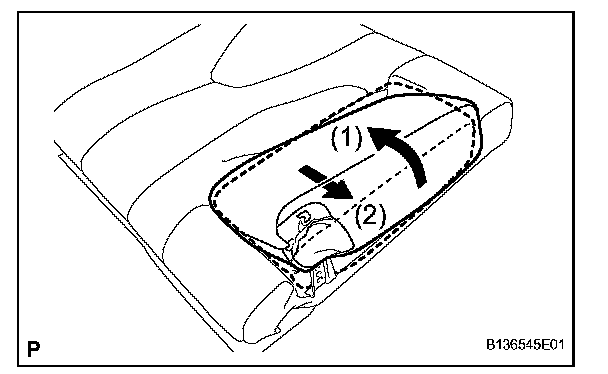

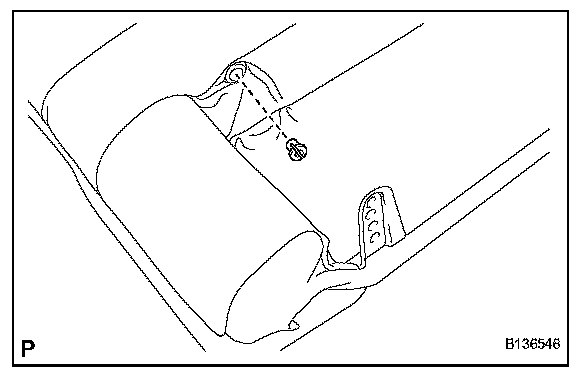

4. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY






a. Remove the rear center seat armrest assembly as shown in the illustration.






b. Remove the bush.

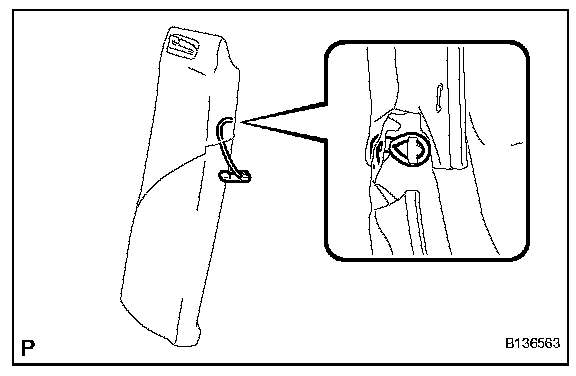

5. REMOVE REAR SEAT BELT HOOK

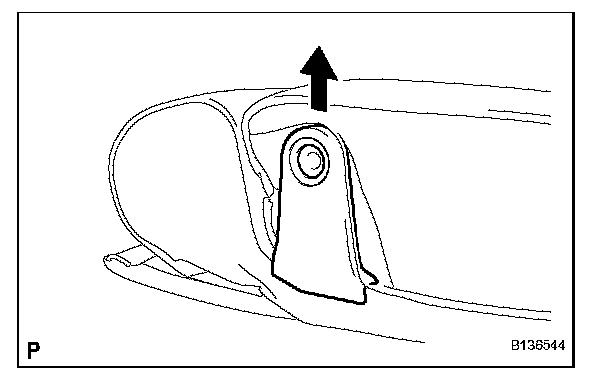

a. Remove the rear seat belt hook.

HINT: Use the same procedures for the RH side and LH side.

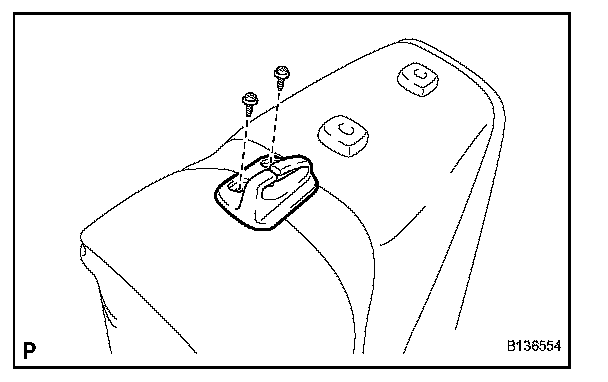

6. REMOVE REAR SEAT SHOULDER BELT GUIDE LH






a. Seatback:
1. Remove the 2 screws and rear seat shoulder belt guide LH.

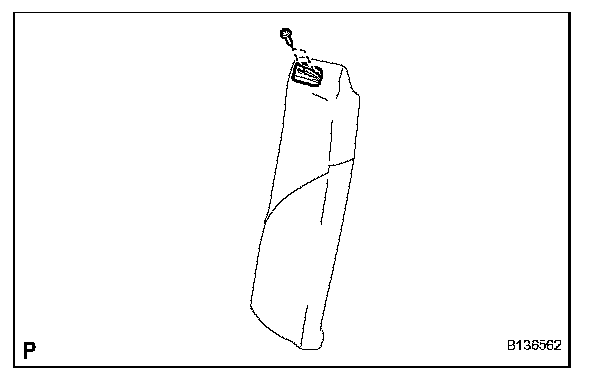

b. Side Seatback:
1. Remove the 2 screws and rear seat shoulder belt guide LH.






7. REMOVE REAR SEAT SHOULDER BELT GUIDE RH
a. Remove the 2 screws and rear seat shoulder belt guide RH.






8. REMOVE REAR SEATBACK LOCK BEZEL UPPER (for RH Side)

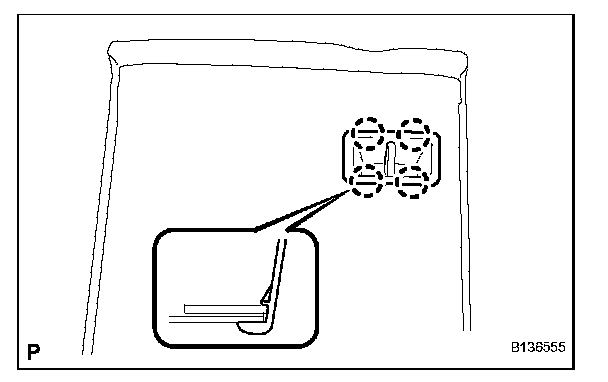

a. Disengage the 4 claws and remove the rear seatback lock bezel upper.

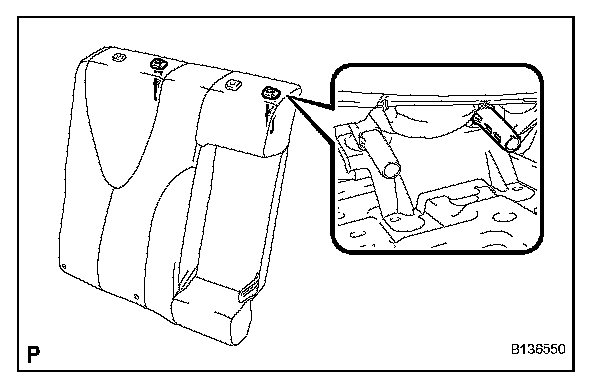

9. REMOVE REAR SEAT HEADREST SUPPORT (for RH Side)






a. Disengage the 2 hooks and separate the rear separate type seatback cover.






b. Remove the 7 hog rings.

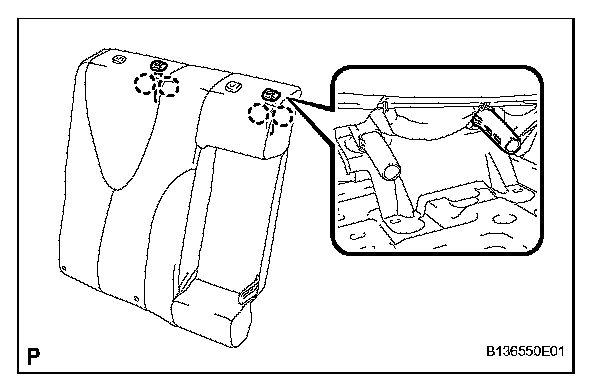

c. Disengage the 4 claws and remove the 2 rear seat headrest supports.

10. REMOVE REAR SEAT HEADREST SUPPORT (for RH Side)






11. REMOVE REAR SEATBACK LOCK BEZEL UPPER (for LH Side)

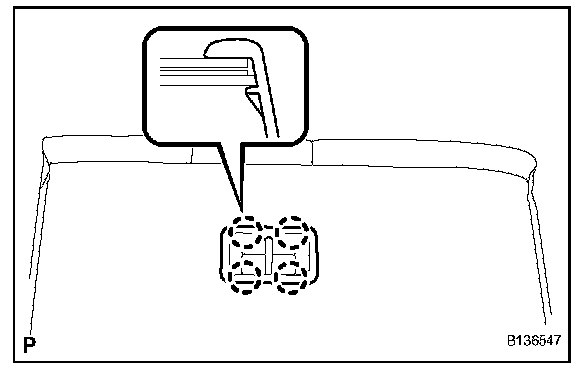

a. Disengage the 4 claws and remove the rear seatback lock bezel upper.

12. REMOVE REAR SEAT HEADREST SUPPORT (for LH Side)






a. Disengage the 2 hooks and separate the rear separate type seatback cover.






b. Remove the 6 hog rings.






c. Disengage the 2 claws and remove the rear seat headrest support.

13. REMOVE REAR SEAT HEADREST SUPPORT (for LH Side)

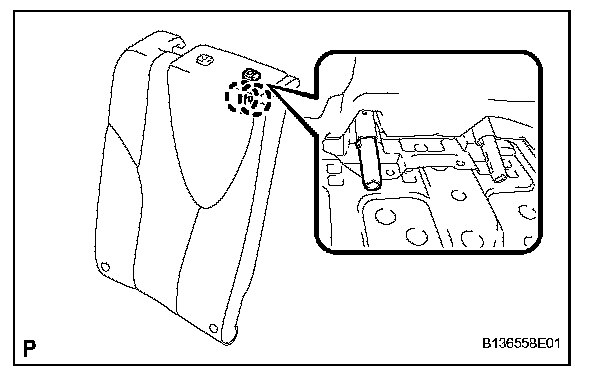

14. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY RH
a. Remove the rear seatback frame sub-assembly RH.






15. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY LH
a. Remove the rear seatback frame sub-assembly LH.

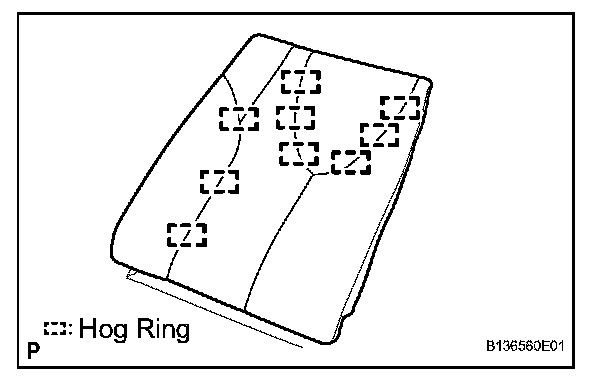

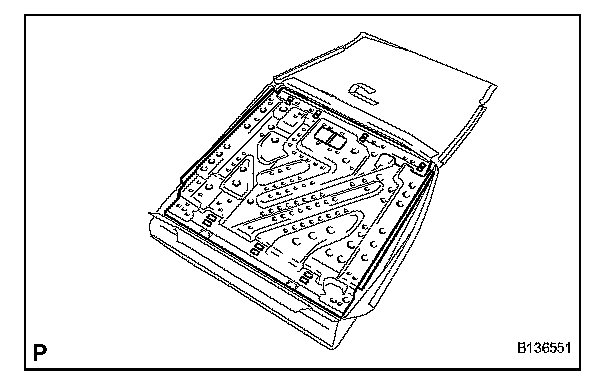

16. REMOVE REAR SEPARATE TYPE SEATBACK COVER (for RH Side)

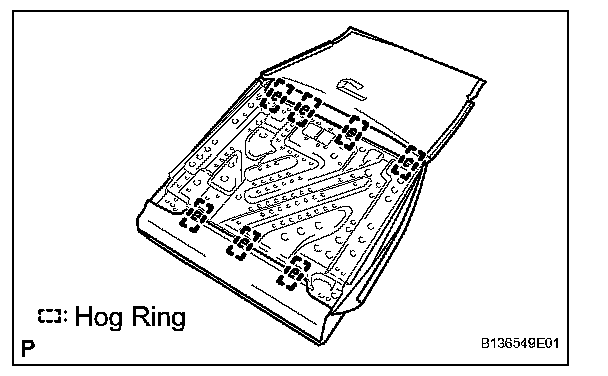

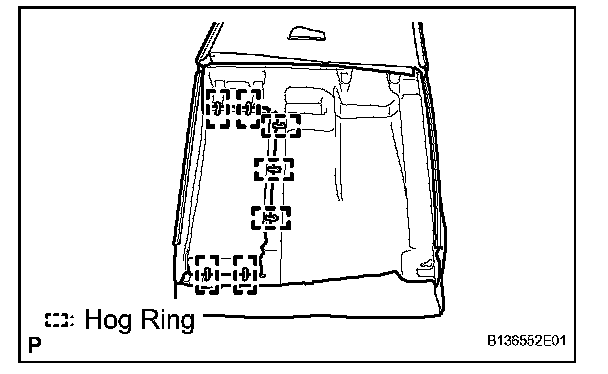

a. Remove the 7 hog rings.






b. Remove the 9 hog rings and rear separate type seatback cover.

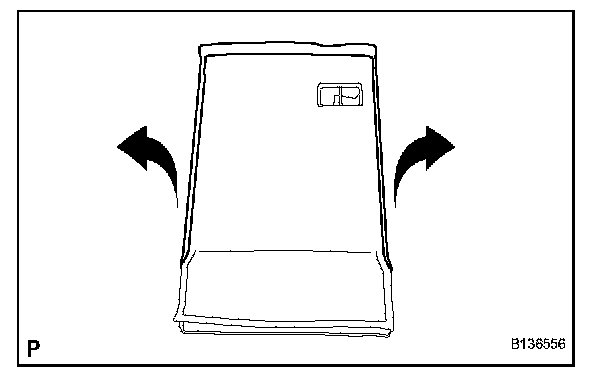

17. REMOVE REAR SEPARATE TYPE SEATBACK COVER (for LH Side)
a. Remove the 9 hog rings and rear separate type seatback cover.

REASSEMBLY






1. INSTALL REAR SEPARATE TYPE SEATBACK COVER (for LH Side)

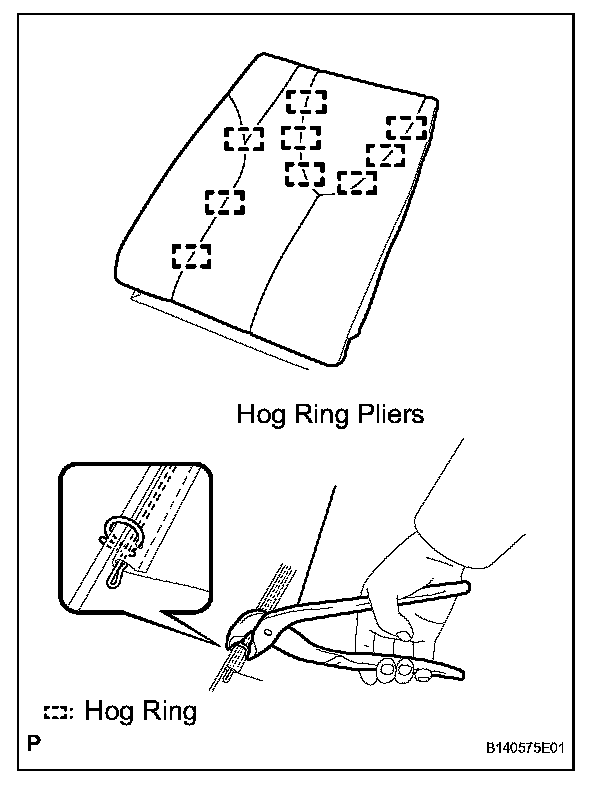

a. Using hog ring pliers, install the rear separate type seatback cover with 9 new hog rings.

NOTICE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

2. INSTALL REAR SEPARATE TYPE SEATBACK COVER (for RH Side)

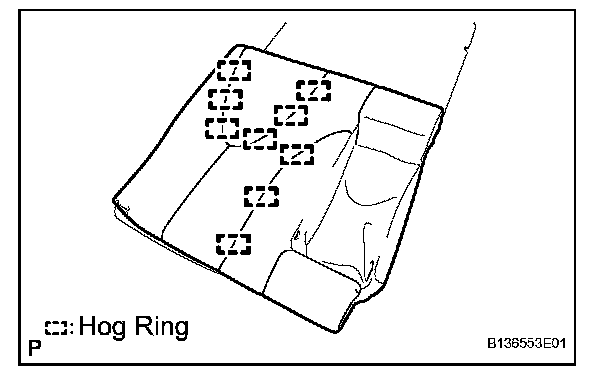

a. Using hog ring pliers, install the rear separate type seatback cover to the seatback pad with 9 new hog rings.

NOTICE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

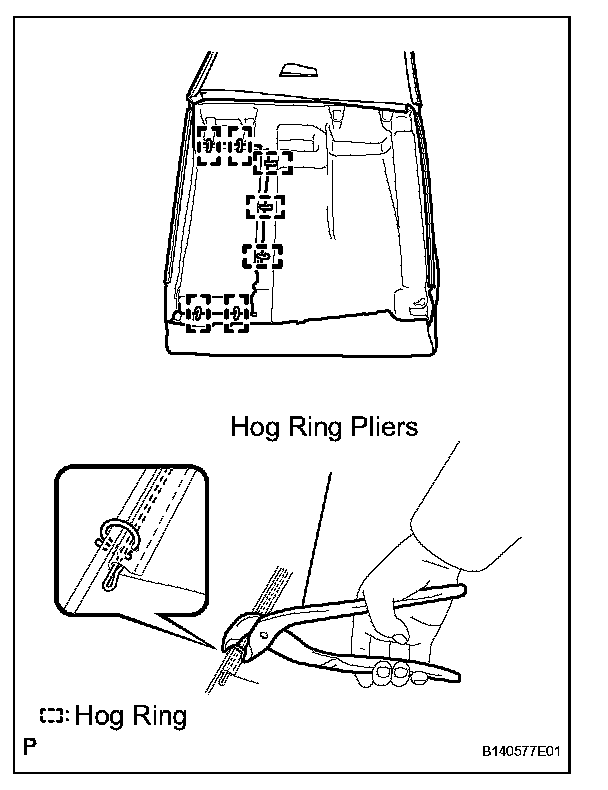

b. Using hog ring pliers, install the rear separate type seatback cover to the seatback pad with 7 new hog rings.

NOTICE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

3. INSTALL REAR SEATBACK FRAME SUB-ASSEMBLY RH
4. INSTALL REAR SEATBACK FRAME SUB-ASSEMBLY LH
5. INSTALL REAR SEAT HEADREST SUPPORT (for LH Side)






a. Engage the 2 claws to install the 2 front seat headrest supports.






b. Using hog ring pliers, install the rear separate type seatback cover to the seatback frame with 6 new hog rings.

NOTICE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

6. INSTALL REAR SEAT HEADREST SUPPORT (for LH Side)






a. Engage the 2 claws to install the 2 front seat headrest supports.

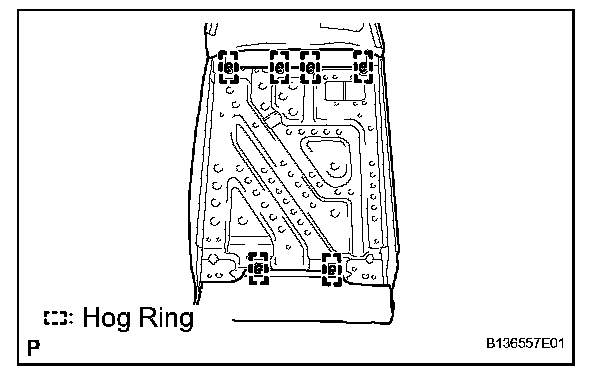

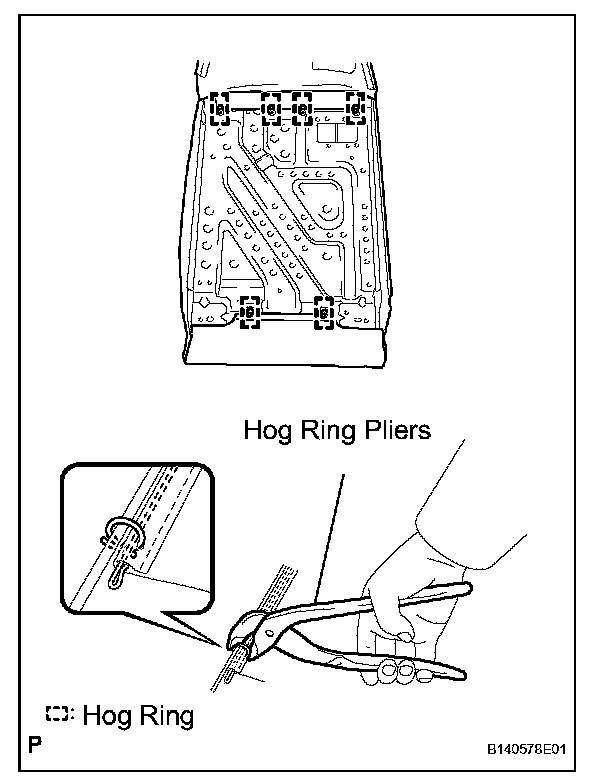

b. Using hog ring pliers, install the rear separate type seatback cover to the seatback frame with 7 new hog rings.

NOTICE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

7. INSTALL REAR SEATBACK LOCK BEZEL UPPER
8. INSTALL REAR SEAT HEADREST SUPPORT (for RH Side)
9. INSTALL REAR SEAT HEADREST SUPPORT (for RH Side)
10. INSTALL REAR SEATBACK LOCK BEZEL UPPER (for RH Side)
11. INSTALL REAR SEAT SHOULDER BELT GUIDE RH
12. INSTALL REAR SEAT SHOULDER BELT GUIDE LH
13. INSTALL REAR SEAT BELT HOOK
14. INSTALL REAR CENTER SEAT ARMREST ASSEMBLY
15. INSTALL REAR SEATBACK HINGE COVER
16. INSTALL NO. 1 SEAT ARMREST CAP

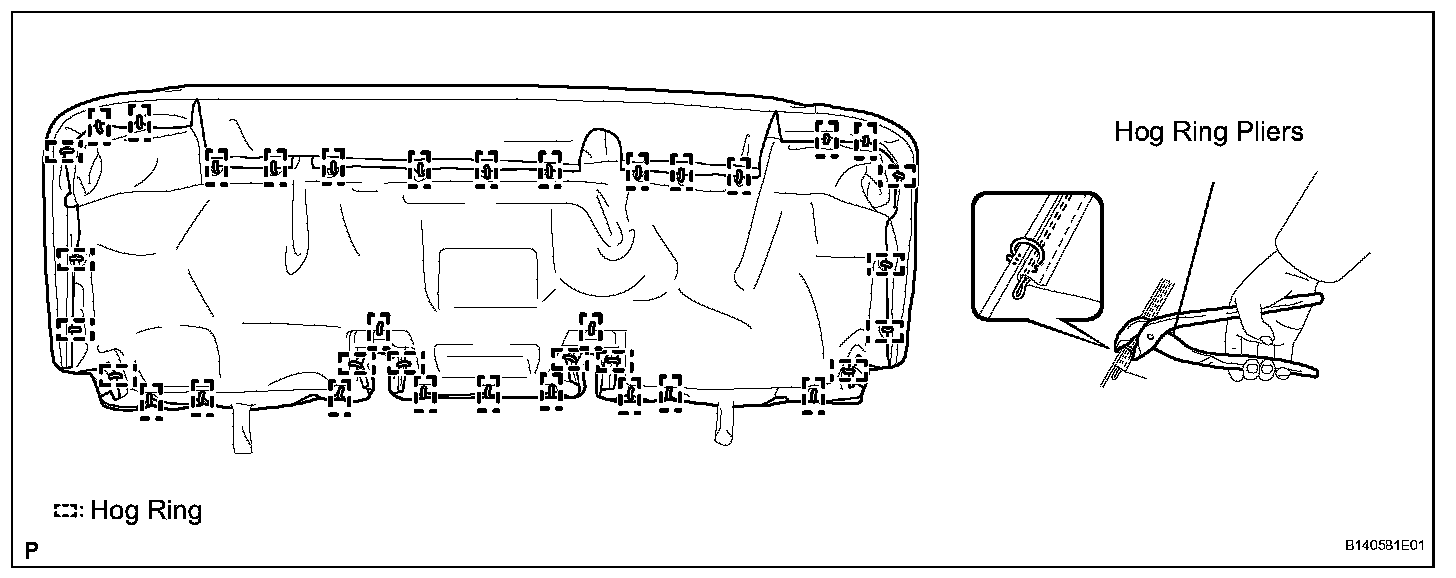

17. INSTALL REAR BENCH TYPE SEAT CUSHION COVER

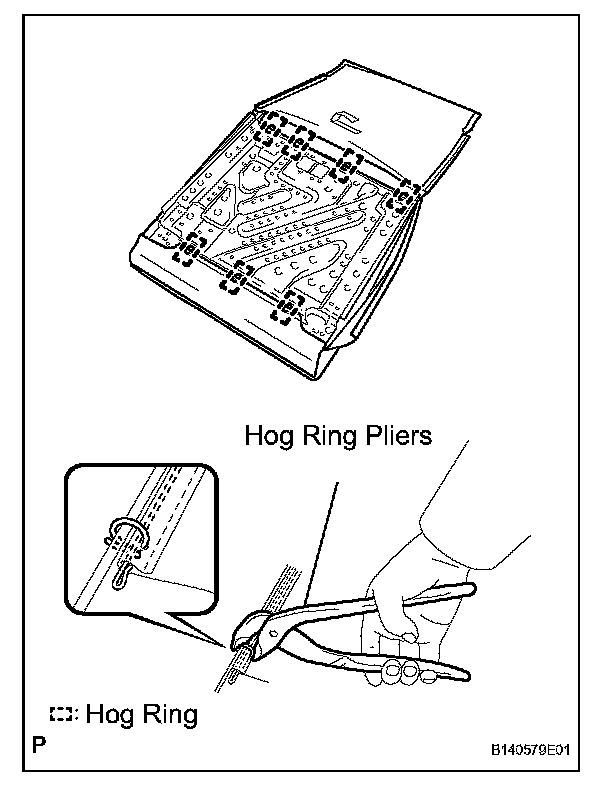

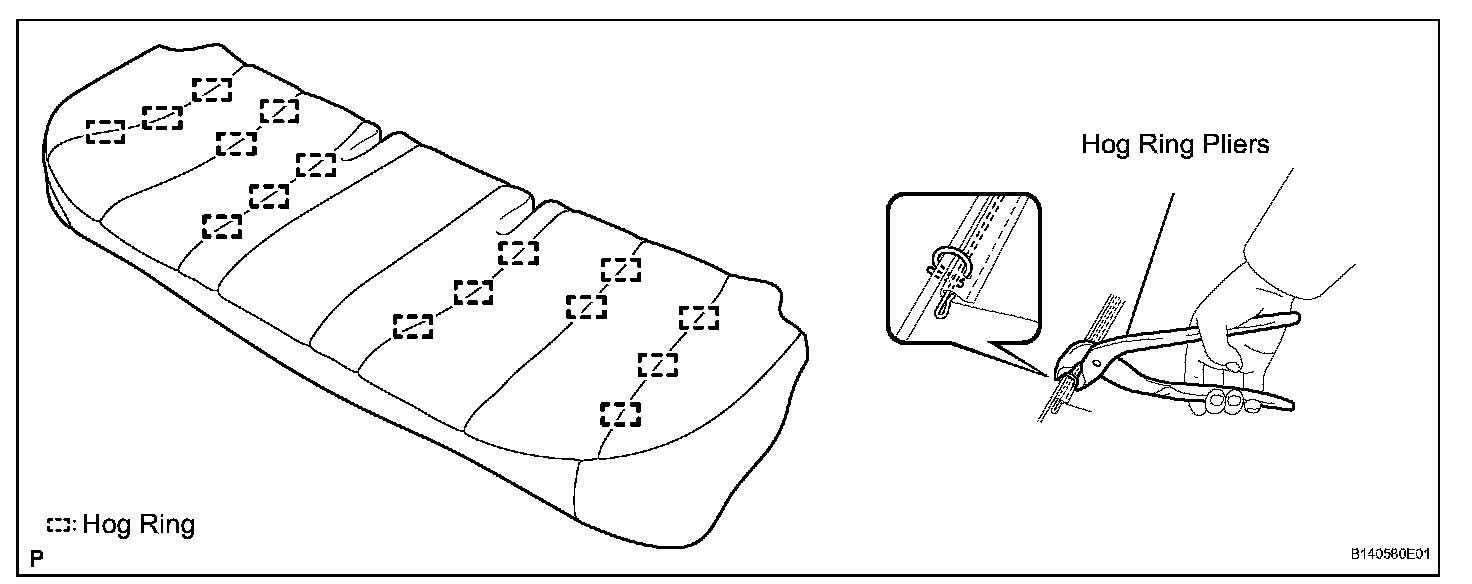

a. Using hog ring pliers, install 16 new hog rings.

NOTICE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

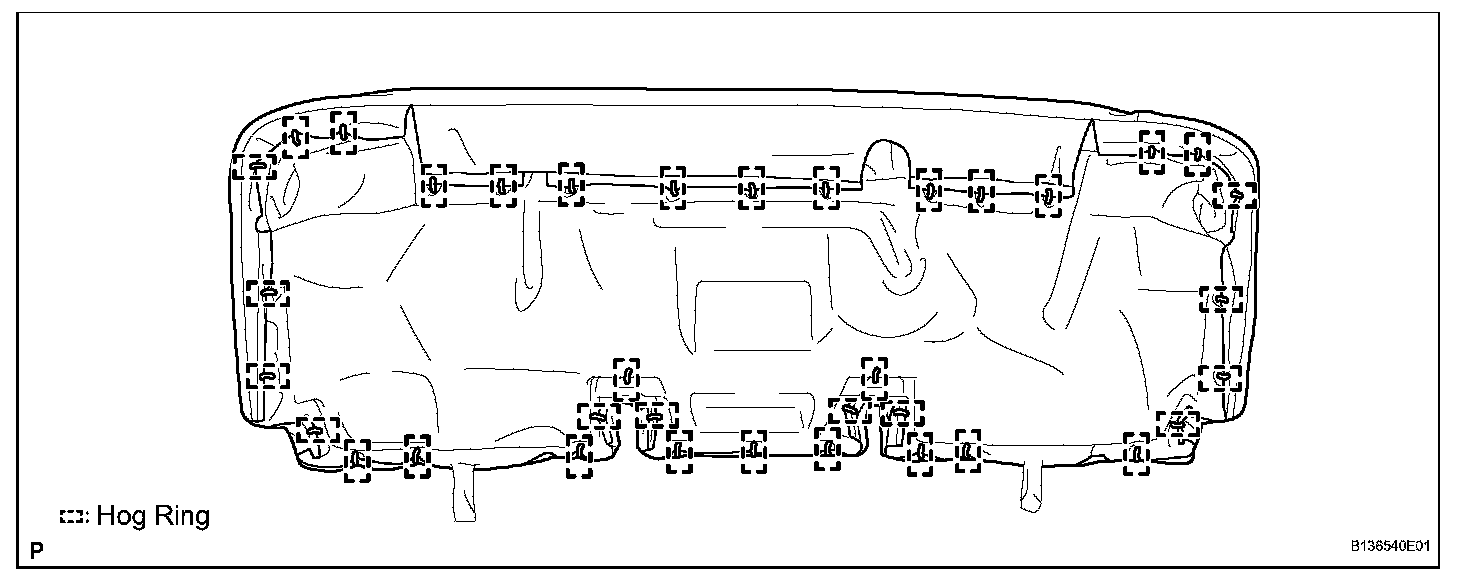

b. Using hog ring pliers, install the rear bench type seat cushion cover to the seat cushion pad with 36 new hog rings.

NOTICE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.
