Front Seat Assembly (For Power Seat)
DISASSEMBLYCAUTION: Wear protective gloves. Sharp areas on the seat frame and adjuster may injure your hands.
1. REMOVE OCCUPANT DETECTION ECU

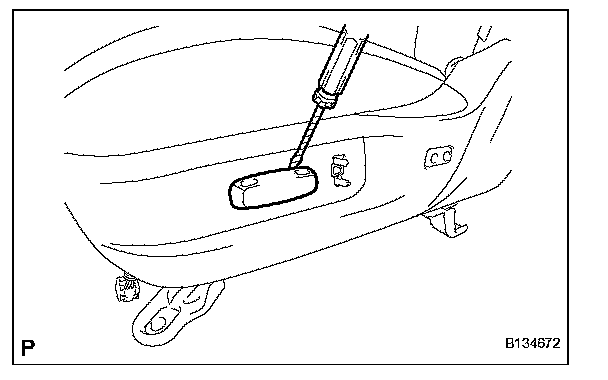

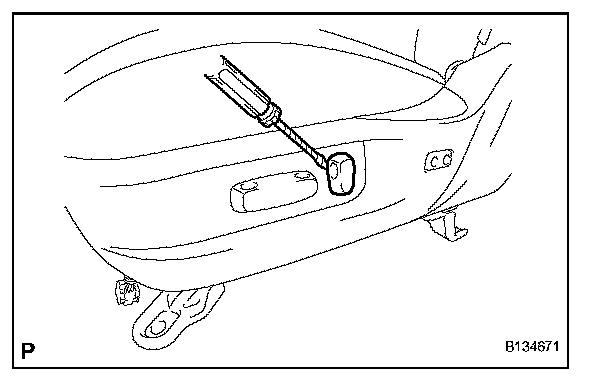

2. REMOVE RECLINING POWER SEAT SWITCH KNOB
a. Using a screwdriver, detach the reclining power seat switch knob.
HINT: Tape the screwdriver tip before use.
3. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
a. Using a screwdriver, detach the slide and vertical power seat switch knob.
HINT: Tape the screwdriver tip before use.

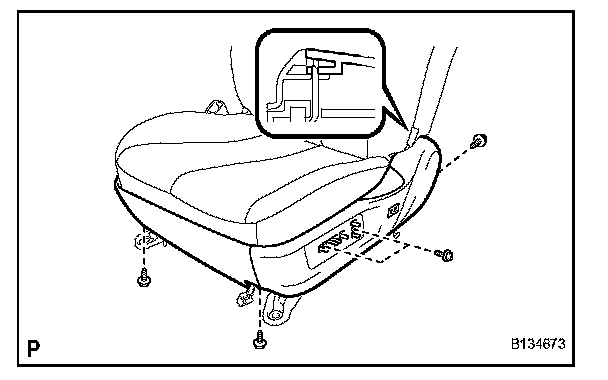

4. REMOVE FRONT SEAT CUSHION SHIELD ASSEMBLY
a. Disconnect the 2 hooks.
b. Remove the 5 screws.
c. Disengage the claw and separate the front seat cushion shield assembly.
d. Disconnect the connector from the front power seat lumbar switch.
5. REMOVE FRONT INNER NO. 1 SEAT CUSHION SHIELD
a. Remove the screw.
b. Detach the 2 claws and remove the front inner No. 1 seat cushion shield.

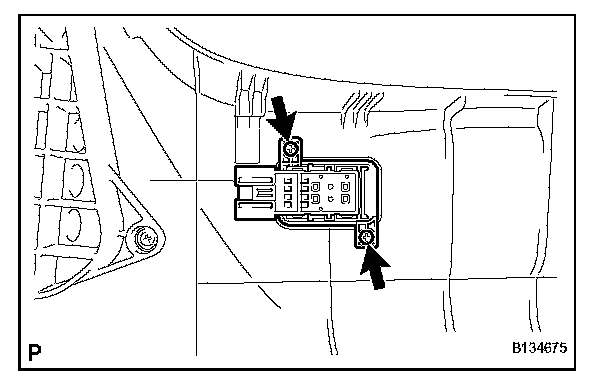

6. REMOVE FRONT LUMBAR POWER SEAT SWITCH
a. Remove the 2 screws and front lumbar power seat switch.
7. REMOVE FRONT SEAT INNER BELT ASSEMBLY

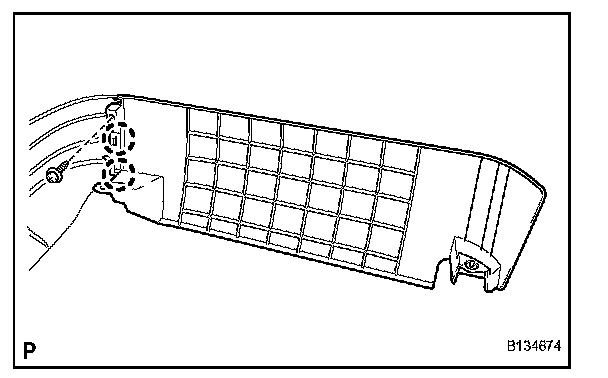

8. REMOVE FRONT INNER SEAT CUSHION SHIELD
a. Remove the screw.
b. Using a clip remover, detach the clip.
c. Using a screwdriver, detach the claw and remove the front inner seat cushion shield.
HINT: Tape the screwdriver tip before use.
9. REMOVE LOWER SEAT TRACK SPACER
a. Remove the 2 screws and lower seat track spacer.

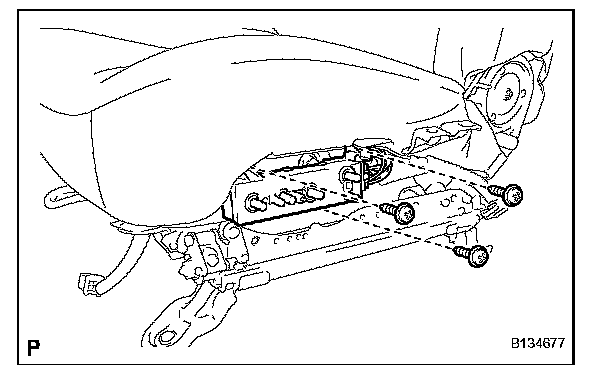

10. REMOVE FRONT POWER SEAT SWITCH
a. Remove the 3 screws.
b. Disconnect the connector and remove the front power seat switch.

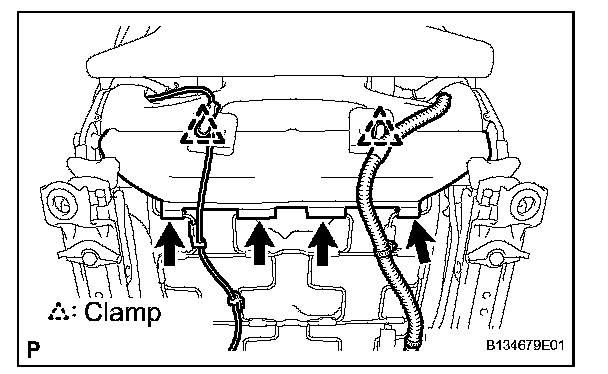

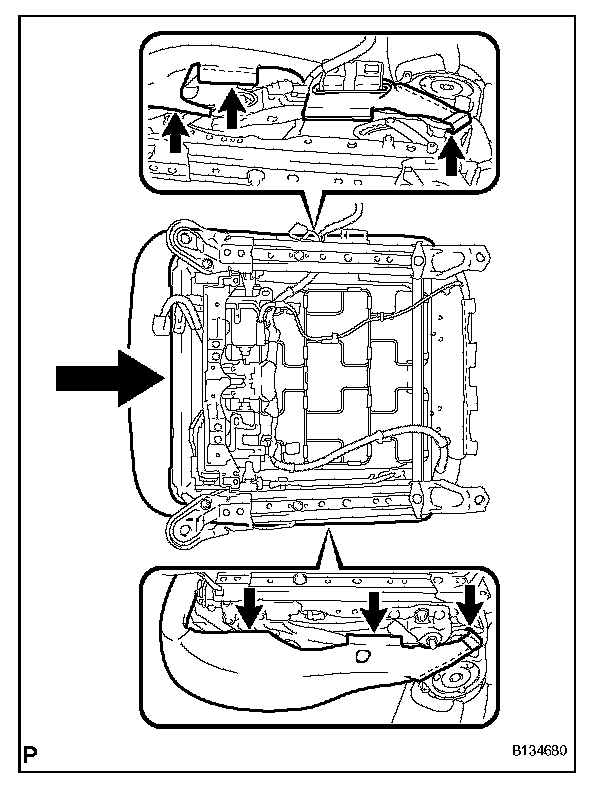

11. REMOVE FRONT SEPARATE TYPE SEAT CUSHION ASSEMBLY
a. Disconnect the 2 clamps.
b. Remove the 4 hooks.
c. Using a screwdriver, detach the hooks and remove the front separate type seat cushion assembly.

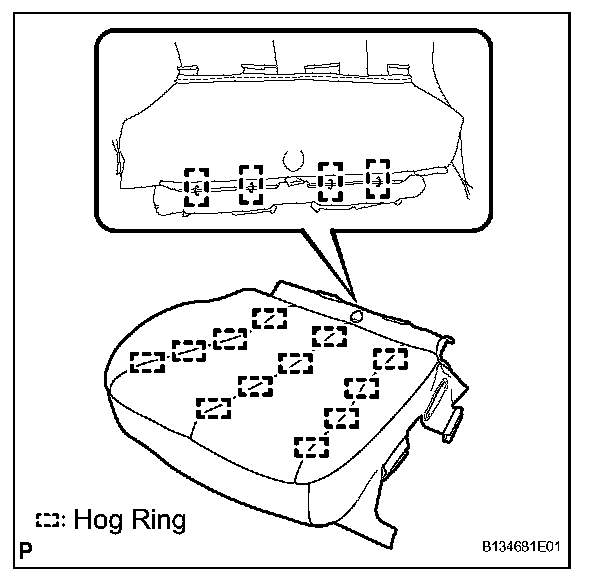

12. REMOVE FRONT SEPARATE TYPE SEAT CUSHION COVER
a. Remove the 16 hog rings and front separate type seat cushion cover from the seat cushion pad.

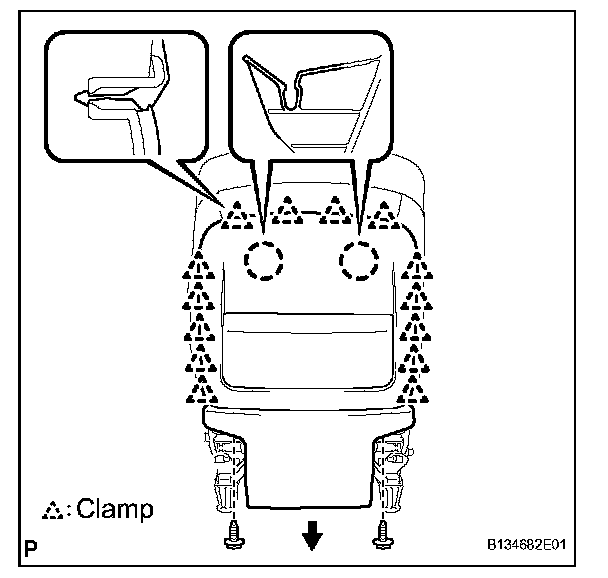

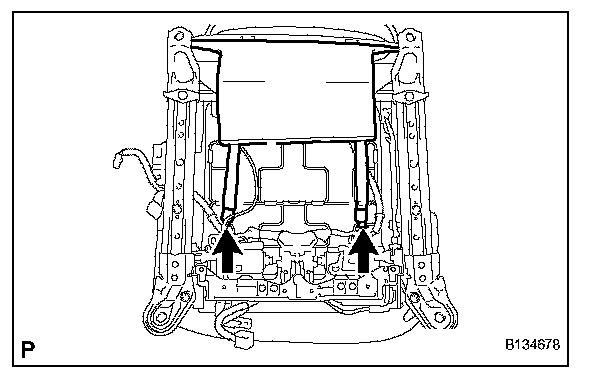

13. REMOVE FRONT SEATBACK BOARD SUB-ASSEMBLY
a. Remove the 2 screws.
b. Disconnect the 14 clamps and front separate type seatback cover.
c. Pull the seatback board in the direction indicated by the arrow in the illustration to detach the 2 claws. Then, remove the seatback board.

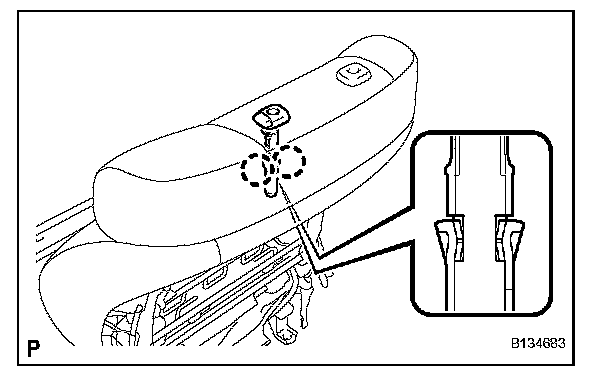

14. REMOVE FRONT SEAT HEADREST SUPPORT
a. Detach the 2 claws and remove the headrest support.
15. REMOVE FRONT SEAT HEADREST SUPPORT

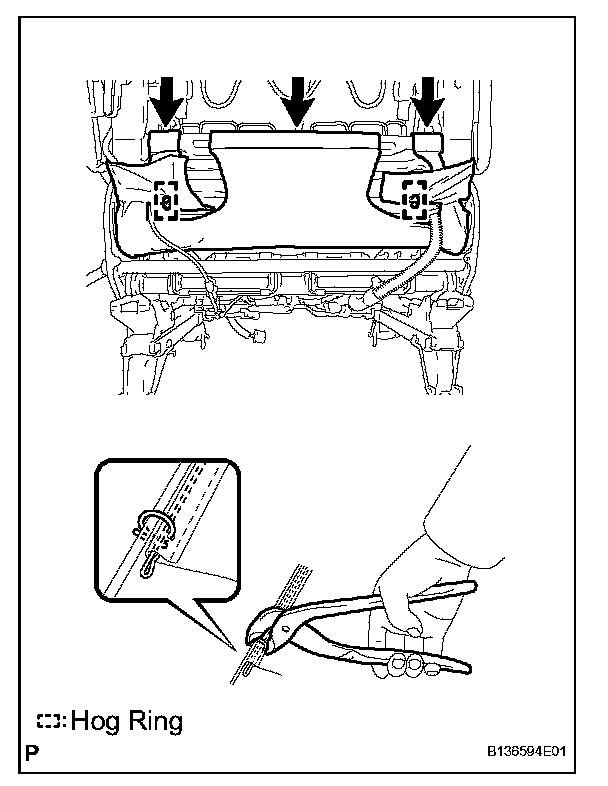

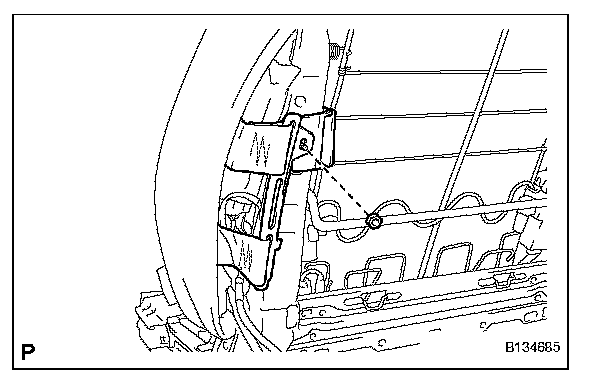

16. REMOVE FRONT SEPARATE TYPE SEATBACK ASSEMBLY

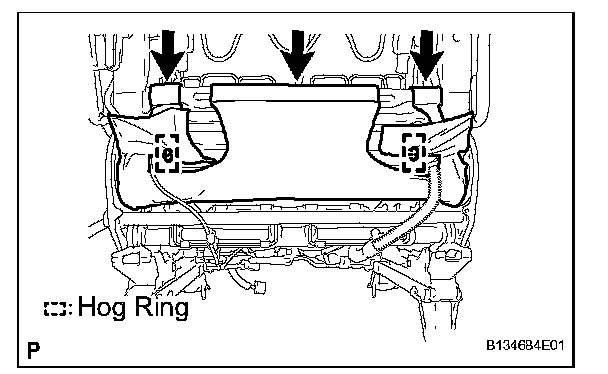

a. Remove the 2 hog rings and 3 hooks.

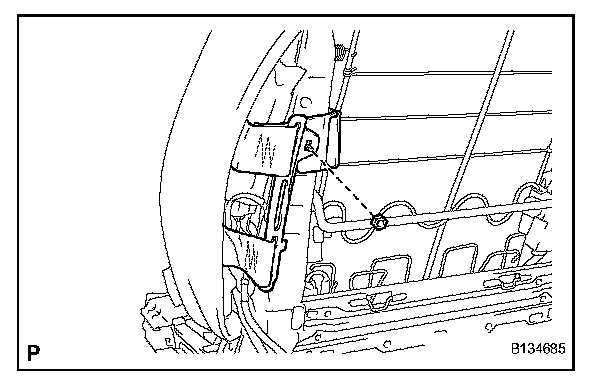

b. Remove the nut and 2 seatback cover brackets.

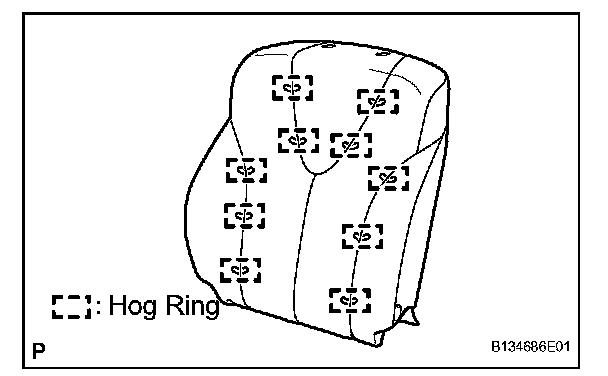

17. REMOVE FRONT SEPARATE TYPE SEATBACK COVER
a. Remove the 10 hog rings and front separate type seatback cover from the seatback pad.

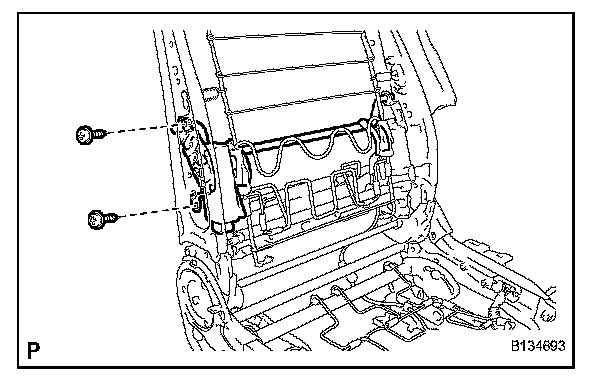

18. REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY
a. Disconnect the connector.
b. Remove the 2 screws and lumbar support adjuster assembly.

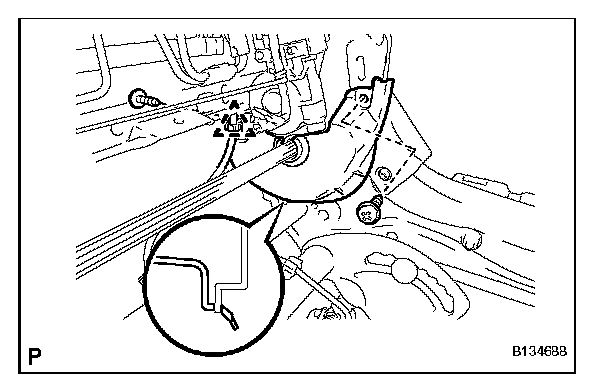

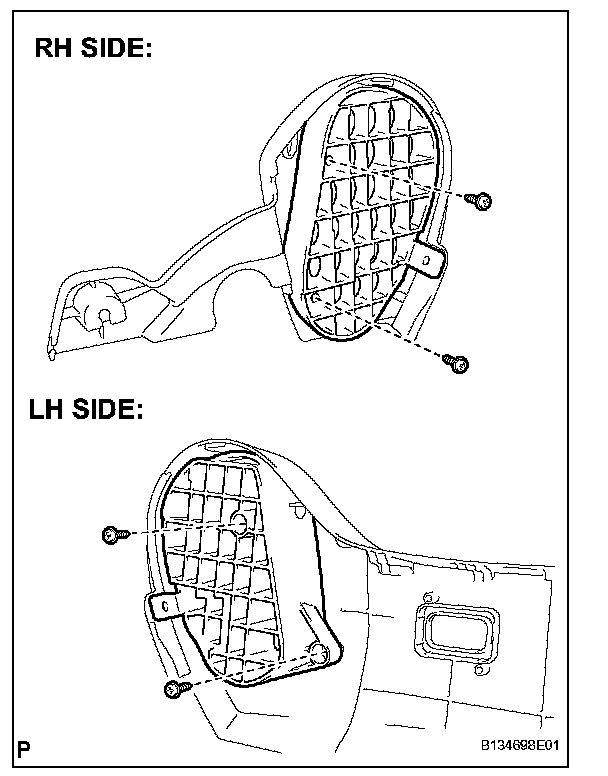

19. REMOVE RECLINING ADJUSTER INSIDE COVER RH
a. Disconnect the harness.
b. Remove the 2 screws and reclining adjuster inside cover RH.
20. REMOVE RECLINING ADJUSTER INSIDE COVER LH
a. Disconnect the harness.
b. Remove the 2 screws and reclining adjuster inside cover LH.

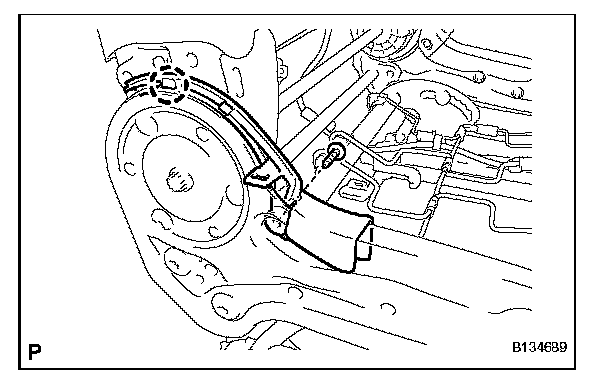

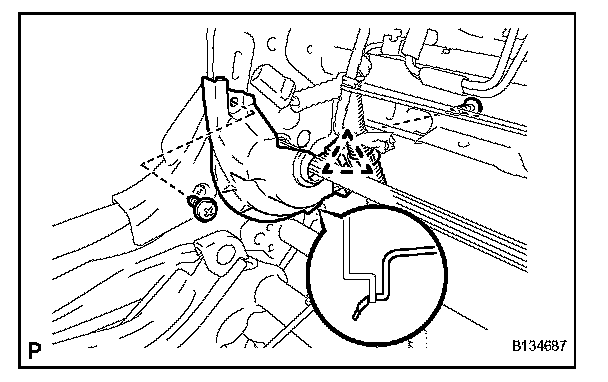

21. REMOVE SEAT RECLINING ADJUSTER INSIDE COVER RH
a. Remove the screw.
b. Detach the claw and remove the seat reclining adjuster inside cover RH.
22. REMOVE SEAT RECLINING ADJUSTER INSIDE COVER LH
a. Remove the screw.
b. Detach the claw and remove the seat reclining adjuster inside cover LH.

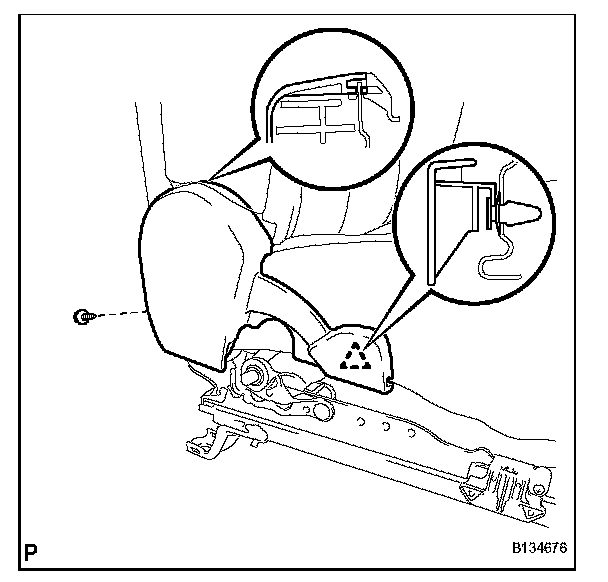

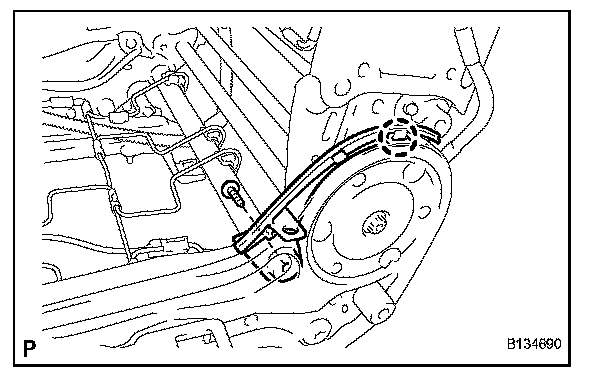

23. REMOVE FRONT LOWER SEAT CUSHION SHIELD LH
a. Remove the screw and detach the hook of the front lower seat cushion shield LH.
24. REMOVE FRONT LOWER SEAT CUSHION SHIELD
25. REMOVE SEAT POSITION SENSOR (for Driver Side)
26. REMOVE FRONT SEAT WIRE
REASSEMBLY
CAUTION: Wear protective gloves. Sharp areas on the seat adjuster may injure your hands.
1. INSTALL FRONT SEAT WIRE
2. INSTALL SEAT POSITION SENSOR (for Driver Side)
3. INSTALL FRONT LOWER SEAT CUSHION SHIELD
4. INSTALL FRONT LOWER SEAT CUSHION SHIELD LH
5. INSTALL SEAT RECLINING ADJUSTER INSIDE COVER LH
6. INSTALL SEAT RECLINING ADJUSTER INSIDE COVER RH
7. INSTALL RECLINING ADJUSTER INSIDE COVER LH
8. INSTALL RECLINING ADJUSTER INSIDE COVER RH
9. INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY

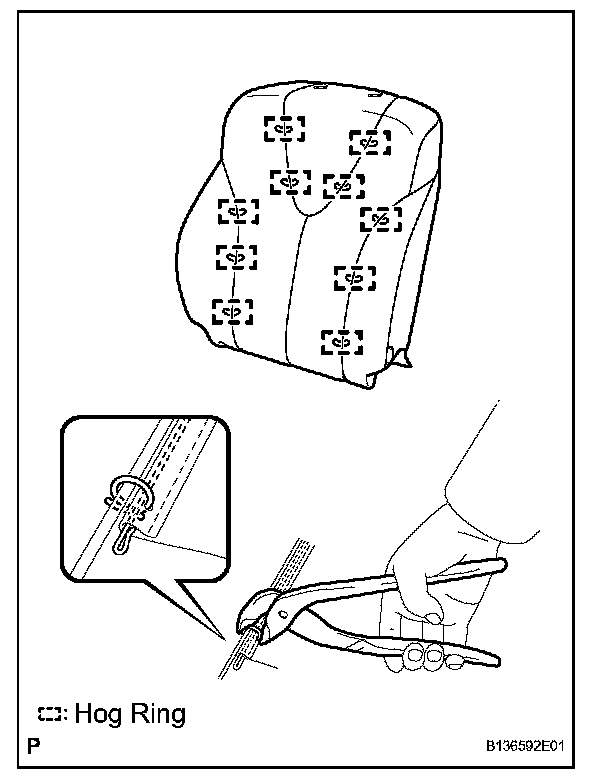

10. INSTALL FRONT SEPARATE TYPE SEATBACK COVER
a. Using hog ring pliers, install the front separate type seatback cover to the front seatback pad with 16 new hog rings.
NOTICE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.
11. INSTALL FRONT SEPARATE TYPE SEATBACK ASSEMBLY
a. Fully cover the airbag with the 2 seatback cover brackets and tighten the nut.
Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
NOTICE:
- For vehicles with side airbags, the seatback cover must be securely installed. Otherwise, the side airbags may not deploy properly.
- Make sure that the strap is not twisted after installing the bracket.
- Install the bracket securely.
b. Engage the 3 hooks.
c. Using hog ring pliers, install 2 new hog rings.
NOTICE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.
12. INSTALL FRONT SEAT HEADREST SUPPORT
13. INSTALL FRONT SEAT HEADREST SUPPORT
14. INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY

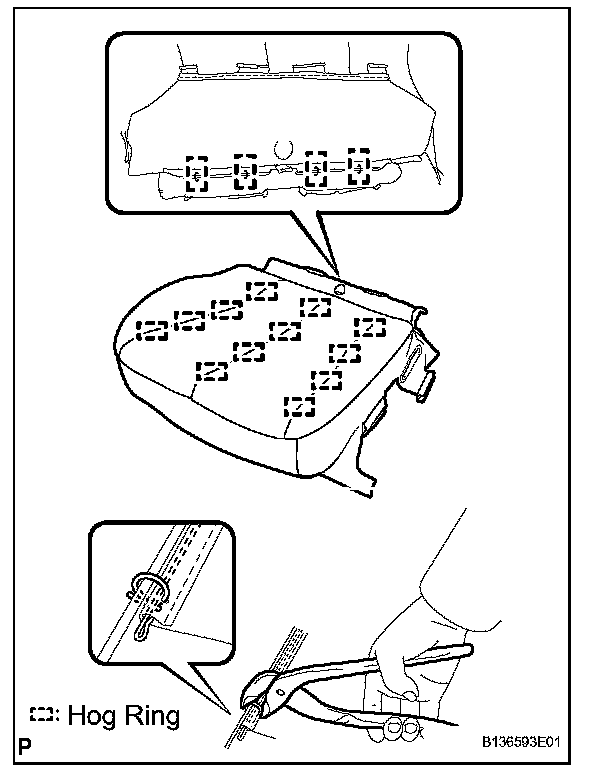

15. INSTALL FRONT SEPARATE TYPE SEAT CUSHION COVER
a. Using hog ring pliers, install the front separate type seat cushion cover to the front separate type seat pad with 16 new hog rings.
NOTICE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.
16. INSTALL FRONT SEPARATE TYPE SEAT CUSHION ASSEMBLY
17. INSTALL FRONT POWER SEAT SWITCH
18. INSTALL LOWER SEAT TRACK SPACER
19. INSTALL FRONT INNER SEAT CUSHION SHIELD
20. INSTALL FRONT LUMBAR POWER SEAT SWITCH
21. INSTALL FRONT SEAT INNER BELT ASSEMBLY
22. INSTALL FRONT INNER NO. 1 SEAT CUSHION SHIELD
23. INSTALL FRONT SEAT CUSHION SHIELD ASSEMBLY
24. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
25. INSTALL RECLINING POWER SEAT SWITCH KNOB
26. INSTALL OCCUPANT DETECTION ECU
