Camry L4-2.4L (2AZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Power Door Lock Actuator
>>
Service and Repair
>>
Rear Door Lock
>>
Components
Components

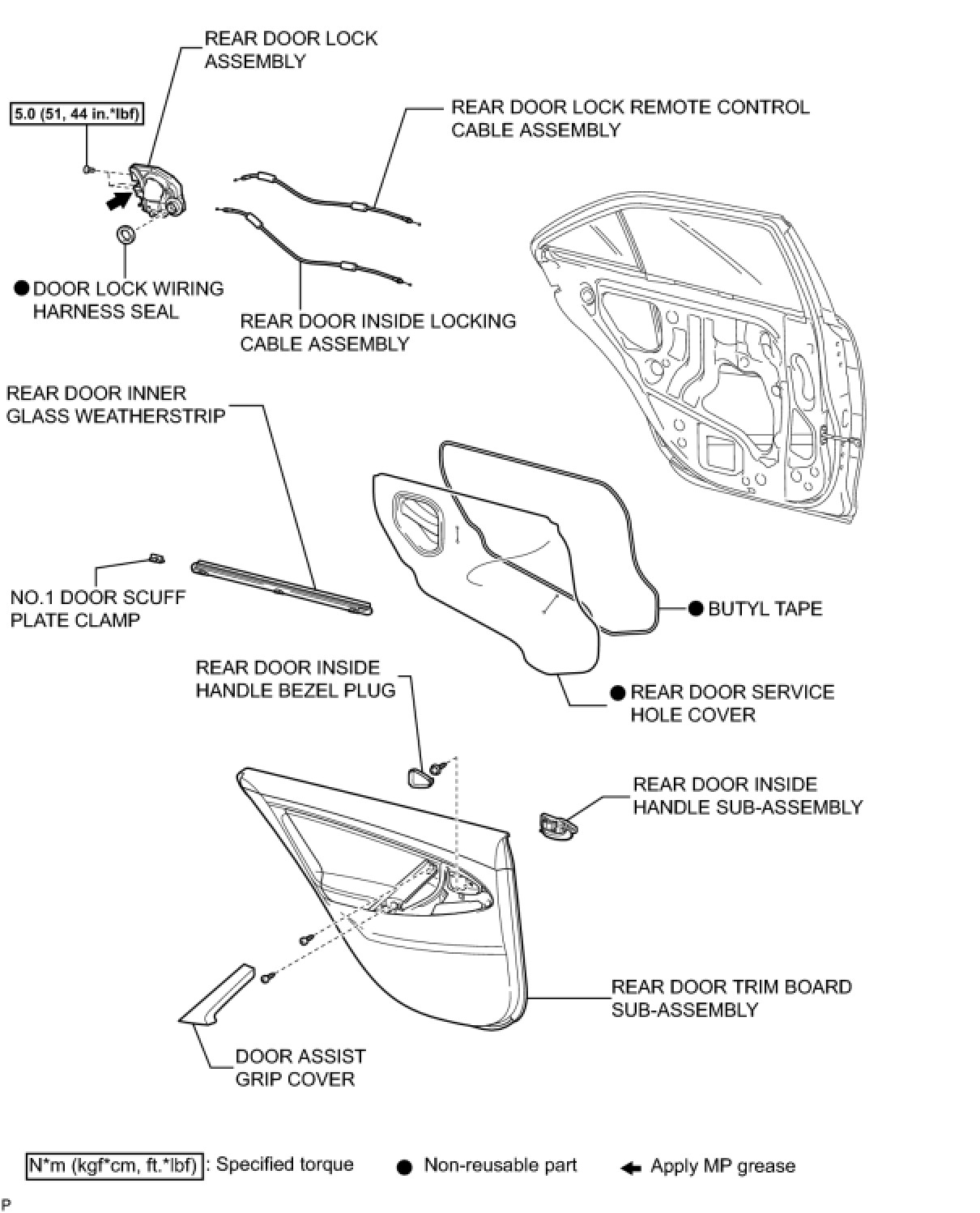

DOOR LOCK: REAR DOOR LOCK: COMPONENTS
COMPONENTS
ILLUSTRATION
