Steering Mounted Controls Transmitter: Service and Repair

Steering Pad Switch:

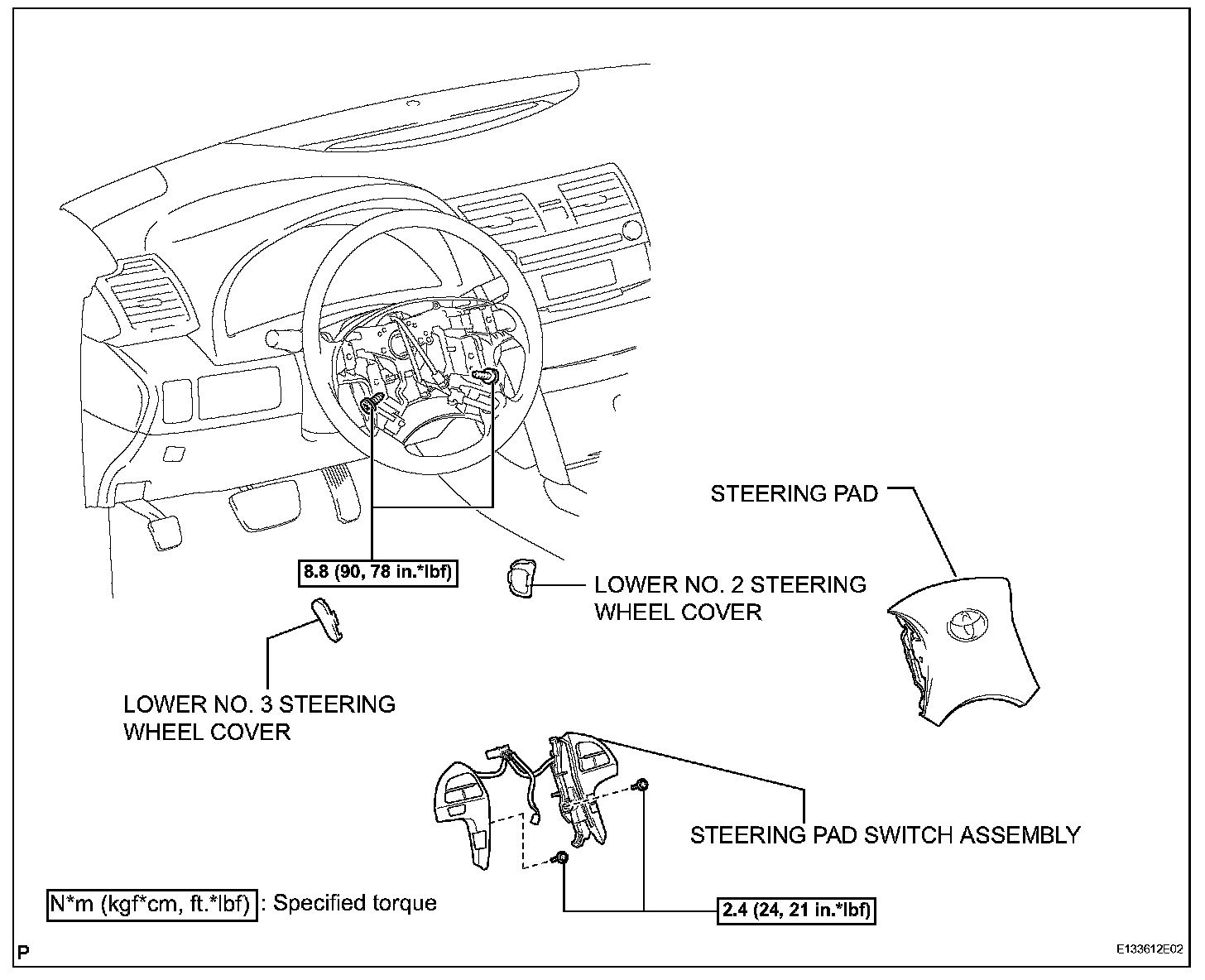

STEERING PAD SWITCH

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

2. REMOVE LOWER NO.3 STEERING WHEEL COVER
3. REMOVE LOWER NO.2 STEERING WHEEL COVER
4. REMOVE STEERING PAD




5. REMOVE STEERING PAD SWITCH ASSEMBLY

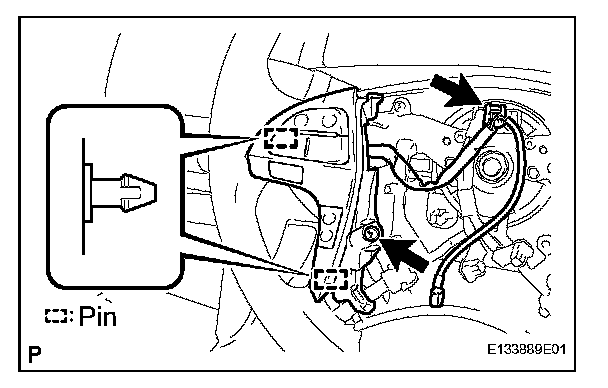

a. Disconnect the pad switch connector from the spiral cable.
b. Remove the screw.
c. Disengage the 2 pins and remove the steering pad switch.

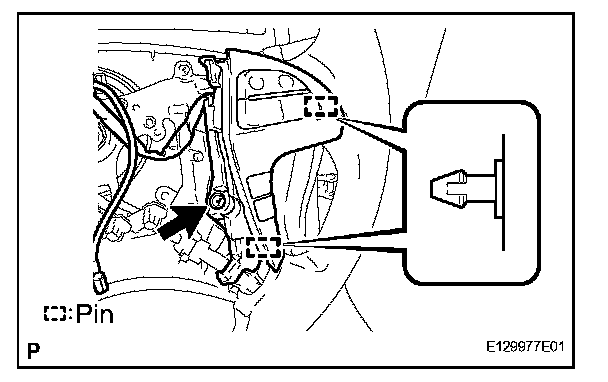

d. Remove the screw.
e. Disengage the 2 pins and remove the steering pad switch assembly.

INSTALLATION




1. INSTALL STEERING PAD SWITCH ASSEMBLY

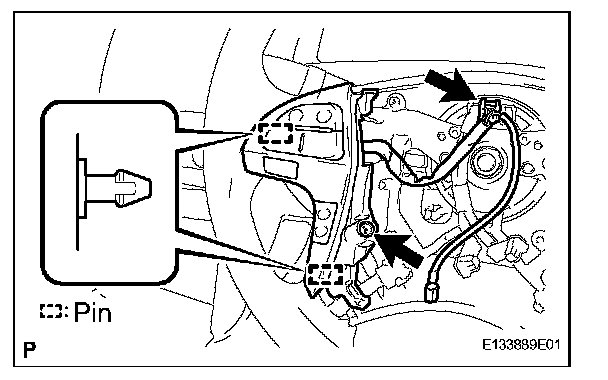

a. Engage the 2 pins and install the steering pad switch assembly.
b. Install the screw.

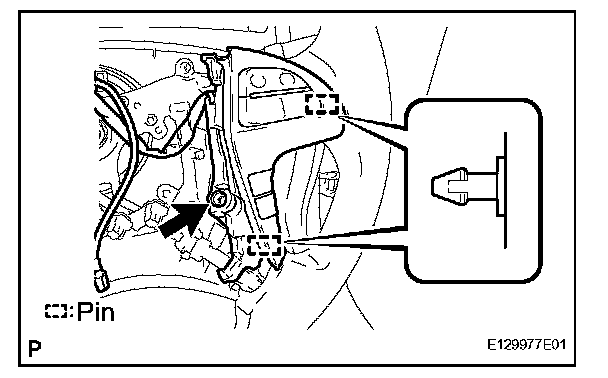

c. Engage the 2 pins and install the steering pad switch assembly.
d. Install the screw.
e. Connect the connector to the spiral cable.

2. INSTALL STEERING PAD
3. INSTALL LOWER NO. 3 STEERING WHEEL COVER
4. INSTALL LOWER NO. 2 STEERING WHEEL COVER
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. INSPECT SRS WARNING LIGHT
7. PERFORM INITIALIZATION

NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal.
