Accessory Control Display: Service and Repair

Multi-Display:




Multi-Display:

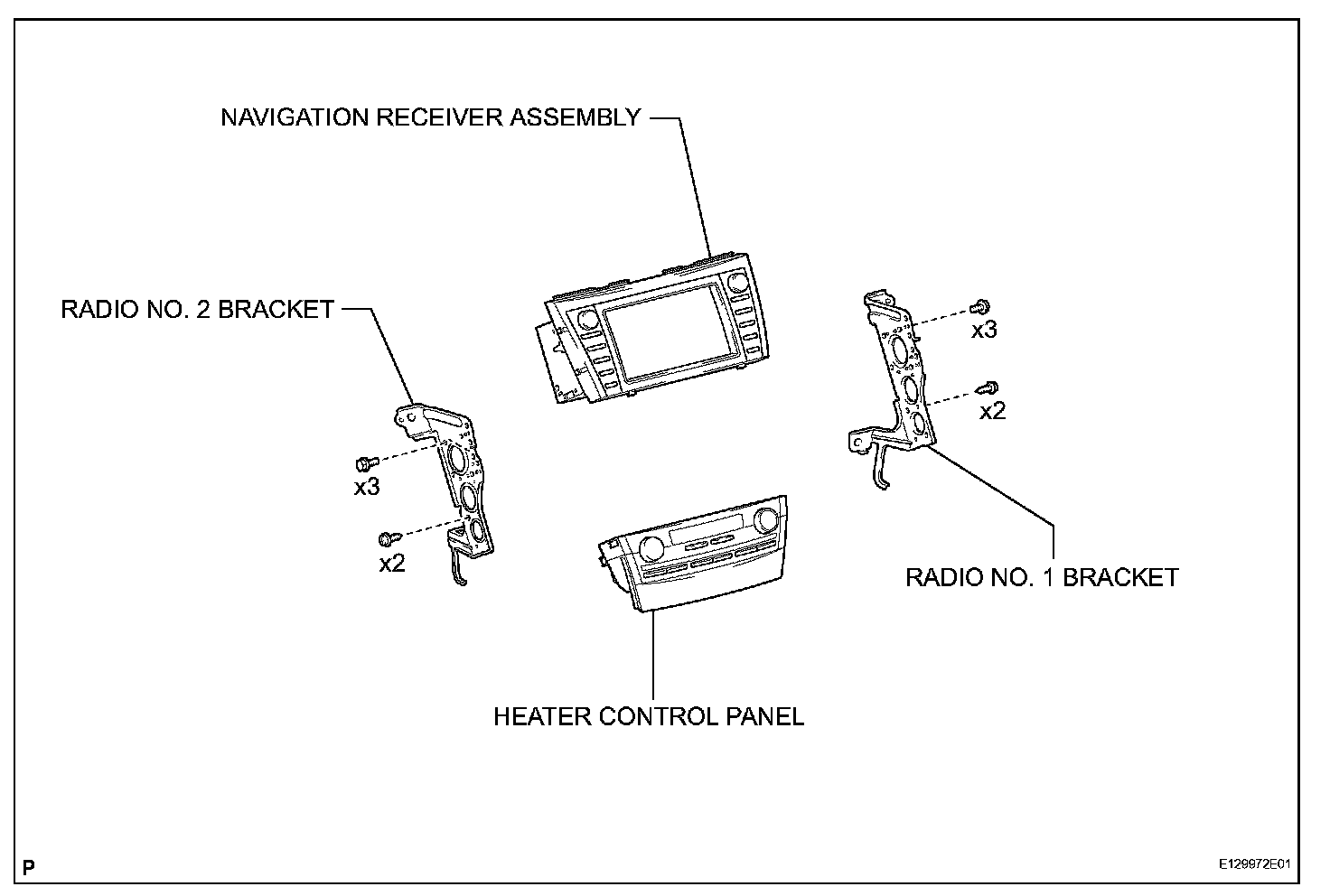

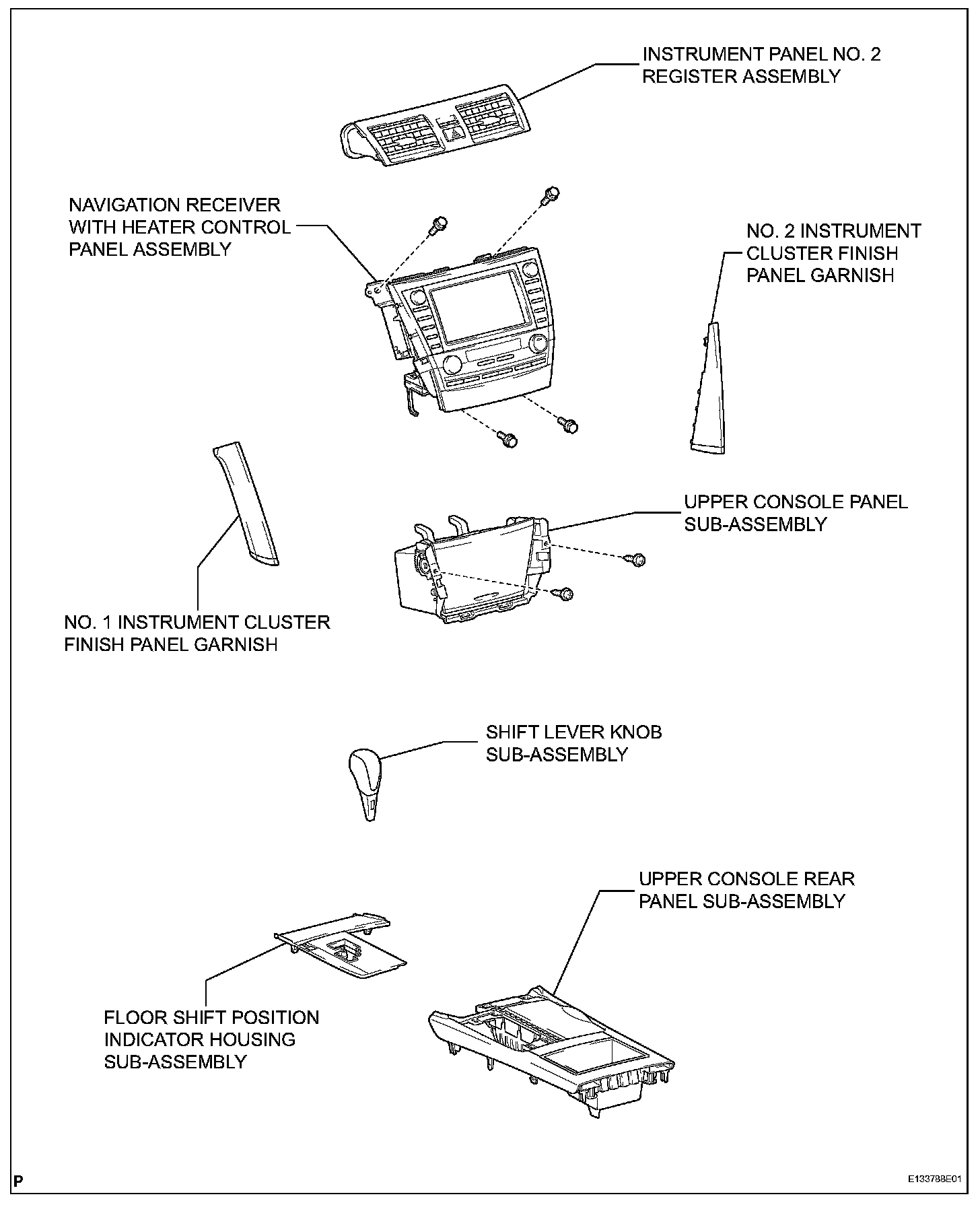

MULTI-DISPLAY

REMOVAL

1. EJECT MAP DISC
a. Turn the power switch on (ACC).
b. Push the "CLOSE" button.
c. Touch "MAP EJECT" on the navigation screen to eject the map disc.

2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
3. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
4. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
5. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY
6. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY
7. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
8. REMOVE INSTRUMENT PANEL NO. 2 REGISTER ASSEMBLY




9. REMOVE NAVIGATION RECEIVER WITH HEATER CONTROL PANEL ASSEMBLY

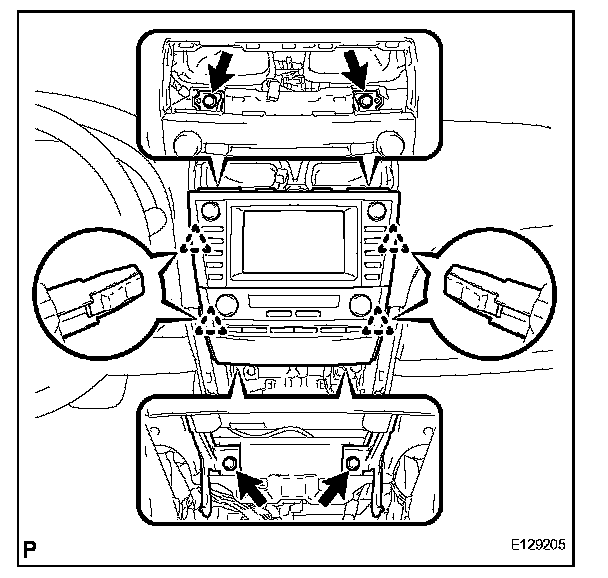

a. Remove the 4 bolts.
b. Pull the navigation receiver with heater control panel assembly toward the rear of the vehicle and disengage the 4 clips.
c. Disconnect each connector and remove the navigation receiver with heater control panel assembly.




10. REMOVE RADIO NO. 1 BRACKET

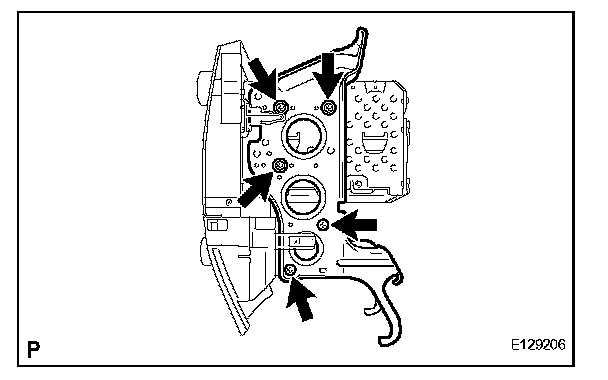

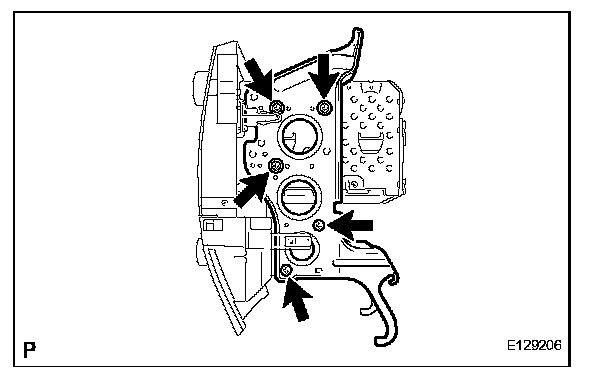

a. Remove the 5 bolts and radio No. 1 bracket.




11. REMOVE RADIO NO. 2 BRACKET

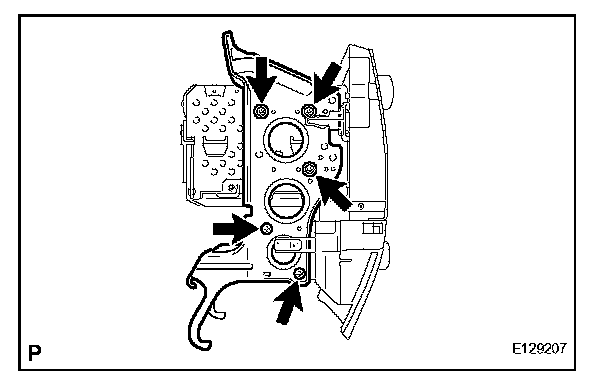

a. Remove the 5 bolts and radio No. 2 bracket.




12. REMOVE NAVIGATION RECEIVER ASSEMBLY

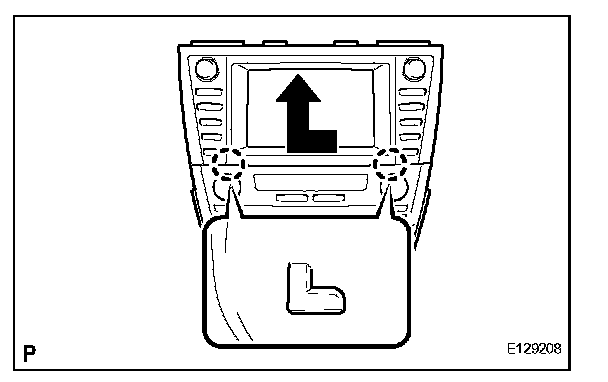

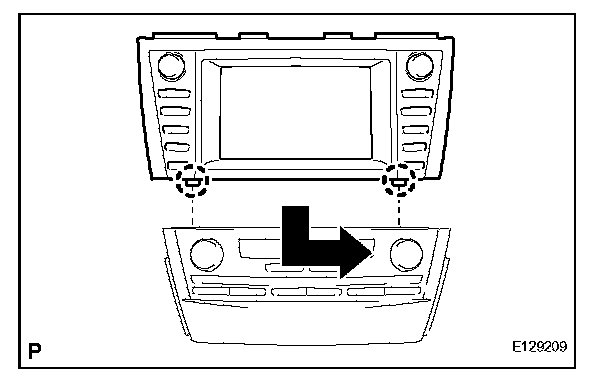

a. Remove the navigation receiver assembly as shown in the illustration.

INSTALLATION




1. INSTALL NAVIGATION RECEIVER ASSEMBLY
a. Install the navigation receiver assembly as shown in the illustration.




2. INSTALL RADIO NO. 2 BRACKET

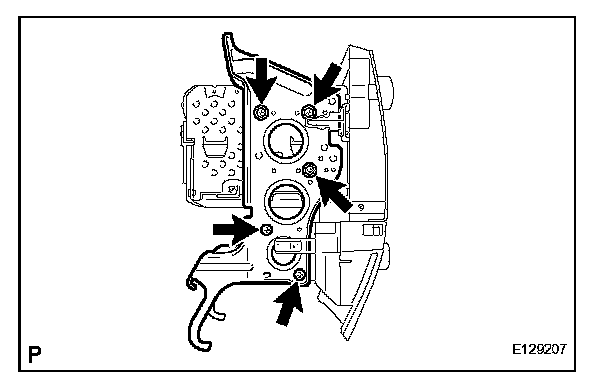

a. Install the radio No. 2 bracket with the 5 bolts.




3. INSTALL RADIO NO. 1 BRACKET
a. Install the radio No. 1 bracket with the 5 bolts.

4. INSTALL NAVIGATION RECEIVER WITH HEATER CONTROL PANEL ASSEMBLY
a. Connect each connector.




b. Engage the 4 clips.

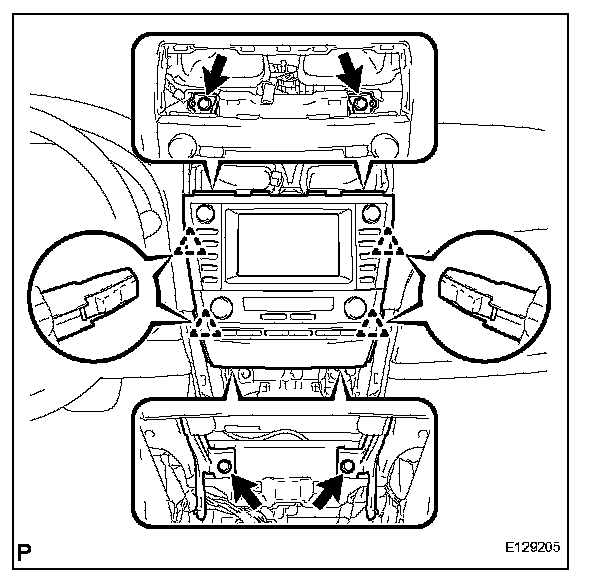

c. Install the navigation receiver with heater control panel assembly with the 4 bolts.

5. INSTALL INSTRUMENT PANEL NO. 2 REGISTER ASSEMBLY
6. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
7. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY
8. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY
9. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
10. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
12. INSERT MAP DISC
