Tire Monitoring System

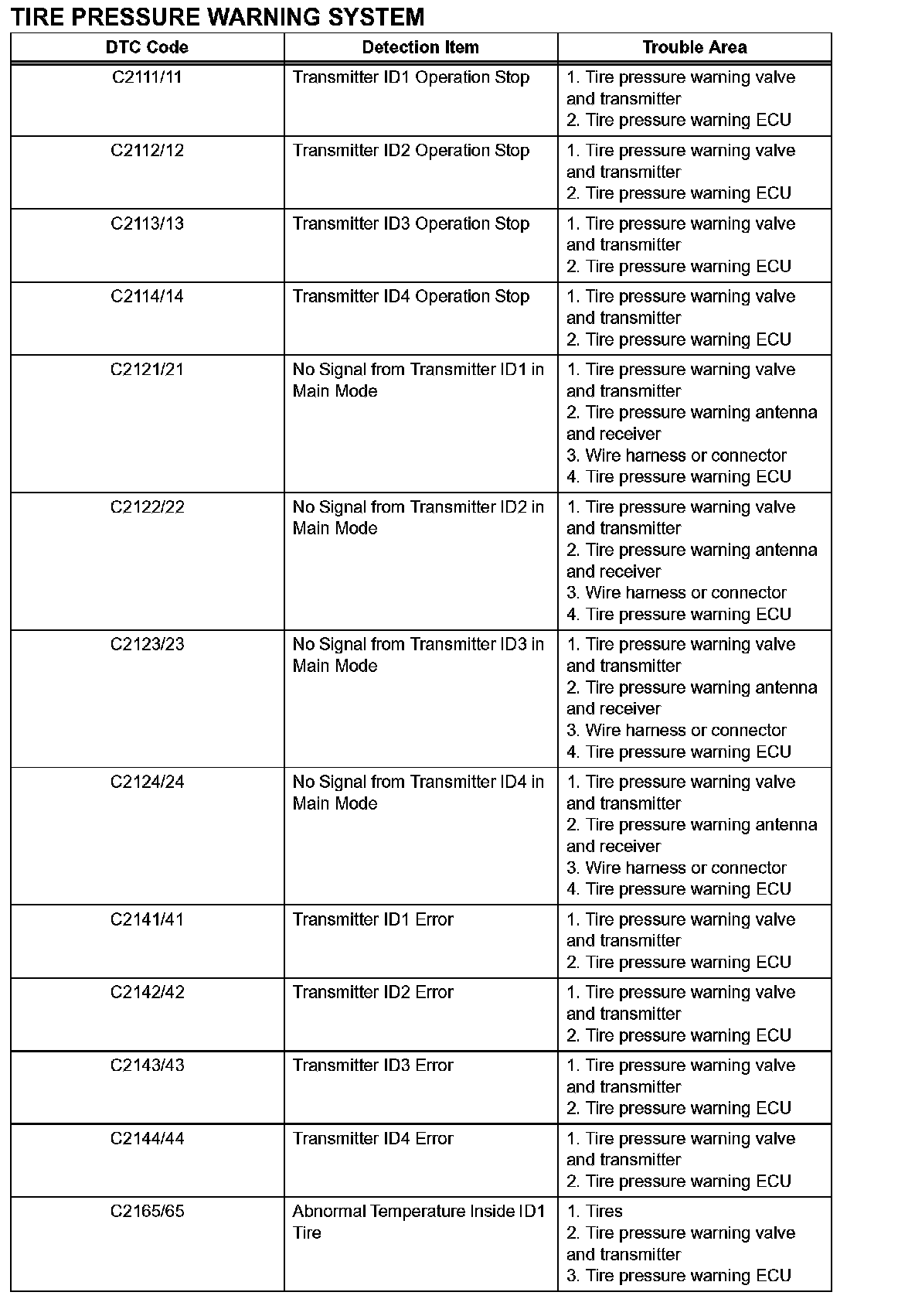

DIAGNOSTIC TROUBLE CODE CHARTHINT:
^ If no abnormality is found when the parts are inspected, inspect the tire pressure warning ECU.
^ If a trouble code is displayed during the DTC check, inspect the circuit listed for that code. For details of each code, refer to the relevant test listed under respective "DTC Code" in the DTC chart.
TIRE PRESSURE WARNING SYSTEM
