Underdrive Planetary Gear

UNDERDRIVE PLANETARY GEAR

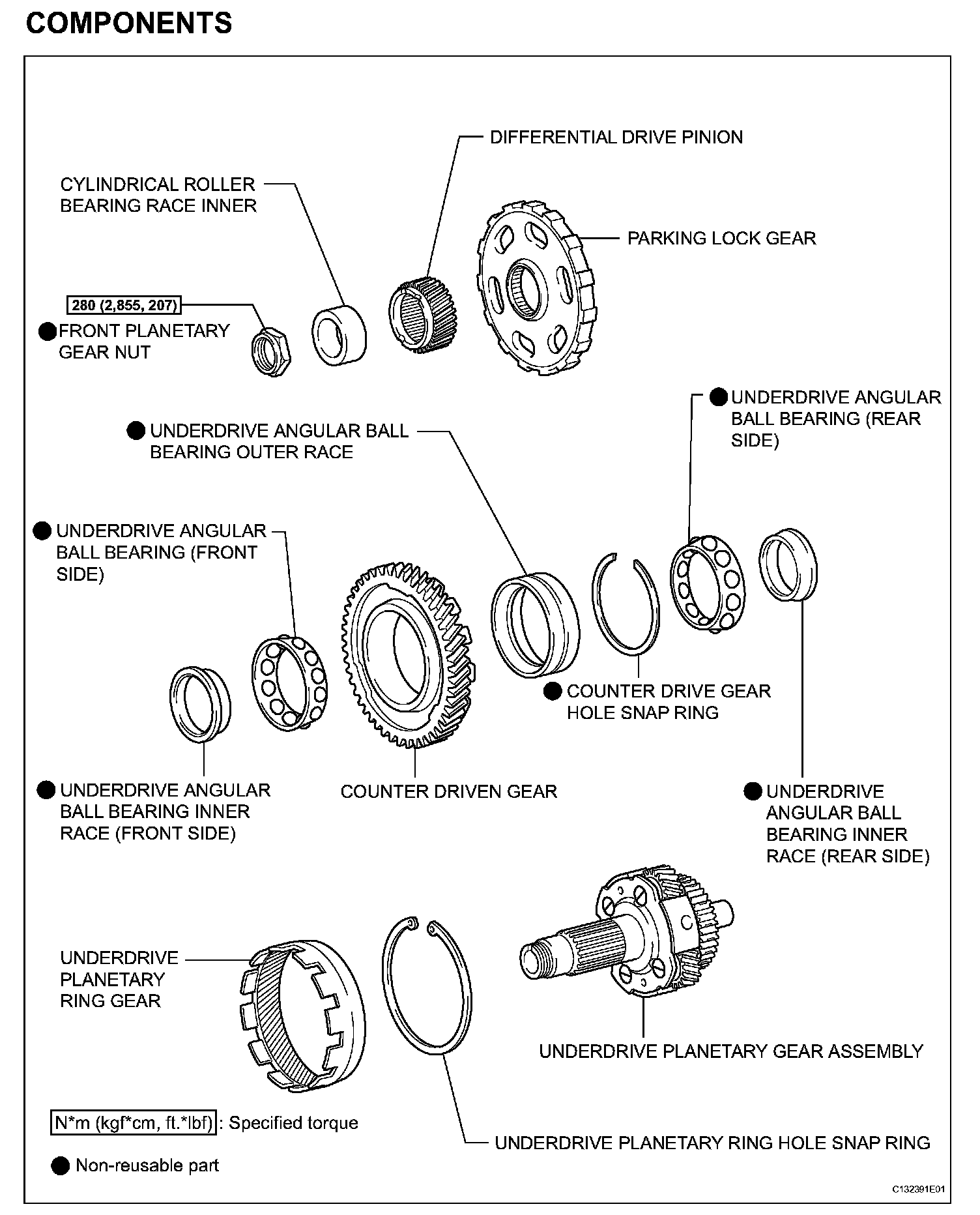

COMPONENTS:

DISASSEMBLY

1. REMOVE FRONT PLANETARY GEAR NUT

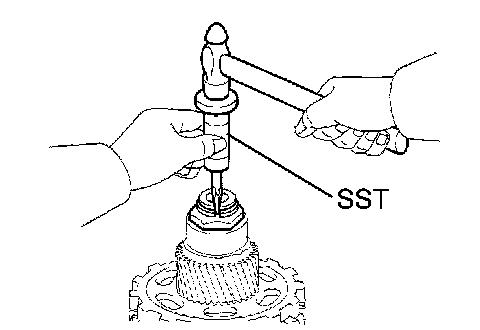

(a) Using SST and a hammer, loosen the staked part of the lock nut.
SST 09930-00010 (09931-00010, 09931-00020), 09387-00050, 09495-65040

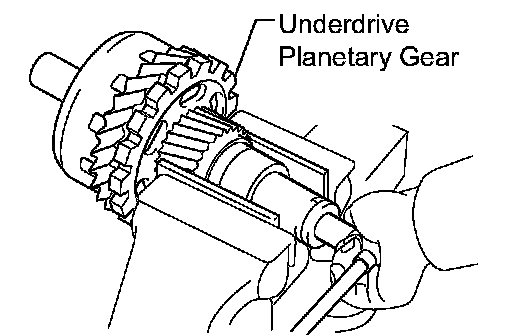

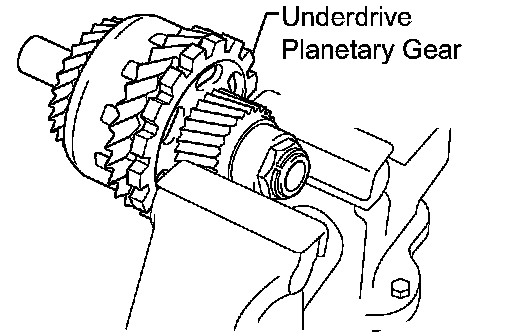

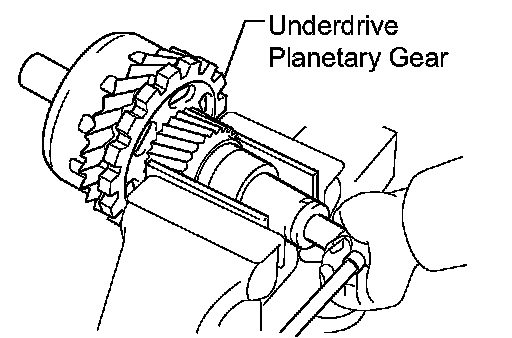

(b) Clamp the underdrive planetary gear in a soft jaw vise.

NOTICE: Be careful not to damage the differential drive pinion.

2. REMOVE CYLINDRICAL ROLLER BEARING RACE INNER

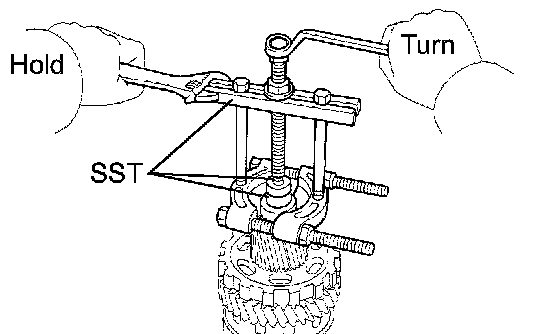

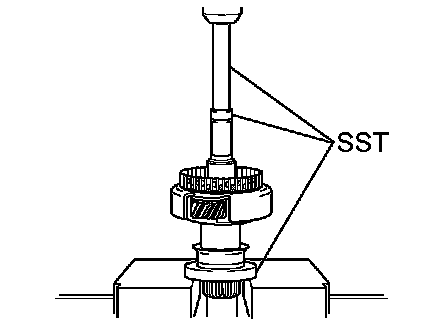

(a) Using SST, remove the cylindrical roller bearing race inner.
SST 09950-00020, 09950-00030, 09950-40011 (09957-04010), 09950-60010 (09951-00320)

3. REMOVE UNDERDRIVE PLANETARY GEAR ASSEMBLY

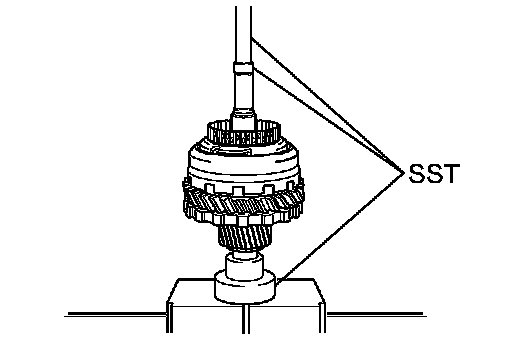

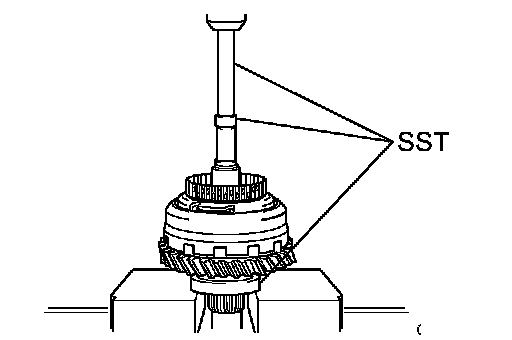

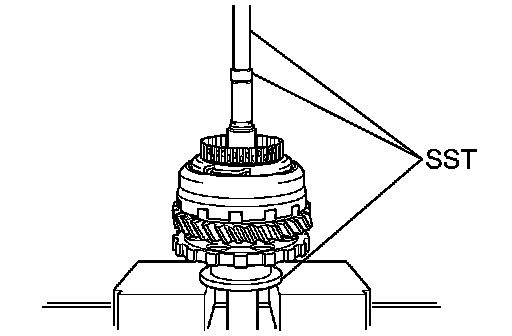

(a) Using SST and a press, remove the differential drive pinion, parking lock gear, counter driven gear with underdrive planetary ring gear, and angular ball bearing.
SST 09387-00050, 09495-65040, 09950-60010 (09951-00320), 09950-70010 (09951-07100)

(b) Clamp the underdrive planetary gear in a soft jaw vise.

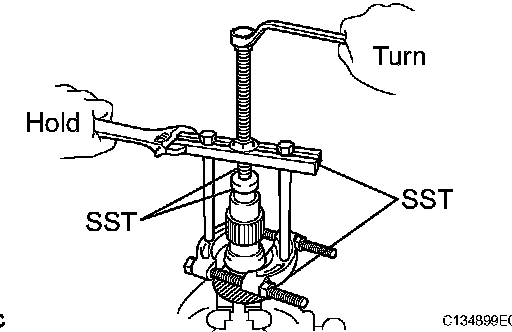

(c) Using SST, remove the rear angular ball bearing from the underdrive planetary gear.
SST 09950-00020, 09950-00030, 09950-40011 (09957-04010), 09950-60010 (09951-00320)

4. REMOVE UNDERDRIVE PLANETARY RING GEAR

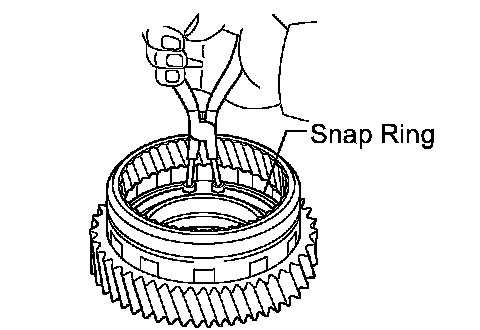

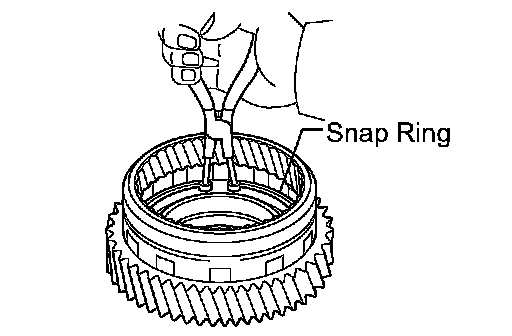

(a) Using snap ring pliers, remove the snap ring.

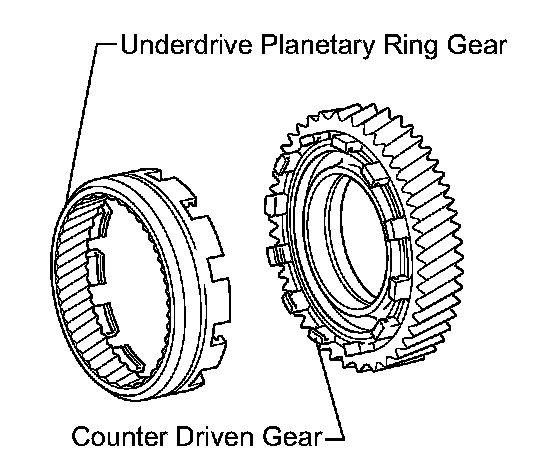

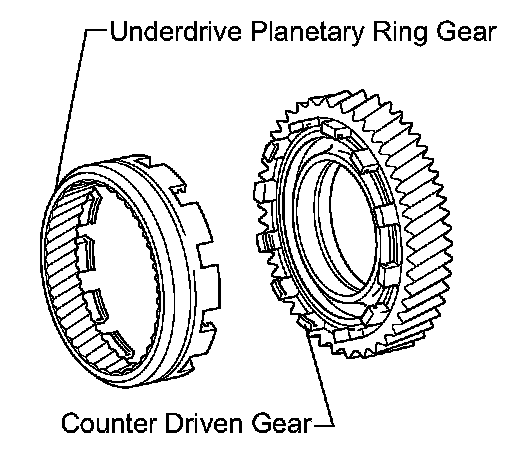

(b) Remove the underdrive planetary ring gear from the counter driven gear.

INSPECTION

1. INSPECT UNDERDRIVE PLANETARY GEAR PRELOAD

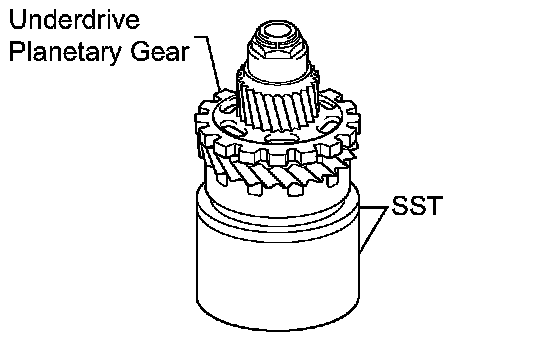

(a) Using SST, fix the underdrive planetary gear assembly.
SST 09387-00050, 09495-65040

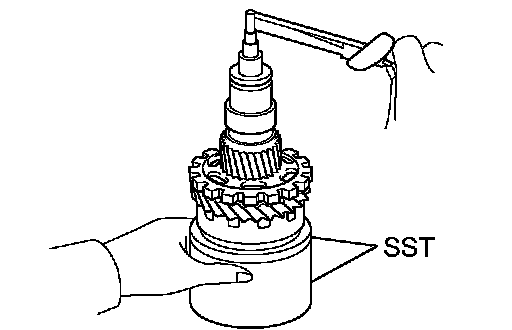

(b) Using SST and a torque wrench, measure the turning torque of the underdrive planetary gear assembly while turning the torque wrench at 60 rpm. SST 09387-00050, 09495-65040
Turning torque at 60 rpm: 0.28 to 0.89 Nm (2.9 to 9.1 kgf-cm, 2.478 to 7.877 inch lbs.)

HINT: Use a torque wrench with a fulcrum length of 160 mm (6.3 inch).

REASSEMBLY

1. INSTALL UNDERDRIVE PLANETARY RING GEAR

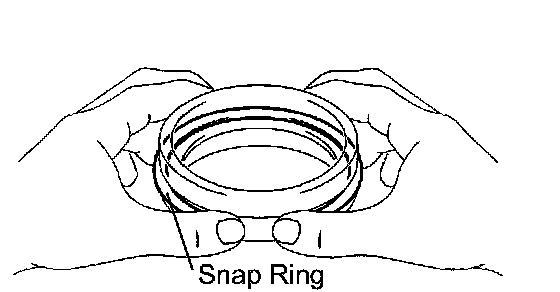

(a) Install a new snap ring to the outer race of the tapered roller bearing.

HINT: If replacing the bearing, also replace the counter driven gear with a new one.

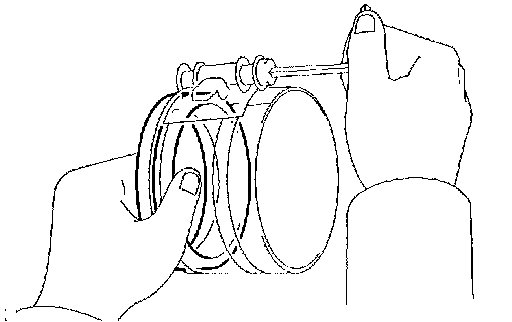

(b) Using a piston ring compressor, squeeze the snap ring.

(c) Using SST and a press, press in the outer race of the angular ball bearing.
SST 09950-60020 (09951-00890), 09950-70010 (09951-07100)

NOTICE: Do not damage the snap ring during installation of the outer race.

(d) Install the underdrive planetary ring gear to the counter driven gear.

(e) Using snap ring pliers, install the snap ring.

2. INSTALL UNDERDRIVE PLANETARY GEAR ASSEMBLY
(a) Using a press, press the angular ball bearing inner race (rear side) into the underdrive planetary gear.
SST 09950-60010 (09951-00260), 09950-70010 (09951-07100), 09726-40010

(b) Install the counter driven gear with planetary ring gear to the underdrive planetary gear.

(c) Using SST and a press, press in the angular ball bearing inner race (front side).
SST 09950-60010 (09951-00260), 09950-70010 (09951-07100), 09726-40010

NOTICE: Press the counter driven gear while rotating it.

(d) Using a press, press in the parking lock gear.
SST 09950-60010 (09951-00260), 09950-70010 (09951-07100), 09316-20011

NOTICE: Press the counter driven gear while rotating it.

3. INSTALL DIFFERENTIAL DRIVE PINION

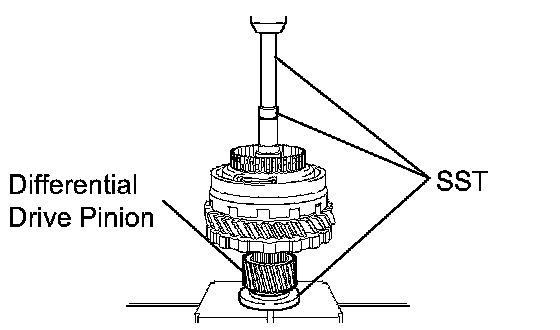

(a) Using a press, press in the differential drive pinion.
SST 09726-40010, 09950-60010 (09951-00260), 09950-70010 (09951-07100)

NOTICE: Press the counter driven gear while rotating it.

4. INSTALL CYLINDRICAL ROLLER BEARING RACE INNER
(a) Using a press, press in the cylindrical roller bearing race inner.
SST 09515-21010, 09950-60010 (09951-00260), 09950-70010 (09951-07100)

NOTICE: Press the counter driven gear while rotating it.

5. INSTALL FRONT PLANETARY GEAR NUT
(a) Clamp the underdrive planetary gear in a soft jaw vise.

NOTICE: Be careful not to damage the differential drive pinion.

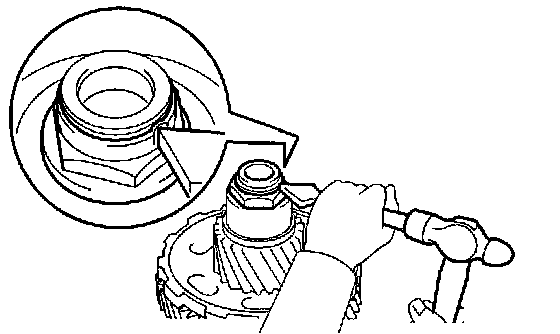

(b) Using a socket wrench, install a new lock nut.
Torque: 280 Nm (2,855 kgf-cm, 207 ft. lbs.)

HINT: Use a torque wrench with a fulcrum length of 750 mm (29.53 inch).
