Shift Solenoid Valve

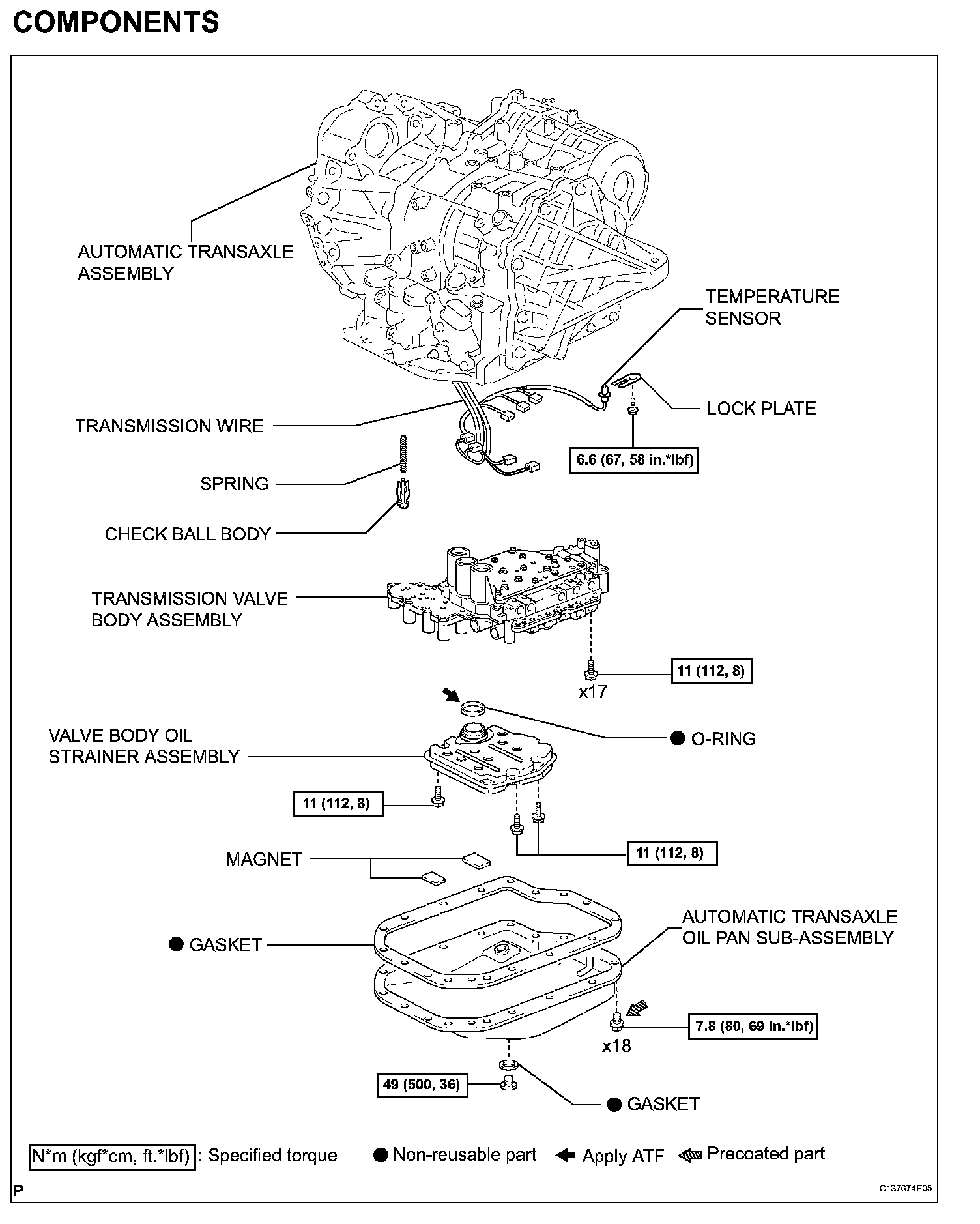

SHIFT SOLENOID VALVECOMPONENTS (Part 1):

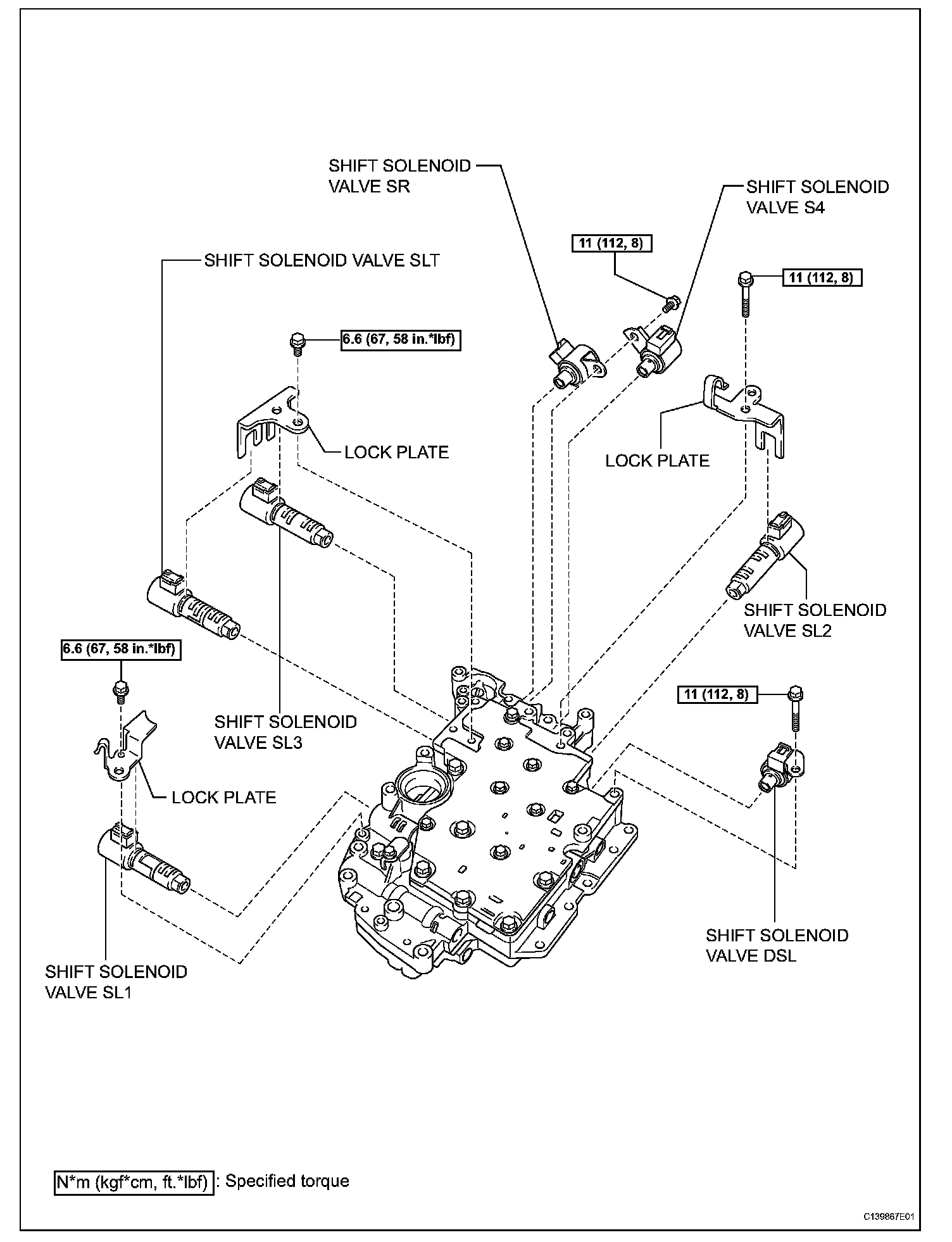

COMPONENTS (Part 2):
REMOVAL
1. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY
2. REMOVE AUTOMATIC TRANSAXLE OIL PAN SUBASSEMBLY
3. DISCONNECT TRANSMISSION WIRE
4. REMOVE VALVE BODY OIL STRAINER ASSEMBLY
5. REMOVE TRANSMISSION VALVE BODY ASSEMBLY
DISASSEMBLY

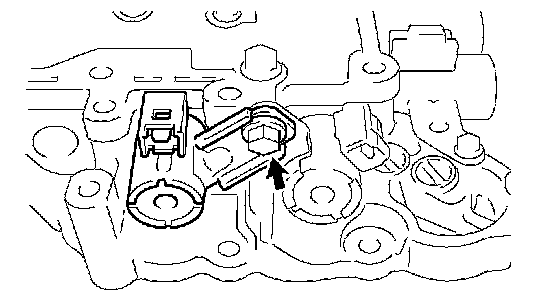

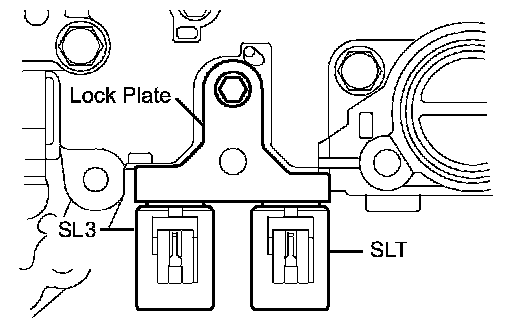

1. REMOVE SHIFT SOLENOID VALVE SL3

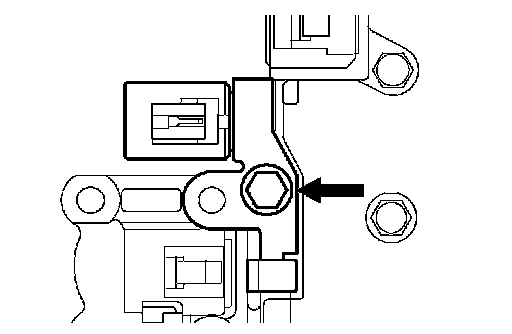

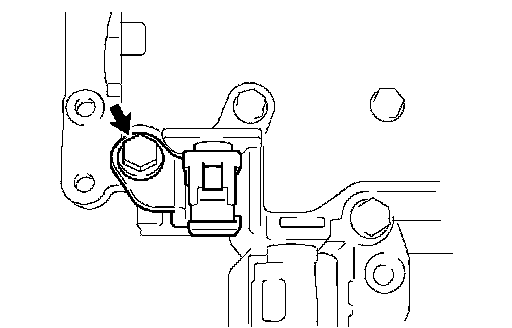

(a) Remove the bolt and lock plate from the valve body assembly.
(b) Remove the shift solenoid valve SL3 from the valve body assembly.
2. REMOVE SHIFT SOLENOID VALVE SLT
(a) Remove the shift solenoid valve SLT from the valve body assembly.
3. REMOVE SHIFT SOLENOID VALVE S4

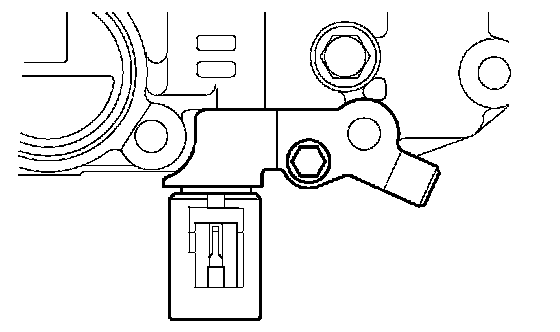

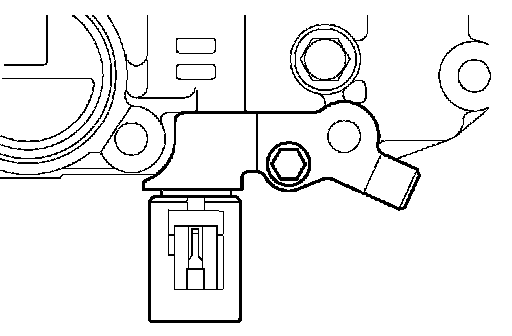

(a) Remove the bolt and shift solenoid valve S4 from the valve body assembly.
4. REMOVE SHIFT SOLENOID VALVE SR
(a) Remove the shift solenoid valve SR from the valve body assembly.

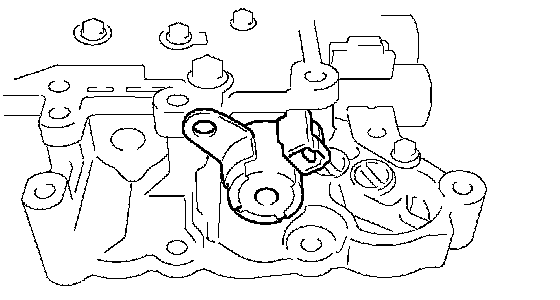

5. REMOVE SHIFT SOLENOID VALVE DSL
(a) Remove the bolt and shift solenoid valve DSL from the valve body assembly.
6. REMOVE SHIFT SOLENOID VALVE SL2
(a) Remove the bolt, lock plate and shift solenoid valve SL2 from the valve body assembly.
7. REMOVE SHIFT SOLENOID VALVE SL1
(a) Remove the bolt, lock plate and shift solenoid valve SL1 from the valve body assembly.
INSPECTION

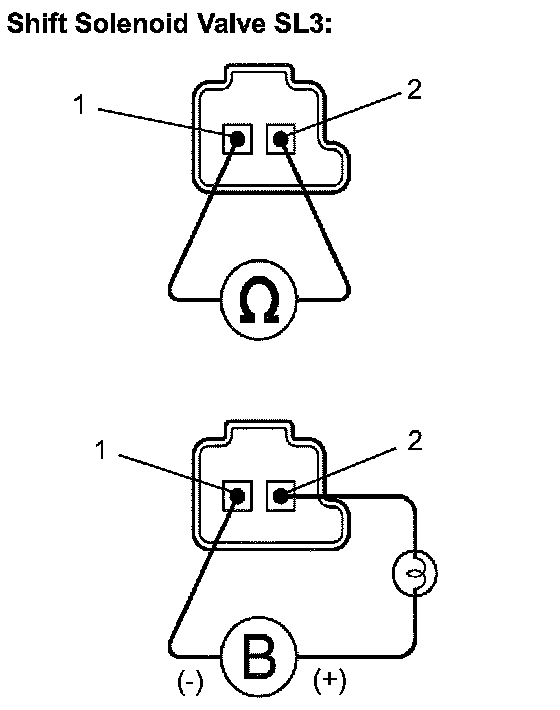

Shift Solenoid Valve SL3:
1. INSPECT SHIFT SOLENOID VALVE SL3
(a) Measure the resistance according to the values(s) in the table below.

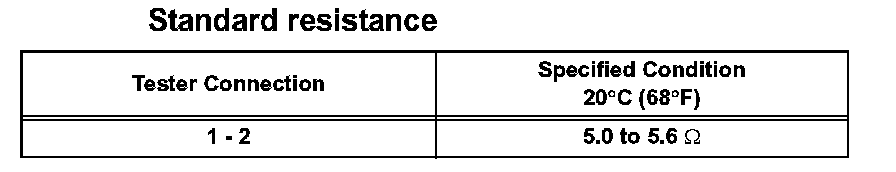

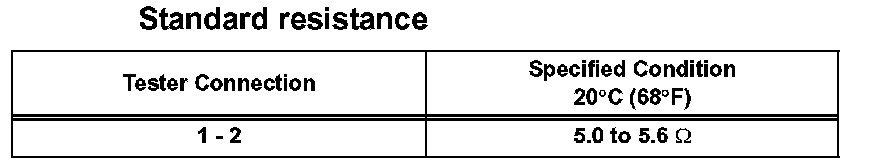

Standard resistance:
If the value is not as specified, replace the shift solenoid valve.
(b) Connect the positive (+) lead to terminal 2 of the solenoid connector, and the negative (-) lead to terminal 1 of the solenoid connector.
OK: The solenoid valve makes an operating sound. If the result is not as specified, replace the shift solenoid valve.

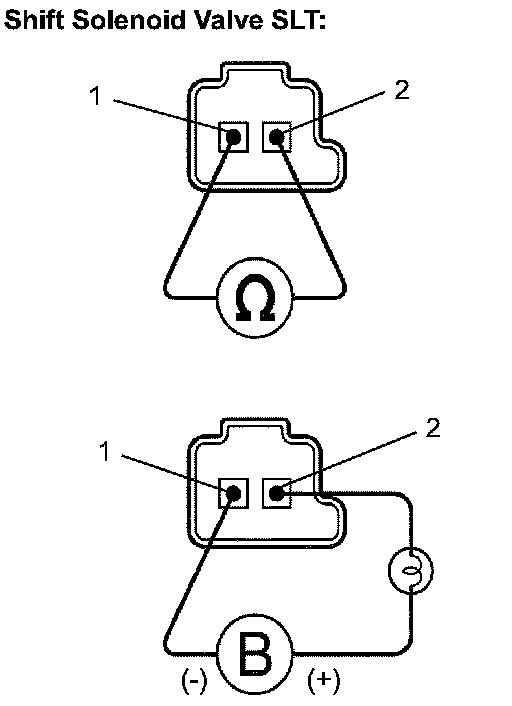

Shift Solenoid SLT:
2. INSPECT SHIFT SOLENOID VALVE SLT
(a) Measure the resistance according to the values(s) in the table below.
Standard resistance:
If the value is not as specified, replace the shift solenoid valve.
(b) Connect the positive (+) lead to terminal 2 of the solenoid connector, and the negative (-) lead to terminal 1 of the solenoid connector.
OK: The solenoid valve makes an operating sound. If the result is not as specified, replace the shift solenoid valve.

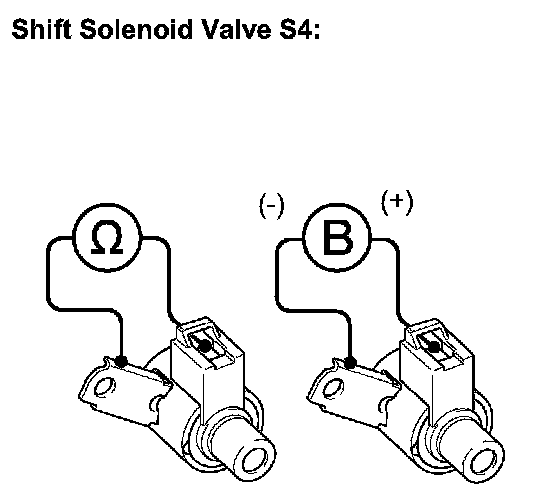

Shift Solenoid Valve S4:
3. INSPECT SHIFT SOLENOID VALVE S4
(a) Measure the resistance according to the values(s) in the table below.

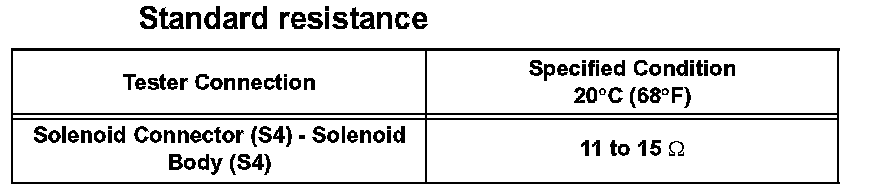

Standard resistance:
If the value is not as specified, replace the shift solenoid valve.
(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.
OK: The solenoid valve makes an operating sound. If the result is not as specified, replace the shift solenoid valve.

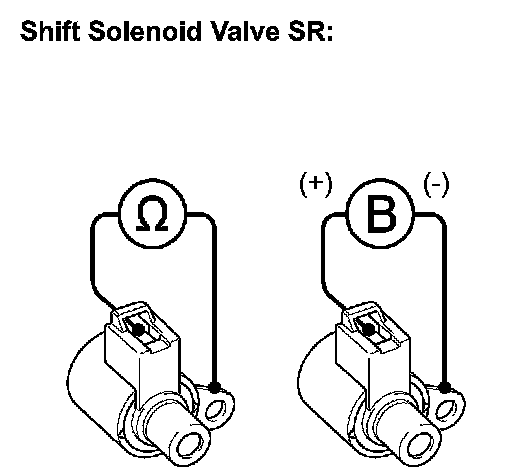

Shift Solenoid Valve SR:
4. INSPECT SHIFT SOLENOID VALVE SR
(a) Measure the resistance according to the values(s) in the table below.

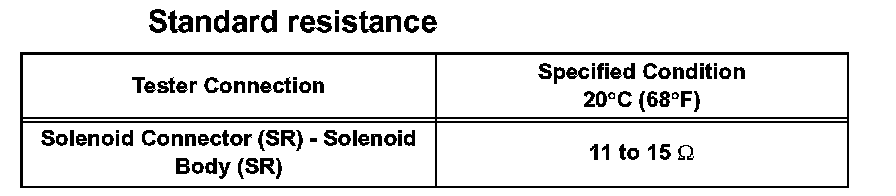

Standard resistance:
If the value is not as specified, replace the shift solenoid valve.
(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.
OK: The solenoid valve makes an operating sound. If the result is not as specified, replace the shift solenoid valve.

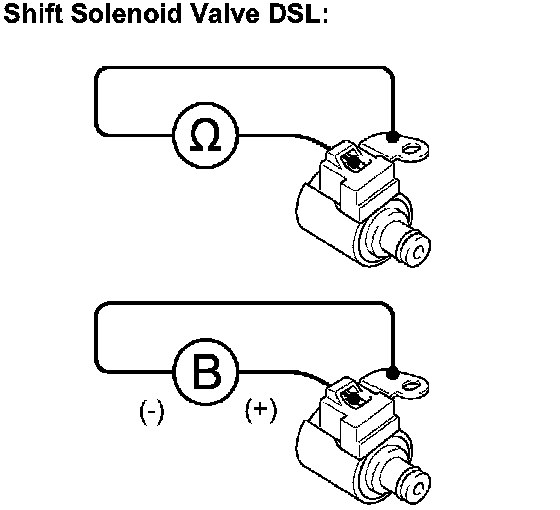

Shift Solenoid DSL:
5. INSPECT SHIFT SOLENOID VALVE DSL
(a) Measure the resistance according to the values(s) in the table below.

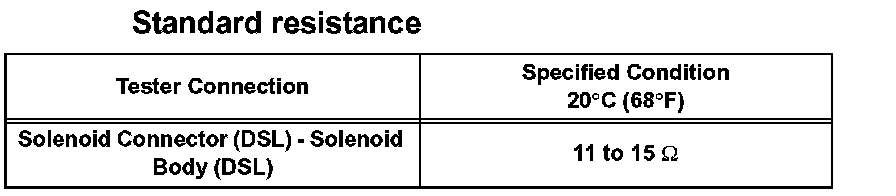

Standard resistance:
If the value is not as specified, replace the shift solenoid valve.
(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.
OK: The solenoid valve makes an operating sound. If the result is not as specified, replace the shift solenoid valve.

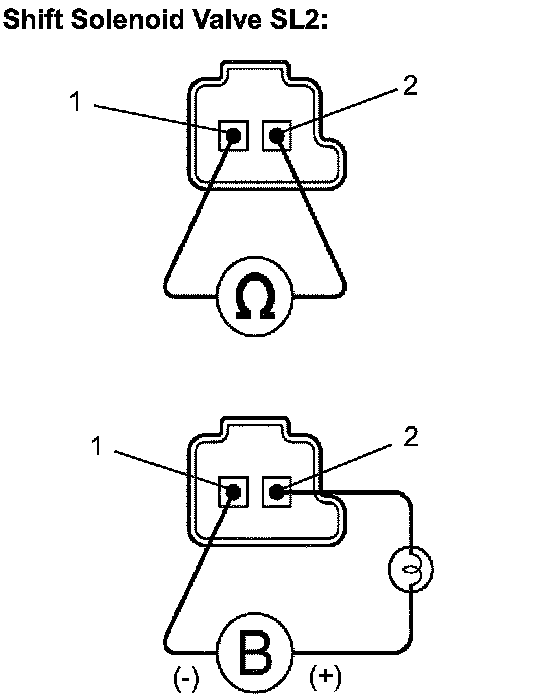

Shift Solenoid SL2:
6. INSPECT SHIFT SOLENOID VALVE SL2
(a) Measure the resistance according to the values(s) in the table below.

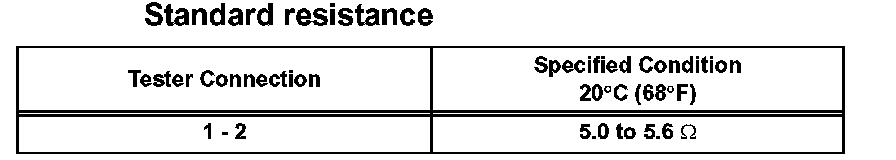

Standard resistance:
If the value is not as specified, replace the shift solenoid valve.
(b) Connect the positive (+) lead to terminal 2 of the solenoid connector, and the negative (-) lead to terminal 1 of the solenoid connector.
OK: The solenoid valve makes an operating sound. If the result is not as specified, replace the shift solenoid valve.

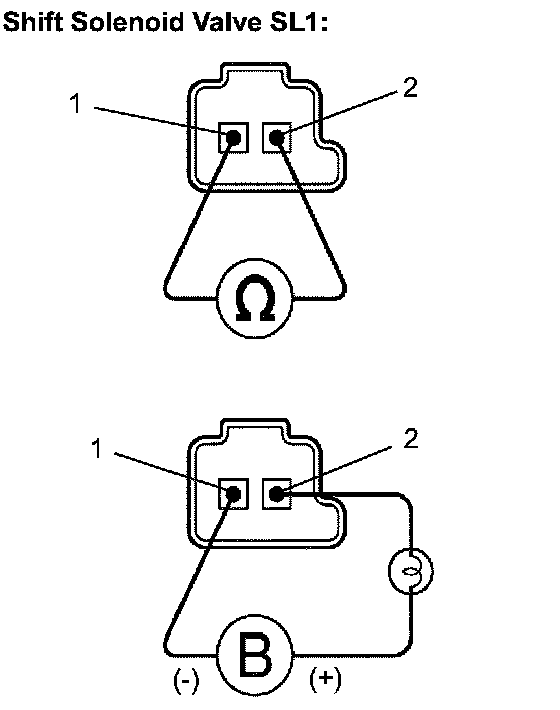

Shift Solenoid Valve SL1:
7. INSPECT SHIFT SOLENOID VALVE SL1
(a) Measure the resistance according to the values(s) in the table below.
Standard resistance:
If the value is not as specified, replace the shift solenoid valve.
(b) Connect the positive (+) lead to terminal 2 of the solenoid connector, and the negative (-) lead to terminal 1 of the solenoid connector.
OK: The solenoid valve makes an operating sound. If the result is not as specified, replace the shift solenoid valve.
REASSEMBLY
1. INSTALL SHIFT SOLENOID VALVE SL1

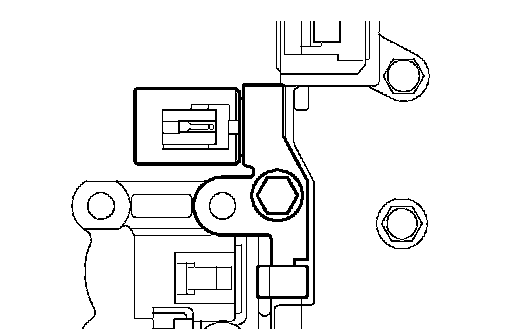

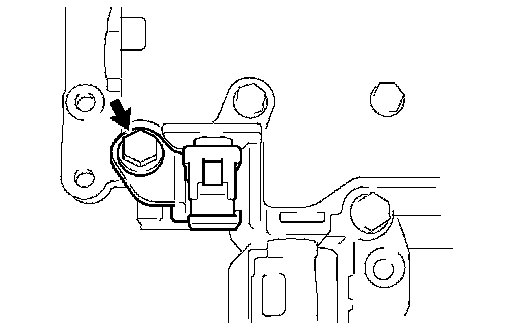

(a) Install the shift solenoid valve SL1 and lock plate to the valve body assembly with the bolt.
Torque: 6.6 Nm (67 kgf-cm, 58 inch lbs.)
2. INSTALL SHIFT SOLENOID VALVE SL2
(a) Install the shift solenoid valve SL2 and lock plate to the valve body assembly with the bolt.
Torque: 11 Nm (112 kgf-cm, 8 ft. lbs.)

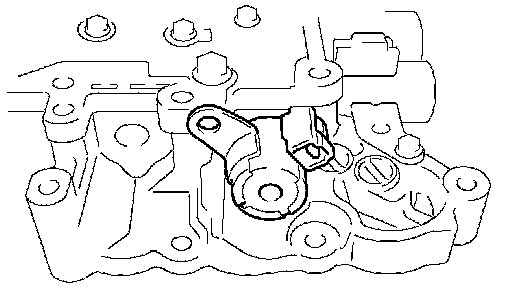

3. INSTALL SHIFT SOLENOID VALVE DSL
(a) Install the shift solenoid valve DSL to the valve body assembly with the bolt.
Torque: 11 Nm (112 kgf-cm, 8 ft. lbs.)
4. INSTALL SHIFT SOLENOID VALVE SR
(a) Install the shift solenoid valve SR to the valve body assembly.
5. INSTALL SHIFT SOLENOID VALVE S4
(a) Install the shift solenoid valve S4 to the valve body assembly with the bolt.
Torque: 11 Nm (112 kgf-cm, 8 ft. lbs.)

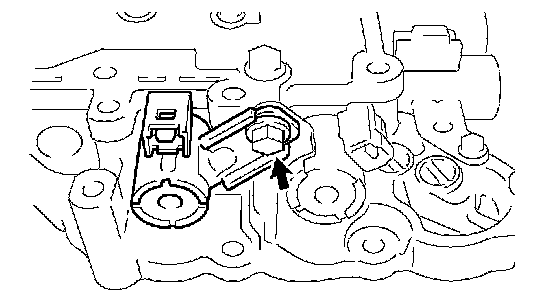

6. INSTALL SHIFT SOLENOID VALVE SL3
(a) Install the shift solenoid valve SL3 to the valve body assembly.

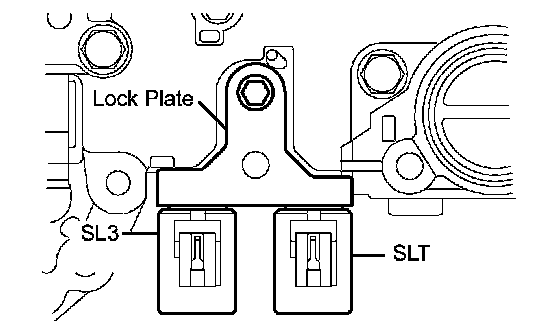

7. INSTALL SHIFT SOLENOID VALVE SLT
(a) Install the shift solenoid valve SLT and lock plate to the valve body assembly with the bolt.
Torque: 6.6 Nm (67 kgf-cm, 58 inch lbs.)
INSTALLATION
1. INSTALL TRANSMISSION VALVE BODY ASSEMBLY
2. INSTALL VALVE BODY OIL STRAINER ASSEMBLY
3. INSTALL TRANSMISSION WIRE
4. INSTALL AUTOMATIC TRANSAXLE OIL PAN SUBASSEMBLY
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY
