Forward Clutch

FORWARD CLUTCH

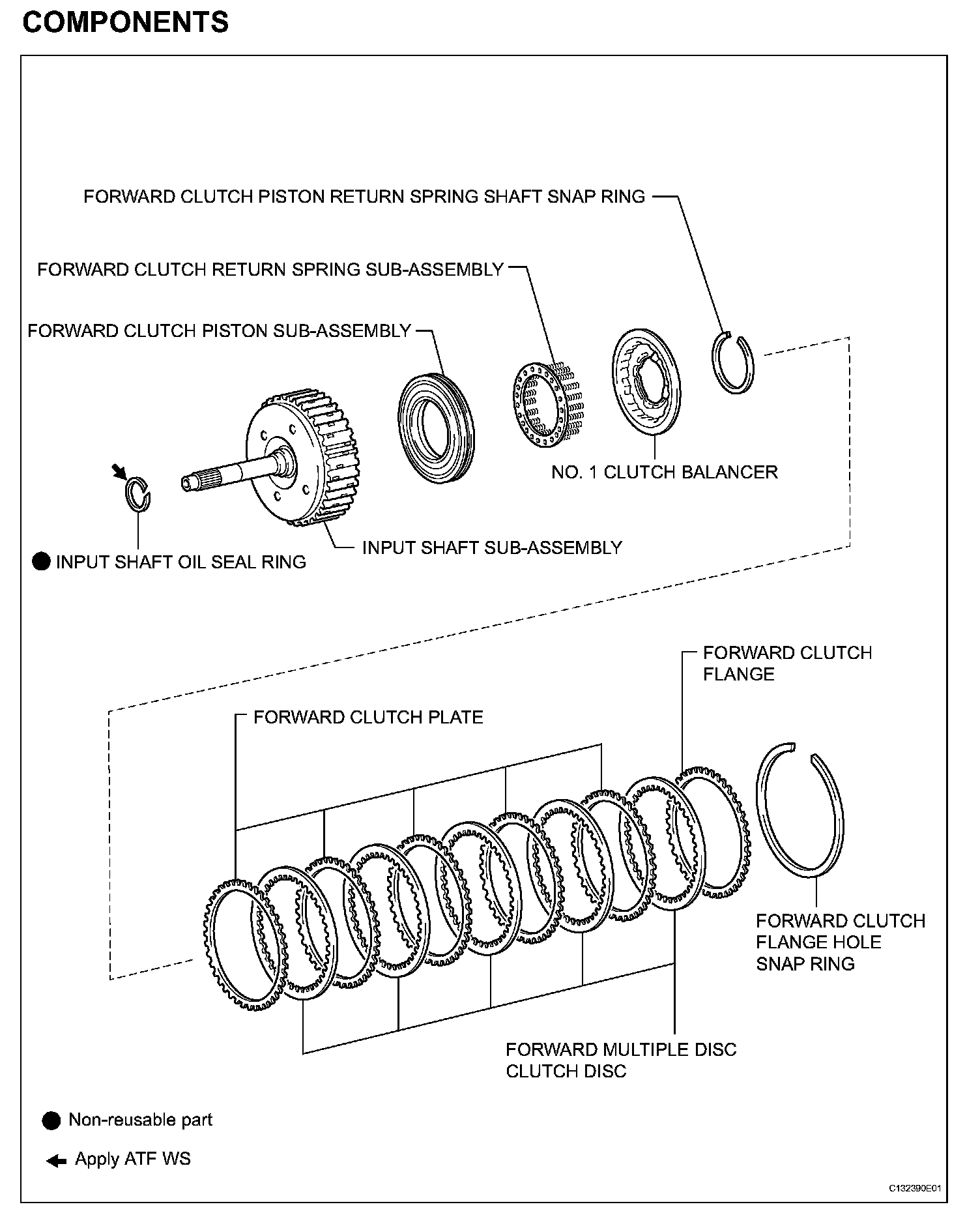

COMPONENTS:

DISASSEMBLY
1. INSPECT PACK CLEARANCE OF FORWARD CLUTCH

2. REMOVE FORWARD MULTIPLE DISC CLUTCH DISC

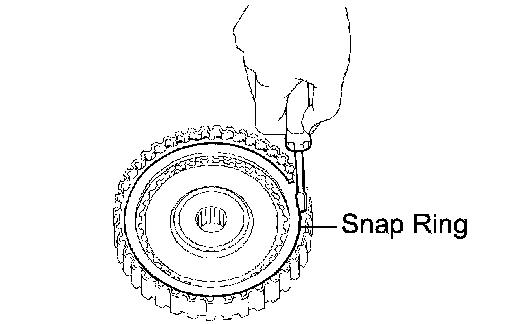

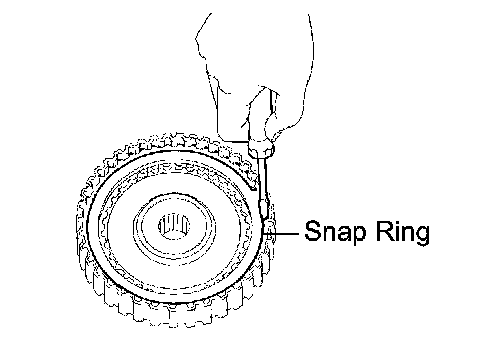

(a) Using a screwdriver, remove the snap ring.

(b) Remove the flange, 5 discs and 5 plates from the input shaft assembly.

3. REMOVE FORWARD CLUTCH RETURN SPRING SUBASSEMBLY

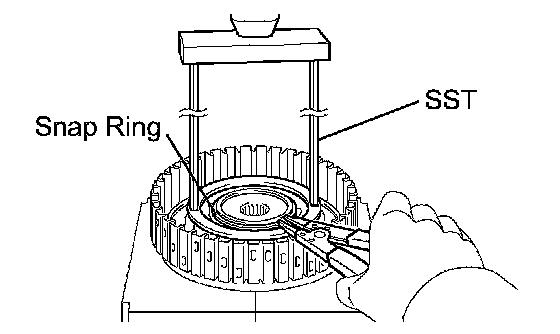

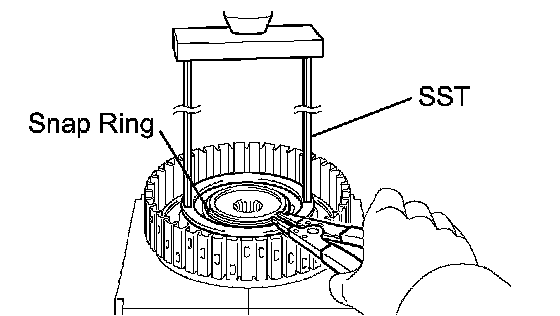

(a) Place SST on the spring retainer and compress the return spring with a press.
SST 09387-00020
(b) Using a snap ring expander, remove the snap ring.

NOTICE:
^ Stop the press when the spring seat is lowered to the place 1 to 2 mm (0.039 to 0.078 inch) from the snap ring groove. This prevents the spring seat from bearing deformed.
^ Do not expand the snap ring excessively.

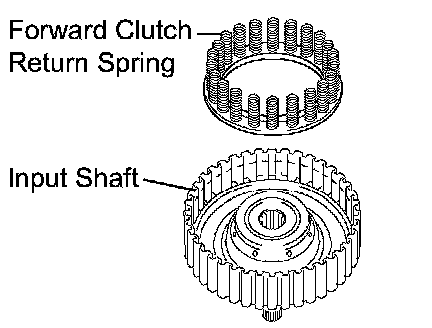

(d) Remove the forward clutch return spring from the input shaft.

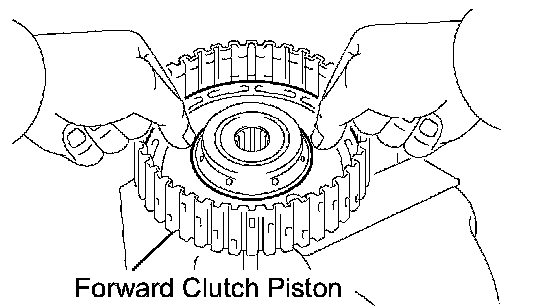

4. REMOVE FORWARD CLUTCH PISTON SUBASSEMBLY

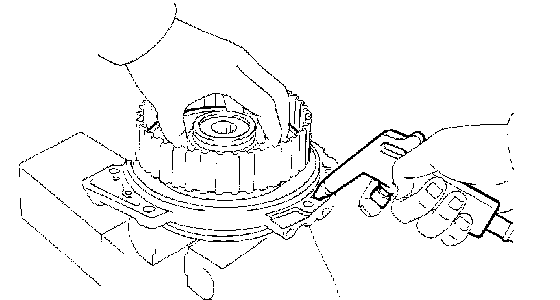

(a) Place the forward clutch drum onto the oil pump.
(b) Holding the forward clutch piston by hand, apply compressed air (392 kPa, 4.0 kgf/cm2, 57 psi) to the oil pump to remove the forward clutch piston.

HINT: When the piston cannot be removed as it is slanted, either blow the air again with the protruding side pushed, or remove the piston using needle nose pliers with the tips taped.

5. REMOVE INPUT SHAFT OIL SEAL RING
(a) Remove the input shaft oil seal ring from the input shaft.

INSPECTION

1. INSPECT PACK CLEARANCE OF FORWARD CLUTCH
(a) Install the forward clutch on the oil pump.

NOTICE: Be careful not to damage the oil seal ring of the oil pump.

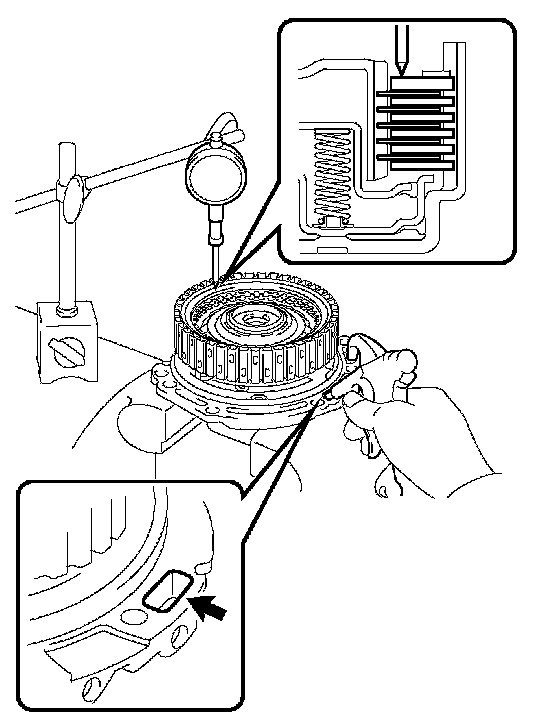

(b) Using a dial indicator, measure the forward clutch pack clearance while applying and releasing compressed air (392 kPa, 4.0 kgf/cm2, 57 psi).
Pack clearance: 1.00 to 1.25 mm (0.0394 to 0.04921 inch)
If the clearance is not within the standard, inspect the discs, plates and flange.
If the piston stroke is less than the minimum, parts may have been assembled incorrectly. Check and reassemble again.

HINT:
^ As the opening is large, cover it with a piece of cloth or shop rag to prevent the compressed air from being released.
^ There are 5 different thicknesses of flanges available.

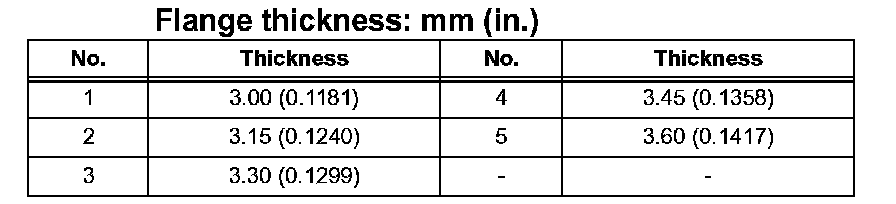

Flange thickness: mm (inch):

2. INSPECT FORWARD MULTIPLE DISC CLUTCH DISC

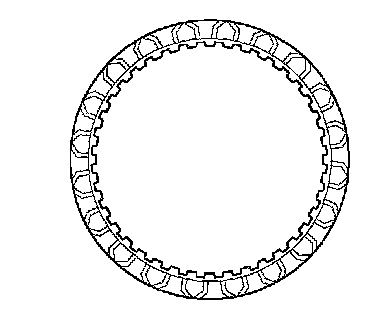

(a) Check if the sliding surfaces of the discs, plates, and flange are worn or burnt.
If necessary, replace them.

HINT:
^ If the lining of a disc comes off or discolors, or even if a part of the groove is damaged, replace all discs.
^ Before assembling new discs, soak them in ATF for at least 15 minutes.

3. INSPECT FORWARD CLUTCH RETURN SPRING SUBASSEMBLY

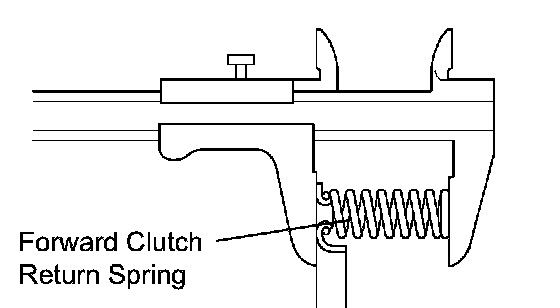

(a) Using vernier calipers, measure the free length of the spring together with the spring seat.
Standard free length: 26.74 mm (1.0528 inch)
If the free length is shorter than the standard free length, replace the forward clutch return spring subassembly.

4. INSPECT FORWARD MULTIPLE DISC CLUTCH DISC

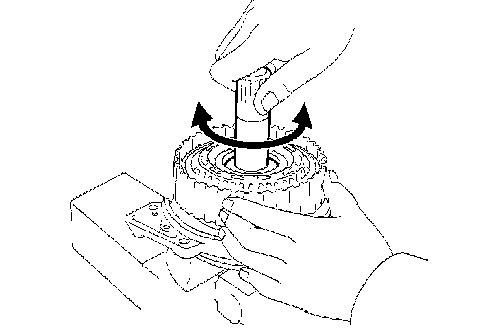

(a) Check if the disc lightly rotates when rotating the forward clutch assembly after inserting the multiple disc clutch into it.

NOTICE: Do not place the forward clutch assembly in a vise.

REASSEMBLY

1. INSTALL INPUT SHAFT OIL SEAL RING

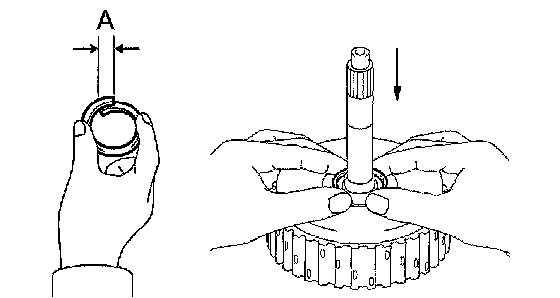

(a) Compress a new input shaft oil seal ring from both sides to adjust dimension A.
Dimension A: 5 mm (0.197 inch)
(b) Coat the oil seal ring with ATF and install it to the input shaft.

NOTICE: Do not expand the gap of the oil seal ring too much. Securely engage the hooks.

2. INSTALL FORWARD CLUTCH PISTON SUBASSEMBLY
(a) Coat the forward clutch piston with ATF, and install it to the input shaft.

NOTICE: Be careful not to damage the lip seal of the forward clutch piston.

3. INSTALL FORWARD CLUTCH RETURN SPRING SUBASSEMBLY

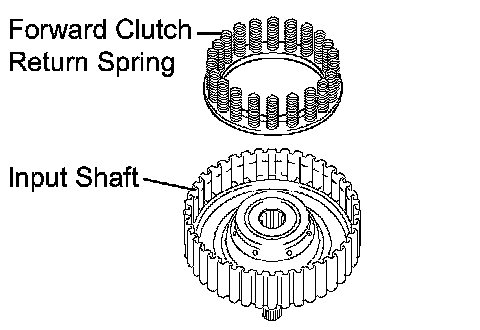

(a) Install the return spring to the input shaft.

NOTICE: After installing the spring subassembly, check all of the springs are fitted in the piston correctly.

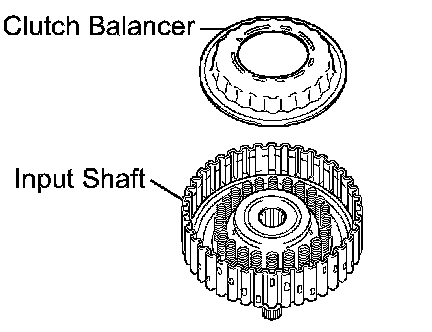

(b) Coat the clutch balancer with ATF.

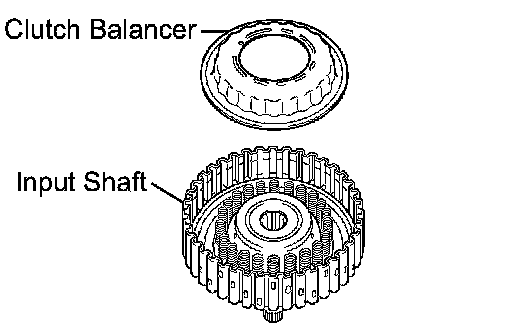

(c) Install the clutch balancer to the input shaft.

NOTICE:
^ Be careful not to damage the lip seal of the forward clutch balancer.
^ Install the clutch balancer carefully not to have a pinching or any other defects at the sealing lip.
^ Apply enough ATF to the sealing lip prior to installation.

(d) Place SST on the clutch balancer, and compress the clutch balancer with a press.
SST 09387-00020
(e) Install the snap ring with a snap ring expander.

NOTICE:
^ Stop the press when the spring seat is lowered to the place 1 to 2 mm (0.039 to 0.078 inch) from the snap ring groove. This prevents the spring seat from being deformed.
^ Do not expand the snap ring excessively.

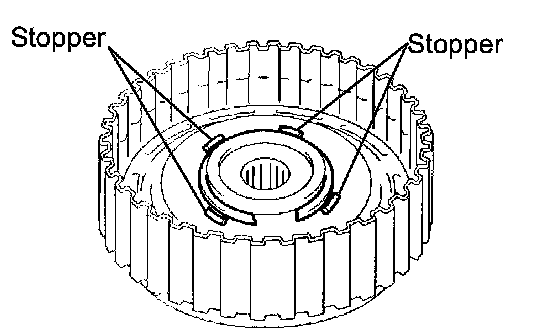

(f) Position the end gap of the snap ring in the piston as shown in the illustration.

NOTICE: The end gap of the snap ring should not be aligned with any of the stoppers.

4. INSTALL FORWARD MULTIPLE DISC CLUTCH DISC
(a) Coat the 5 discs with ATF.

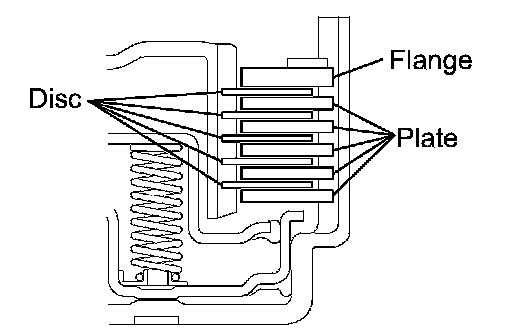

(b) Install the 5 plates, 5 discs, and flange to the input shaft.

NOTICE: Be careful about the order of discs, plates, and flange.

(c) Using a screwdriver, install the snap ring.
(d) Check that the end gap of the snap ring is not aligned with one of the cutouts.

NOTICE: The snap ring should be securely engaged in the groove of the drum.

5. INSPECT PACK CLEARANCE OF FORWARD CLUTCH
6. INSPECT FORWARD MULTIPLE CLUTCH DISC
