Canada - Audio System - No Sound

Bulletin
TSB2738

Issue Date
April 13, 2007

Market
Canada

Title
NO SOUND FROM AUDIO SYSTEM

Component
BODY ELECTRICAL

Models
'07 Camry

TSB REVISION NOTICE:
- August 15, 2007: The Parts Information table has been added. Step 1 in the Repair Procedure section has been updated.
Previous versions of this TSB should be discarded.

INTRODUCTION:

In some instances where the customer experiences no sound from the vehicles' audio system, the root cause may be the trunk lid torsion bar coming out of its retaining clip and grounding the rear speaker when the trunk is closed. Use the following repair procedure to address this condition.

APPLICABLE VEHICLES:
- 2007 model year Camry vehicles produced BEFORE the Production Change Effective VINs shown below.

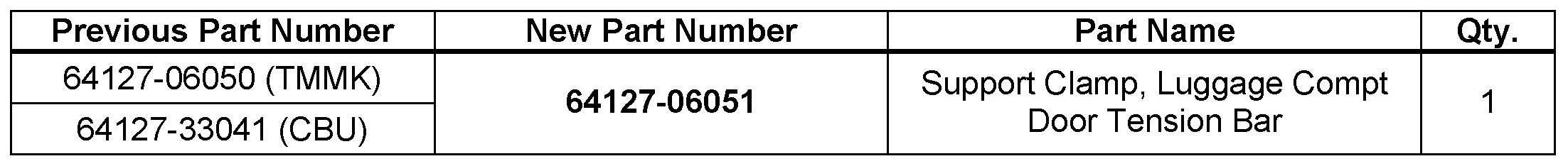

PARTS INFORMATION:

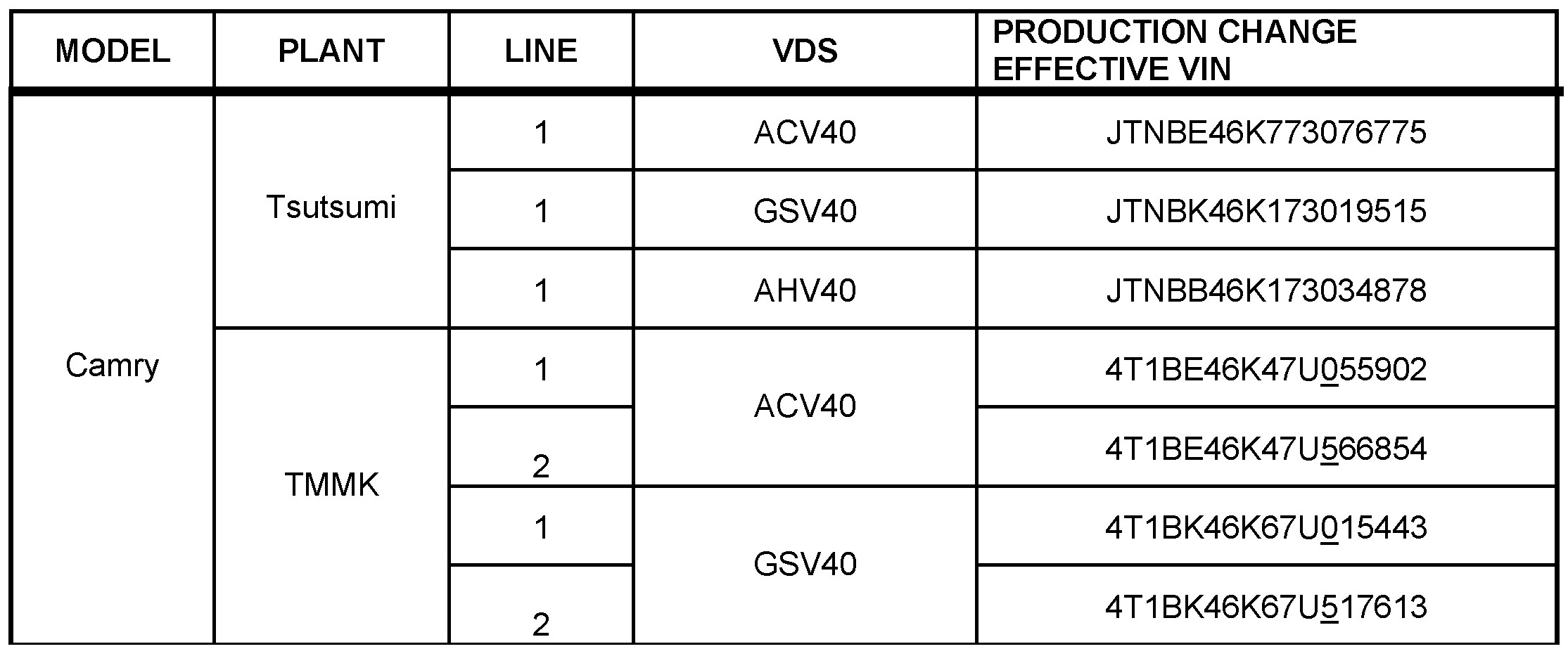

PRODUCTION CHANGE INFORMATION:

NOTE:
The underlined digit in the VIN is the assembly line identifier for TMMK vehicles.

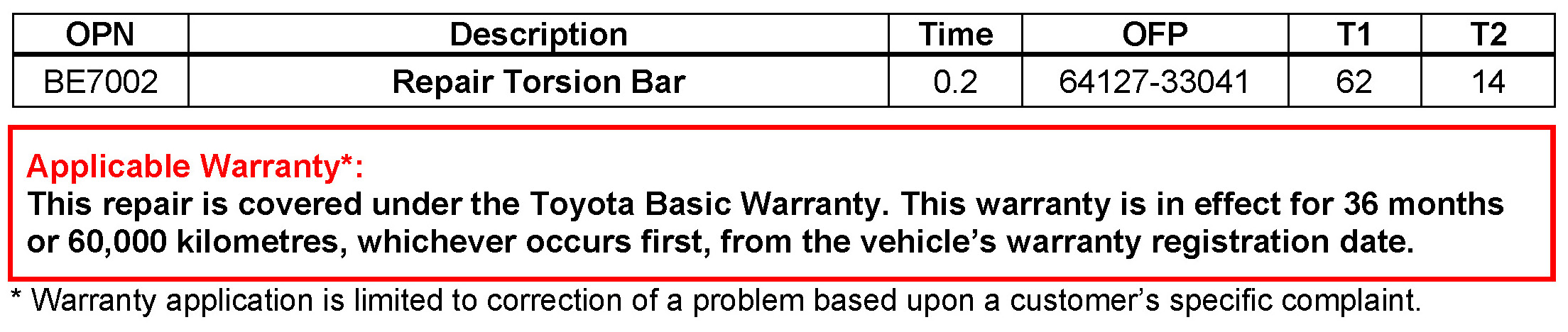

WARRANTY INFORMATION:

REPAIR PROCEDURE:

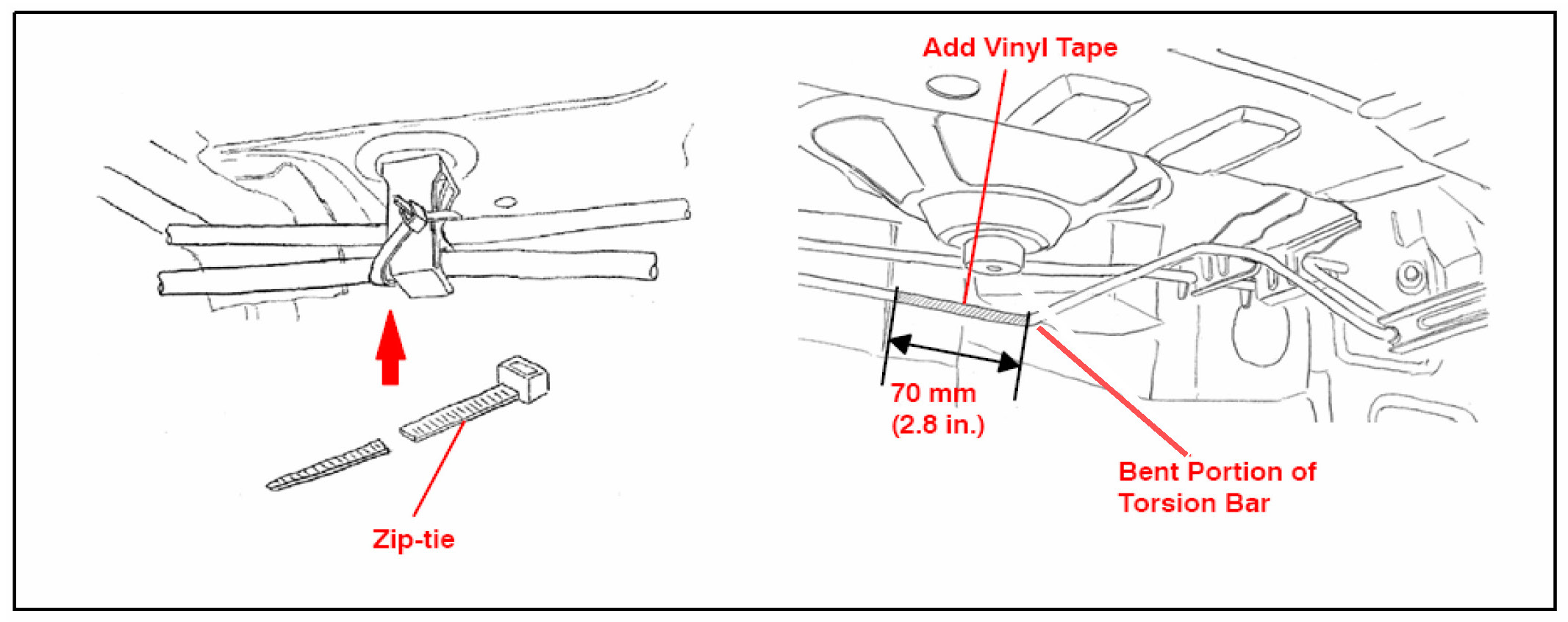

1. Install new torsion bar support clamp and apply electrical (vinyl) tape to the torsion bar spring in the area shown in the illustration.
2. Check audio system operation.
If there is still NO sound from the audio system, diagnose the audio system.
Refer to the Repair Manual within E-TAS / TIS library:
- Division: Toyota
- Model: Camry
- Year: 2007
- Service Category: Audio/Visual/Telematics
- Section: Audio/Video
- Keyword: Audio/Visual: Audio and Visual System: Problem Symptoms Table

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
