Canada - Audio System - Distorted Sound On AM Band

Bulletin
TSB2762

Issue Date
June 13, 2007

Market
Canada

Title
SOUND DISTORTION ON AM RADIO

Component
BODY ELECTRICAL

Models
'07 CAMRY & CAMRY HV

TSB REVISION NOTICE:
- August 16, 2007: The Production Change Information table has been updated.
The previous TSB should be discarded.

INTRODUCTION:

Some customers may experience a condition where certain AM radio stations have a distorted sound even though the signal from the local AM station is strong. A revised radio has been developed to address the condition. Use the following repair procedure to replace the radio.

APPLICABLE VEHICLES:
- 2007 model year Camry and Camry HV vehicles produced BEFORE the Production Change Effective VINs shown below.

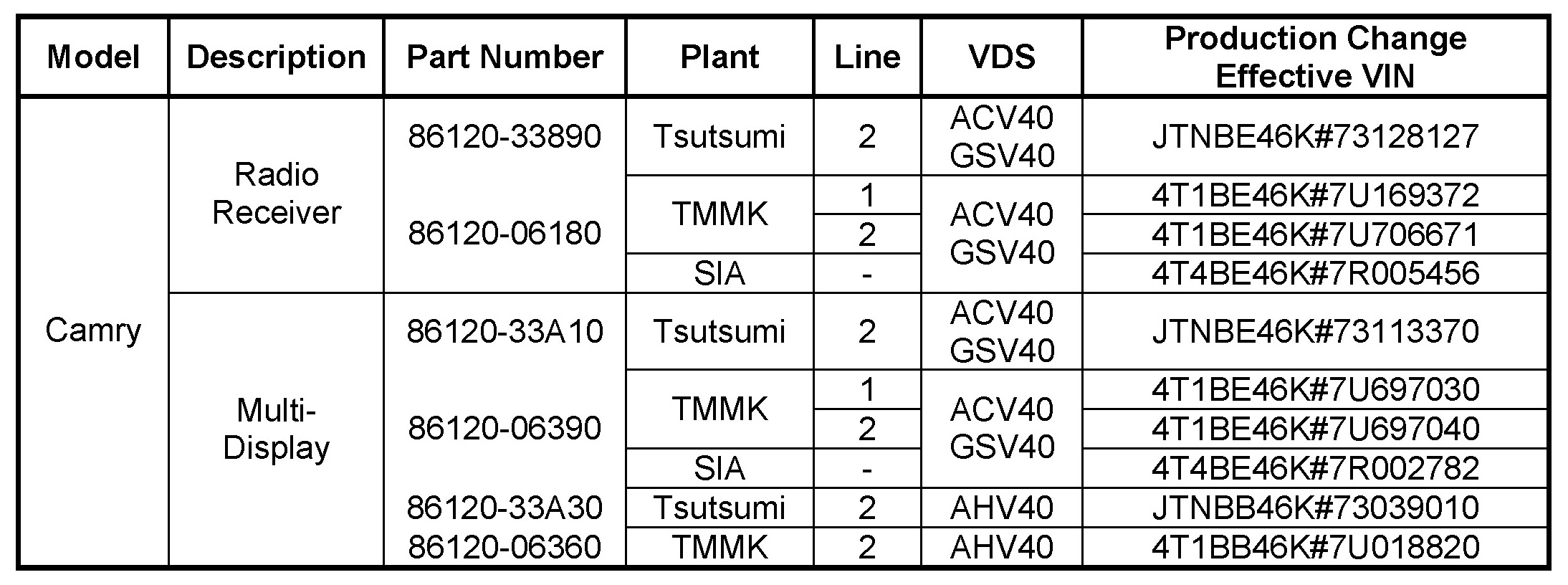

PRODUCTION CHANGE INFORMATION:

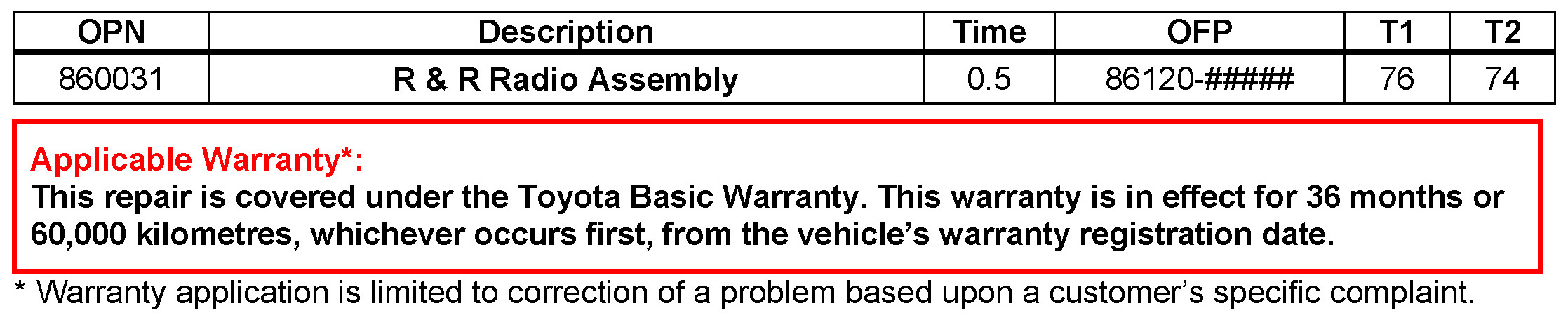

WARRANTY INFORMATION:

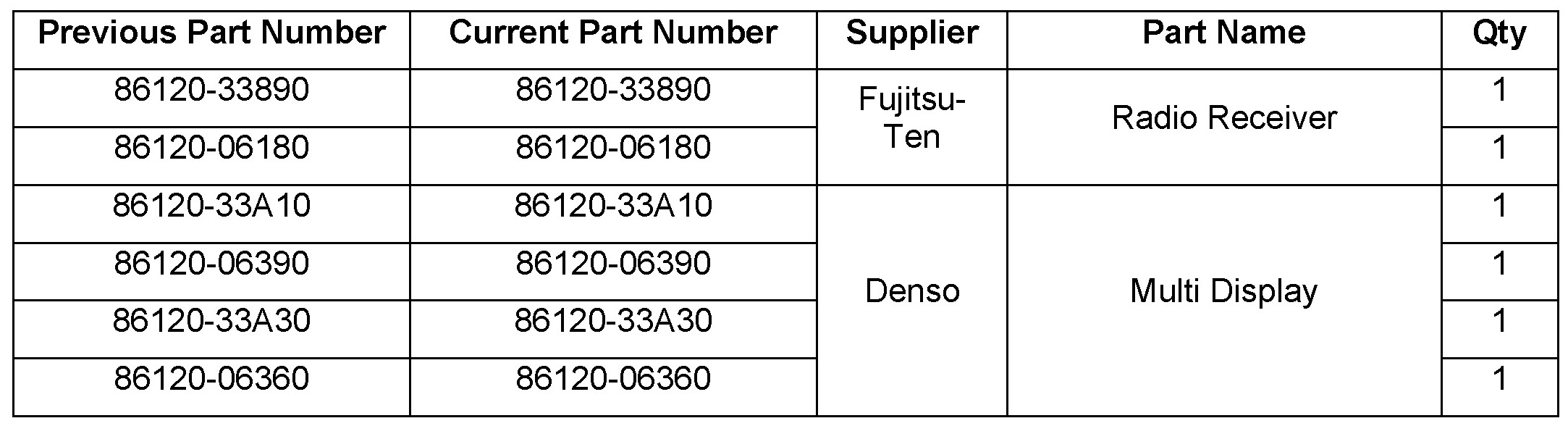

PARTS INFORMATION:

NOTE:
The parts MUST be ordered through the exchange program to qualify for warranty coverage.

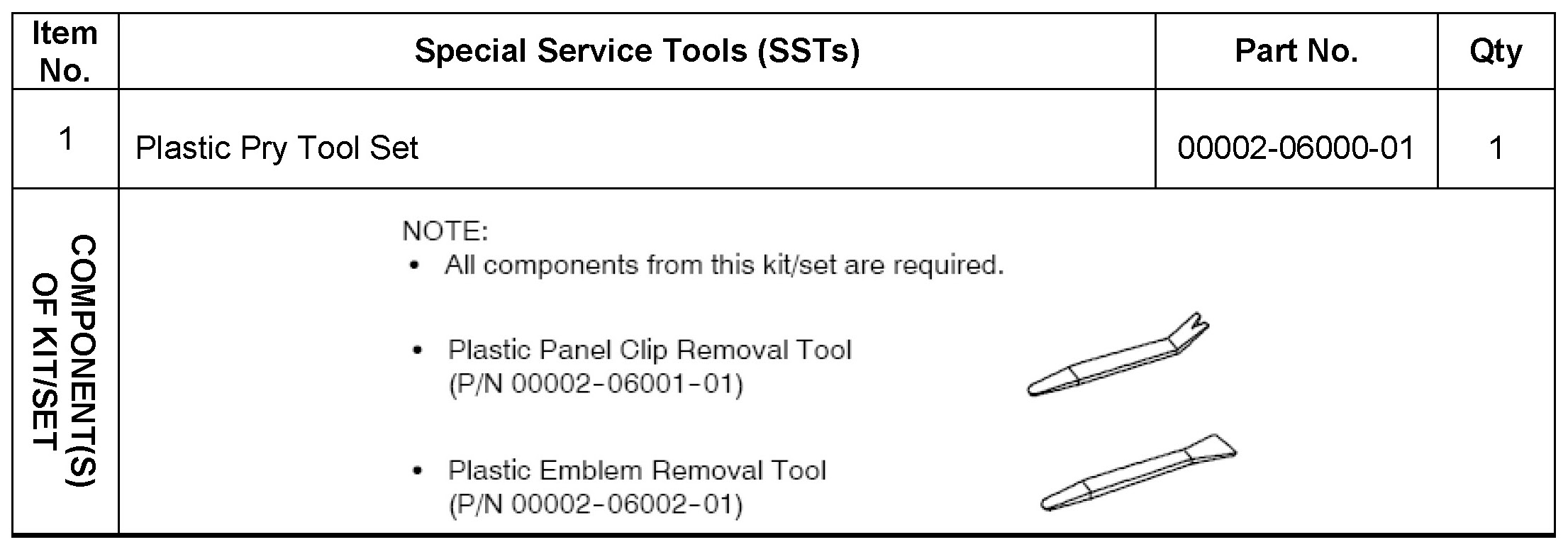

REQUIRED SSTs:

NOTE:
Additional SSTs may be ordered by calling SPX/OTC at 1-800-933-8335.

REPAIR PROCEDURE:

1. Order a replacement radio through the Fujitsu-Ten or Denso exchange program (refer to Warranty Policy Handbook for contact information).
2. Replace the radio.

Refer to the Repair Manual within E-TAS / TIS library:
- Division: Toyota
- Model: Camry
- Year: 2007
- Service Category: Audio/Visual Telematics
- Section: Audio/Video
- Keyword: Audio/Visual: Radio Receiver: Removal

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
