Audio System - Distorted Sound On AM Band

AUDIO
AU003-07
REVISED

Title:
SOUND DISTORTION ON AM RADIO

Models:
'07 Camry & Camry HV

May 2, 2007

TSB REVISION NOTICE:
^ June 27, 2007: The Production Change Information table has been added.

Previous versions of this TSB should be discarded.

Introduction
Some customers may experience a condition where certain AM radio stations have a distorted sound even though the signal from the local AM station is strong. A revised radio has been developed to address the condition. Use the following repair procedure to replace the radio.

Applicable Vehicles

^ 2007 model year Camry vehicles produced BEFORE the Production Change Effective VINs shown below.

^ 2007 model year Camry HV vehicles.

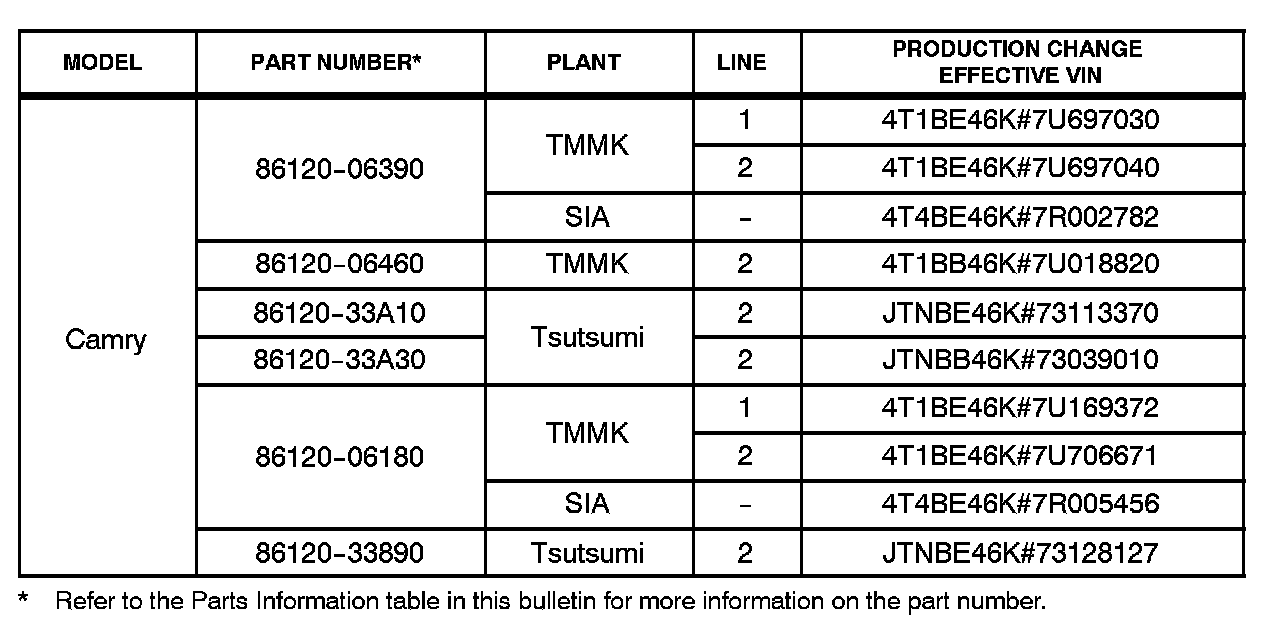

Production Change Information





Warranty Information

Applicable Warranty:*
This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.





Parts Information





Required SSTs

Repair Procedure

1. Order a replacement radio through the Fujitsu-Ten or Denso exchange program (refer to Warranty Policy Handbook for contact information).

2. Replace the radio.

Refer to the Technical Information System (TIS), 2007 Camry or Camry HV Repair Manual, Audio/visual/Telematics - Audio/video - "Audio/Visual: Radio Receiver: Removal".
