Unlock Position Sensor Signal Circuit

Unlock Position Sensor Signal Circuit

DESCRIPTION
The unlock position sensor is one of the components in the steering lock actuator. The sensor switch contact closes when the steering lock is released. The steering lock release signal is then sent to the main body ECU. Receiving the signal, the ECU permits engine start. (This prevents the engine from being started with the steering locked.)

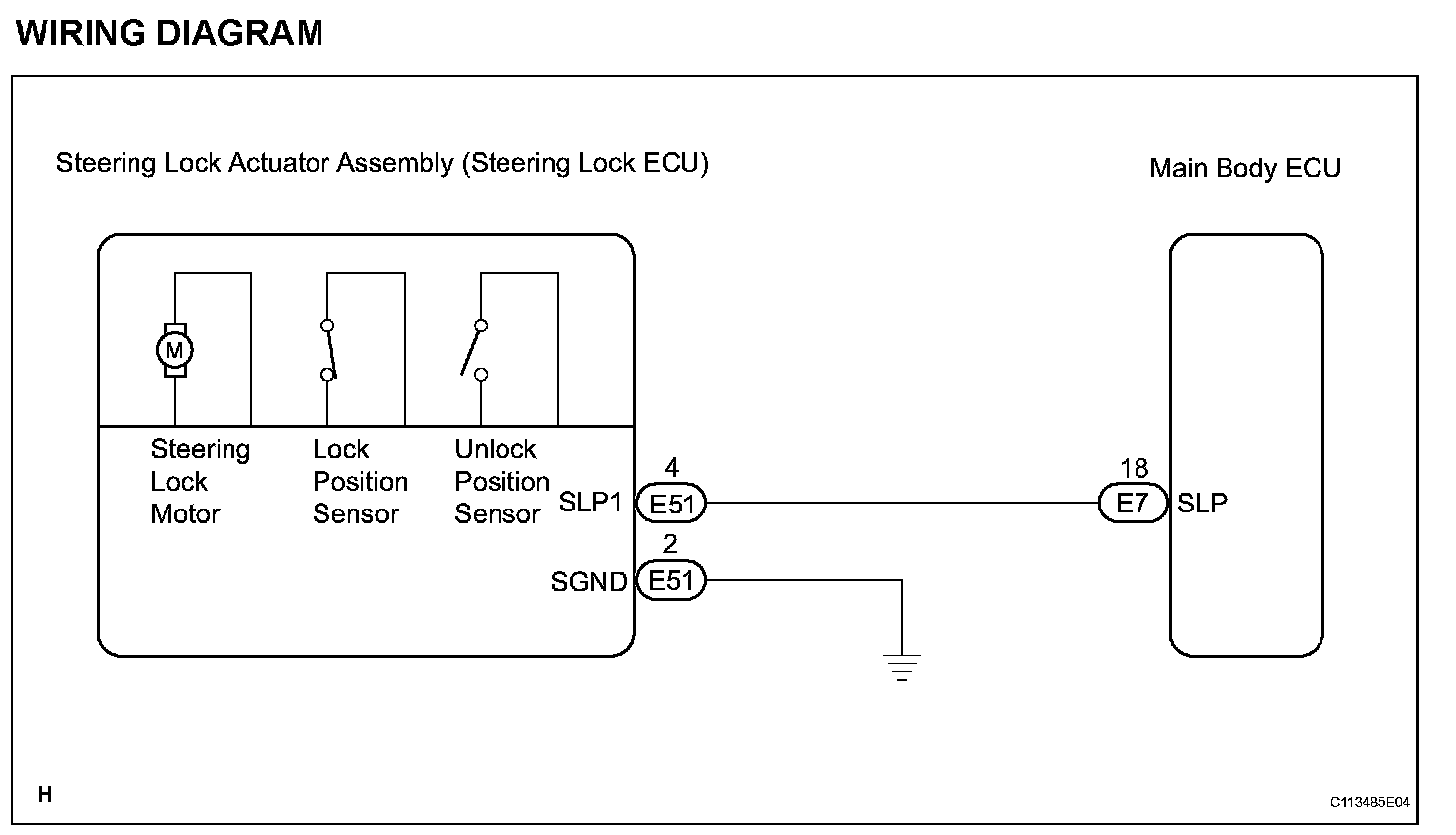

WIRING DIAGRAM:





INSPECTION PROCEDURE

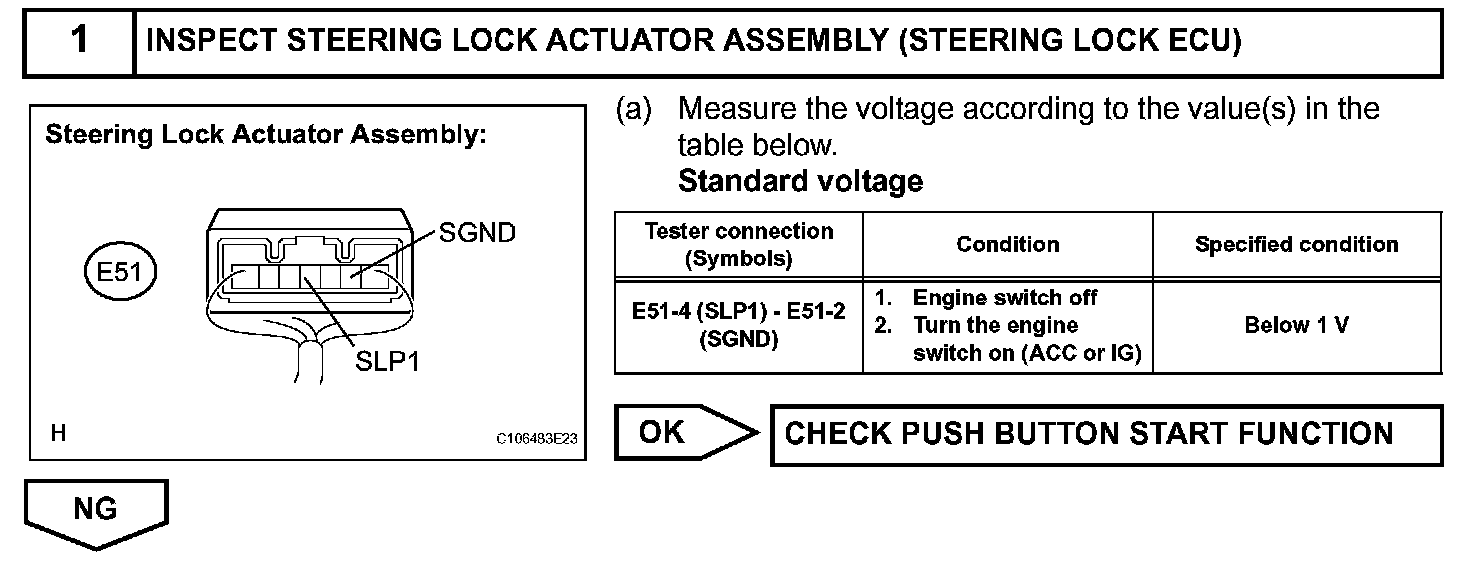

Step 1:




Step 2:
