Power Source Circuit

Power Source Circuit

DESCRIPTION
This circuit supplies voltage from the battery to terminal B of the steering lock ECU. This circuit is used as power source for the steering lock CPU, motor, communication, and peripheral circuits.

WIRING DIAGRAM:





INSPECTION PROCEDURE

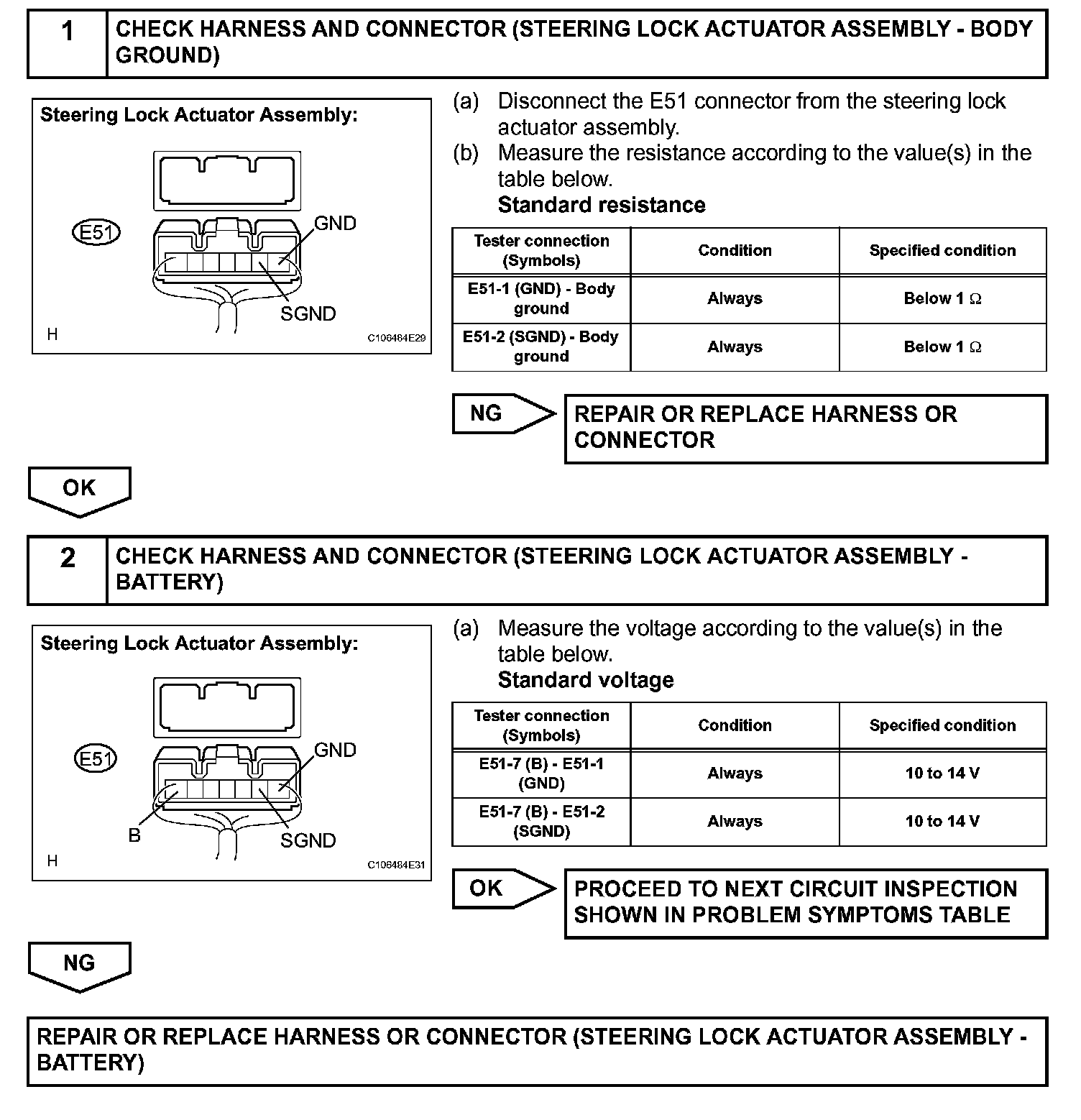

Step 1-2:
