Steering Column: Locations

STEERING COLUMN ASSEMBLY

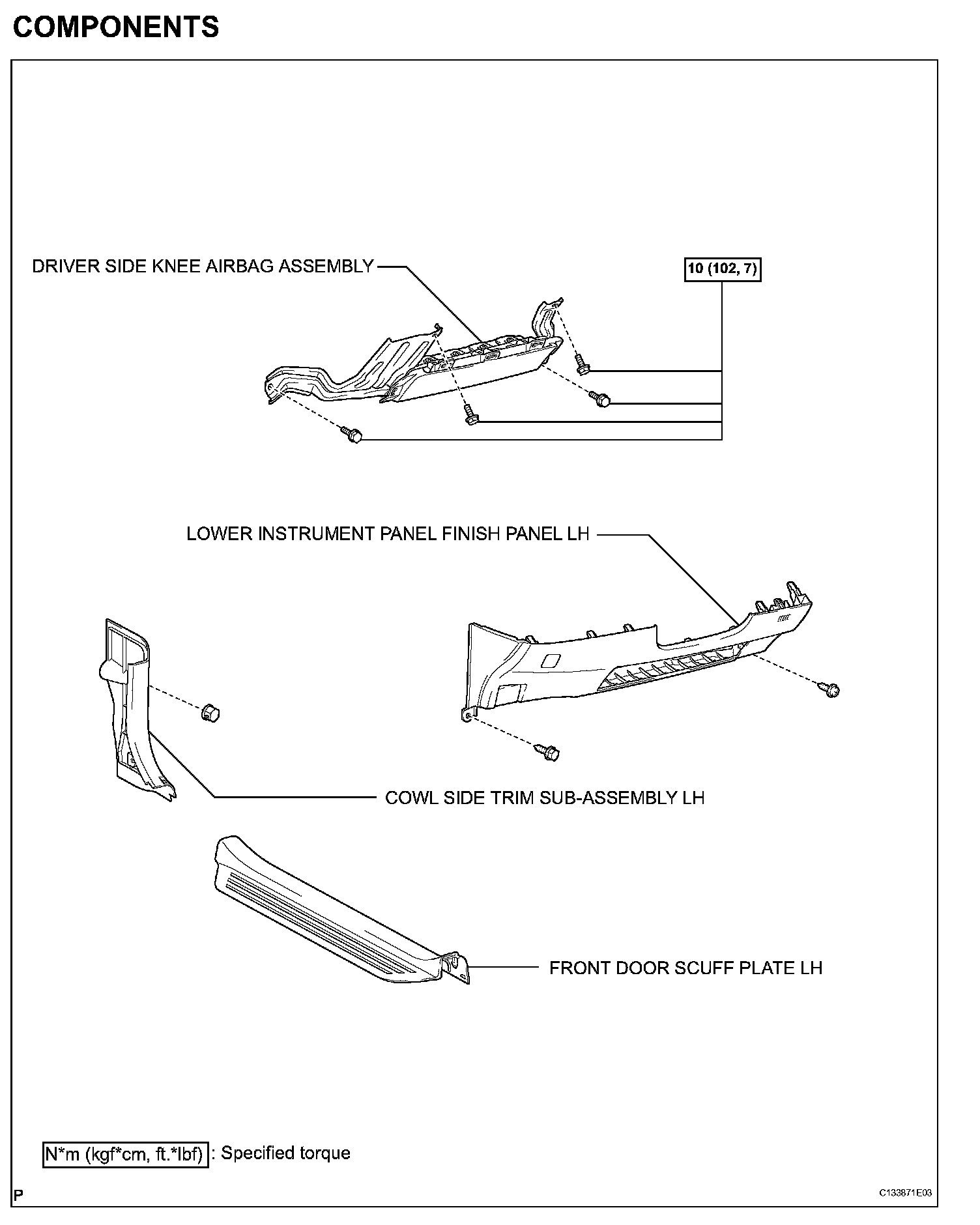

COMPONENTS (Part 1):

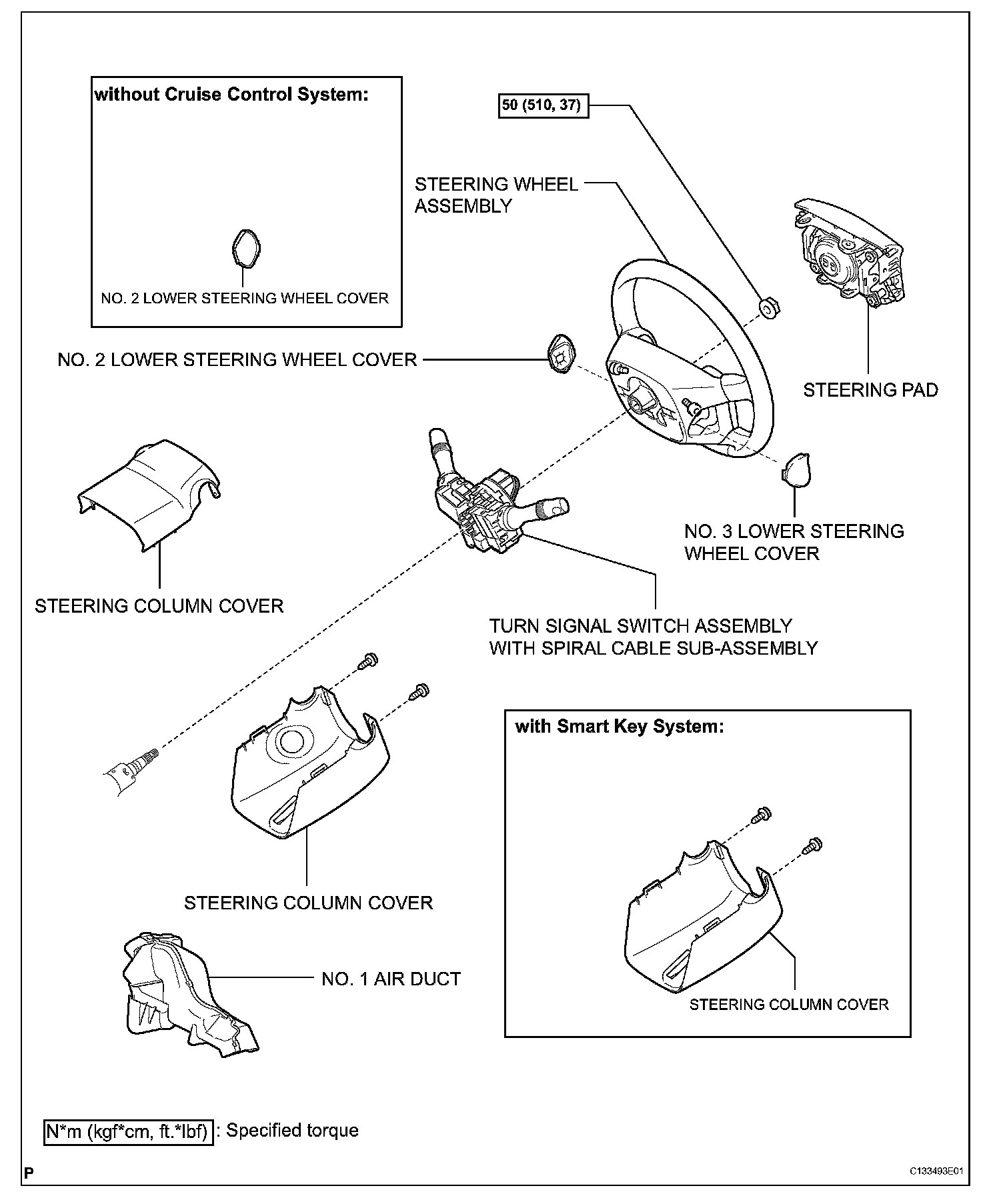

COMPONENTS (Part 2):

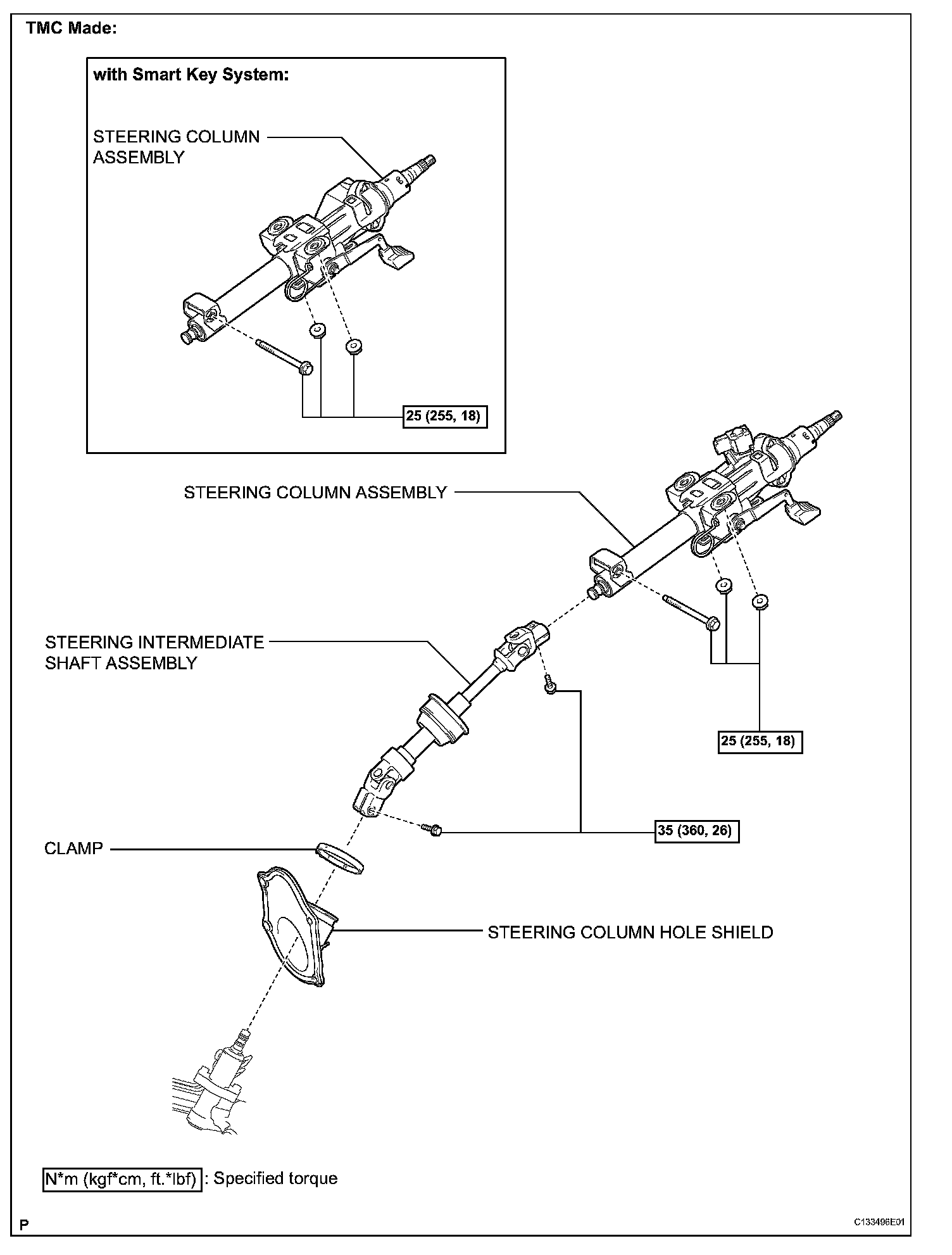

COMPONENTS (Part 3) (TMC Made):

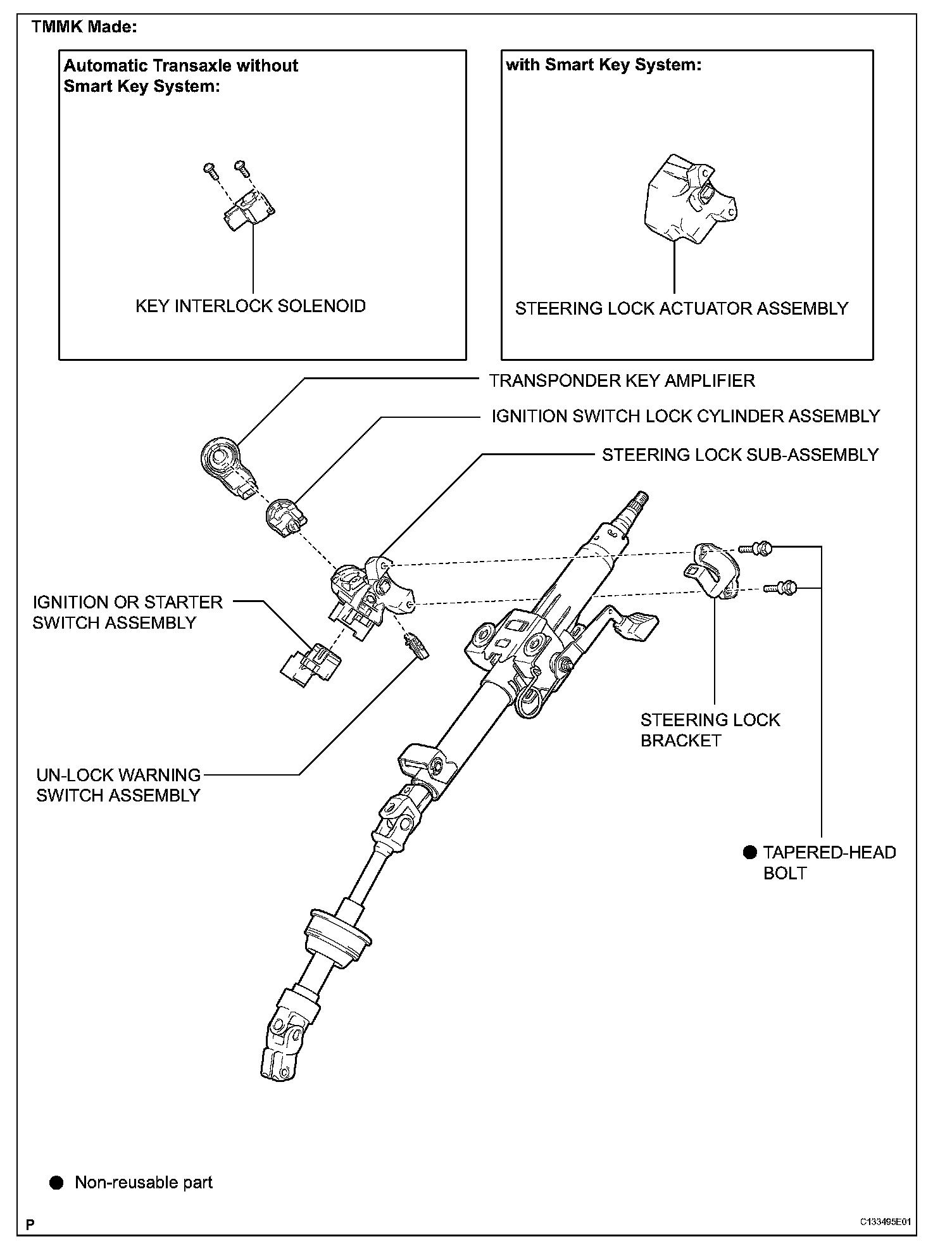

COMPONENTS (Part 4) TMMK Made:

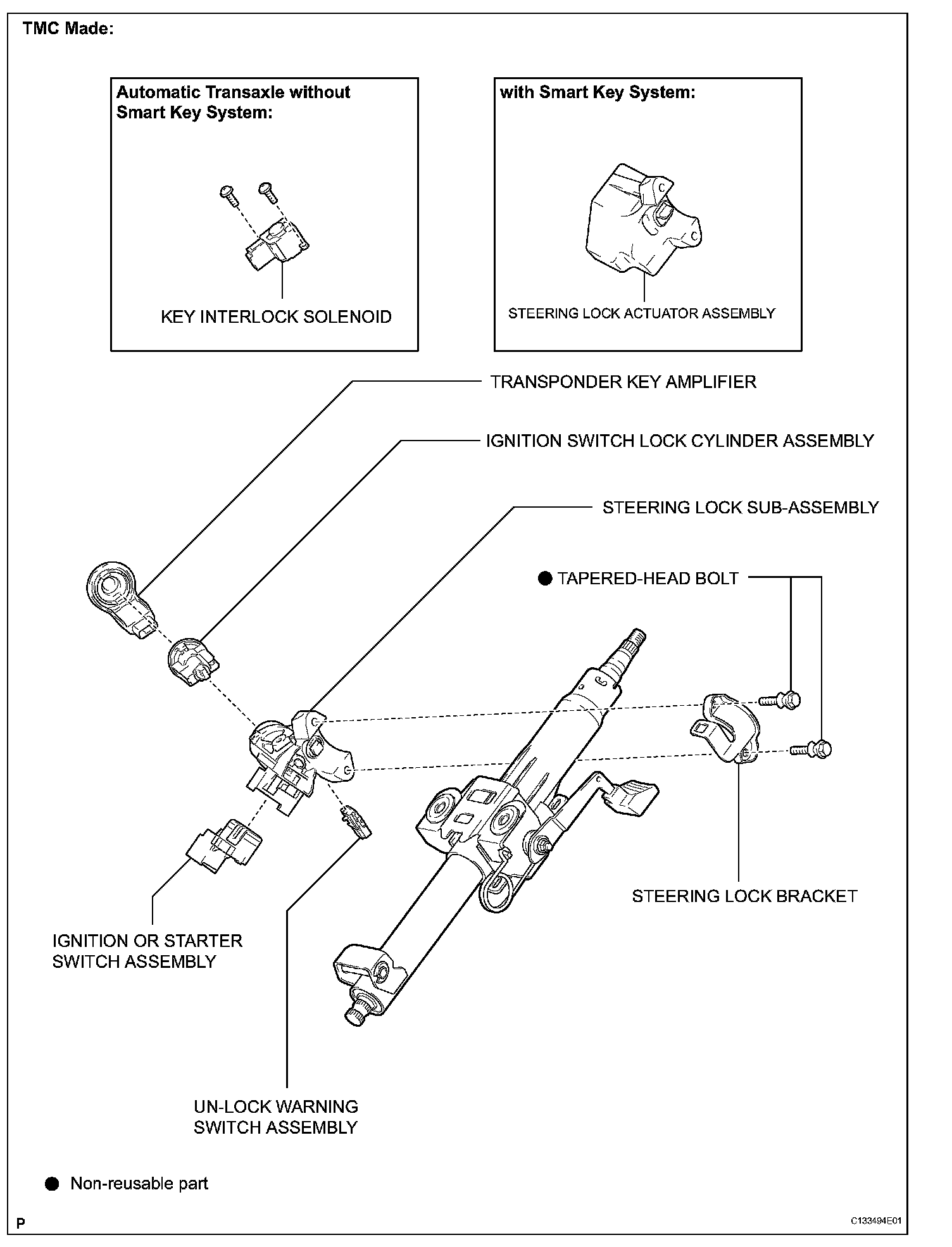

COMPONENTS (Part 5) TMC Made:

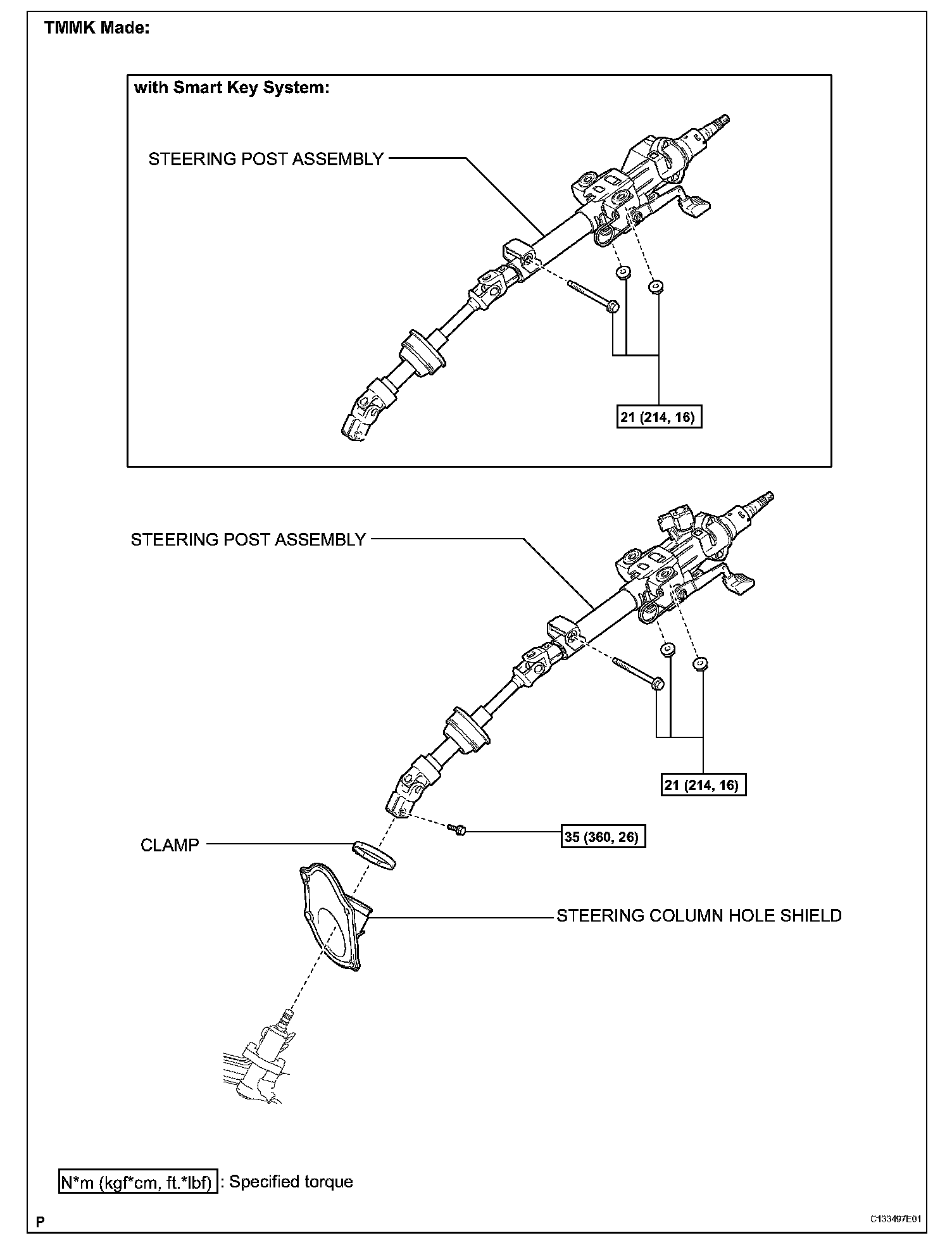

COMPONENTS (Part 6) TMMK Made:
